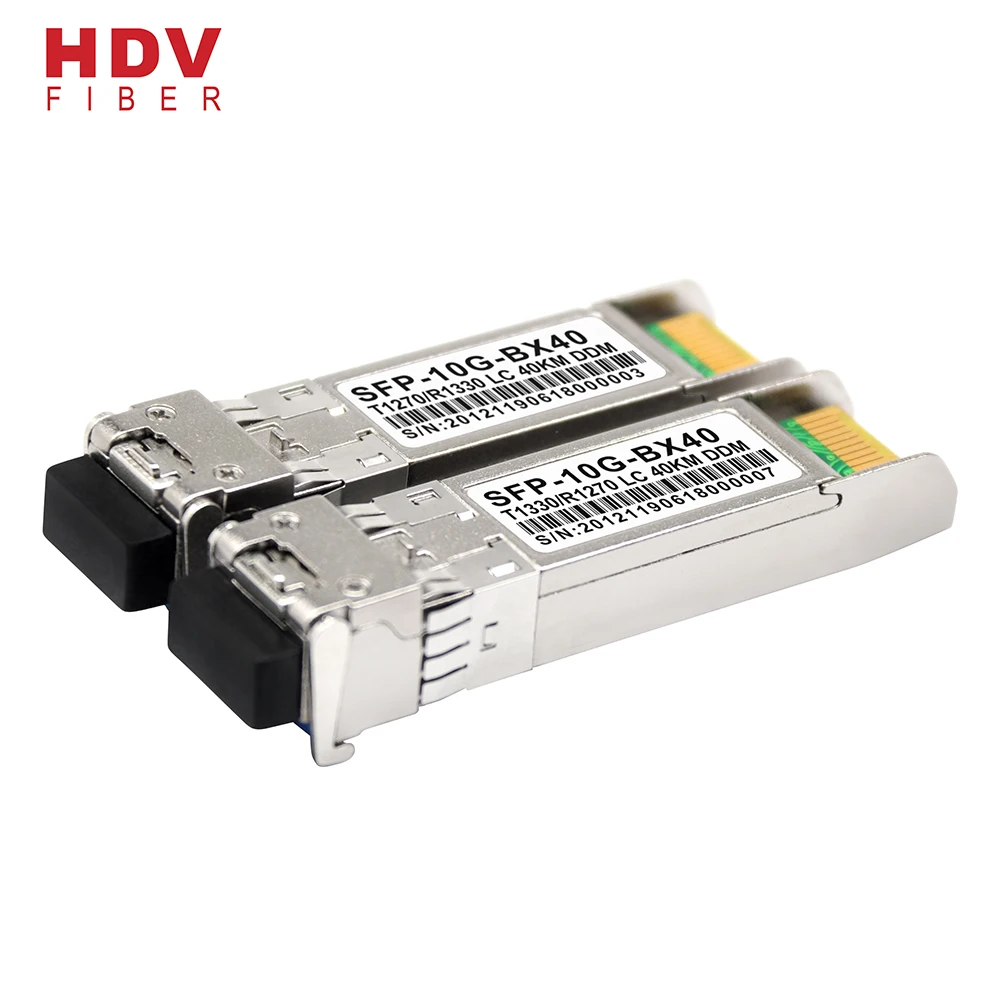

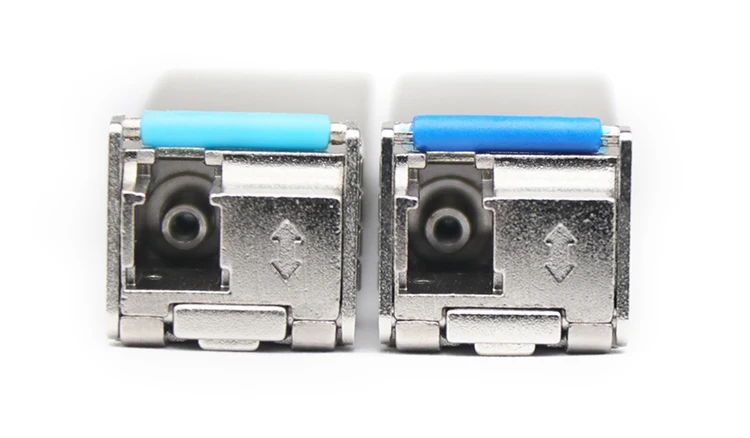

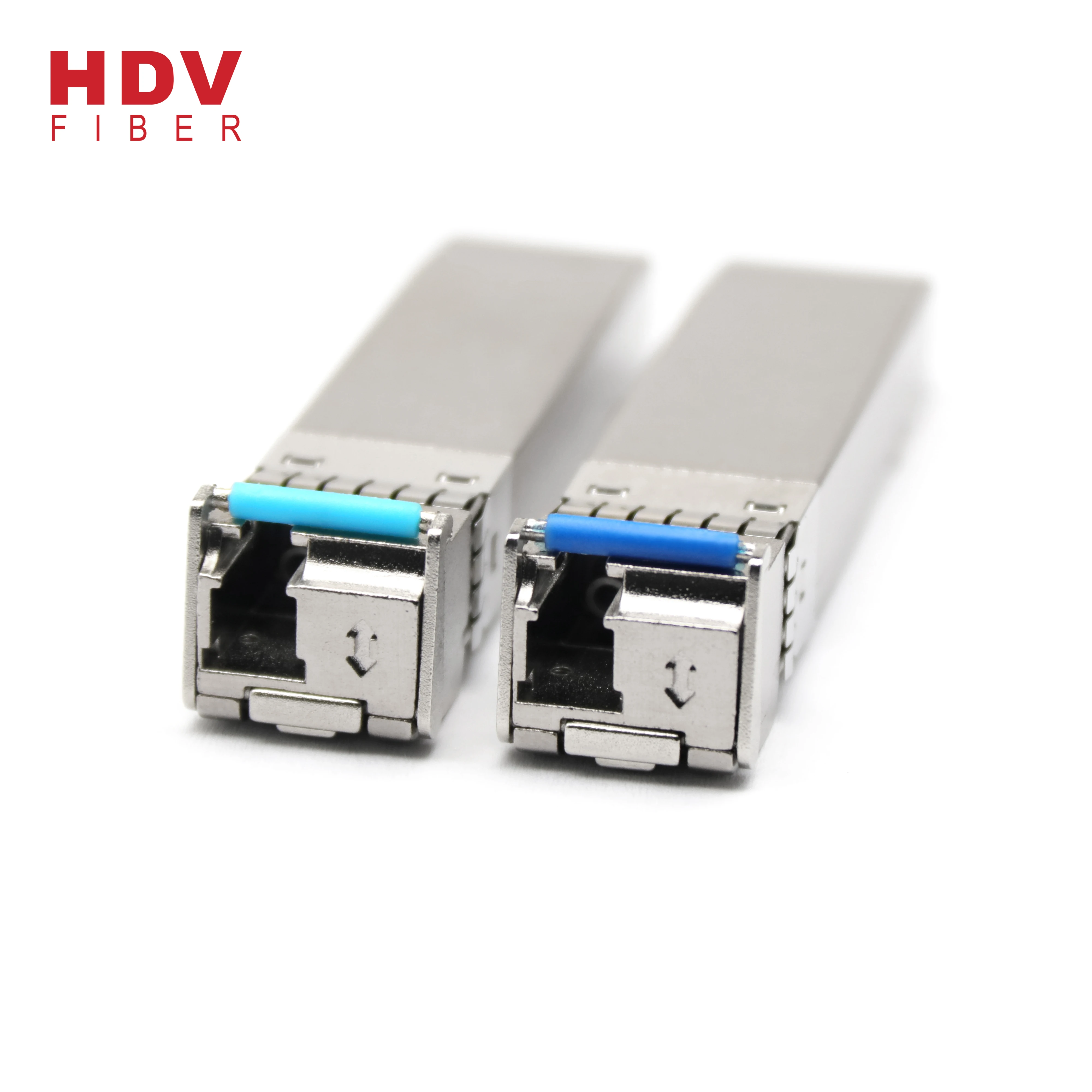

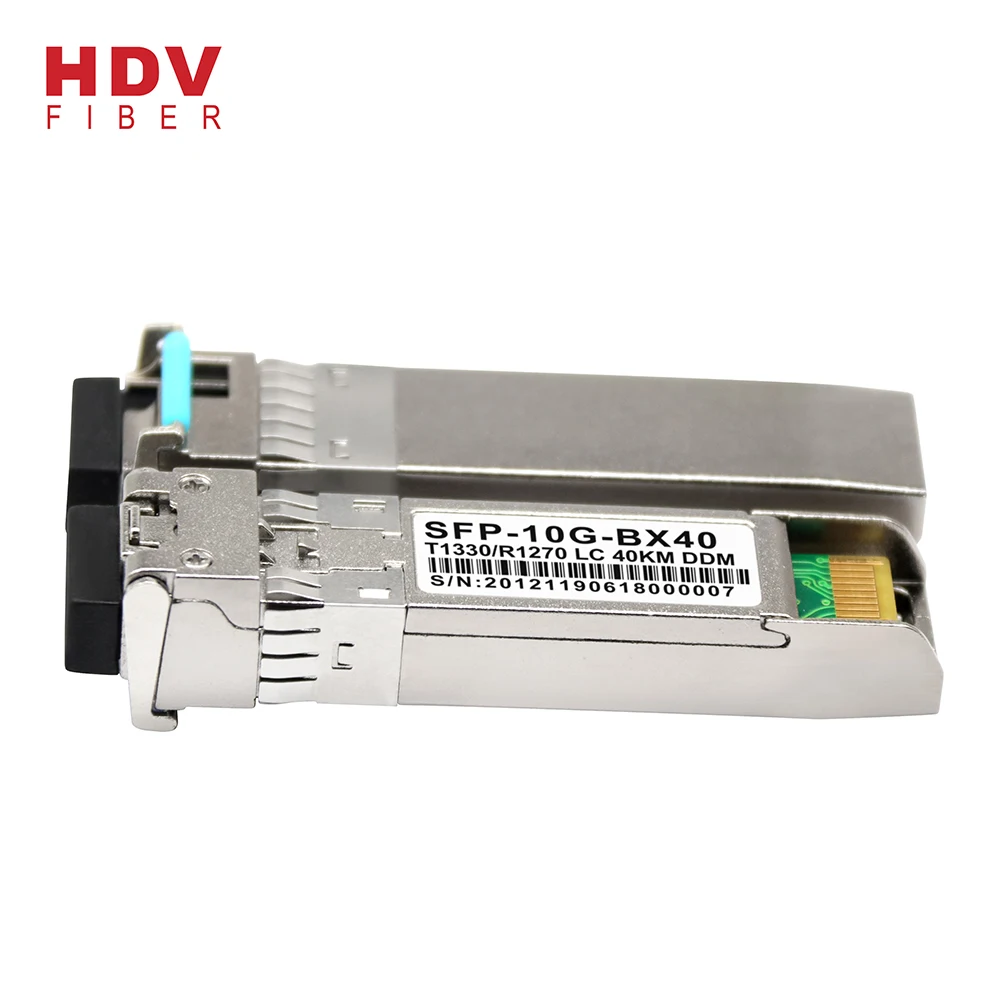

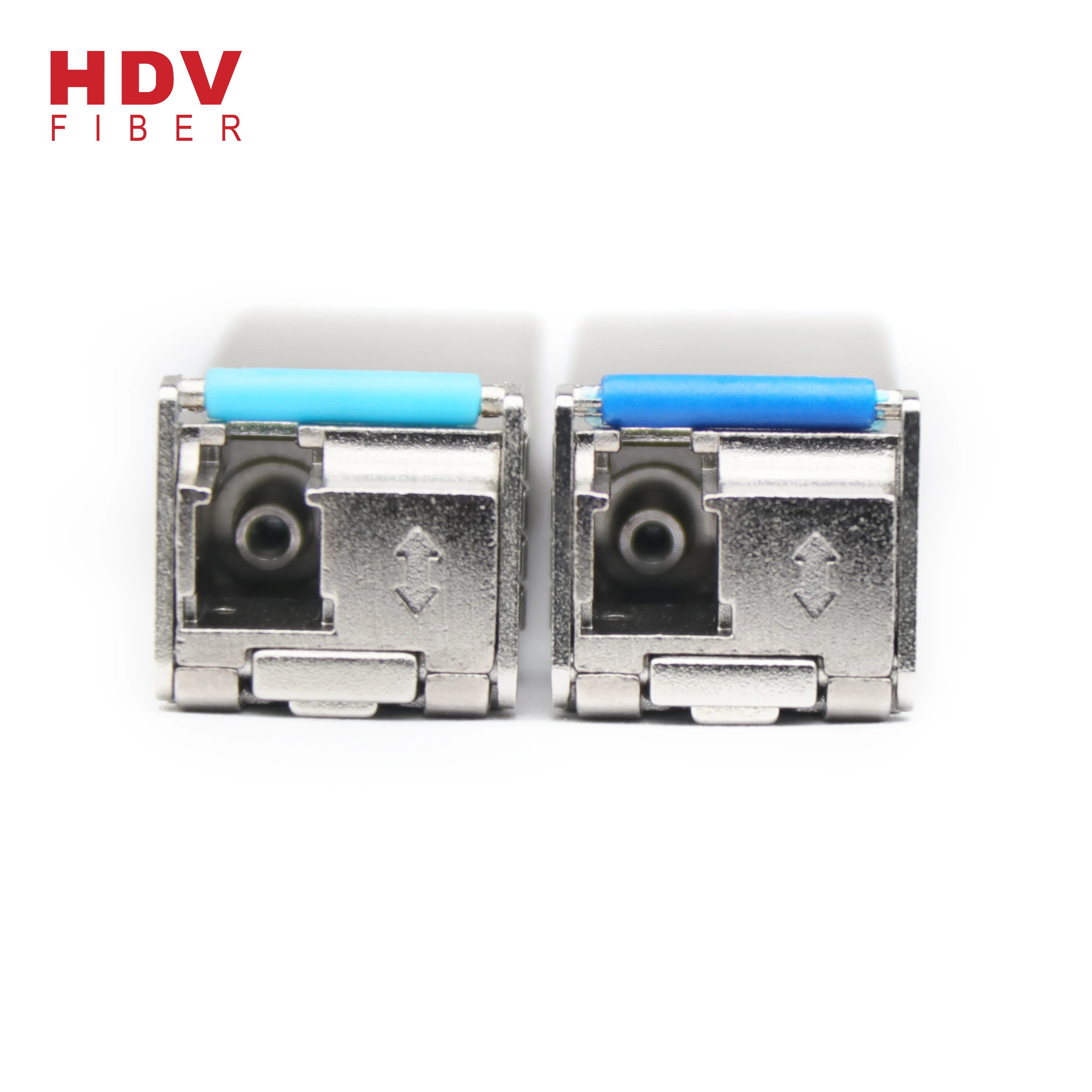

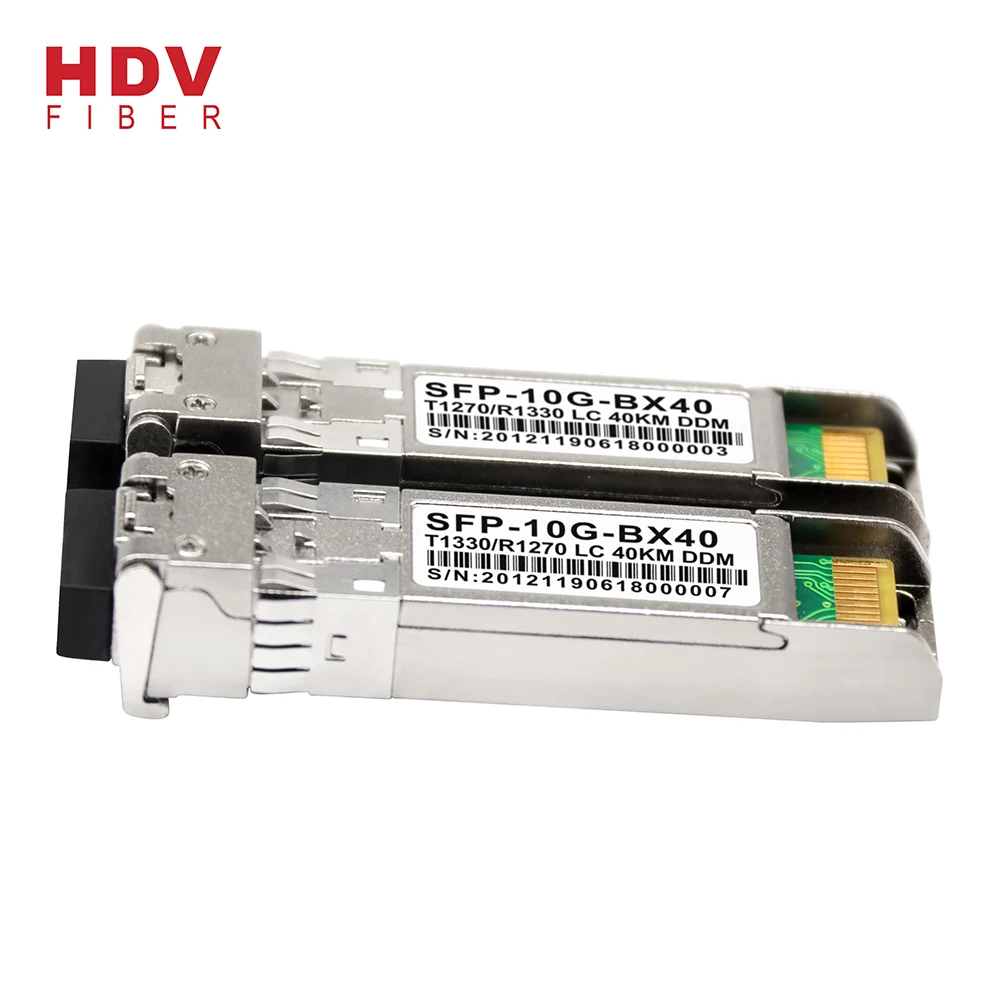

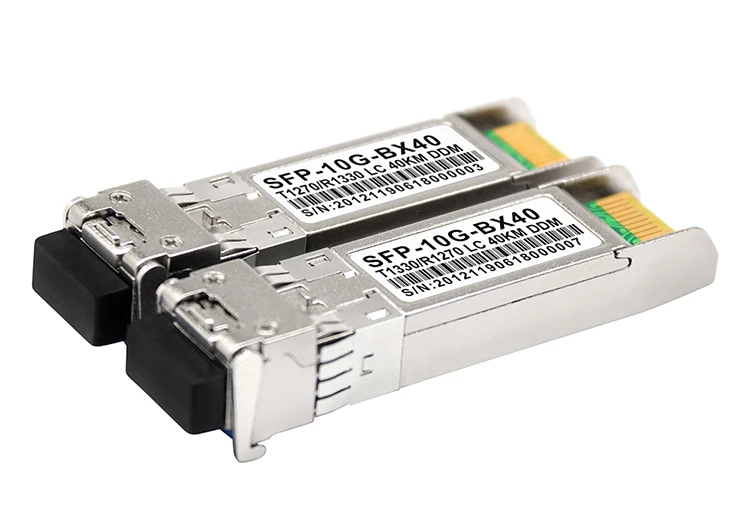

10G Huawei compatible SFP BIDI LC connector 40km sfp transceiver

Product Overview

Description

10G Huawei compatible SFP BIDI LC connector 40km sfp transceiver

1. Main Feature:

1.10G,8G,4G,3G,2.5G,1.25G,155m all rate

2.SFP+,XFP,SFP,SFF,CSFP,are customizable

3.Perfectly compatible with famous switch,ZTE HUAWEI etc

4.DDM

5.Choice from Single mode,muli-mode

6.Choice from dual fiber LC,single fiber SC/LC

7.Low power consumption and high sensitivily

8.Programmable of no light alarm function

9.Complying with ROHS standard

10.The working temperature is up from -40c to ~+85c

11.Complying with Class 1 Laser,and the requirements of IEC60825-1

12.The label can be customized according to customer’s requirements

13.The excellent characteristic of overclocking



2.Technical specification

Brand	OEM, ODM
Place of origin	China
Condition	New
Form Factor	SFP+
Wavelength:	1270/1330nm
Distance	40KM
Data Rate (max)	10G
Transmitter	DFB
Receiver	PIN
Diagnostics	Digital
Low End Case Temperature (°C)	0°C
High End Case Temperature (°C)	70°C
Voltage Supply	3.3v
Connector	LC
Warranty	2 year
Compatible with	ZTE, Huawei, HP etc.
Application	Gigabit Ethernet/Fiber Channel
Time of delivery	2-4 working days
Package	10 pcs/box
