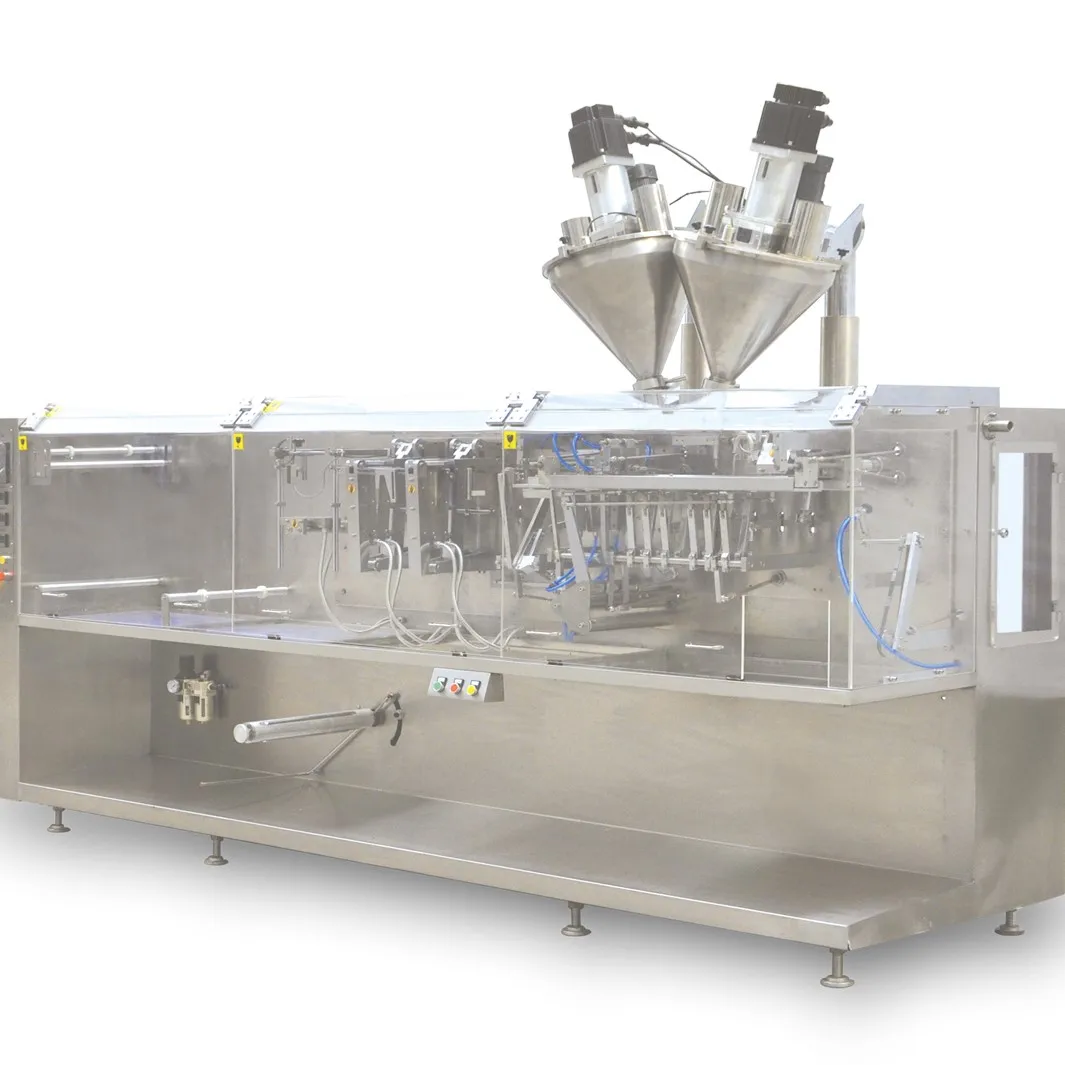

YFM 180 Hanging hole,Special shape,Zipper or spout multi functional packaging machine

Share on (60444956804):


Price:$23,328.00

Quantity:


Product Overview

Description

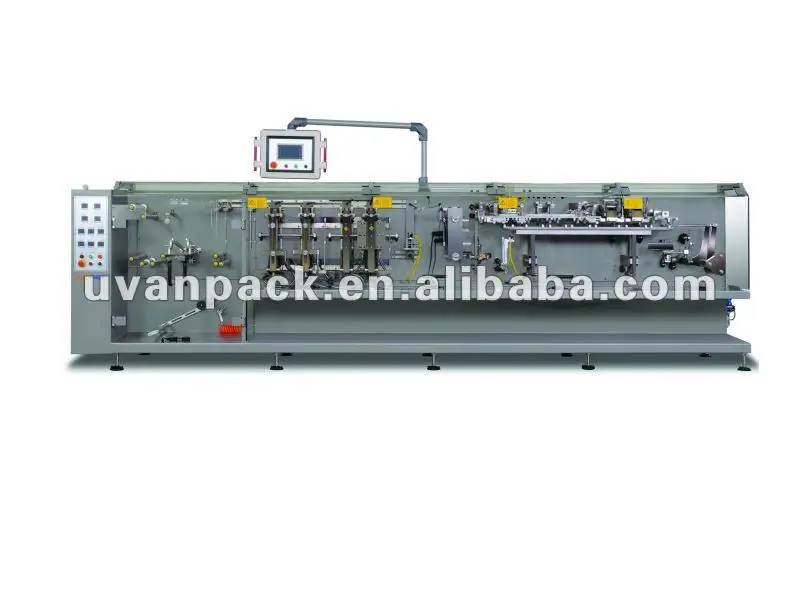

009.jpgYF-180



Main Features


    Based n the technical standard of same kind product of europe, the machineis an automatic packaging machine integrating the bag-making,filling ,sealing and codeing-printing as a whole, the machine used the heat sealing material as outer packaging ,compsite the some types of fillers to conduct the filling of three-side sealing and four-side sealing for powder, granule ,liquid and paste ,it is an ideal packaging machinery of pesticide ,medicine ,foodstuff and cosmetic


 The machine has fast production speed ,simple dimensions changing,the packed products ,straight and artistic ,all parts touching with amterial are made of quality stainless steel,according to the deand of GMP.


II. Parameter



















































ModelPouch Size (Min)Pouch Size (Max)CapacityVolumeFillerPouch TypeOptional
YFM-18060mm×80mm180mm×225mm40-70ppm400ml2Flat PouchZipper, Hanging hole



















Power:5.5kwPower supply: 80V, 3 phase, 50HzAir pressure: .6Mpa
Air Consume:250 NL/minFilm rool Diameter:Max.600mmFilm inner core: 76mm
weight:1400kgDimension: 3500mm(L)×970mm(W)×1450(H)mm















III. Packaging Procedure





180




_03_04_05_07_06_08paste-pic-dp_uuid_baeft


paste-pic-dp_uuid_6gj8s
