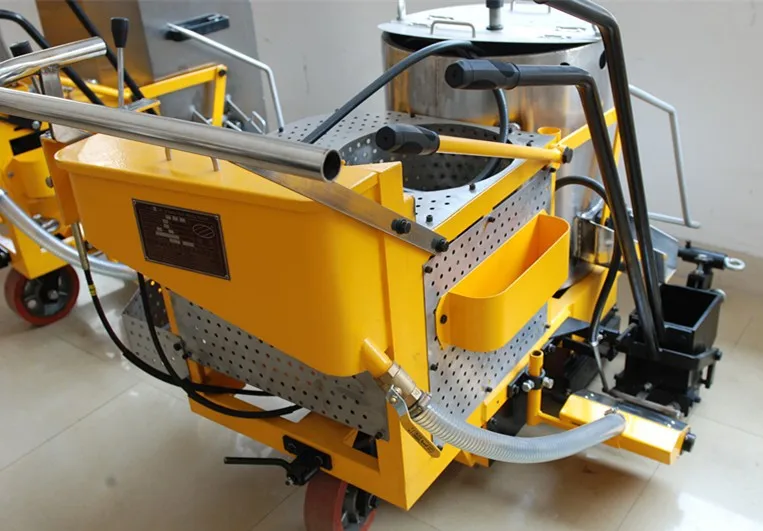

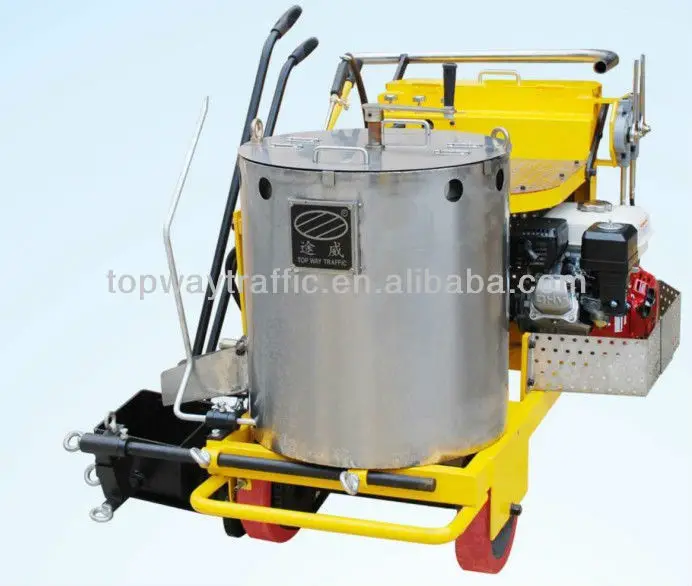

2019 Newest Automatic Highway Line Marking Machine
- Category: Road Machinery >>>
- Supplier: Guangzhou Top Way Road Machinery Co. Ltd.
Share on (60444960440):
Product Overview
Description
| Brief introduction |
The machine is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. It have hand push or automatically walk (engine driven).

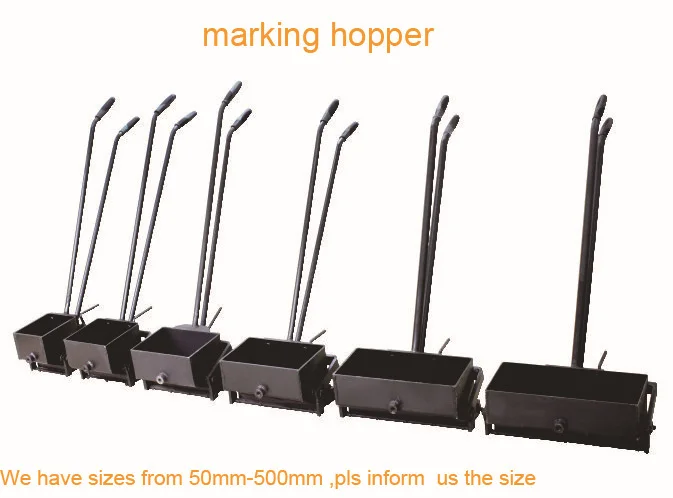

1). Marking hopper: a complete range of marking hopper, the size from 50mm to 450mm, have single handle or double handle.
2). Heavy-duty chassis: the weight light with good mechanical design(widen the space between the front wheels, choose light and heavy-duty material for frame.)
3). Glass bead dispenser: gear driven mechanism with soft shaft. Special attachment for glass bead flow adjustment.
4). The rear burner nozzles: high efficient nozzles attaches in marking hopper to maintain temperature.
5). Directional lock system: able to rotate 360 degree smoothly and accurately.
| Techinical parameters |
Outer dimensions(L*W*H) | 1400 X1100 X1050mm |
Total weight of machine | 160kg |
Capacity of glass beads box | 25kg |
Capacity of stirring tank | 105kg |
Gasoline engine power | HONDA gasoline engine of 5.5HP |
Walking installment: | Hydraulic continuously variable transmission |
Walking speed | 0-10km/h |
Lineation speed | >400m/h(depending on coating) |
Gradient | 30%(about 16.5º) |
Coat thickness | 1.2-4mm |
Glass dead dispense method | Gear driven, automatically clutch, fine adjustment dispense amount |
Temperature maintenance of paints | 170-220°C |
LPG cylinder norm | 15kg |
Marking width | 50,80,100,120,150,200,230,250,300mm, the machine is more suitable for marking 400, 450, 500mm zebra stripes. |
| Detail description |
FAQ
1. Q: Can this machine preheat the thermoplastic paint?
A: No. It needs to work with a preheater, like the last picture. The TW-H just can preserve the heat of thermoplastic paint.
2. Q: Do you have thermoplastic road marking machine with preheater?
A: Yes, we have. It is model TW-FJ, which is suitable for small line marking project. For more details,pls check home page.
3.Q: Can I adjust the line thickness? And how?
A: Yes, it could be adjusted by edging knife and hanger. The normal line thickness is 1.2-4 mm.
4.Q: How to mark lines in different width?
A:Change the marking hopper, change line width. We have varied sizes, from 50 mm to 450mm. Usually, the standard equipment is 150mm. The other size is optional. Also, we could produce special marking hopper for you.
5. Q: What about the after-sale service?
A: We are responsible to provide technical advise in the machine's whole shelf life. We help solving problems via whatsapp, skype,viber and email by sending pictures and videos.
6.Q: Could you produce customized machine?
A: Yes, we could. We are the manufacturer of thermoplastic road marking machine in Guangzhou City.
7. What about the shipment?
A: It is on your choice. Usually, we recommend sea shipping which provides reasonable prices. Also, for spare parts, it could be in FEDX, DHL and ther internatioanl express.
If you have other questions, please feel free to contact us! We shall be glad to answer them.
1. Brief introduction
The machine is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. It have hand push or automatically walk (engine driven).
2. Features
1). Marking hopper: a complete range of marking hopper, the size from 50mm to 450mm, have single handle or double handle.
2). Heavy-duty chassis: the weight light with good mechanical design(widen the space between the front wheels, choose light and heavy-duty material for frame.)
3). Glass bead dispenser: gear driven mechanism with soft shaft. Special attachment for glass bead flow adjustment.
4). The rear burner nozzles: high efficient nozzles attaches in marking hopper to maintain temperature.
5). Directional lock system: able to rotate 360 degree smoothly and accurately.
3. Techinical parameters
Outer dimensions(L*W*H) | 1400 X1100 X1050mm |
Total weight of machine | 160kg |
Capacity of glass beads box | 25kg |
Capacity of stirring tank | 105kg |
Gasoline engine power | HONDA gasoline engine of 5.5HP |
Walking installment: | Hydraulic continuously variable transmission |
Walking speed | 0-10km/h |
Lineation speed | >400m/h(depending on coating) |
Gradient | 30%(about 16.5º) |
Coat thickness | 1.2-4mm |
Glass dead dispense method | Gear driven, automatically clutch, fine adjustment dispense amount |
Temperature maintenance of paints | 170-220°C |
LPG cylinder norm | 15kg |
Marking width | 50,80,100,120,150,200,230,250,300mm, the machine is more suitable for marking 400, 450, 500mm zebra stripes. |
4. Detail description
