24byj48 24mm stepper motor air conditioner



1. Motor diameter: 24mm;

2. Voltage: 5V, 12V(All could be customized);

3. Step Angle: 5.625 degree, 11.25 degree;

4. Reduction Ratio: 1/16, 1/64, could be customized.

5. No. of Phase: 2 Phase(Bipolar 4 Wires), 4 Phase(Uni-polar 5 or 6 Wires)

6. Motor can be customized;

7. ISO9001-2008 Certified; RoHs meeted.





Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:







1. PM Series:

Diameter	8mm	10mm	15mm	20mm	25mm	35mm	42mm	55mm
Model No.	PM8S-020	PM10S-020	PM15S-020	PM20S(L)-020	PM25S(L)-048(024)	PM35S(L)-048(024)	PM42S(L)-048	PM55L-048









2. PG Series: PM Stepper Motor with gearbox(with different gear ratio) & BYJ Series

Diameter	10mm	15mm	20mm	24mm	25mm	28mm	35mm	42mm
Model No.	PG10S-020	PG15S-020	20BYJ46	24BYJ48	PG25S-048	28BYJ48	35BYJ46; PG35L-048	PG42L-048





3. PL Series: PM Linear stepper motor(with lead screw):



Diameter	8mm	10mm	25mm
Model No.	PL8S-020	PL10S-020	PL25S-048(024)









Specification:



Model	Step  Angle  (Deg.)	No. of  Phase	Rated  Voltage (VDC)	Current /Phase(A)	Resistance  /Phase(Ω)	Max Starting  Frequency(pps)	Detent Torque  (gf.cm)	Pull-in Torque   (gf.cm)	Wire  Diagram
24BYJ48-01	5.625/64	4	12	0.06	200	600	600	600(at 100pps)	B
24BYJ48-02	5.625/64	4	6	0.33	18	600	600	700(at 100pps)	B
24BYJ48-03	5.625/64	4	5	0.08	60	600	600	350(at 100pps)	B
24BYJ48-04	11.25/16	2	8	0.16	50	500	100	450(at 200pps)	A
24BYJ48-05	5.625/16	4	12	0.06	200	500	100	300(at 100pps)	B





For special specifications(voltage, reduction ratio) and dimensions, we can customize them according to your actual demand. Please feel free to contact me if you have any queries.

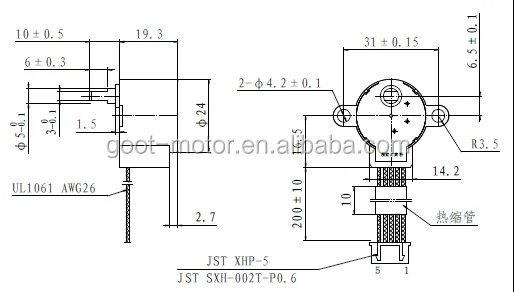

Dimension

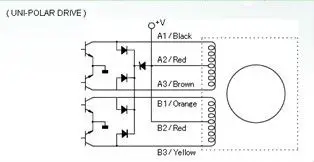

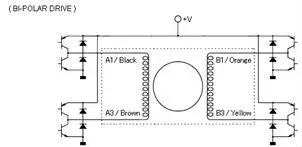

Wire Diagram

A                                                                                                              B

Customization On Call

Coil Modifications - Resistance and Inductance.
Magnets - to yield higher linear force or reduced detent levels.
Higher Strength Plastics for higher impact forces.
Reduced or increased Detent Force to suit the application.
Screw - metric or imperial tips, length.
Special Flanges, Connectors.
Wire Harness - connectors, pins, lead length, shrink tubing.
