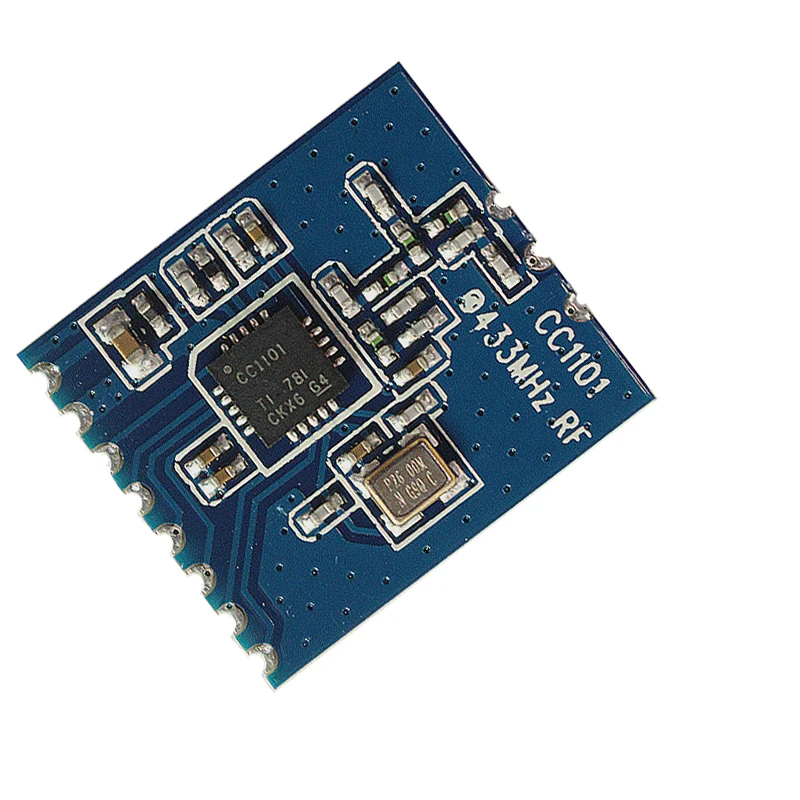

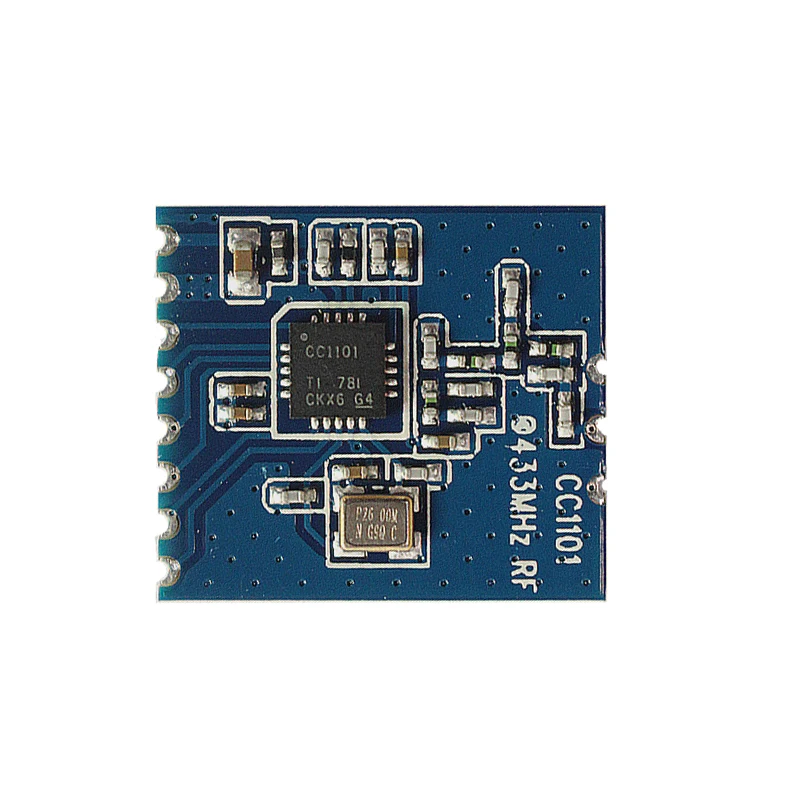

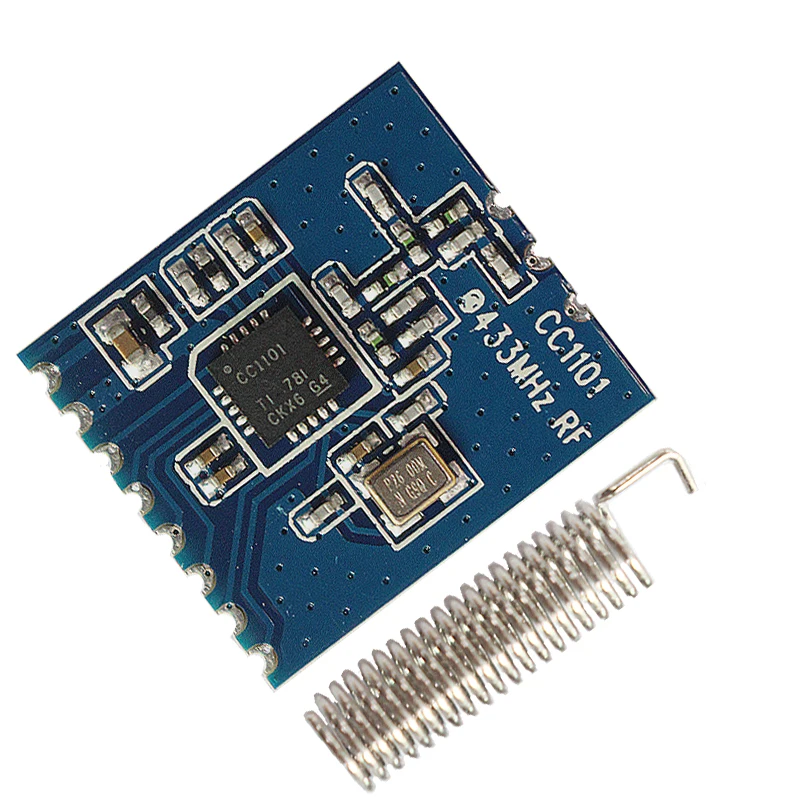

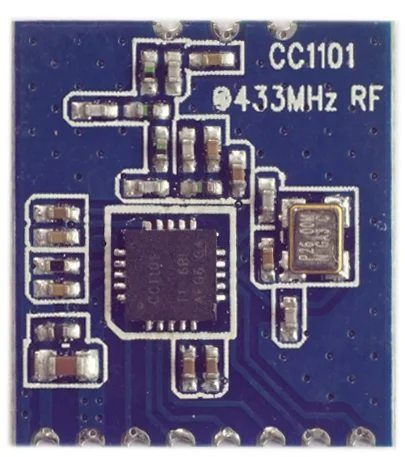

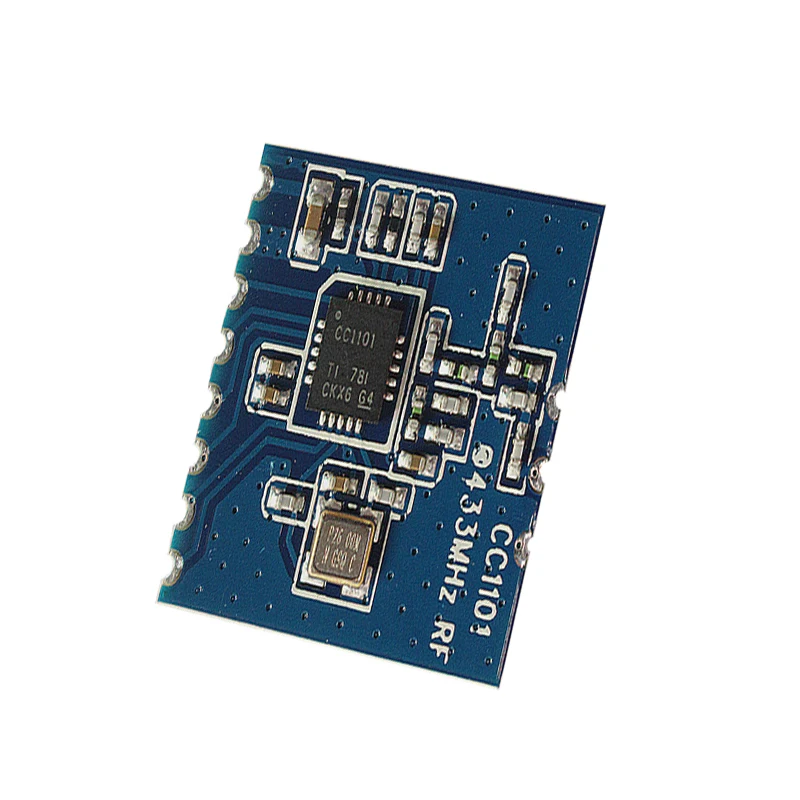

Original Ti CC1101 433MHz rf module ic chip electronic component

Product Overview

Description

wireless transmitter ti CC1101-433 rf module

Mold		CC1101-433		CC1101-433S		CC1101-868		CC1101PA1-433
Part Number		CC1101-433		CC1101-433		CC1101-868		CC1101-PA1
Frequency		433MHz		433MHz		868-915MHz		433MHz
Power Supply		1.8~3.6V		2.0~3.6V		2.0~3.6V		2.0~3.6V
Date Rate		1.2-500Kbps		1.2-500Kbps		1.2-500Kbps		1.2-500Kbps
Output Power		10dBm		10dBm		10dBm		15~23dBm
Sensitivity		-112dBm		-112dBm		-112dBm		-112dBm
TX Current		28.9mA@10dBm		28.9mA@10dBm		28.9mA@10dBm		≤120mA@20dBm
RX Current		16.0mA		14.8mA		14.8mA		≤15mA
Standby Current		≤2uA		≤2uA		≤2uA		≤2uA
Distance		200m		200m		300m		1000m
Interface		SPI		SPI		SPI		SPI

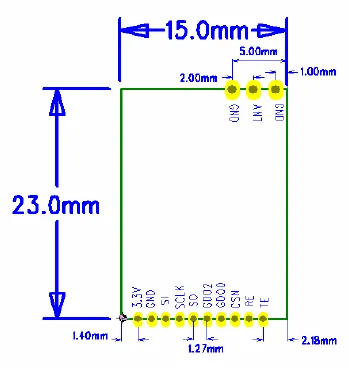

Size		17*19mm		15*11.8mm		17*19mm		15*23mm
