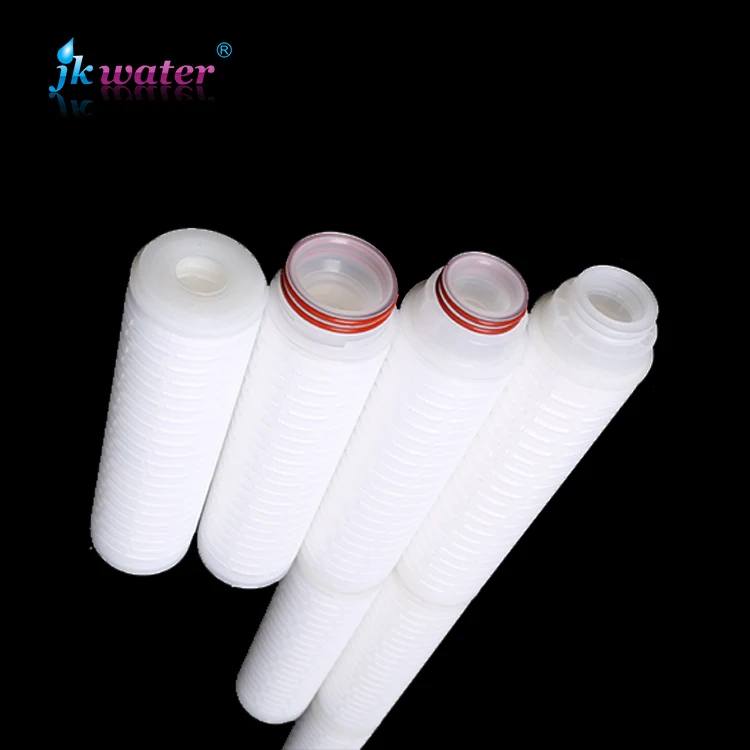

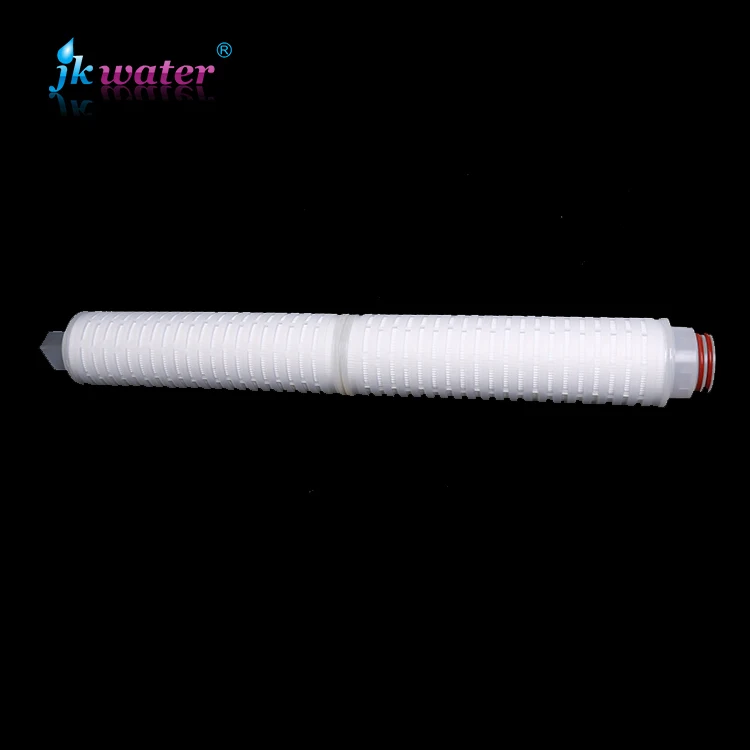

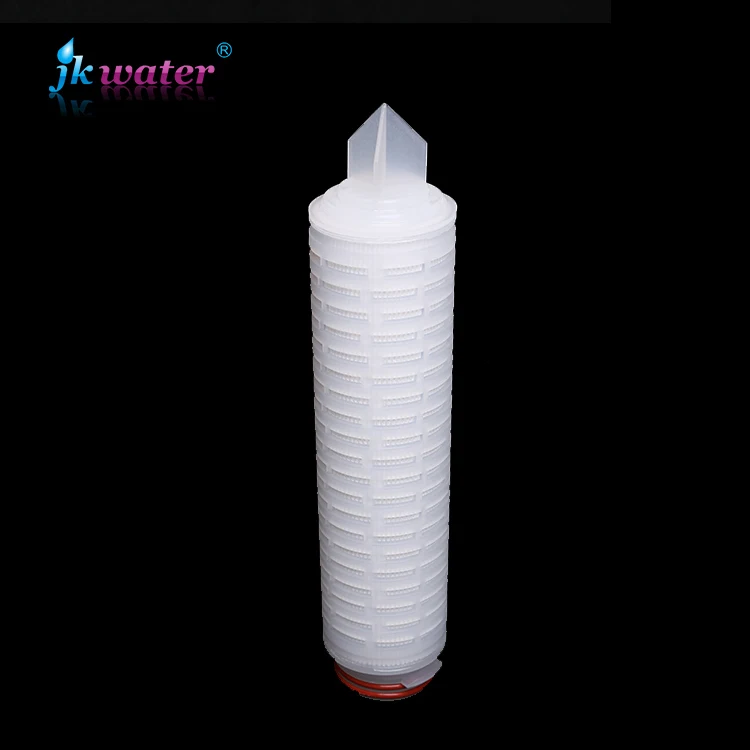

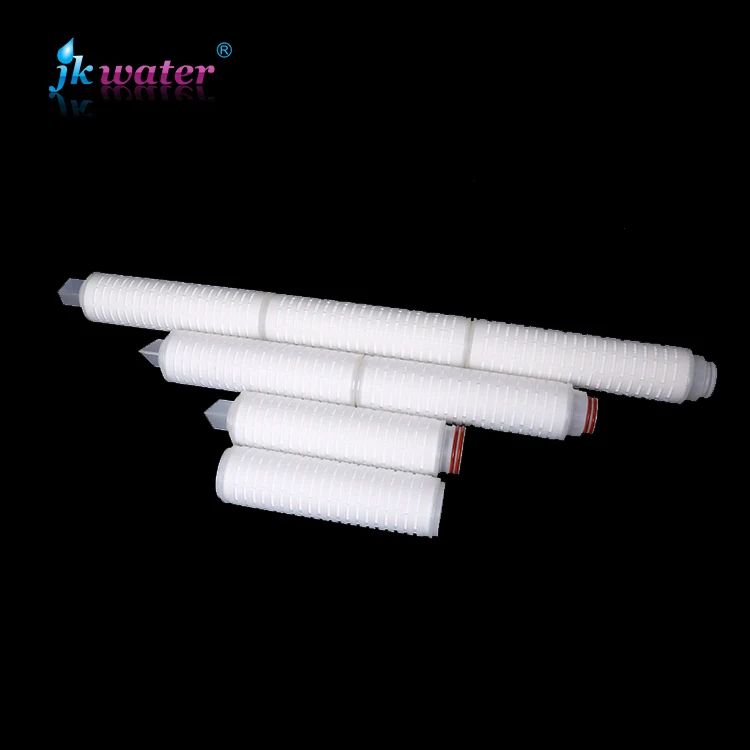

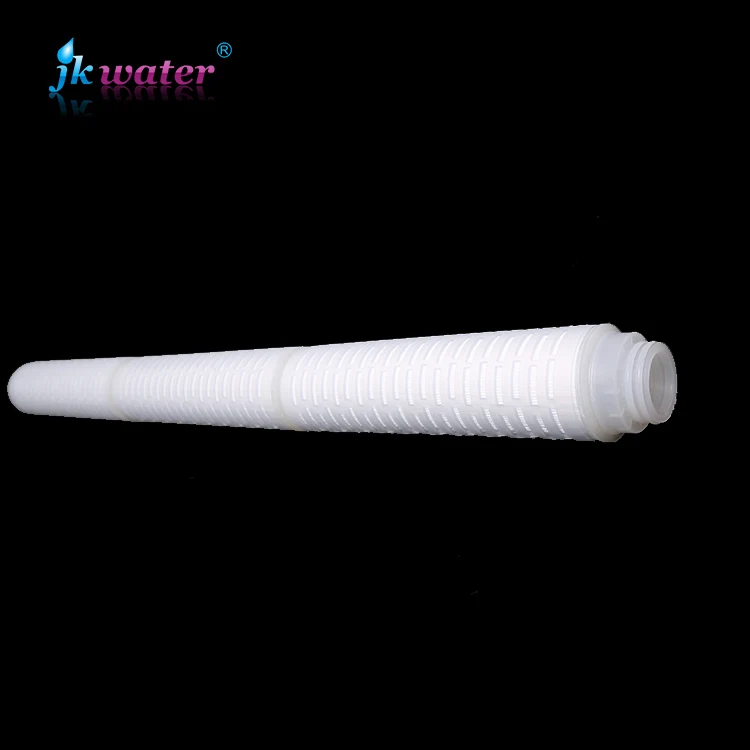

Refillable Liquid PP Pleated Cartridge Filter
- Category: >>>
- Supplier: Yancheng Yongkang Environmental Protection Equipment Co. Ltd.
Share on (60445102794):
Product Overview
Description
Refillable Liquid PP Pleated Cartridge Filter
Product Description
Specification
PP PLEATED FILTER CARTRIDGE
| Material | Membrane: | PP |
| Core: | PP | |
| O ring/Gasket: | PP | |
| Specifications | Pore size(um): | 0.1,0.2,0.45,0.65,1,3,5…..Micron |
| Outer Diameter(OD): | 69mm (can be decided by client) | |
| Length(inch): | 5"10"20"30"40"(can be decided by client) | |
| Technical data | Max differential pressure: | Forward-75psi (5.1 bar) at 25°C Forward-25psi(1.7bar) at 80°C Reverse-30 psi(2.0bar) at 25 °C |
| Recommended change out: | 1.5-2.0bar | |
| Max temperature: | 80°C | |
| Sterilization | 5times,20 minutes cycles @121°C |
NYLON PLEATED FILTER CARTRIDGE
| Material | Membrane: | Hydrophilic Nylon |
| Core: | PP | |
| Support layer: | PP | |
| sealing method: | Thermal bonding | |
| O ring/Gasket: | PP | |
| Specifications | Pore size(um): | 0.1,0.2,0.45,0.65…..Micron |
| Outer Diameter(OD): | 69mm (can be decided by client) | |
| Length(inch): | 5"10"20"30"40"(can be decided by client) | |
| Technical data | Max differential pressure: | Forward-70psi (4.8 bar) at 25°C Reverse-40 psi(2.7bar) at 25 °C |
| Recommended change out: | 1.5bar | |
| Max temperature: | 80°C | |
| Sterilization | 20times,30 minutes cycles @121°C |
PTFE PLEATED FILTER CARTRIDGE
| Material | Membrane: | Hydrophobic PTFE |
| Core: | PP | |
| Support layer: | PP | |
| sealing method: | Thermal bonding | |
| O ring/Gasket: | PP | |
| Specifications | Pore size(um): | 0.1,0.2,0.45…..Micron |
| Outer Diameter(OD): | 69mm (can be decided by client) | |
| Length(inch): | 5"10"20"30"40"(can be decided by client) | |
| Technical data | Max differential pressure: | Forward-70psi (4.8 bar) at 25°C Reverse-40 psi(2.7bar) at 25 °C |
| Recommended change out: | 1.5bar | |
| Max temperature: | 95°C |
PVDF PLEATED FILTER CARTRIDGE
| Material | Membrane: | Hydrophobic PVDF |
| Core: | PP | |
| Support layer: | PP | |
| sealing method: | Thermal bonding | |
| O ring/Gasket: | PP | |
| Specifications | Pore size(um): | 0.1,0.2,0.45…..Micron |
| Outer Diameter(OD): | 69mm (can be decided by client) | |
| Length(inch): | 5"10"20"30"40"(can be decided by client) | |
| Technical data | Max differential pressure: | Forward-70psi (4.8 bar) at 25°C Reverse-40 psi(2.7bar) at 25 °C |
| Recommended change out: | 1.5bar | |
| Max temperature: | 95°C |
