New brand Weichai Deutz XCW8200 Series Marine Diesel Engine with gearbox with 1210-1500HP for Sale
Product Description

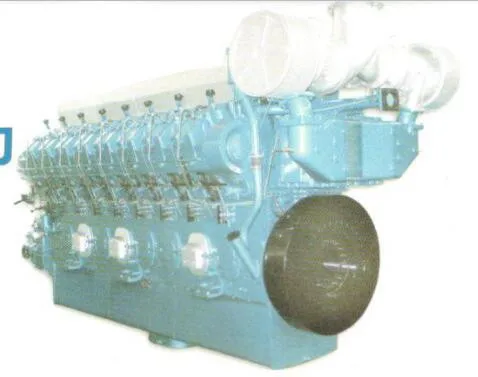

WEICHAI XCW16V200 Marine Propulsion Diesel Engine( Power:1600-1760KW, 2176-2394HP)
ENGINE SPECIFICATION
| Item | Unit | engine type | |||||||
| XCW8200ZC-4 | XCW8200ZC | XCW8200ZC-1 | XCW8200ZC-10 | CW12V 200ZC-2 | CW12V200ZC | ||||
| intake mode | turbocharged and intercooled | ||||||||
| number of cylinders | 8 | 12 | |||||||
| bore X stroke | 200×270 | ||||||||
| displacement | L | 67.856 | 101.784 | ||||||
| compression ratio | 13.37 | ||||||||
| rated power | KW | 864 | 928 | 960 | 1030 | 1080 | 1200 | ||
| rated speed | r/min | 900 | 1000 | 900 | 1000 | ||||
| fuel consumption @ rated power | g/(KW.h) | ≤197 | ≤205 | ||||||
| lub oil and fuel consumption ratio | g/(KW.h) | 0.8 | 1 | ||||||
| cooling mode | water cooling | ||||||||
| starting mode | air motor | ||||||||
| net weight | kg | 7800 | 10900 | ||||||
| rotation direction of crankshaft (seen from the free end) | clockwise | ||||||||
| dimension | L | mm | 3400 | 3955 | |||||
| W | mm | 1395 | 1700 | ||||||
| H | mm | 2230 | 2600 | ||||||
| Item | Unit | engine type | |||||||
| XCW12V200ZC-4 | XCW12V200ZC | XCW12V200ZC-1 | CW16V200ZC-6 | CW16V200ZC | |||||
| intake mode | turbocharged and intercooled | ||||||||
| number of cylinders | 12 | 16 | |||||||
| bore X stroke | 200×270 | ||||||||
| displacement | L | 101.784 | 135.68 | ||||||
| compression ratio | 13.37 | ||||||||
| rated power | KW | 1296 | 1392 | 1440 | 1600 | 1760 | |||
| rated speed | r/min | 900 | 1000 | ||||||
| fuel consumption @ rated power | g/(KW.h) | ≤205 | ≤197 | ≤197 | ≤200 | ||||
| lub oil and fuel consumption ratio | g/(KW.h) | 1 | |||||||
| cooling mode | water cooling | ||||||||
| start mode | air motor | ||||||||
| net weight | kg | 10900 | 13680 | ||||||
| rotation direction of crankshaft (seen from the free end) | clockwise | ||||||||
| dimension | L | mm | 3955 | 4635 | |||||
| W | mm | 1700 | |||||||
| H | mm | 2600 | 2750 | ||||||
Engine Type | V-type 16 Cylinder, 4-Stroke Diesel Engine |
Bore(mm)*Stroke(mm) | 270*200 |
Combustion System | Direction Injection |
Aspiration | Turbocharged & Intercooled |
Starting System | Air Starter |
Cooling System | Heat Exchanger |
Displacement(L) | 135.68 |
Rotation | Clockwise Facing Flywheel |
Size of Flywheel Housing & Flywheel | Maker Standard |
Emission | IMO TIER II |
Dry Weight (kg) | 13680kg |
Dimensions (L*W*H) | 4604*1700*2600mm |
POWER RATINGS
Power Rating | Continuous duty |
Rated RPM | 1000 |
KW | 1600 1760 |
Fuel Oil Consumption in rated power (L/Hr) | 375 412.4 |

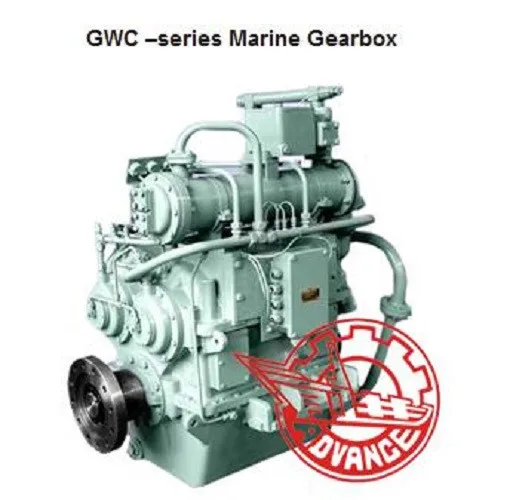

MARINE GEAR SPECIFICATIONS
Gear Model | GWC45.49 |
Type | Hydraulic multi-disc clutch |
Reduction Ratio | 2.4671,2.8947,3.466,3.9474,4.3741,4.84960 |
Direction of Rotation | Clockwise or anti-clockwise from stern |
Dry Weight (kg) | 5280KG |
Dimensions (L*W*H) | 1688*1230*1710mm |
Mechanical Efficiency | 97% |
STANDARD FITTINGS
Standard engine package, local & remote engine monitor, classification product certificate, EIAPP.
OPTIONAL FITTINGS
water separating F.O primary filter, centrifugal L.O filter,electrical motor driven L.O priming pump, MDO or HFO operation fittings,s, L.O & F.W thermostat valves, L.O & F.W pre-heater, plate type cooler, marine gear alarm system, CPP marine gear.
Packaging & Shipping
Packaging Details: Carton or Wooden box (Can be according to customer's requirements)
Delivery Detail: 25-30working days
Our Services
a. Flexible Marine Propulsion Package Design
b. Commissioning & Technical Support
c. Standard Warranty on Equipment & Accessories
d. Spare Parts Availability at Your Door
