Factory Supply Test Bench of Hydraulic Traversing Mechanism Steering Gearbox Test Machine

Product Overview

Description

                       Qingdao Haolida Automotive Equipment Manufacturing Co., Ltd

          A professional manufacture of automotive maintenance and testing equipment.

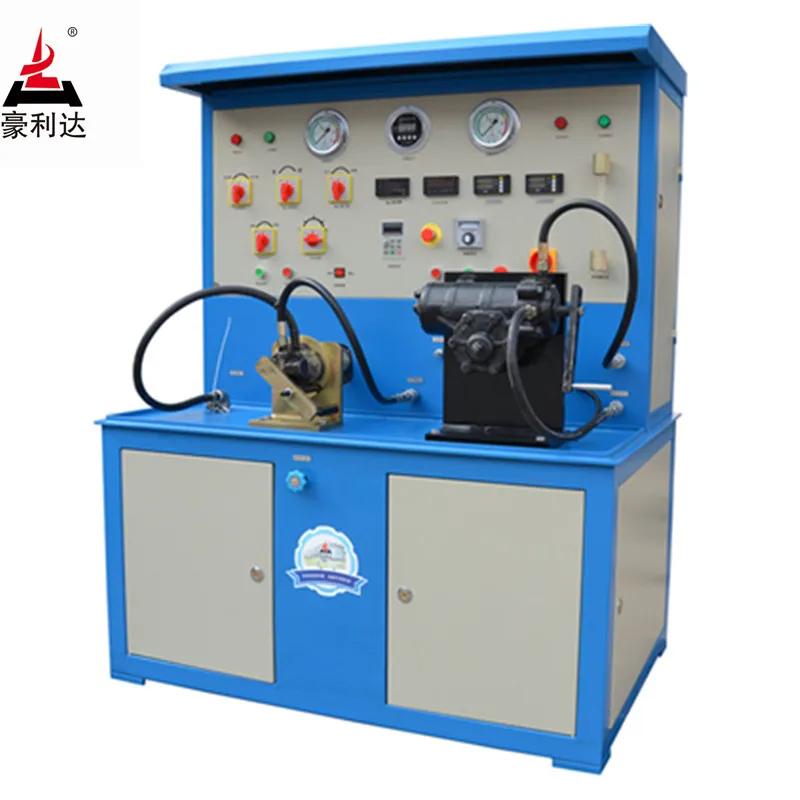

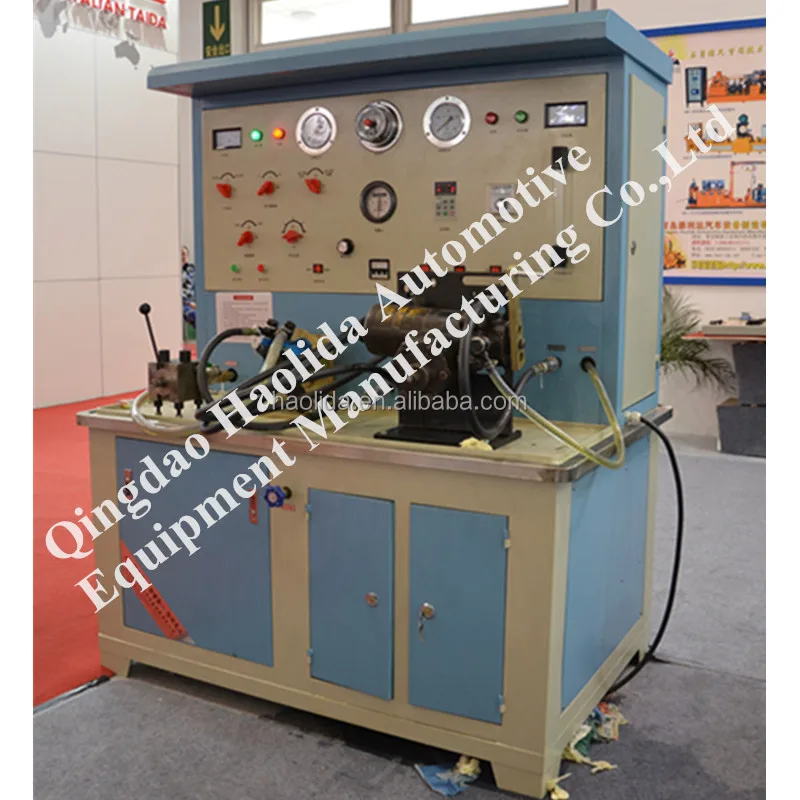

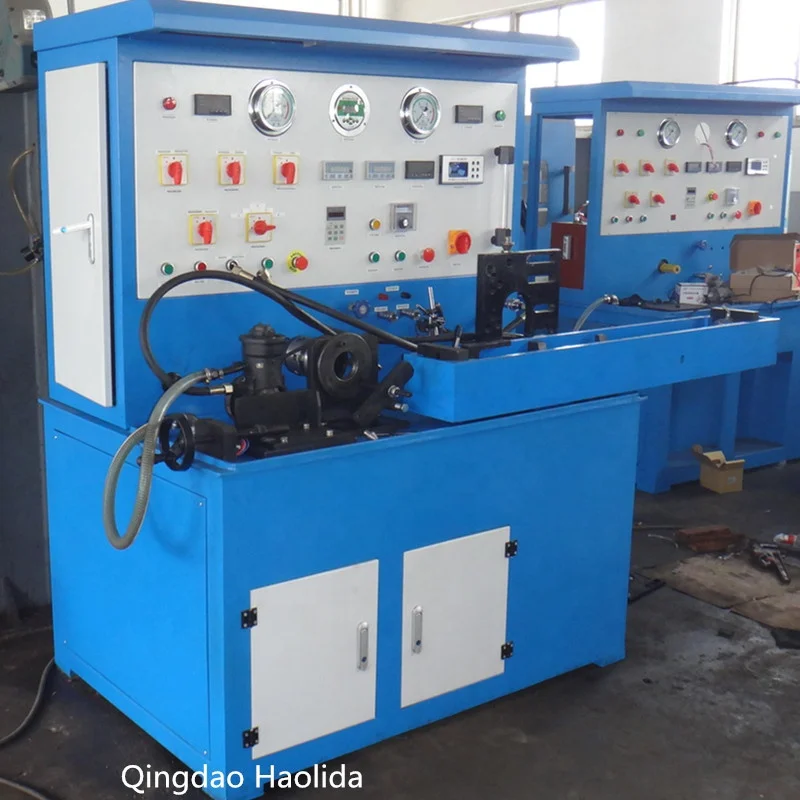

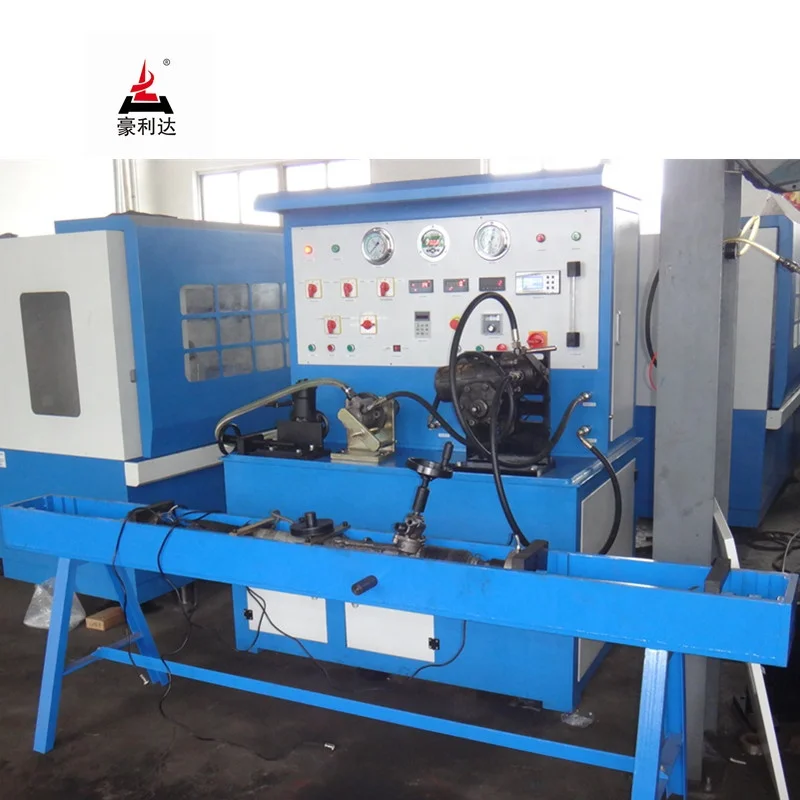

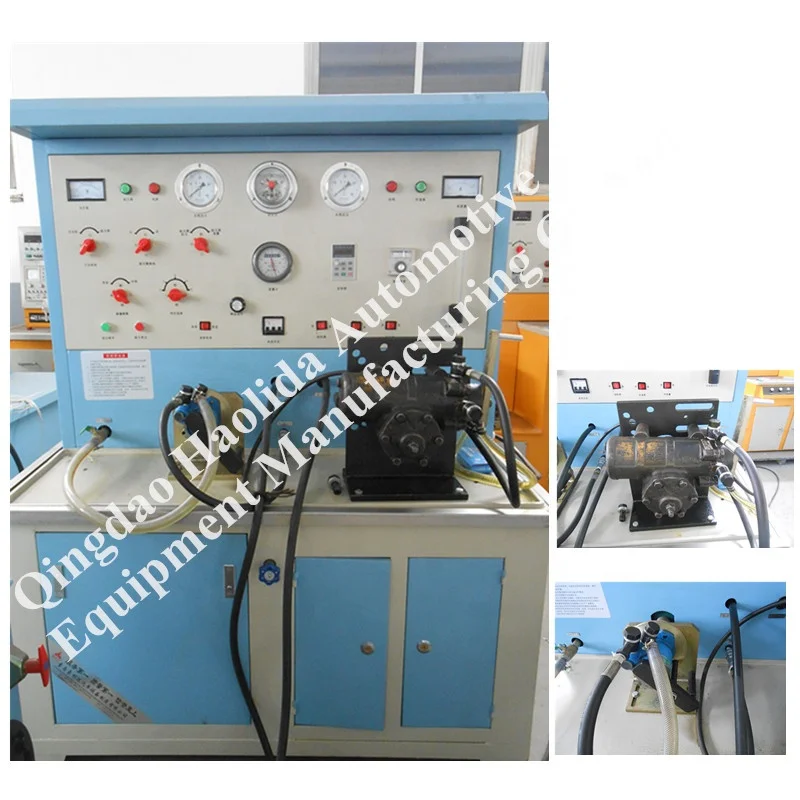

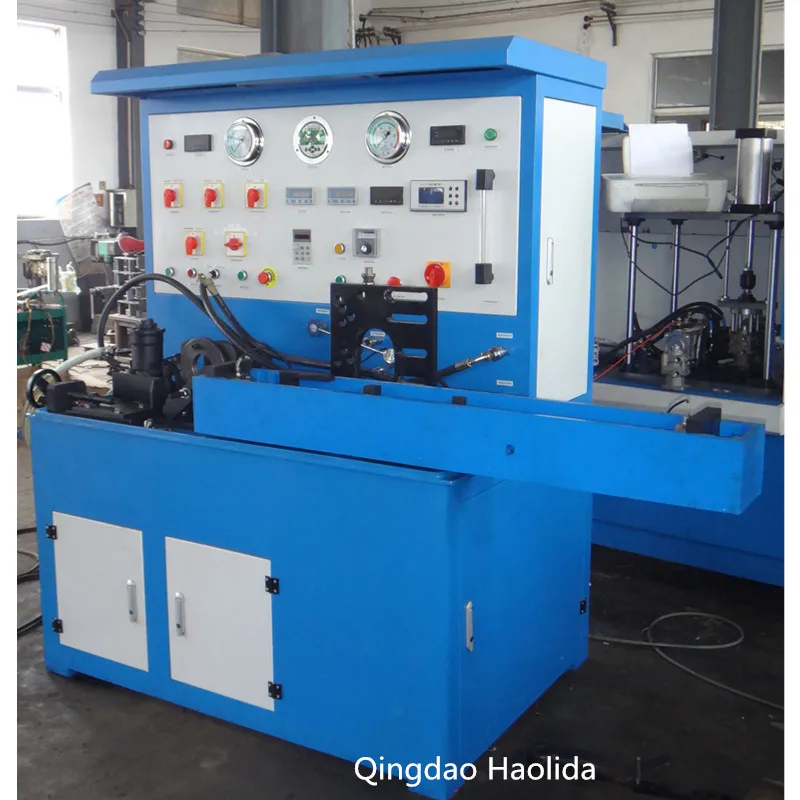

                           QFY-3 model  Test Bench of Hydraulic Traversing Mechanism



General introduction

This steering gear and power steering pump test bench is used for testing steering wheels and power pumps of various models trucks in steering system.





Test items:

l  Pressure of power steering pump, can preset the rated pressure, automatic unloading

l  Oil  flow of power steering pump

l  Revolving speed of power steering pump

l  Input and output leakage of steering gear

l  Free stroke of steering gear

l  Working angle of steering gear

l  Performance of conversion valve assembly of steering gear



Technical parameter:



Model no	QFY-3
Language	English, etc
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	380V 50Hz
Motor power	7.5KW
Frequency converter power	7.5KW
Speed	0-2400rpm(frequency regulation)
Direction	Clockwise, anti-clockwise
Power of heater	1000W  220V
Rated heating temperature	40℃(adjustable)
Working pressure range of power pump	0-18Mpa (adjustable)
Accessories:
Accessory wires, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time	35 days after receiving downpayment
HS code	90312000.90
Packing sizes	1560*1050*1870mm=3.06CBM





Why Choose us:

1.      32 years’ design,development and produce experience

2.      Professional R&D team

3.      Strict QC

4.      A good pre-sale and after-sale service

5.      Can design and make according to customer’s requests
