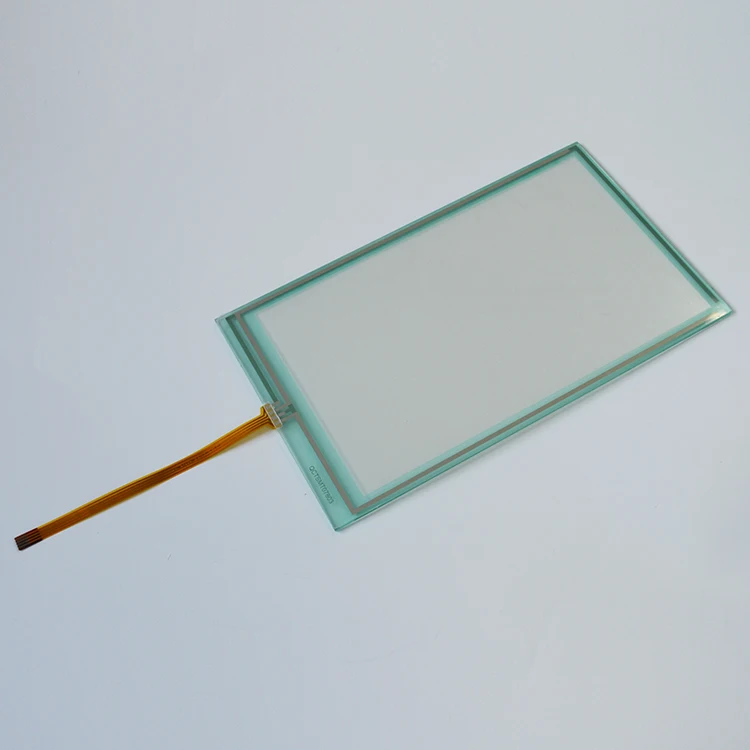

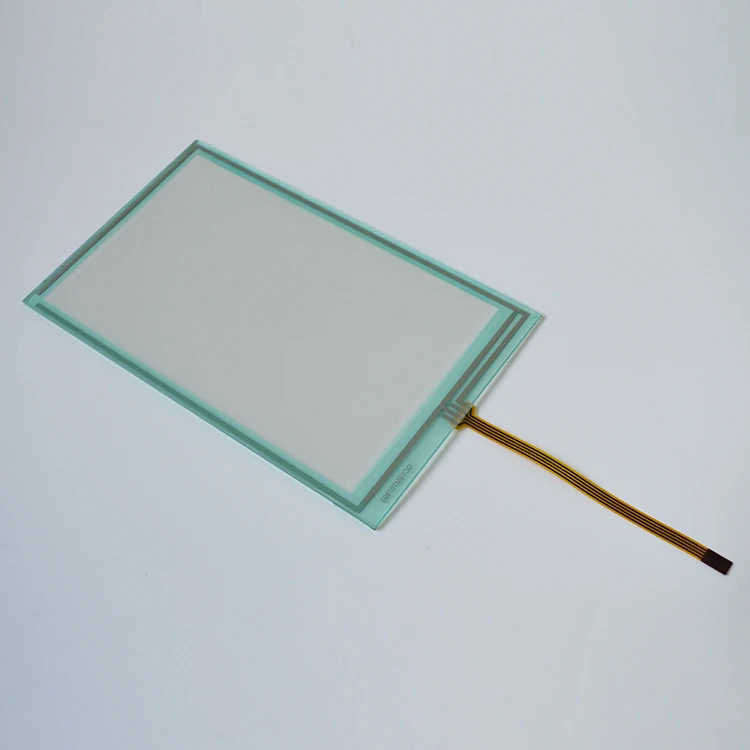

6 Inch Electronic Monitor Keypad Digitizer Touch Screen From Alibaba
Product Description
Functions
Input method
Pen or finger
Structure
Conductive Film—glossy or matte finish anti scratch and anti-Newton epoxy conductive films of ITO
Conductive
Films of ITO
Conductive Glass
ITO Glass, 1.8mm thickness
Key sheet or glue
0.1mm thickness
Nulation Distance
3mm*3mm
Connector
FPC — flexible printed circuit
Main Specifications
Items
Spec
Units
Screen size
Multiple
Inch
Outside size
Multiple
mm
View area
Multiple
mm
Active area
Multiple
mm
Conductive glass
1.8±2
mm
Conductive film
188
μm
Connector
flexible printed circuit
4pin
Mechanical Behavior
Input method
pen or finger
Operation force
OD 2mm pen within 60g~150g pressure
Surface hardness
3H
Transparency
80±3% @550nm wave length.
Life time
Writing life
More than 1000,000times
Stamping life
More than 1000,000times
Circuit Grade
Operation Temp
-10~60℃
Storage Temp
-20~70℃
Product Show
about us
packing
FAQ
1. How is the price? We are a factory in Guangzhou, China. All the products have factory price, the more your quantity,
the lower the price will be.
2. How long is the warranty period? Generally the warranty period is one year. It depends on different products.
3. Have you ever exported to foreign countries? We have exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe, South Asia, ect.
4. Could we place an order as OEM to produce under our own brand?
Yes, our company accepts OEM and ODM ONLY for the following types:
Resistive Touch Panel (2 inch to 24 inches)
Capacitive Touch Panel ( 2 inch to 65 inches)
The sizes of the Touch Panel can be adjusted according to the customers' requirements
