Outdoor ilitek 15 inch Touch screen film foil 15 capacitive USB with Egalax/ilitek touch controller
- Category: >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (60445445591):
Product Overview
Description
Outdoor ilitek 15 inch Touch screen film foil 15 capacitive USB with Egalax/ilitek touch controller
Product Description
| The specification of 15 inch Touch screen | |
| Size | 15 inch |
| Product name | 15 inch Touch screen |
| Model Number | 8278150 V02 |
| Type | CTP |
| Struture | Glass+Glass |
| Sensor OD | 329x245mm |
| Sensor Thickness | 0.7mm |
| Silk-printing color | Black |
| Lens OD | 339.9x263.9mm |
| Lens thiskness | 3mm |
| Window VA | 304x228mm |
| Touch controller | EETI/ILITEK chip |
| Interface of CTP | I2C/USB/RS232 |
| Touch points | 10 |
| Operating system | Win7,win8,win CE,Android, Linux |
| Surface hardness | 6H |
| Transparency | 86% min |
| Customized available | AR/AF/AG,Water proof/Glove touch and so on. |
| General Business Clauses | |
| MOQ | 1PCS |
| Lead time | Sample in stock,2-4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |

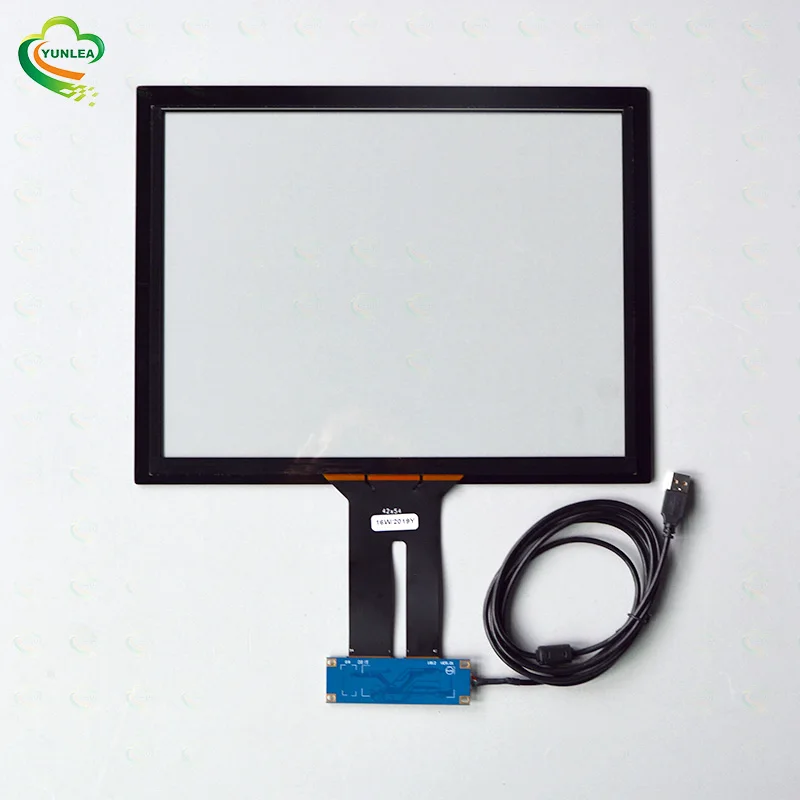

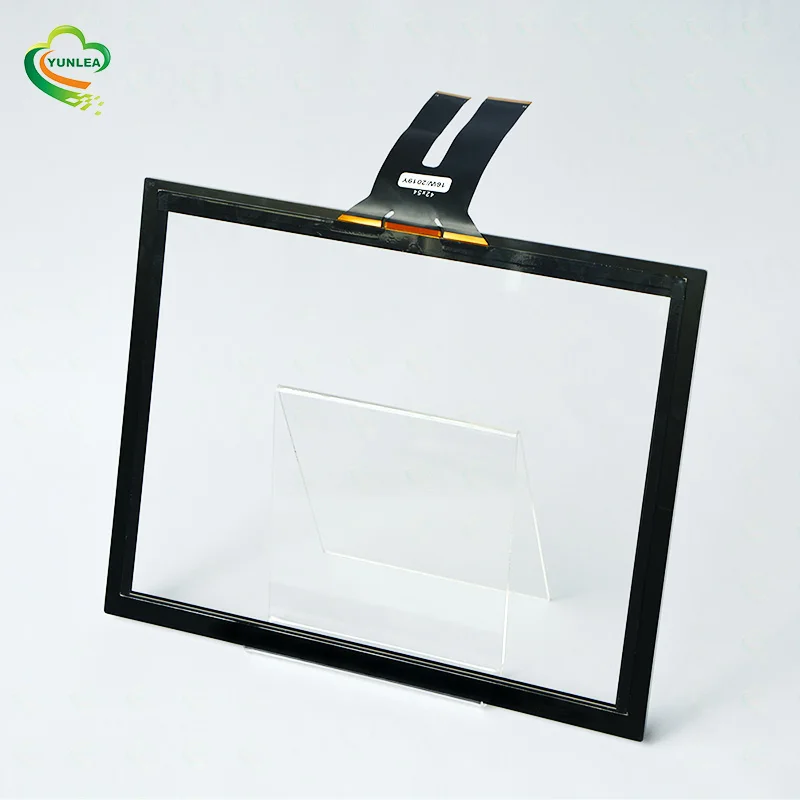

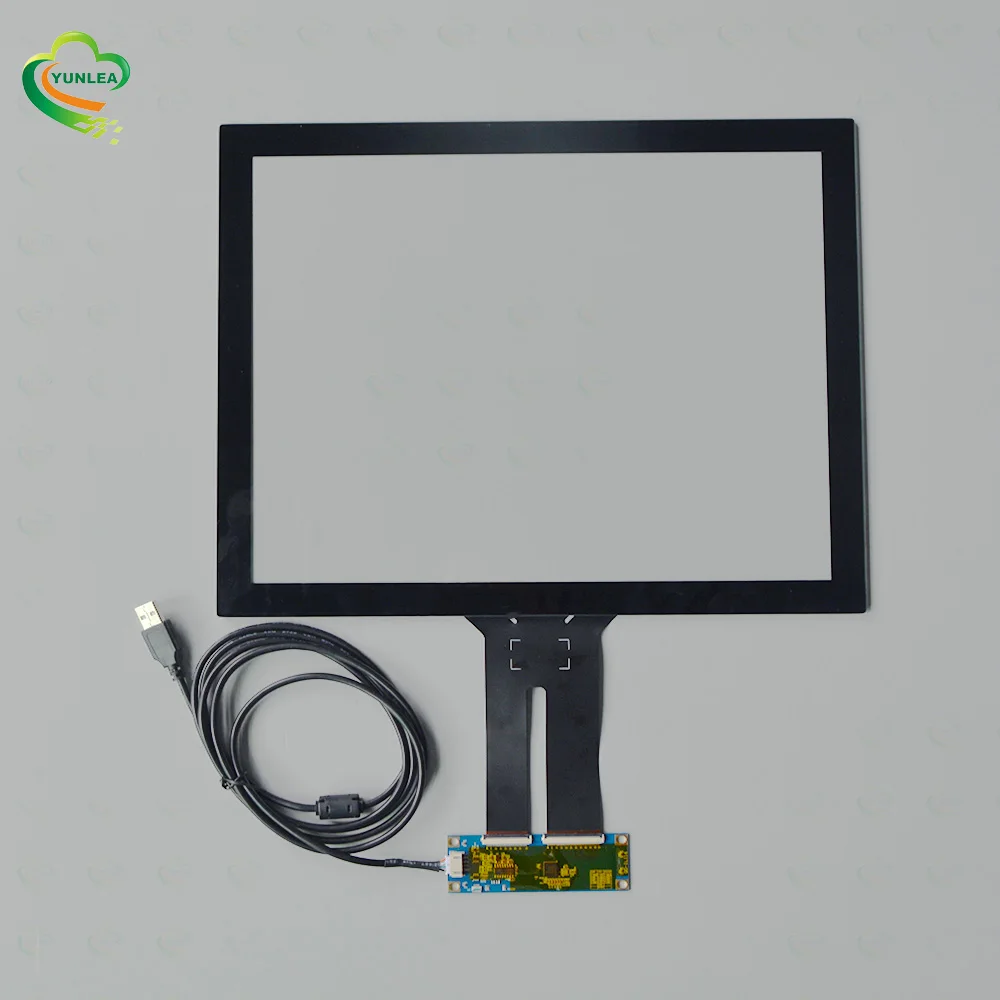

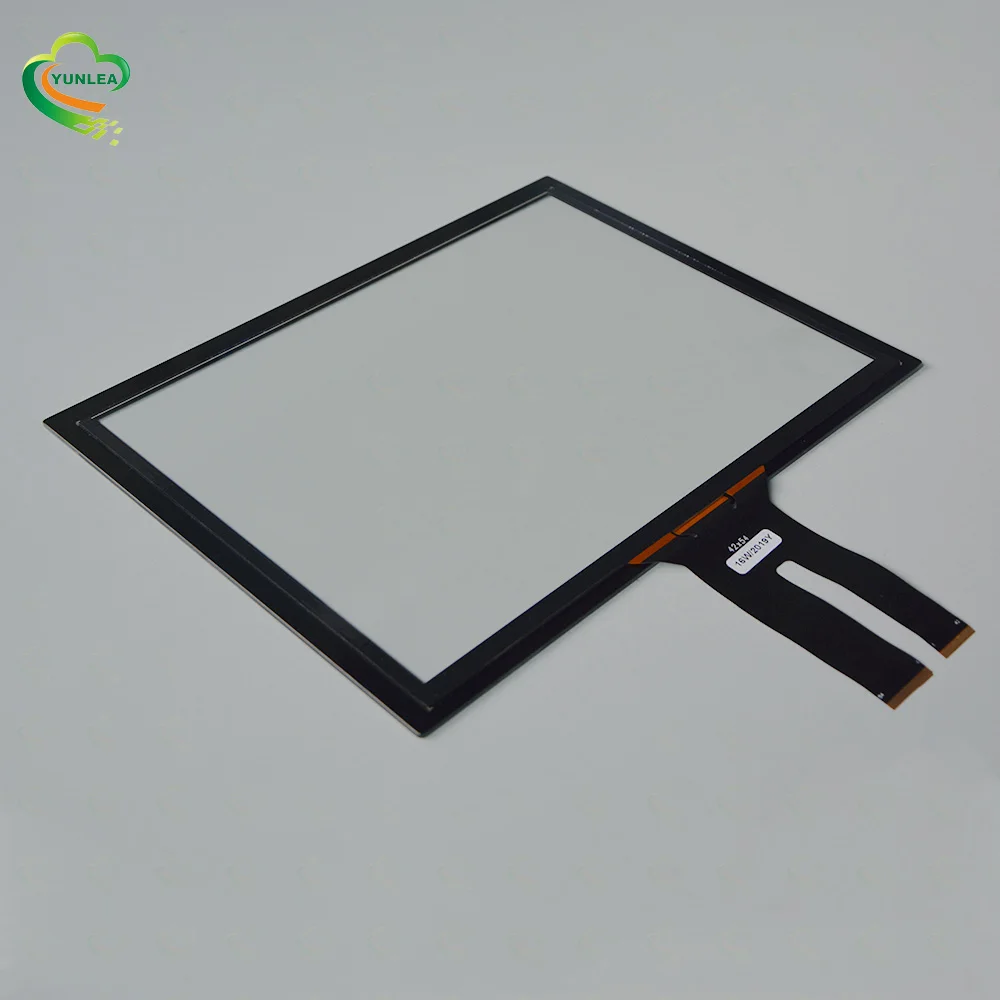

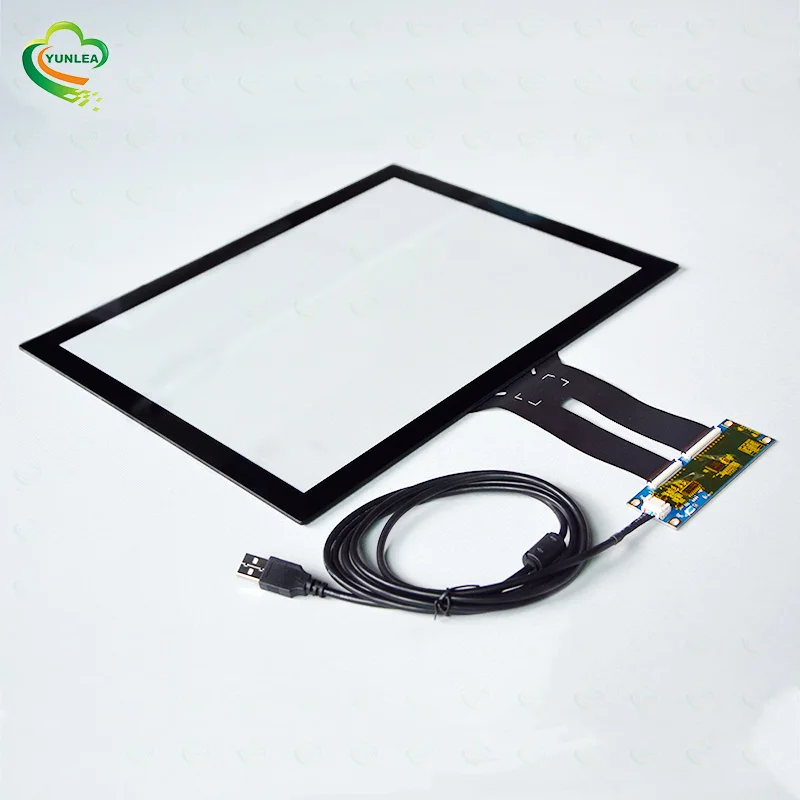

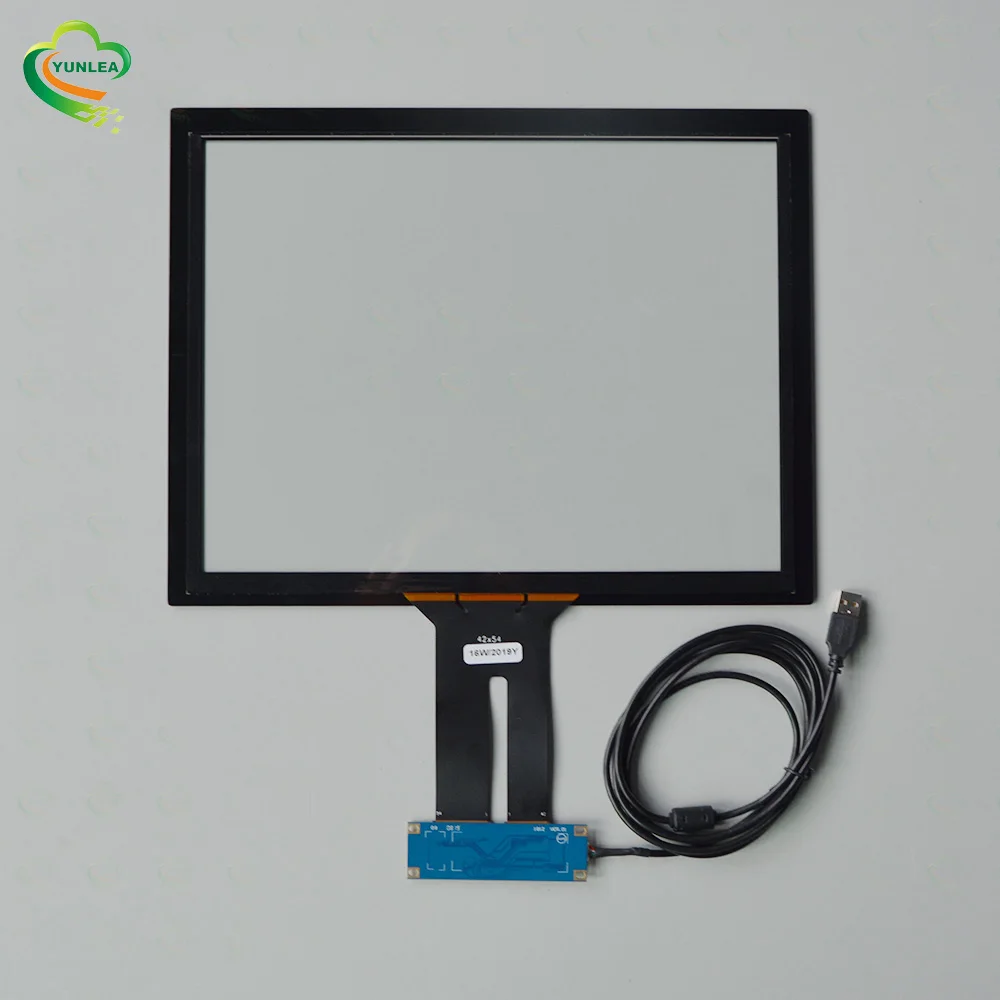

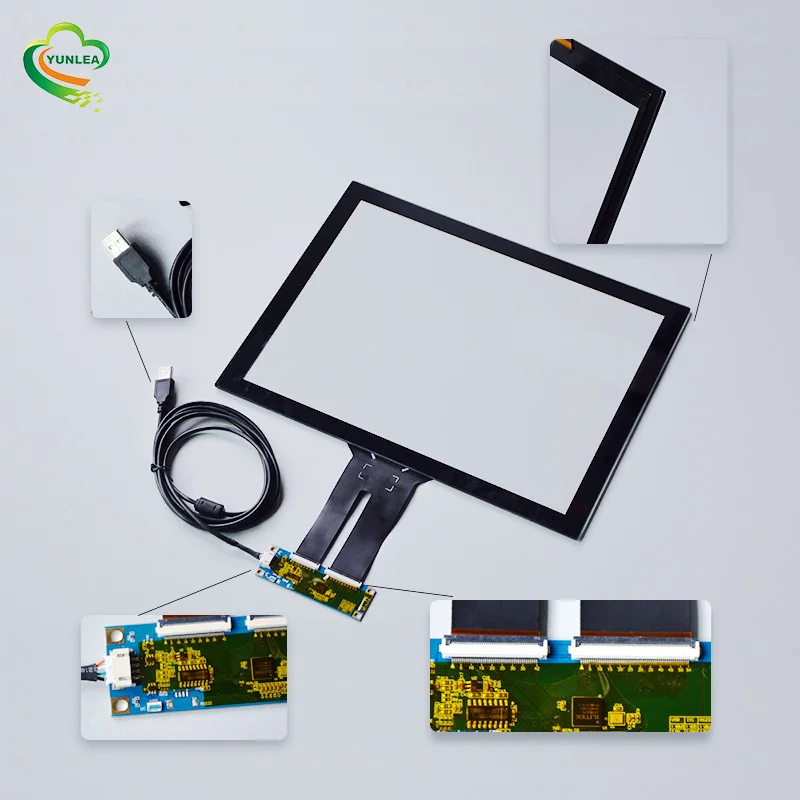

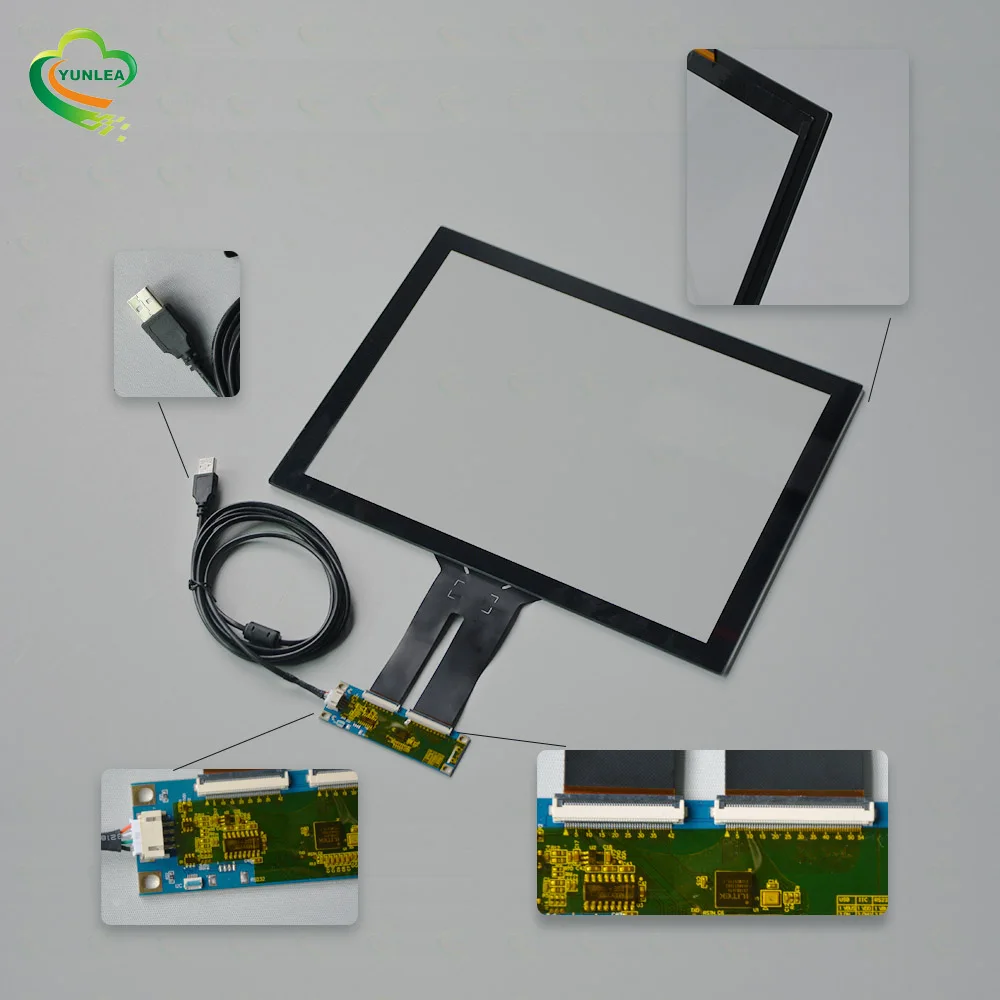

The picture of 15 inch Touch screen:
Our other hot selling items:
| 10.1 inch Touch screen with EETI/ILITEK | 18.5 inch Touch screen with EETI/ILITEK |
 |  |
| 19 inch Touch screen with EETI/ILITEK | 21.5 inch Touch screen with EETI/ILITEK |
 |  |
Our Products
The catalog of our standard PCAP touchscreen :
| Size | Part No. | Sensor OD | Sensor (T) | Lens OD | Cover glass(T) | R angle | Window VA | Touchcontroller | |
| 3.5" | YL035CY03 | 82.34X56.86 | 0.4 | 94.94X66.86 | 0.7 | 74.94X50.36 | Mstar 2133A | click here | |
| 4.3" | S82327H | 103.10x85.40 | 0.7 | 114x77 | 0.7 | 96.04x53.86 | FT5346 | click here | |
| 5" | YL050CY01 | 120.7X75.8 | 0.55 | 127X85.80 | 0.7 | R5 | 109x65.8 | FT5436 | click here |
| 7" | YL070CY01 | 159.70X94.10 | 0.55 | 164.90X100 | 0.7 | 154.08X85.92 | FT5436 | click here | |
| 8.4" | 8333084V01 | 182X140.2 | 0.7 | 207X166 | 1.1 | R10 | 170.4x127.8 | EETI/ILITEK | click here |
| 10.1" | 8154101V02 | 239.6x158.20 | 0.7 | 254.96x172.6 | 1.1 | R10 | 217.96X136.6 | EETI/ILITEK | click here |
| 10.4" | 8334104V01 | 233.4X177.9 | 0.7 | 259.10X206.3 | 1.1 | R10 | 213.1X160.3 | EETI/ILITEK | click here |
| 12.1" | 8031121V01 | 280X210.5 | 0.7 | 220.5X290 | 1.1 | R4 | 246X184.5 | ILITEK | click here |
| 8335121V01 | 259.6X201.1 | 0.7 | 293X237 | 1.1 | R9 | 246X184.5 | EETI/ILITEK | click here | |
| 15" | 8001150V03 | 319X244 | 0.7 | 339.9X263.9 | 3 | R2 | 304X228 | ILITEK | click here |
| 8278150V01 | 329X245 | 0.7 | 339.9X263.9 | 3 | R2 | 304X228 | EETI/ILITEK | click here | |
| 15.6" | 8002156V02 | 358X210 | 1.1 | 387X231 | 3 | R16 | 344X194 | ILITEK | click here |
| 8156156V02 | 362X222 | 0.7 | 387X231 | 1.1 | R8 | 344X194 | EETI/ILITEK | click here | |
| 17" | 8003170V03 | 356.92x290.34 | 0.7 | 377x209 | 3 | R2 | 338.92x271.34 | ILITEK | click here |
| 8273170V01 | 366.58X299 | 0.7 | 377X309 | 3 | R2 | 338.92X271.34 | EETI/ILITEK | click here | |
| 17.3" | 8004173V02 | 398.9X235.8 | 1.1 | 423.21X256.2 | 3 | R16 | 383.21X216.2 | ILITEK | click here |
| 18.5" | 8005185V03 | 429.8X249.9 | 0.7 | 458X283 | 3 | R16 | 410.8X231.4 | ILITEK | click here |
| 8163185V02 | 430.8X261.4 | 0.7 | 440.8X271.4 | 1.1 | R8 | 410.80X231.4 | EETI/ILITEK | click here | |
| 19" | 8006190V03 | 398.32X321.06 | 0.7 | 421X346 | 3 | R2 | 377.32X302.06 | ILITEK | click here |
| 8200190V02 | 400.32X329.9 | 0.7 | 421X346 | 2 | R2 | 377.32X302.06 | EETI/ILITEK | click here | |
| 19.5" | 8007195V02 | 450.5X259.76 | 1.1 | 473.5X281.26 | 3 | R16 | 433.5X241.26 | ILITEK | click here |
| 21.5" | 8008215V02 | 496.42X287.43 | 0.7 | 524X321.8 | 3 | R16 | 477.6X269.10 | ILITEK | click here |
| 8160215V02 | 508X303.8 | 0.7 | 524X321.8 | 1.8 | R8 | 477.6X269.10 | EETI/ILITEK | click here | |
| 23.6" | 8010236V02 | 543.84X316 | 0.7 | 537X349 | 3 | R16 | 523.3X295.2 | ILITEK | click here |
| 24" | 8012238V01 | 544.03x315.5 | 1.1 | 573x349 | 3 | R16 | 525.5X297 | ILITEK | click here |
| 27" | 8014270V02 | 618X355.7 | 1.1 | 646X384 | 3 | R16 | 598X336 | ILITEK | click here |
| 8245270v01 | 619x362 | 1.1 | 646x384 | 3 | R16 | 598X336 | EETI/ILITEK | click here | |
| 32" | 8016320V02 | 719.7X414.3 | 1.1 | 746.7X441.3 | 3 | R16 | 698.7X393.3 | ILITEK | click here |
| 8246320V01 | 720.7X420.3 | 1.1 | 746.7X441.3 | 3 | R16 | 698.7X393.3 | EETI/ILITEK | click here | |
| 42" | 8018430V02 | 973X561.5 | 1.1 | 994.2X587.3 | 4 | R15 | 943.2X531.4 | ILITEK | click here |
| 55" | 8021550V01 | 1254.6X716.417 | 1.8 | 1287.6X758.4 | 4 | R8 | 1209.6X680.4 | ITLITEK |
We can customize more sizes,click here to contact us.
Customized solution
We have standard 3.5-55 inch Touch screen.So if our standard one can't fit with your project.We are welcome you to customized own touch screen.If you have any demand ,pls don't hesitate to contact with me.
We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color,touch with water,touch with gloves and so on.If you are interested in,pls click it to watch the video.
Company Information
Shenzhen Yunlea Electronics Co., Ltd.
YUNLEA is is a leading designer and manufacturer of Capacitive Touch Panel, And we have rich experiences in medical & industrial & home automation& products supply.
Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
Why choose Yunlea?
Yunlea have :
1.5000 m2 factory area
2.10 years touch screen experience
4.Stronger engineer team and 24 hours -7 days Online service
5.High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:
1.ITO sensor glass/ ITO sensor film/ Touch screen panel/ Touch display
2.We have some standard products (3.5 inch to 55 inch PCAP )in stock and no tooling request
2. Customized available : size, FPC,logo printing, silk-printing color
3. Special Treatment :AG/AG/AF ,Water-proof,With glove touch
4. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
3.Short lead time,15 days for customized product,2-4 weeks for mass production
Our client:
If you come to China, welcome to visit our factory.We will show you how touch screen is made.
Packaging & Shipping
All our products are standard packed, you can contact us sales for detailed information.
Satisfied feedback
Yunlea sincerely provide best service and high quality.So most of them very satisfied with our product.Pls see the feedback as follow:
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
