Product Overview
Description
Product Description

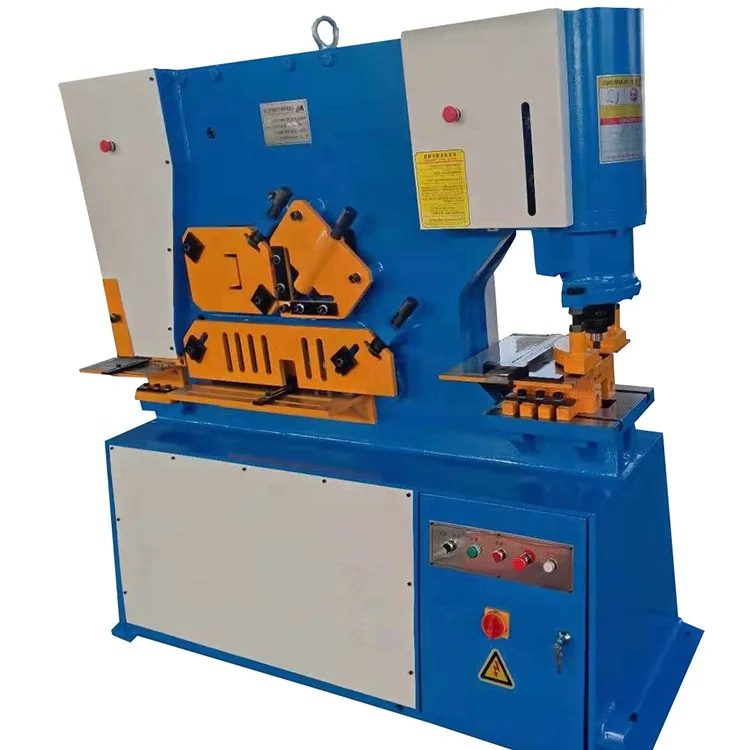

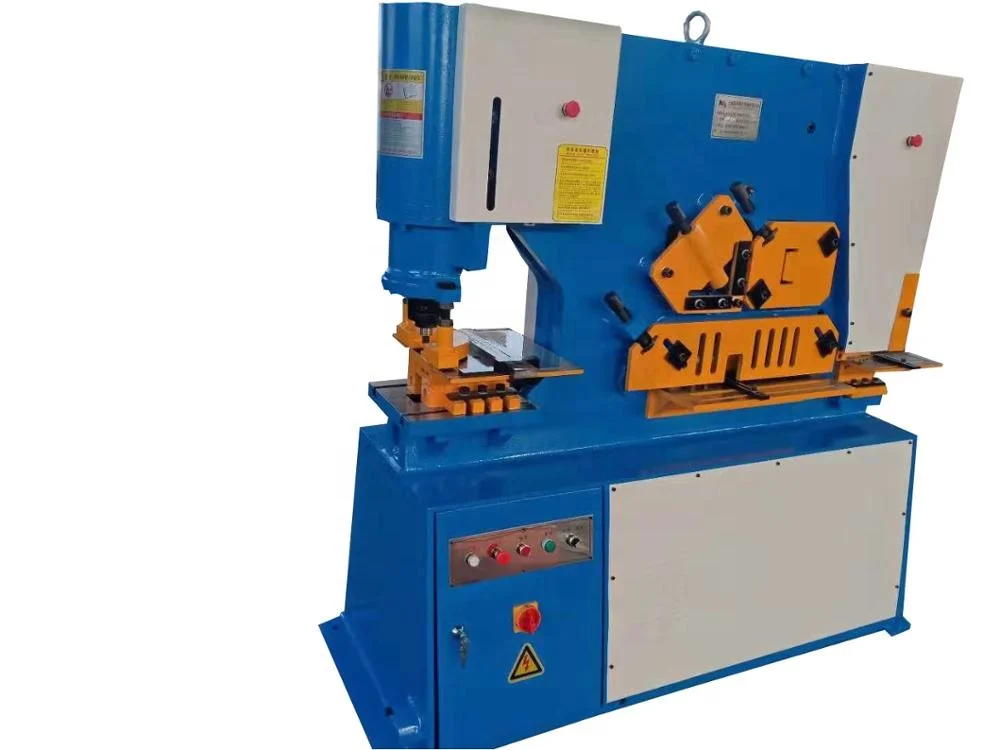

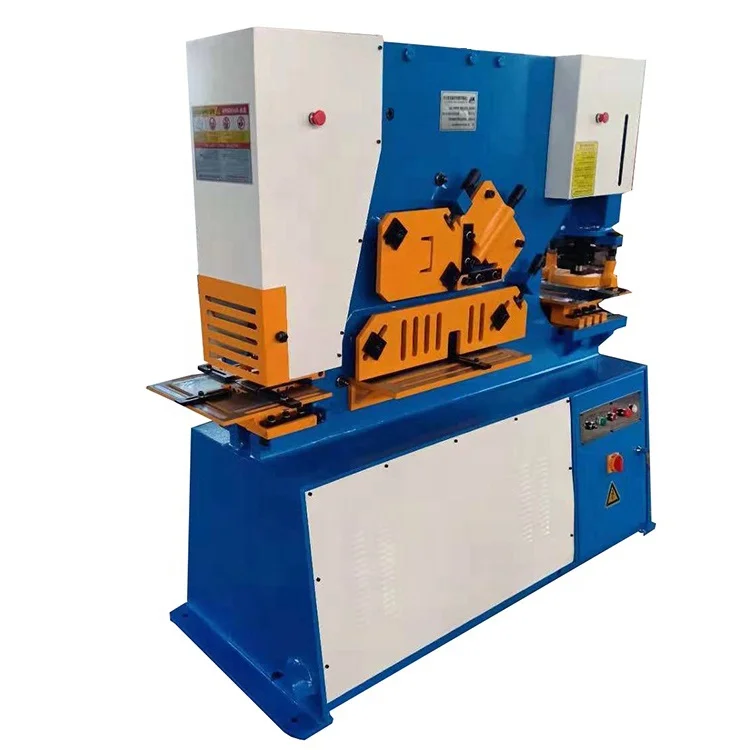

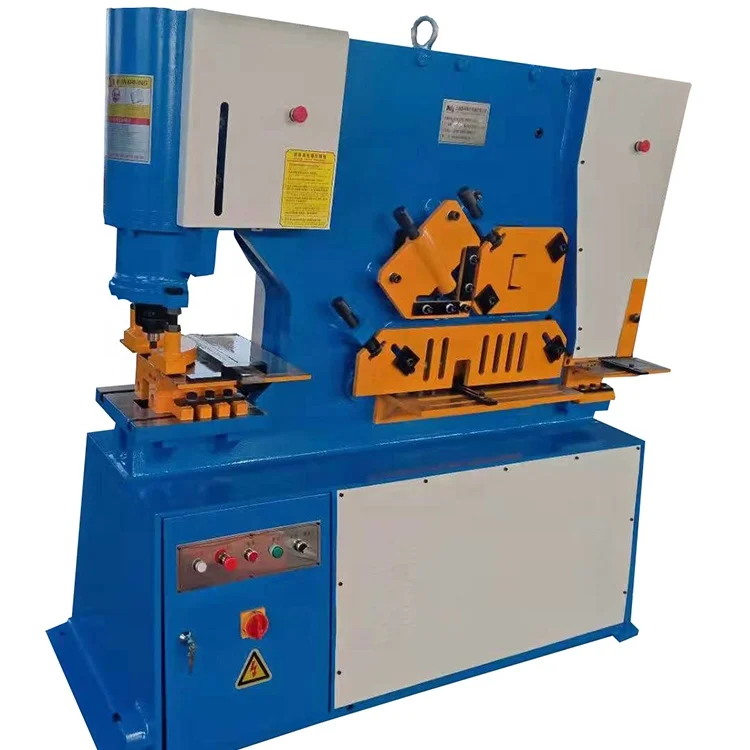

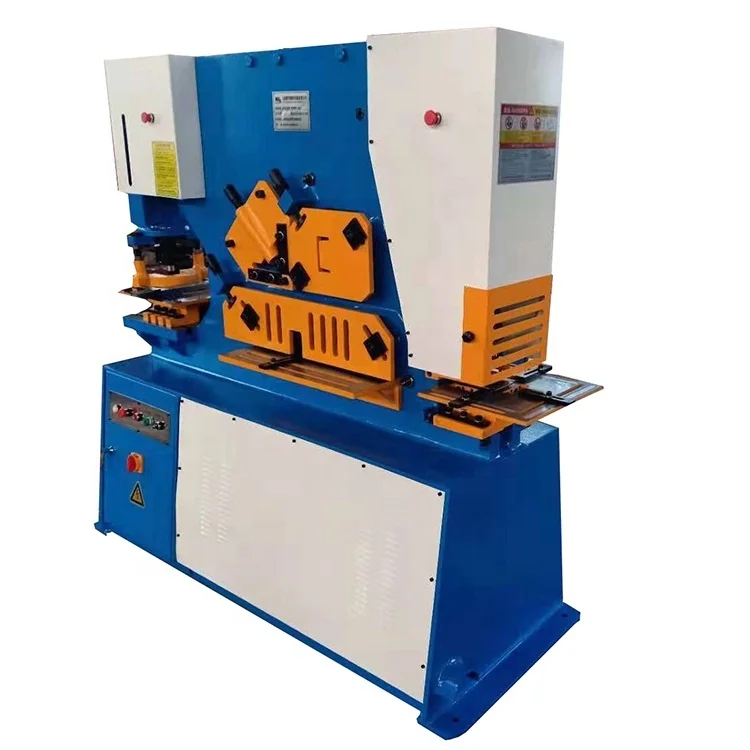

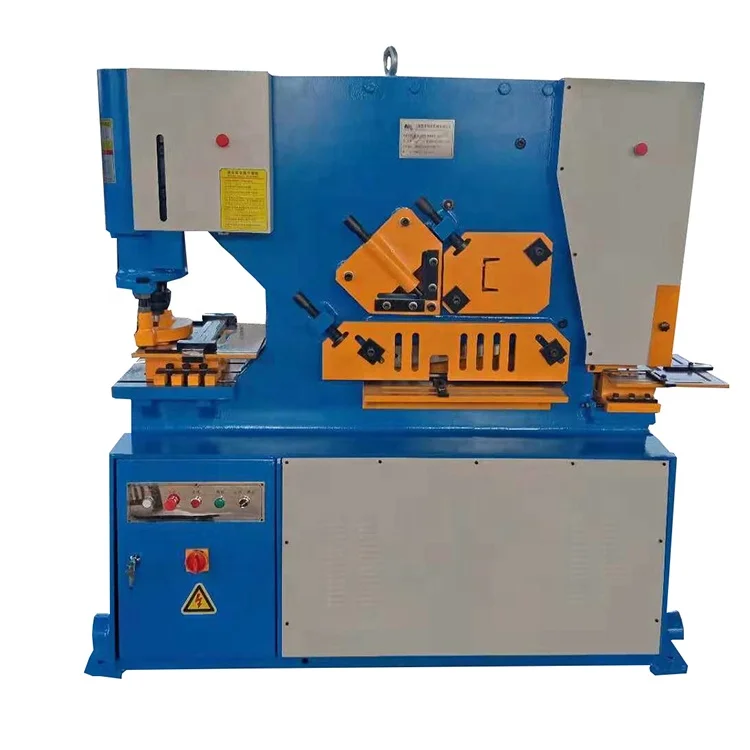

Q35Y-16 Dual Cylinder Hydraulic universal multi-function iron worker/ironworker
Ironworker machine, so called universal shearing machine, is a versatile machine. The Metform’s Hydraulic Iron Worker machines have 5 working stations which are described as below.

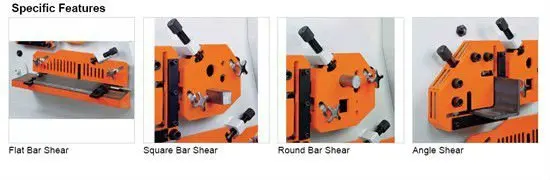

Punch Large punch bed area, removable front block and quick changing design for punching pin

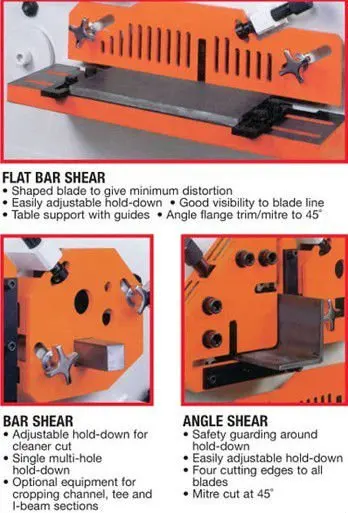

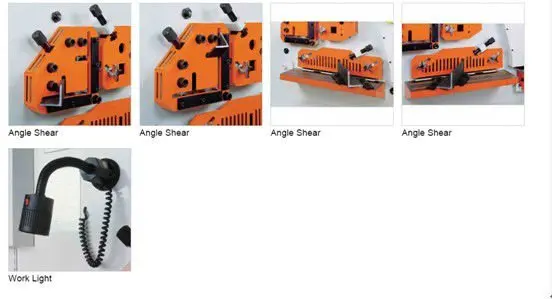

Angle station
This station provides large capacity angle cutting at 90° and 45°. Angles between 45° and 90° can be achieved by first cutting at 90° and then flange in the shearing station.
Section cutting station
For round and square bars, channel, joist, T-sections and may other special profiles.
Shearing
The shearing unit is fitted with a simple robust hold-down which is adjustable to any thickness of material within the cutting capacity of the machine.
Feed table with adjustable guides.
Notching station
The notching station is fitted as standard with a rectangular notch table with adjustable stops, allowing repetitive positioning.
Metform machines are supplied with standard tooling including repetition support tables at punch, Comprehensive safety guards are fitted as standard on all work stations.
The hydraulic system is activated by two shielded foot controls for two operator utilization. one operating the punch end cylinder, the other operating the shear end cylinder.
The shear cylinder provides the power to the three shearing and the notch stations.
Easy for maintenance with centralized lubrication system.
Metform Model Q35Y-12, Q35Y-14, Q35Y-16, Q35Y-20, Q35Y-25 and Q35Y-30 are available for cutting different steel size.
Main Technical data
Specification Item | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | |
flat shearing | In max. thickness (mm) | 16*250 | 20*330 | 25*330 | 30*355 |
In max. width(mm) | 8*400 | 10*480 | 16*600 | 20*600 | |
Length of blade(mm) | 400 | 480 | 600 | 600 | |
|
|
|
|
| |
Section cutting | Square (mm) | 40*40 | 45*45 | 50*50 | 55*55 |
Round Dia. (mm) | 45 | 50 | 60 | 65 | |
Channel (mm) | 126*53*5.5 | 160*60*6.5 | 200*75*9 | 280*86*11.5 | |
I beam (mm) | 126*74*5 | 160*86*6 | 200*102*9 | 280*124*10.5 | |
Angle at 90°(mm) | 120*120*12 | 140*140*12 | 160*160*14 | 180*180*16 | |
Notching | Max. thickness (mm) | 10 | 13 | 14 | 16 |
Max. width (mm) | 57 | 57 | 57 | 57 | |
Depth (mm) | 100 | 100 | 100 | 100 | |
punching | Rated capacity KN | 600 | 750 | 1100 | 1400 |
Max. thickness (mm) | 16 | 20 | 25 | 28 | |
Diameter (mm) | 25 | 30 | 35 | 38 | |
Throat depth (mm) | 300 | 355 | 400 | 600 | |
Stroke length (mm) | 80 | 80 | 80 | 80 | |
Cycles Min-1 | 6 | 8 | 6 | 6 | |
|
|
|
|
| |
Motor power kw | 4.5 | 5.5 | 7.5 | 11 | |
Overall size | Width (mm) | 800 | 900 | 980 | 1060 |
height(mm) | 1780 | 1930 | 2100 | 2380 | |
length(mm) | 1650 | 1950 | 2350 | 2680 | |
weight | kg | 1600 | 2400 | 4800 | 6800 |
PICS REFERENCE:
Packaging & Shipping
1 Wood case for packaging by sea.
2 Fix with chanle steel to be make stable.
3 Accessories packging separate.
4 Sign core point.
Our Services
Engineers available to service machinery overseas.
Company Information
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
Machinery Equipment: seam welding machines, spiral tube forming machines, elbow making machines, roll bending machines, angle steel flat steel volume circle machines, lock formers, hydraulic notching machines, hydraulic combined punching and shearing machine,CNC plasma/laser cutting machine,punch presses.
Metalworking Machines: coil processing machinery, leveling machine,slitting line, cut-to-length lines, rolling mills.
FAQ
•How to get a accurate quotation from us?
provide metal thickness and width.
• what’s the shipping cost from China to your country?
tell us your city or port
• How to check imported charges or tax ?
Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding hs code is 85152900
• Payment terms,MOQ,warranty,FOB...
payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery.
• what’s the package
fumigation-free plywood case or without package
• How to operate this machine ?
video link of our factory .......or we send you the movie directly
• what about commissioning service ?
we can offer commissioning service,the buyer need to afford plane tickets
• Do you offer teaching&training ?
Training at supplier’s plant
• what’s policy for guarantee and broken parts?
Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
