Professional Supplier Ophthalmic Operating Microscope YZ-20T9

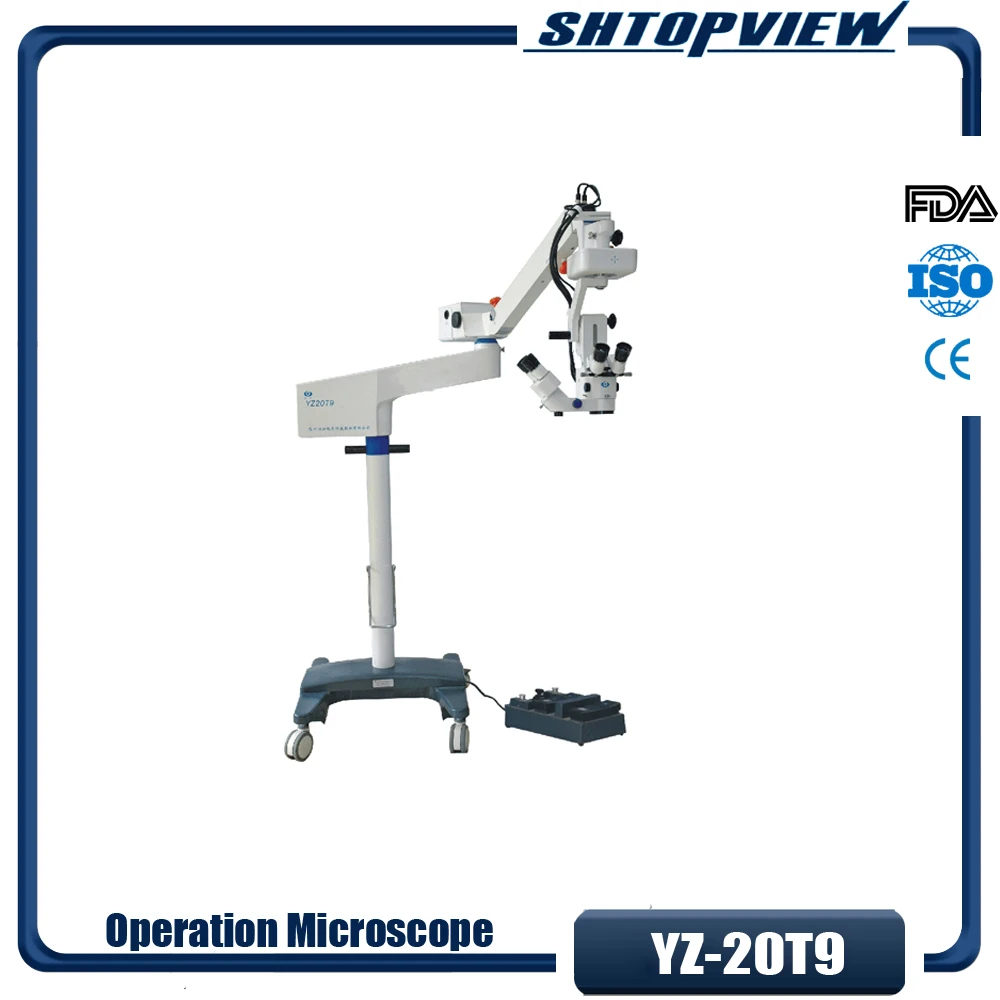

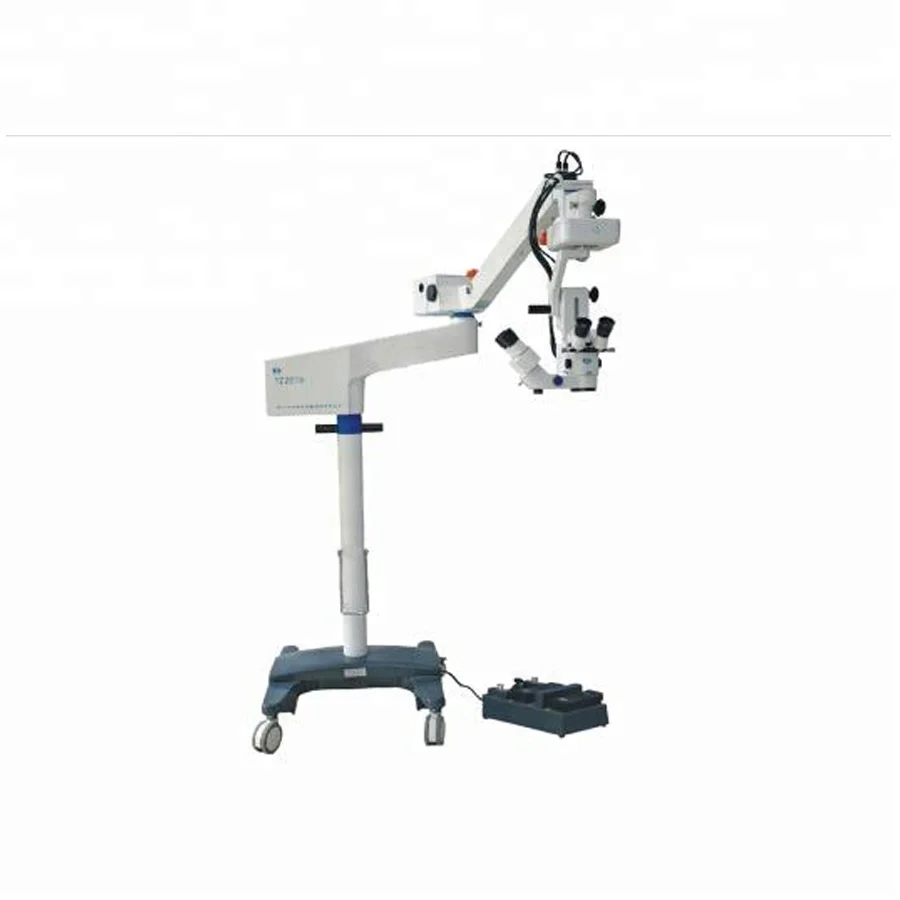

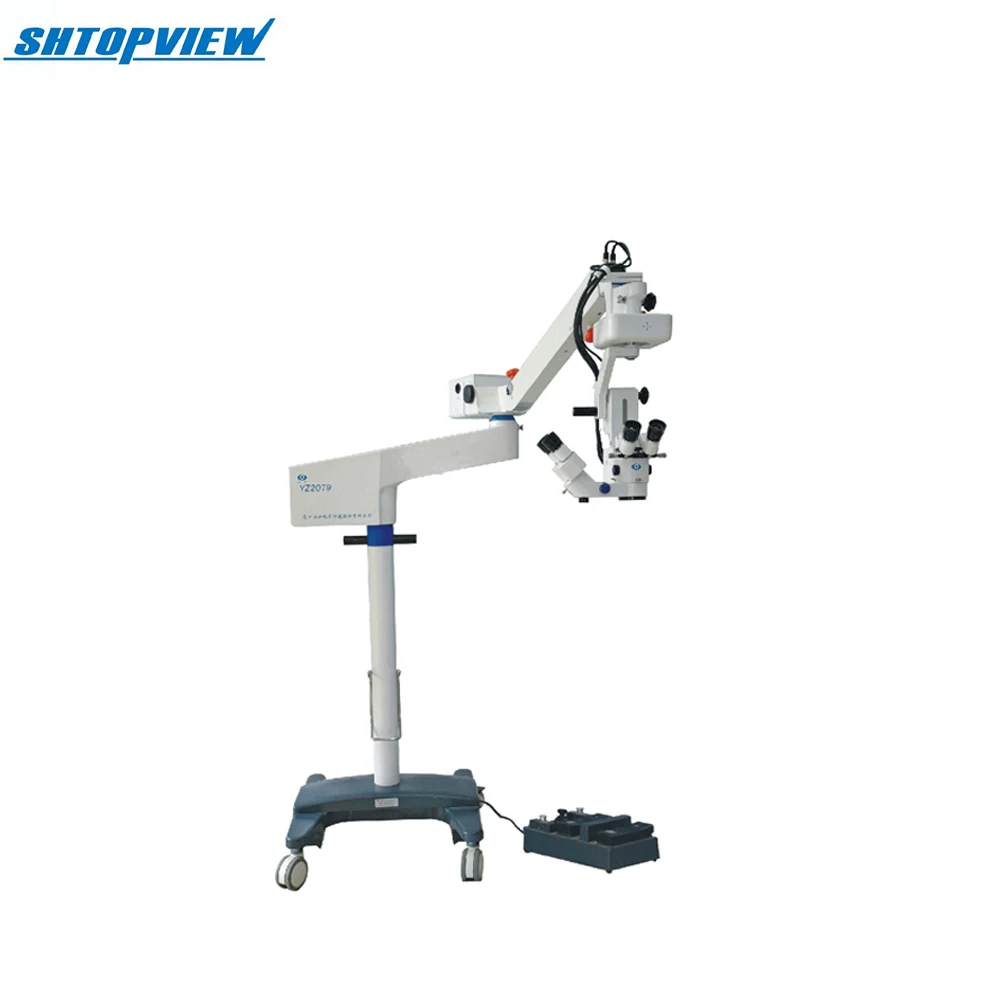

YZ20T9 ophthalmic operating microscope
Advanced apochromatic technology and unique optical balanced technology effectively improves the binocular visual fusions,
strengthenes in third dimension and reduces surgeon’s tireness during operations.
Fine focusing knob is under the bottom of assistant binocular. The observation of the
assistant’s microscope can be finely focused independently of the main microscope to
avoid different observation from surgeons.
20°oblique illumination can also be used as slit illumination. Slit width is continuously adjustable.
For ophthalmic use
YZ20T9 ophthalmic operating microscope
Eyepiece Magnification: 12.5×/18B
Objective Lens: f=200
Working Distance: 190mm
Magnifications for Main Microscope: 4×,6×,10×,16×,25×
Magnifications for Assistant Microscope: 6×,10×,14×
Diameter of Field: 58mm,38mm,23mm,14mm,9mm
Diopter Adjustment: ±7D
Pupil Distance: 50mm~75mm
Maximal Resolution: 119 LP/mm
Focusing Range for Assistant Microscope: ≥30mm
Illumination Source: 12V/100W,Cold Reflection Halogen
Bulb for Medical Use Illumination Type: 6°+0°coaxial illumination of cold light source and 20° Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable
Coaxial Illumination: ≥50000lx
Oblique Illumination: ≥45000lx
Reaching Radius of Arm: 1240mm
Adjustable Vertical Range: 850mm~1350mm
Fine Focusing Speed and Range: ≤2mm/s,≥50mm
Speed for X/Y and Range: ≤2mm/s,50mm×50mm
Input Voltage: AC220V±22V/50Hz±1Hz, AC110V± 11V/60Hz±1Hz:
Power: 330VA
Fuse :AC250V T4.0A,AC125V T8.0A
Electrical Safety Standard: Executive standard :GB9706.1-2007,
Class I Packing Volume: 0.786m3, 5cartons
Total Weight : 213kg
Normal Questions:
1. Our Vision:
Excellent Quality, Mutual Benefit
2. Our Strategy:
To be the bridge Chinese ophthalmic instruments to your country
3. what is your company’s advantage?
(1) Better Quality with Lower Price
We always supply the better price on the same quality level, and try our best to save the client’s every cent. Also offer good after service, never ignore the instruments problem since we establish.
(2) located
We are in Shanghai ,which is biggest business center in CHINA. The quality made in shanghai is the best in CHINA ,also very easy to have a ticket to shanghai all over the world, welcome to visit our company.
(3)Export experts
As we have a favorable frame and stable quality control, our products can be found in nearly all continents. Years of export experience, deliver goods by different means: truck, rail, air and sea containers. We know all the country ‘s customs rules, will notice customer in advance ,if the instruments allow import or not, also if need certificate for import and how much import tax will be, have method to save import tax if buyer need.
4. What is your MOQ?
Our MOQ is usually 1 pc for most of our products
5. What is your delivery time?
The time of delivery is 4-7 days after received your payment, by fast express.15~35 days by sea.2~6 days by air to buyer’s nearest air port.
6. What is the shipping port?
shanghai
7. What is the payment terms?
We accept T/T, L/C, Western Union, or “ALIBABA secured online buying with via credit card”. And small amount by “paypal” ,below 500 USD.“ alibaba Trade Assurance” you’re covered for: If we does not meet the requirements in your contract, Alibaba.com will refund your covered amount.
8. What is your main products?
Shanghai Top View Industrial Co,. Ltd is a leading company with years experience in ophthalmic instruments export business. We specialize in ophthalmic instruments, such as glasses display rack, auto refractometer, keratometer, phoropter, slit lamps, lens edger and other ophthalmic instruments products. The principle of our company is to provide perfect quality, competitive marketing prices, good service and to meet the needs of the customers.
9. How about the customs declaration amount?
In principle, we are according to the actual payment amount to making a declaration, if you need change, please indicate the amount of customs declaration, we will consider the circumstances for making a declaration.
10.what about the import license?
Some ophthalmic medical instrument need import license(such as auto refractometer\\trail lens set\\phoropter\\slit lamp\\a scan etc.) , lens meter/lens edger sunglasses display stand are not need import license.For example Brazil and Mexico customer need CPF for import auto refractometer.( Because the Argentine customs restrictions, temporarily does not support sold to Argentina.)
11.who pay the custom duty ?
If refuse to pay import duties and cause the product return. All liability to the buyer. all expenses for goods returned need paid by the buyer, including return freight and tariffs.we appreciate if the buyer can confirm receiving the goods and give good feedback,within 3 days .our customer service dept will add you into our VIP list and get a discount in future order.
