Rack Mount Triple 2RU 800x 480  5 Camera Video Monitor Built in





HD-SDI 3G/HD/SDI Inputs and Tally System












Product Description







T51 are extremely thin and lightweight.5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD and 3G-SDI video on 2RU rack monitor.GOODWELL Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.



T51 application

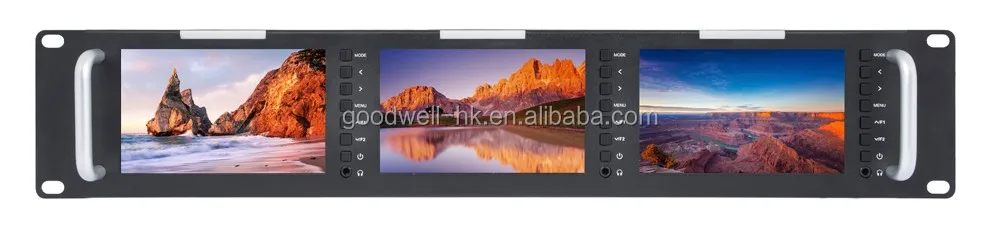

The T51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast.The viewing angle is Horizontal: 140° / Vertical: 120°.







Triple 5 inch 3G-SDI monitor1

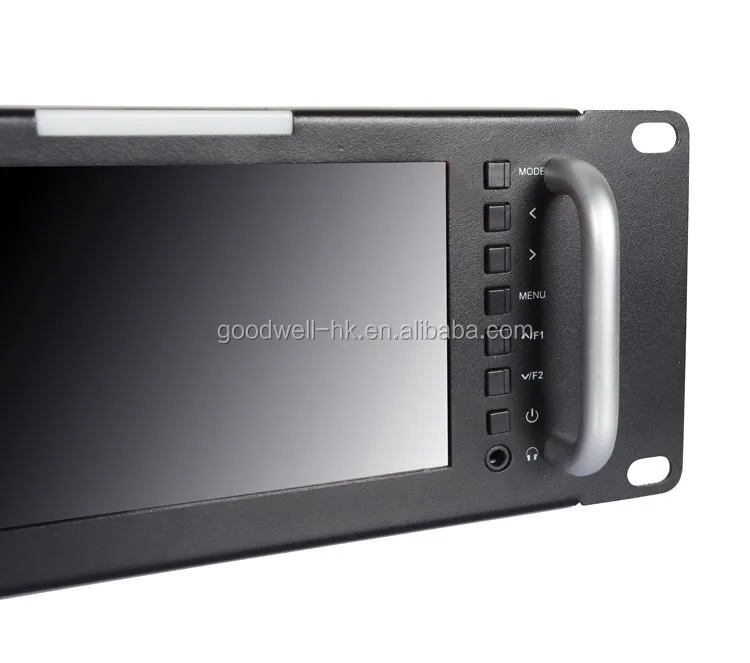

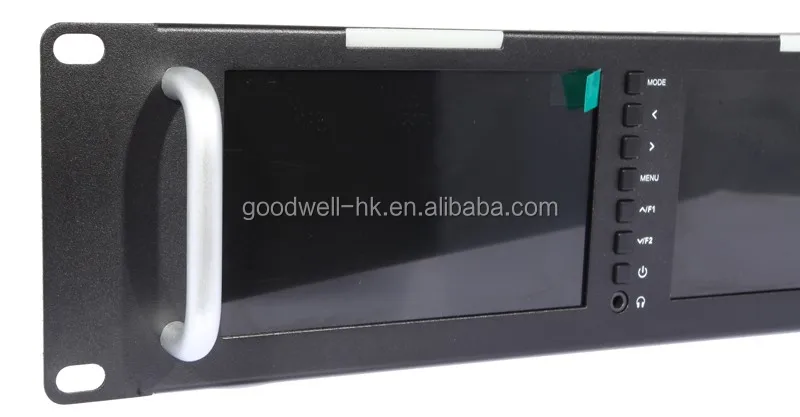

Easy to operate, time-saving:



Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.



T51-22

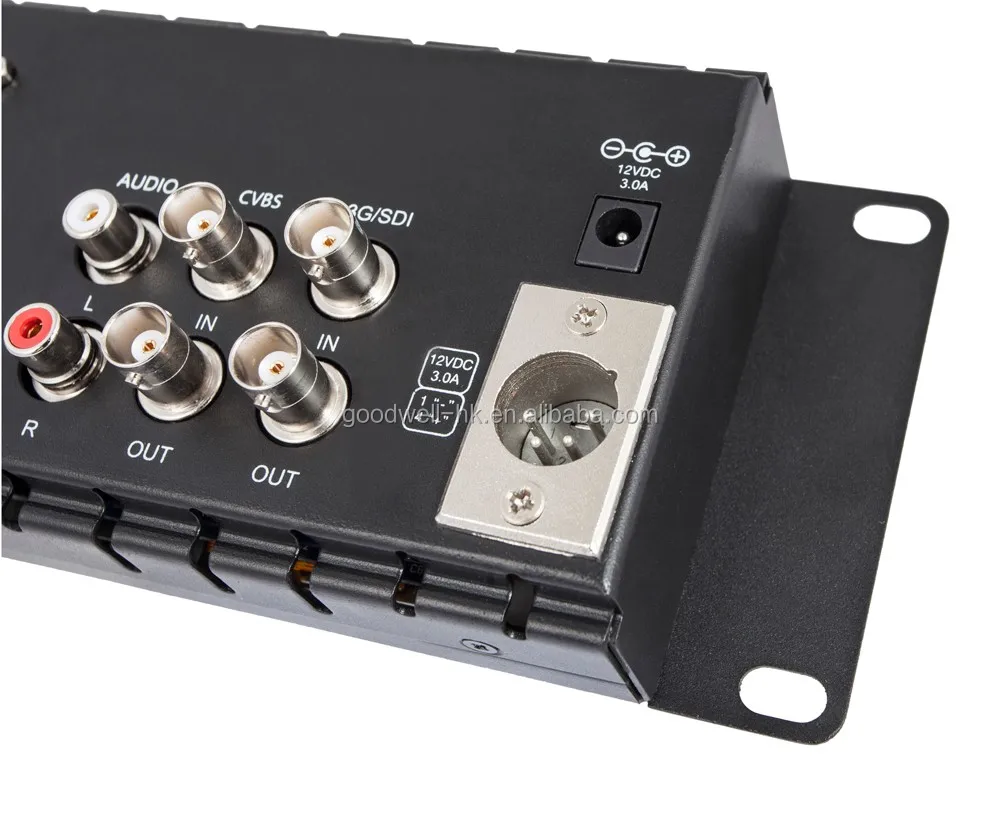

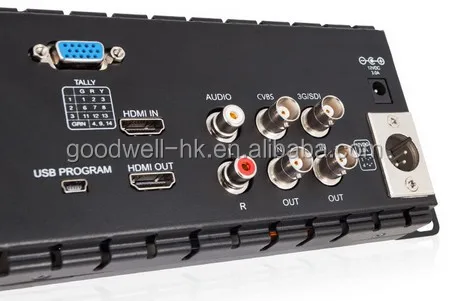

Multi-format Input/ Output: SDI / HDMI / CVBS / Audio





Each LCD of T51 monitor supports:

3G/HD/SD-SDI input × 1

3G/HD/SD-SDI loop output × 1

HDMI input × 1

HDMI loop output × 1

CVBS input × 1

CVBS output × 1

Audio(L/R) input× 1

Stereo Headphone output× 1

USB for Upgrade





Triple 5 inch Multi-format Input and Output rack monitors








  3-color Tally Light  :





 There are front TALLY lights for each screen, with 3 colors display(Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.







3-color Tally Light lcd monitor






Stablity and Reliability:




As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.





Metal case rack mount lcd monitor





Main Features:




1. Wide view angle, High resolution 800 x 400, bright, colorful display

2. Slim design and 2RU size

3. HDMI,3G/HD/SD-SDI input and loop-through

4. Special Features:

Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)


Check Field (Red, Green, Blue, Mono)

Pixel to Pixel

Center Marker and Safe Marker (80%, 85%, 90%, 93%, 96%,2.35:1)

Image Flip (Horizontal, Vertical, Hor&Ver)

Image Freeze


5. Monitoring via front panel 3.5mm stereo headphone jacks

6. Built-in LED tally indicators (Red, Green, Yellow)

7. Power using included 12-volt supply or use standard 4-pin XLR





Peaking Focus Assist :




The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture.

When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It’s shows Red highlight over parts of the monochrome image in focus.





peaking focus assist









check field







 pixel to pixel-1





Center Marker:



Center Marker and safe frame1







Image Flip



 Dimension :



T51-1





Specifications :
















































































































Model



T51



Screen size



5"x3



Resolution



800×480 pixels



Dot pitch



0.045(W)×0.135(H) mm



Aspect Ratio



16:9



Brightness



500cd/m2



Contrast



500:1



Backlight



LED



Response time



10 ms



Viewing Angle



70°/70°(L/R), 50°/70°(U/D)



Inputs



HDMI,3G/HD/SD-SDI,Audio(L/R),Video



Outputs



HDMI,3G/HD/SD-SDI,Video,3.5mm Audio Jack



SDI Support Format



480i/576i



720p(60/59.94/50/30/29/25/24/23.98)



1080i(60/59.94/50)



1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)



HDMI Support Format



480i/576i/480p/576p



1080i (60/59.94/50)



720p (60/59.94/50/30/29/25/24/23.98)



1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)



Power Consumption



≤25W



Input Voltage



DC 9V~24V



storage Temperature



-20~ 55



workinging Temperature



-30~ 65



Install Way



Rack Mount



Unit Size



482.6Lx88Hx34D mm



Unit Weight



1570g









Standard Accessories :





1× 3A Power Adapter

1× Tally Kit

1× Operation Manual





T51
