CY15 CYT5 433mhz RF Transmitter and Receiver Superheterodyne

Product Overview

Description

CY15



2. FEATURES:
Frequency: 315M/433.92MHz (custom frequency is available)
Low cost ASK radio super-heterodyne receiver
High frequency stability (no adjust components) & coherence
Very low RF re-radiation at the antenna
Operation temperature: -20℃ ~70℃ ( It can custom to -40~85℃ upon requests)
Supply voltage: 3.0~5.5v
Compatible with most (ASK/OOK) transmitters



3. APPLICATION:
Smart home system
Remote controls
Remote fan and light control
Garage door and gate openers
Alarm and security system

4. PIN DEFINITION:

Please note: CY15 is come with standard 4 PINs (without the red colored pins). Please notify us if you would like 6PINs.

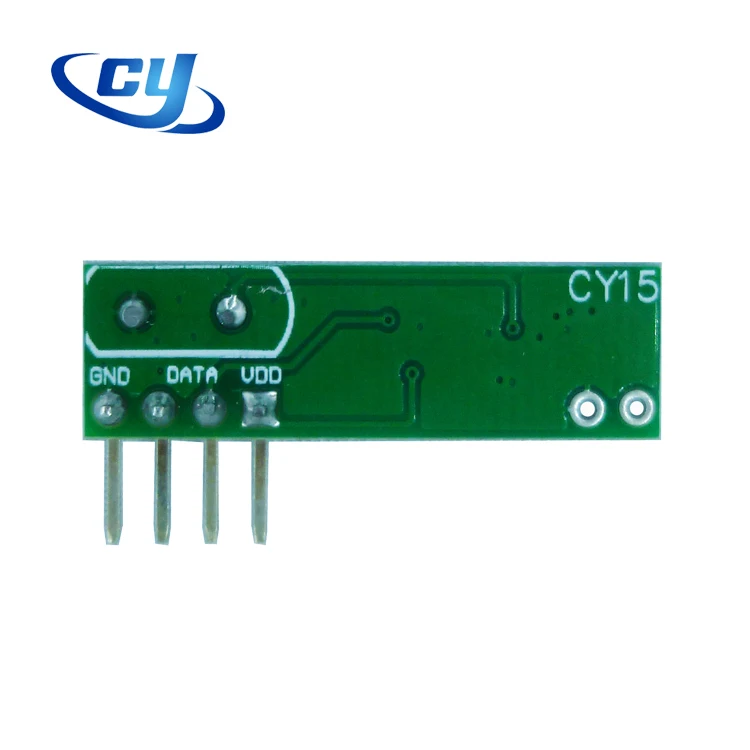

Figure1 CY15 Shape & Pins

Pin Name	Pin Definition
ANT	RF signal input pin
GND	Connect to negative power supply
VDD	Connect to positive power supply
DATA	Data output pin
DATA	Data output pin
GND	Connect to negative power supply

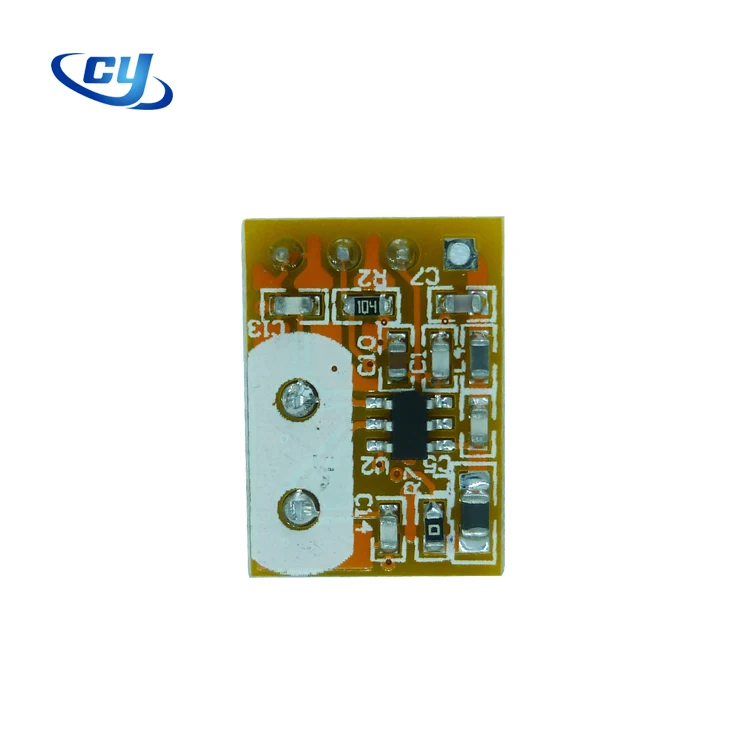

CYT5



1. DESCRIPTION:

CYT5 is a ASK radio transmitter module. This module is a superior performance transmitter module for ISM band. With the adoption of European brand RF wireless data transferring/ receiver chipsets, it has advantage at strong transmission power, low voltage power supplying, easily through the Fcc/CE authentication. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.



2. FEATURES:
High output power: >8mW;
Low operation voltage: VCC= 1.8 to 3.6 V;
Frequency: 315MHz/433.92MHz/868.325/915MHz(custom frequency is available);
Frequency tolerance: ±50 KHz;
The range can be up to 300m in open space when matching with CY11.
Operating temperature: -20℃~+70℃( It can custom to -40~85℃ upon requests)
The Static power consumption is low. Emission current consumption: 8mA (315Mhz/433.92Mhz), 13mA (868.35Mhz/915Mhz). There is no current consumption is there is no data launch.
Frequency tolerance: ±30 KHz
Bit rate: 2.4KB/S;
Circuit Shape: PLL(+-50KHz);
Dimension: 11.5*16*5.5mm



3. APPLICATION:
Remote gate controls. Barriers
Remote keyless entry (RKE)
Car alarm systems
Wireless security systems
Automation systems
Remote control systems
Remote Curtain Motor



4.PIN DEFINITION:

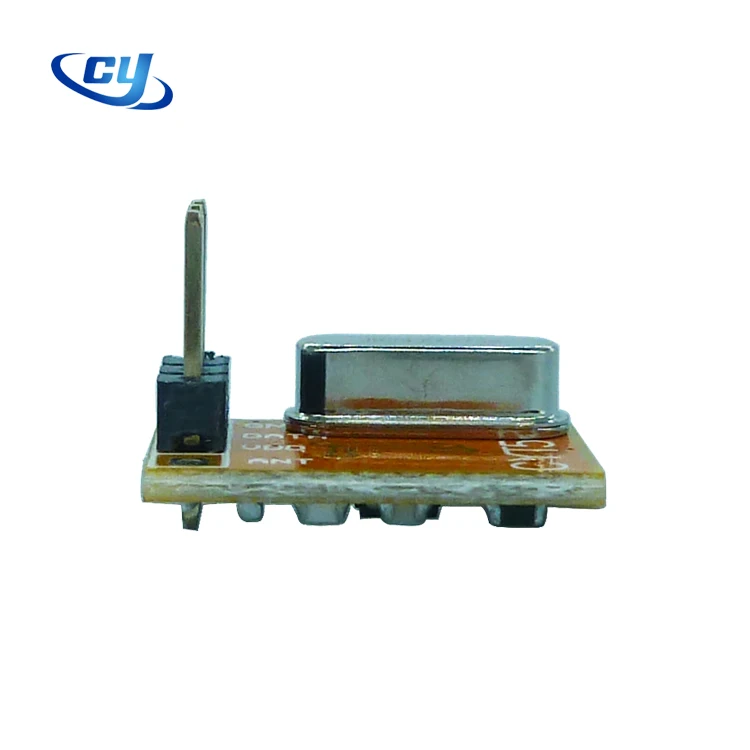

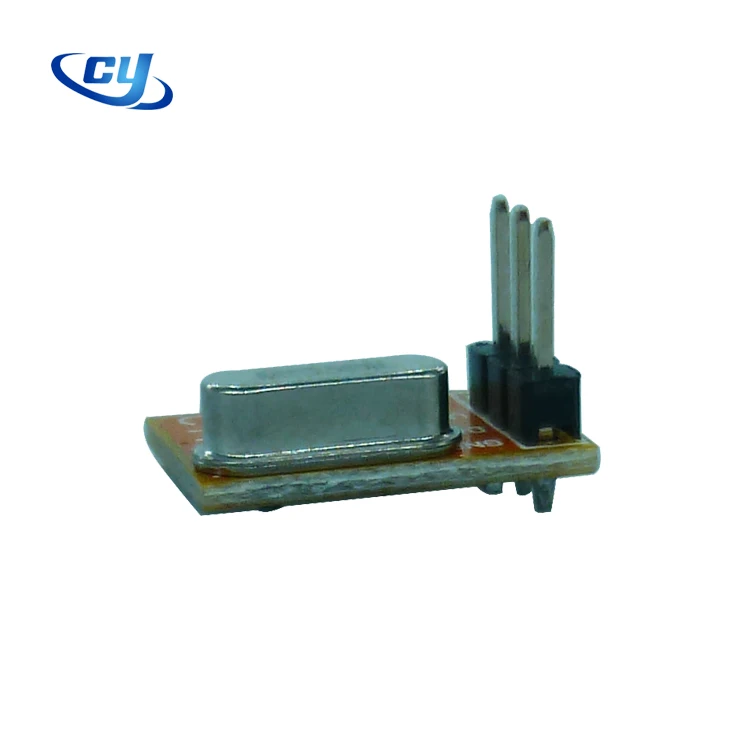

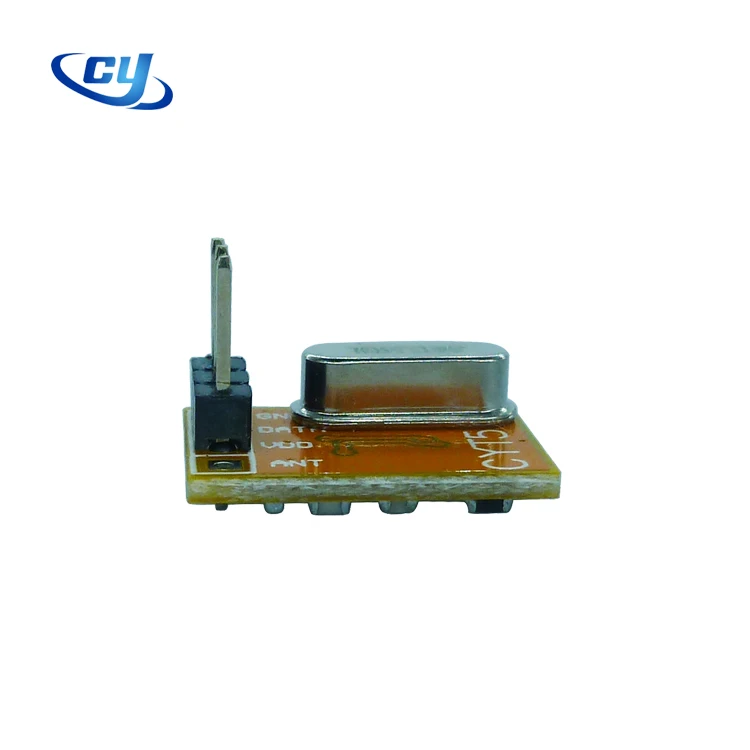

Please note: CYT5 is come with standard three Vertical PINs as the picture showed in the right hand side (without the ANT pin).  Please notify us if you would like 4 PINs or horizontal pin type.

Pin	Name	Function
1	GND	Ground
2	DATA	Data connected to MCU
3	VDD	Positive Power Supply
4	ANT	Antenna In



5. ELECTRICAL CHARACTERISTICS:
VDD-GDN 1.8V-3.6V TA-25°C

Characteristics	Symbol	Condition	Value			Unit
			Min	Typ	Max
Frequency	Fc		315	433.92	868.325/915	MHz
Modulation Mode			ASK
Output power		3.6V/50Ω		10dBm		dBm
Data-rate				2.4K		Hz
Frequency Tolerate	Fc			±50K		Hz
Current	IRC			8	13	mA
Working Voltage	VCC		1.8	3.3	3.6	V
Working Temperature	TC		-20		+70	℃



6.MECHANICAL SIZE: (unit: mm)

Figure1 CYT5 Dimension
PCB Dimension Size Tolerance: +-3%
