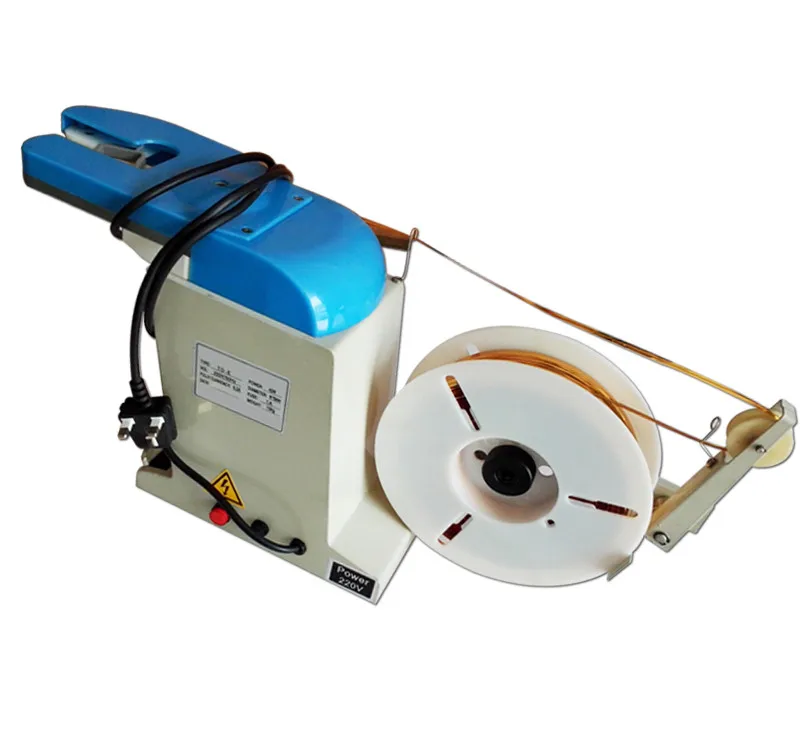

2016 automatic coil winding machine twist tie machine

Name:high quality automatic transformer coil winding machine/coil winding machine

coil winding machine

1.The maximum tying diameter for the YH-3050 is from 10mm-50mm do not twist over size.

2.Plug the power cord into the power source.

3.According to the tying diameter and set the length of twist-tie.

4. According to the tying diameter and set adjustment.

5.If the tying diameter is under 30mm, please loosen the screw

6.and make the adjustment at a high of of 15mm above the

twisting mouth. Then lock the screw (1).

7.Hold the wire securely, move smoothly the wire against the twisting

Head for twisting operation.

After twisting, retract it straightly.

coil winding machine

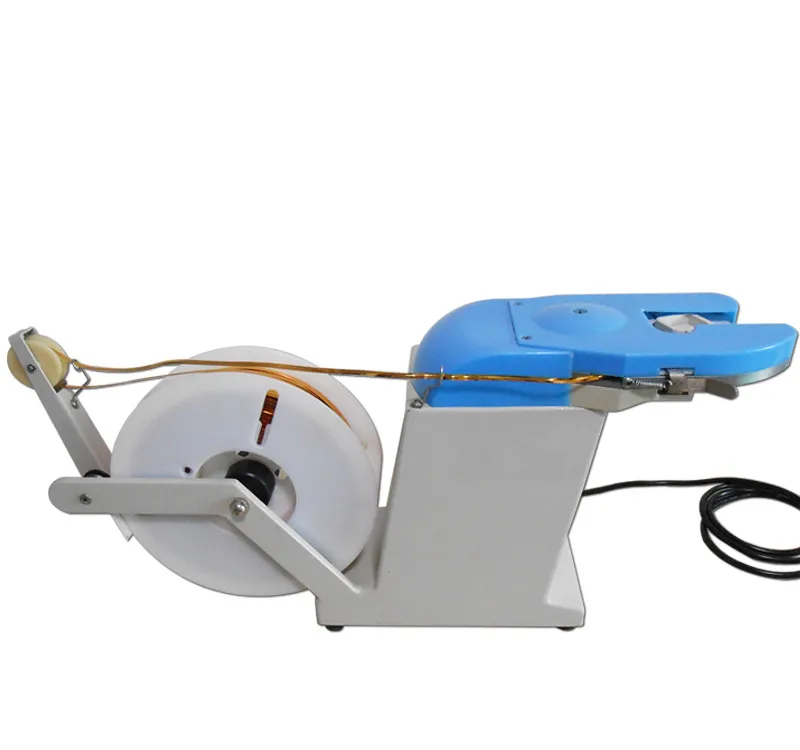

product show

coil winding machine

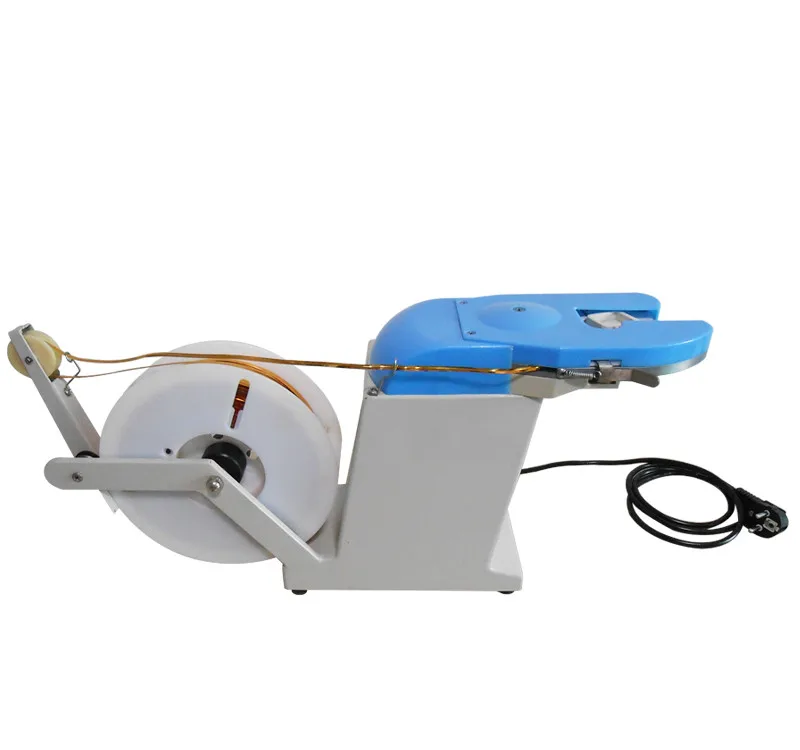

Latest twist tie machine

technical datasheet

coil winding machine

Minicomputer: For bundled mouth diameter: 8MM - 30MM
Applicable Norse Length: 80MM - 135MM
Midrange: For bundled mouth diameter: 18MM - 45MM
Applicable Norse Length: 120MM - 185MM
Spools fixture parameters: (8 font spacing: 50mm-200mm) (circle type inner diameter: 50mm-200mm)
Technical requirements and use of the environment
1, input voltage: AC220V 50HZ / 60HZ
2, rated power: <200W
3, tie wire speed: 0.75 seconds / second, 66-75 beats / min
4, winding speed: 1 --- 8 laps / sec, can be adjusted
5, humidity: ≤85% RH
6, Volume: 500 (length) × 300 (width) × 350 (H)
7, tie creel height: 200MM
8, Weight: about 40KG
9, no violent shaking, vibration, corrosive atmosphere, dust.
10, Norse request must roll with the axis of the shaft and the direction of the tie-line to be consistent, not the total weight of the spool tie over 6 kg, tie the best use of PE materials.

 honer and certificate

Quality & Service : our has always been providing our clients with great quality products and superior customer service. Quick LeadTime We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met. Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!

• Best products and factory price.
• On-time delivery and the shortest delivery time.
• 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
• OEM and customized service.
• User manuals will go with relative machines.

• QC: All products will be checked before delivery.
• Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
• Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
• Operation Guidance: If you have any problem with operation, please feel free to contact us.
