F type joining devices use for 75Ω cable assign system,especially CATV,broadcast television netword.It can already be used for having impedance to mate the occasion required,can be used in not mating the occasion too.It is joined,inserts helping jointly that its charac-teristic is whorl,the price is suitable. F type joining devices can exchange and use with the similar products in the world.
Temp.range : -40~+60°C
Impedance : 75Ω
Frequency range: 0~1GHz
Center conductor withdrawal force ≥0.49N
Contact resistance: center conductor ≤6mΩ , outer conductor ≤1mΩ
Insulation resistance ≥ 1000 MΩ Withstand voltage at sea level : 750V
Working voltage : 170V max
VSWR : Straight ≤1.2 Angle≤1.3
Durability : 500 cycles
double male F quick connector adapter
male to male F quick plug adapter
F male to F male quick fit connector

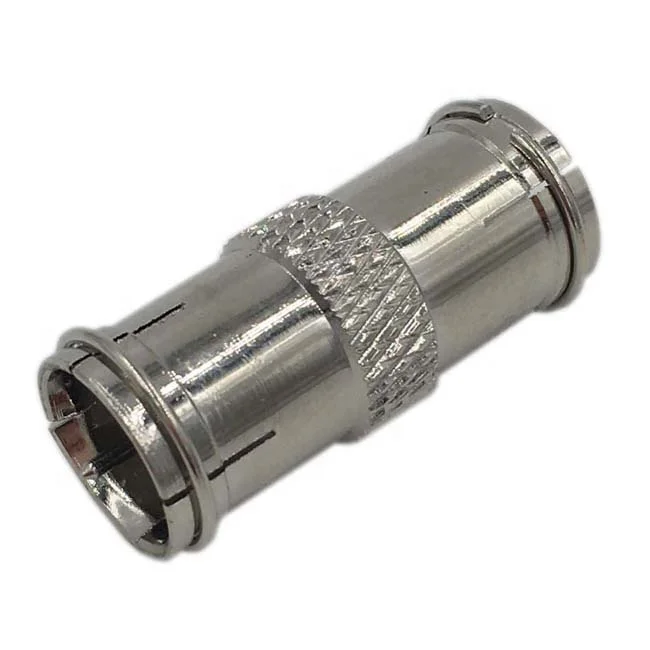

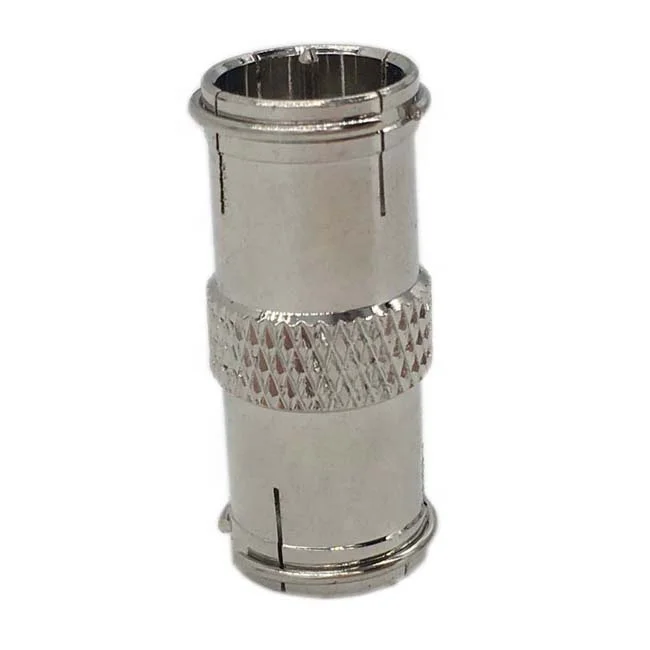

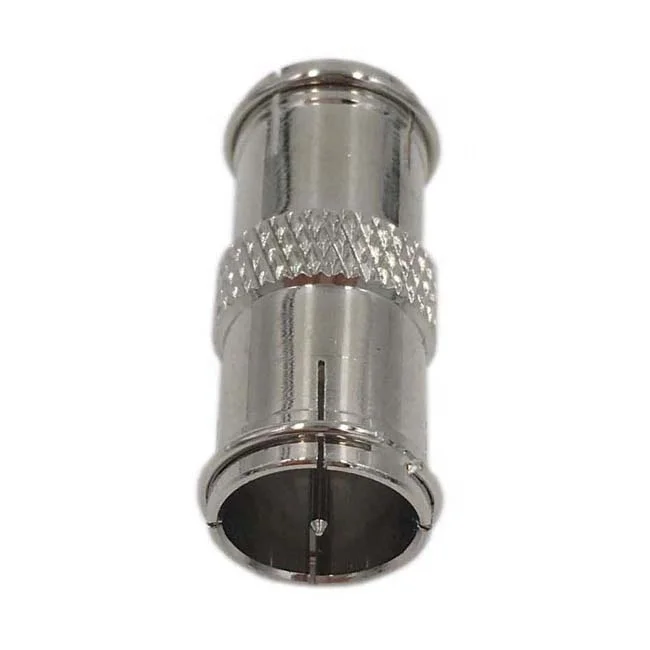

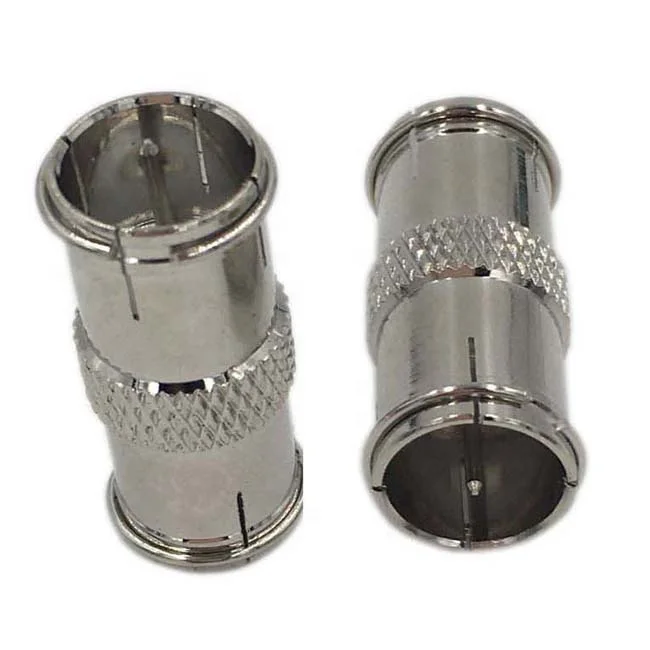

double male push on F connector
F male to F male push on connector
Quick Fit F Connector Push On Adaptor Satellite
F type push on adaptor coax connector easy plug
Quick Fit F Connector Male/Plug To Female Adapter - Push On RF Coaxial
F-Quick Male PLUG Straight Coaxial TV adapter
