China Manufacturer Best Quality No Impurity size of pvc cable channel VDRC

Product Overview

Description





   >>Conduit     >>wiring duct             >>cable terminals        >>cable gland     >>cable tie



Top Design, Professional Process, High-Quality Service



KEY FEATURES

• Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes.

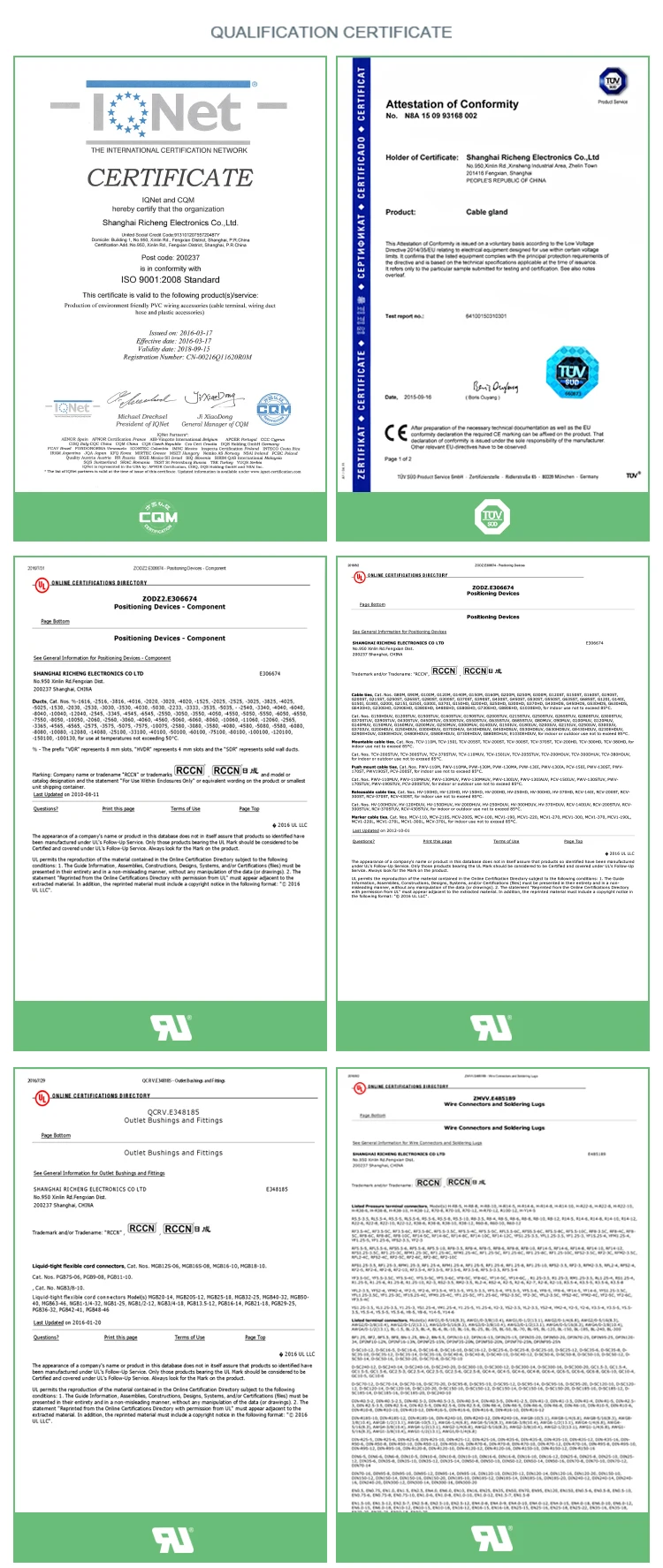

• Certificates:UL:E306674 CE:EN50085 RoHS,REACH.


• Made of rigid PVC, environmental friendly, lead-free


• Work temperature:-40 °c to 65 °c


• UL94 Flammability Rating of V-0, low smoke and halogen, inflaming retarding, insulated


• Provided with mounting holes

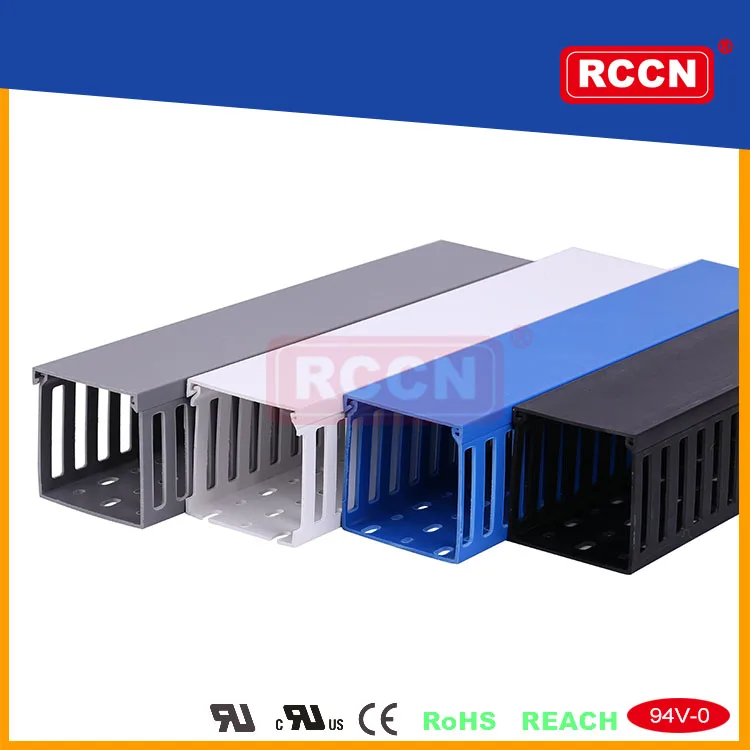

• Available color:gray.white.blue.black and other special colors


• Special length come with MOQ request

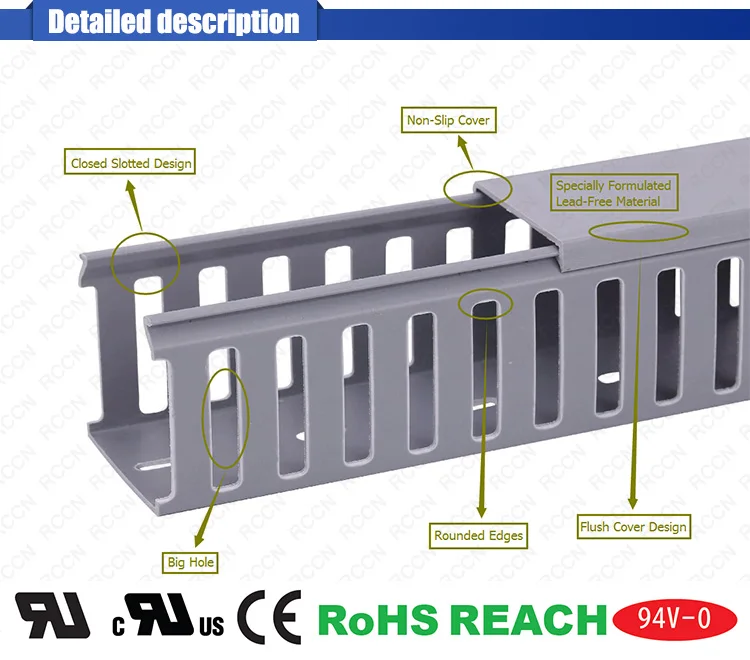

Features	Advantages	Benefits
Wide finger and slot design	Solid on the top of wall,easy to cover	Can be used with a wide range of wire
Rohs approved Enviroment-friendly Material	Approved by EU Rohs,Compliant with  US UL 94V-0,good inflaming	Eliminates health concerns associated with PVC that contains lead
Smooth rounded edges	Smooth edges in duct slots and  at top of duct fingers	Protects hands and  wiring/cabling from abrasion
non-slip liner inside duct covers	Will not slide easily when installed  on duct base	Cover stays in place during shipment, vibration and when in a vertical  orientation,eliminating rework
Flush cover design Greater capacity than traditional duct designs	Cover sits flush with sidewall	Can potentially use a smaller size wiring duct for same number of wires Provides a neat and finished appearance
Slot smooth	Smooth adge after punching	No need to get offer abrasion, save time
Solid design on top wall	Convenient to over	Speed wire installation
Four different colors	Suitable to different environments using	Can meet different customers'request  in different project
Approved by many certificates	America UL,Canada CULUS,  EuropeCE ,ROHS,REACH, Flamility and low smoking certificate	Can provide related certificates of  the projects or parts need

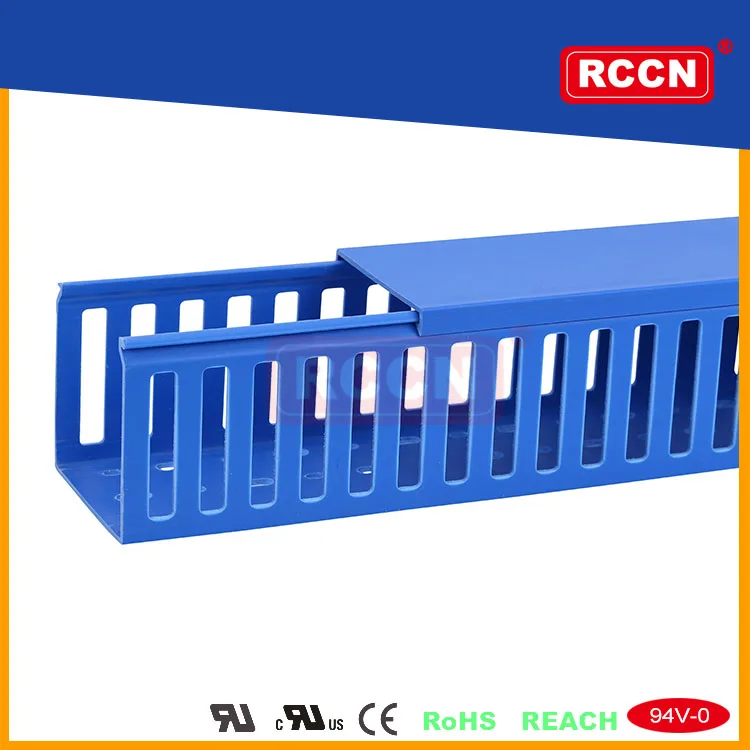

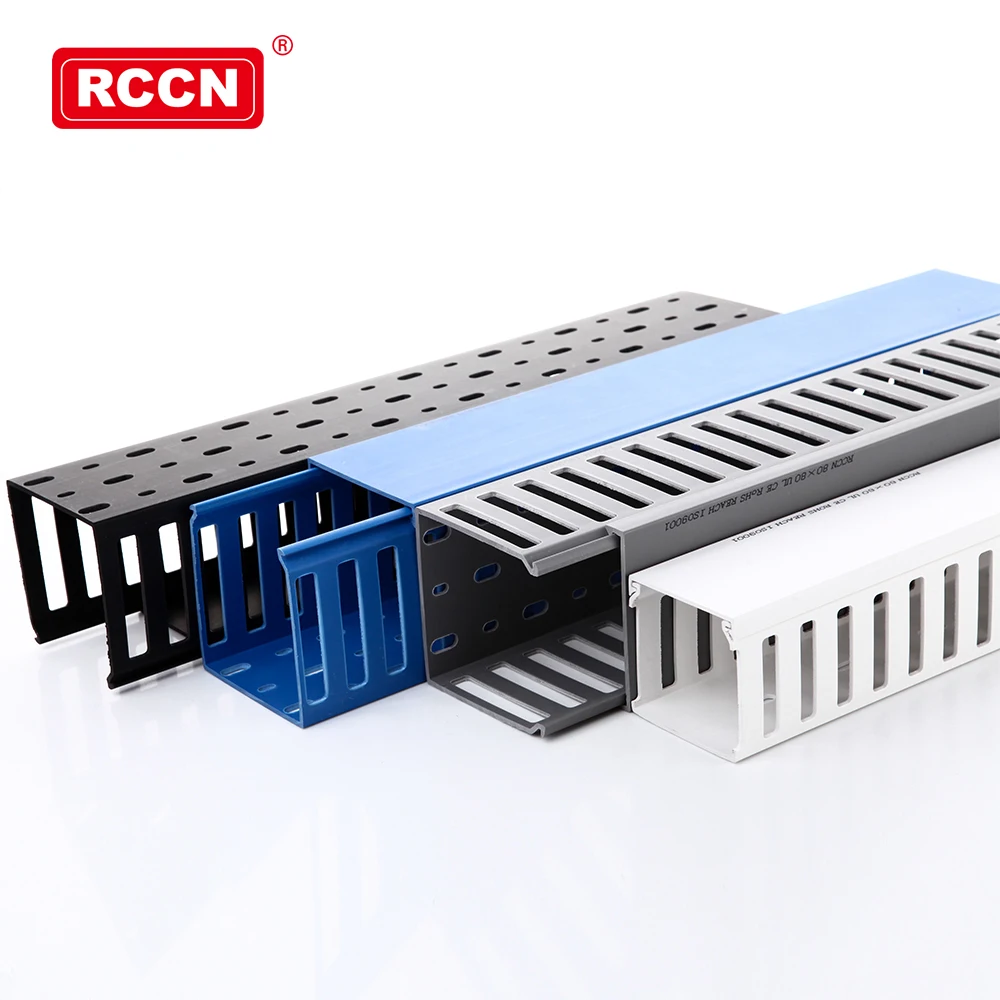

PICTURE OF Open Slot Ducts

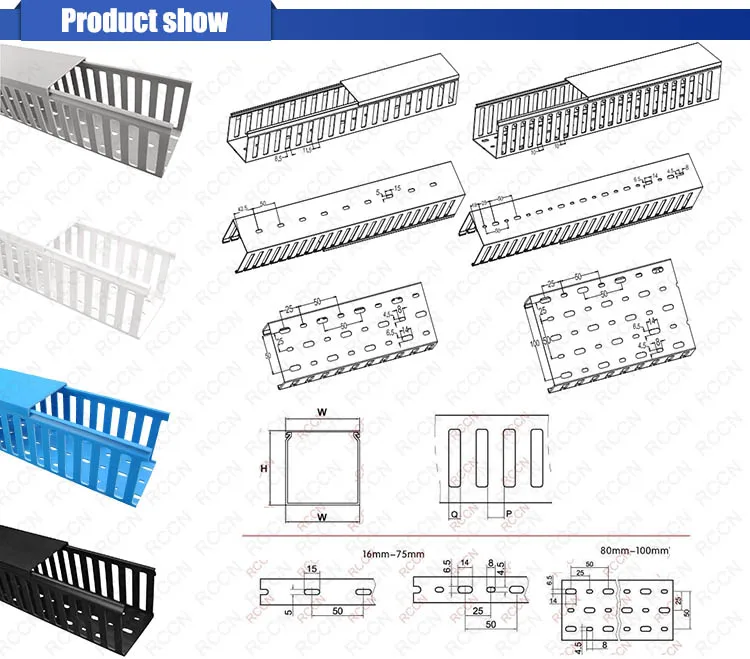

SPECIFICATIONS





Item No.				W*H	Q	P	Wire capability /2.0sp	pack/M
Gray	White	Blue	Black
VDR1520C	VDR1520CW	VDR1520CE	VDR1520CB	15*20	8.5	11.5	8-12pcs	260M
VDR2020C	VDR2020CW	VDR2020CE	VDR2020CB	20*20	8.5	11.5	10-20pcs	240M
VDR4020C	VDR4020CW	VDR4020CE	VDR4020CB	40*20	8.5	11.5	15-30pcs	140M
VDR1525C	VDR1525CW	VDR1525CE	VDR1525CB	15*25	8.5	11.5	5-15pcs	260M
VDR2025C	VDR2025CW	VDR2025CE	VDR2025CB	20*25	8.5	11.5	5-15pcs	200M
VDR2525C	VDR2525CW	VDR2525CE	VDR2525CB	25*25	8.5	11.5	10-25pcs	200M
VDR3025C	VDR3025CW	VDR3025CE	VDR3025CB	30*25	8.5	11.5	12-28pcs	160M
VDR4025C	VDR4025CW	VDR4025CE	VDR4025CB	40*25	8.5	11.5	20-35pcs	100M
VDR5025C	VDR5025CW	VDR5025CE	VDR5025CB	50*25	8.5	11.5	12-25pcs	100M
VDR1530C	VDR1530CW	VDR1530CE	VDR1530CB	15*30	8.5	11.5	8-15pcs	180M
VDR2030C	VDR2030CW	VDR2030CE	VDR2030CB	20*30	8.5	11.5	25~35pcs	180M
VDR2530C	VDR2530CW	VDR2530CE	VDR2530CB	25*30	8.5	11.5	25~35pcs	160M
VDR3030C	VDR3030CW	VDR3030CE	VDR3030CB	30*30	8.5	11.5	25~35pcs	140M
VDR4030C	VDR4030CW	VDR4030CE	VDR4030CB	40*30	8.5	11.5	30~40pcs	100M
VDR5030C	VDR5030CW	VDR5030CE	VDR5030CB	50*30	8.5	11.5	40-50pcs	80M
VDR6030C	VDR6030CW	VDR6030CE	VDR6030CB	60*30	8.5	11.5	50-60pcs	60M
VDR2233C	VDR2233CW	VDR2233CE	VDR2233CB	22*33	8.5	11.5	25-35pcs	160M
VDR3333C	VDR3333CW	VDR3333CE	VDR3333CB	33*33	8.5	11.5	35-45pcs	160M
VDR2035C	VDR2035CW	VDR2035CE	VDR2035CB	20*35	8.5	11.5	30~40pcs	100M
VDR3535C	VDR3535CW	VDR3535CE	VDR3535CB	35*35	8.5	11.5	35~45pcs	112M
VDR5035C	VDR5035CW	VDR5035CE	VDR5035CB	50*35	8.5	11.5	40~60pcs	88M
VDR2040C	VDR2040CW	VDR2040CE	VDR2040CB	20*40	8.5	11.5	16~22pcs	110M
VDR2540C	VDR2540CW	VDR2540CE	VDR2540CB	25*40	8.5	11.5	20~25pcs	112M
VDR3540C	VDR3540CW	VDR3540CE	VDR3540CB	35*40	8.5	11.5	35-45pcs	100M
VDR4040C	VDR4040CW	VDR4040CE	VDR4040CB	40*40	8.5	11.5	60~70pcs	100M
VDR6040C	VDR6040CW	VDR6040CE	VDR6040CB	60*40	8.5	11.5	100~115pcs	68M
VDR8040C	VDR8040CW	VDR8040CE	VDR8040CB	80*40	8.5	11.5	120~135pcs	48M
VDR10040C	VDR10040CW	VDR10040CE	VDR10040CB	100*40	8.5	11.5	120~135pcs	32M
VDR12040C	VDR15040CW	VDR12040CE	VDR12040CB	120*40	8.5	11.5	140-155pcs	/
VDR2545C	VDR2545CW	VDR2545CE	VDR2545CB	25*45	8.5	11.5	20~25pcs	104M
VDR3345C	VDR3345CW	VDR3345CE	VDR3345CB	33*45	8.5	11.5	40~55pcs	108M
VDR4545C	VDR4545CW	VDR4545CE	VDR4545CB	45*45	8.5	11.5	60~70pcs	72M
VDR6545C	VDR6545CW	VDR6545CE	VDR6545CB	65*45	8.5	11.5	110~120pcs	56M
VDR2050C	VDR2050CW	VDR2050CE	VDR2050CB	20*50	8.5	11.5	18~28pcs	120M
VDR2550C	VDR2550CW	VDR2550CE	VDR2550CB	25*50	8.5	11.5	20~30pcs	100M
VDR3050C	VDR3050CW	VDR3050CE	VDR3050CB	30*50	8.5	11.5	25~40pcs	84M
VDR3550C	VDR3550CW	VDR3550CE	VDR3550CB	35*50	8.5	11.5	40~60pcs	80M
VDR4050C	VDR4050CW	VDR4050CE	VDR4050CB	40*50	8.5	11.5	60~70pcs	68M
VDR4550C	VDR4550CW	VDR4550CE	VDR4550CB	45*50	8.5	11.5	70~80pcs	60M
VDR5050C	VDR5050CW	VDR5050CE	VDR5050CB	50*50	8.5	11.5	80~90pcs	60M
VDR5550C	VDR5550CW	VDR5550CE	VDR5550CB	55*50	8.5	11.5	90~100pcs	60M
VDR6050C	VDR6050CW	VDR6050CE	VDR6050CB	60*50	8.5	11.5	100~120pcs	48M
VDR7550C	VDR7550CW	VDR7550CE	VDR7550CB	75*50	8.5	11.5	150-170pcs	40M
VDR8050C	VDR8050CW	VDR8050CE	VDR8050CB	80*50	8.5	11.5	160~180pcs	40M
VDR10050C	VDR10050CW	VDR10050CE	VDR10050CB	100*50	8.5	11.5	200~250pcs	26M
VDR12555C	VDR12555CW	VDR12555CE	VDR12555CB	125*55	8.5	11.5	220-270pcs	20M
VDR2060C	VDR2060CW	VDR2060CE	VDR2060CB	20*60	8.5	11.5	35-45pcs	100M
VDR2560C	VDR2560CW	VDR2560CE	VDR2560CB	25*60	8.5	11.5	40~50pcs	100M
VDR3060C	VDR3060CW	VDR3060CE	VDR3060CB	30*60	8.5	11.5	60~80pcs	80M
*VDR3560C	VDR3560CW	VDR3560CE	VDR3560CB	35*60	8.5	11.5	90~105pcs	60M
VDR4060C	VDR4060CW	VDR4060CE	VDR4060CB	40*60	8.5	11.5	100~115pcs	60M
VDR4560C	VDR4560CW	VDR4560CE	VDR4560CB	45*60	8.5	11.5	110~125pcs	30M
VDR5060C	VDR5060CW	VDR5060CE	VDR5060CB	50*60	8.5	11.5	120~135pcs	60M
VDR6060C	VDR6060CW	VDR6060CE	VDR6060CB	60*60	8.5	11.5	120~135pcs	48M
VDR8060C	VDR8060CW	VDR8060CE	VDR8060CB	80*60	8.5	11.5	180~210pcs	36M
VDR10060C	VDR10060CW	VDR10060CE	VDR10060CB	100*60	8.5	11.5	240~290pcs	28M
VDR11060C	VDR11060CW	VDR11060CE	VDR11060CB	110*60	8.5	11.5	250~300pcs	48M
*VDR12060C	VDR12060CW	VDR12060CE	VDR12060CB	120*60	8.5	11.5	260~320pcs	48M
VDR15060C	VDR15060CW	VDR15060CE	VDR15060CB	150*60	8.5	11.5	300~360pcs	16M
VDR2565C	VDR2565CW	VDR2565CE	VDR2565CB	25*65	8.5	11.5	40~50pcs	88M
VDR3365C	VDR3365CW	VDR3365CE	VDR3365CB	33*65	8.5	11.5	40~70pcs	80M
VDR4565C	VDR4565CW	VDR4565CE	VDR4565CB	45*65	8.5	11.5	110~120pcs	52M
VDR6565C	VDR6565CW	VDR6565CE	VDR6565CB	65*65	8.5	11.5	180~200pcs	44M
VDR7265C	VDR7265CW	VDR7265CE	VDR7265CB	72*65	8.5	11.5	180-230pcs	/
VDR5075C	VDR5075CW	VDR5075CE	VDR5075CB	50*75	8.5	11.5	180~210pcs	32M
VDR7575C	VDR7575CW	VDR7575CE	VDR7575CB	75*75	8.5	11.5	200~240pcs	24M
VDR10075C	VDR10075CW	VDR10075CE	VDR10075CB	100*75	10	10	250-290pcs	24M
VDR2580C	VDR2580CW	VDR2580CE	VDR2580CB	25*80	10	10	100~120pcs	72M
VDR3080C	VDR3080CW	VDR3080CE	VDR3080CB	30*80	10	10	110~125pcs	56M
VDR3580C	VDR3580CW	VDR3580CE	VDR3580CB	35*80	10	10	110~130pcs	56M
VDR4080C	VDR4080CW	VDR4080CE	VDR4080CB	40*80	10	10	140~160pcs	48M
VDR4580C	VDR4580CW	VDR4580CE	VDR4580CB	45*80	10	10	140~160pcs	40M
VDR5080C	VDR5080CW	VDR5080CE	VDR5080CB	50*80	10	10	160~180pcs	40M
VDR5580C	VDR5580CW	VDR5580CE	VDR5580CB	55*80	10	10	160~180pcs	32M
VDR6080C	VDR6080CW	VDR6080CE	VDR6080CB	60*80	10	10	180~210pcs	32M
VDR8080C	VDR8080CW	VDR8080CE	VDR8080CB	80*80	10	10	240~290pcs	24M
VDR10080C	VDR10080CW	VDR10080CE	VDR10080CB	100*80	10	10	260~350pcs	24M
VDR12080C	VDR12080CW	VDR12080CE	VDR12080CB	120*80	10	10	280~380pcs	16M
VDR14080C	VDR14080CW	VDR14080CE	VDR14080CB	140*80	10	10	350~450pcs	16M
VDR25100C	VDR25100CW	VDR25100CE	VDR25100CB	25*100	10	10	110~160pcs	60M
VDR33100C	VDR33100CW	VDR33100CE	VDR33100CB	33*100	10	10	130~165pcs	44M
VDR40100C	VDR40100CW	VDR40100CE	VDR40100CB	40*100	10	10	130~175pcs	40M
VDR50100C	VDR50100CW	VDR50100CE	VDR50100CB	50*100	10	10	220~250pcs	40M
VDR60100C	VDR60100CW	VDR60100CE	VDR60100CB	60*100	10	10	240~290pcs	32M
VDR70100C	VDR70100CW	VDR70100CE	VDR70100CB	70*100	10	10	250~280pcs	24M
VDR75100C	VDR75100CW	VDR75100CE	VDR75100CB	75*100	10	10	260~350pcs	24M
VDR80100C	VDR80100CW	VDR80100CE	VDR80100CB	80*100	10	10	260~350pcs	24M
VDR100100C	VDR100100CW	VDR100100CE	VDR100100CB	100*100	10	10	300~400pcs	24M
VDR120100C	VDR120100CW	VDR120100CE	VDR120100CB	120*100	10	10	350~450pcs	20M
VDR150100C	VDR150100CW	VDR150100CE	VDR150100CB	150*100	10	10	400~650pcs	16M
VDR100130C	VDR100130CW	VDR100130CE	VDR100130CB	100*130	10	10	350-450pcs	16M
VDR200100C	VDR200100CW	VDR200100CE	VDR200100CB	200*100	10	10	600-800pcs	/
VDR200150C	VDR200150CW	VDR200150CE	VDR200150CB	200*150	10	10	900-1200pcs	/















RCCN   VDRC Wide Slot Wiring Duct

 FAQ

1 Q:Do you have your own factory or just a trading company?

A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.



2 Q: Could you change the size for the customer?

A: Yes, sizes can be customized, for more details please contact us.



3 Q: How many days delivery the order?

A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.



4 Q: Do you provide free sample?

A:Yes, Sample can be provided with freight charge to be collected.





5 Q: Do you accept OEM or ODM?

A:Yes, OEM and ODM are available, any legal logo can be printed on the product.



6 Q:How about the after-sale service?

A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
