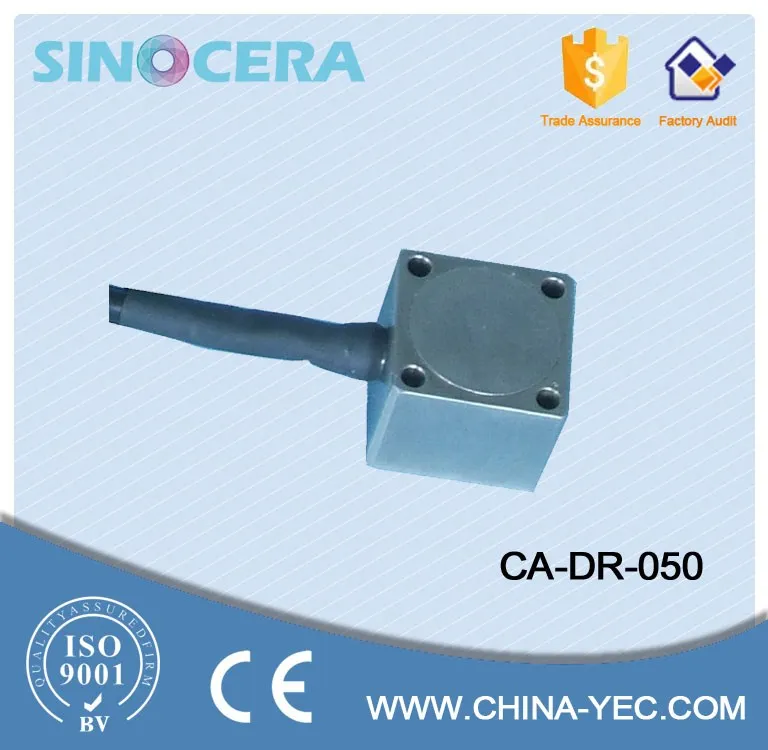

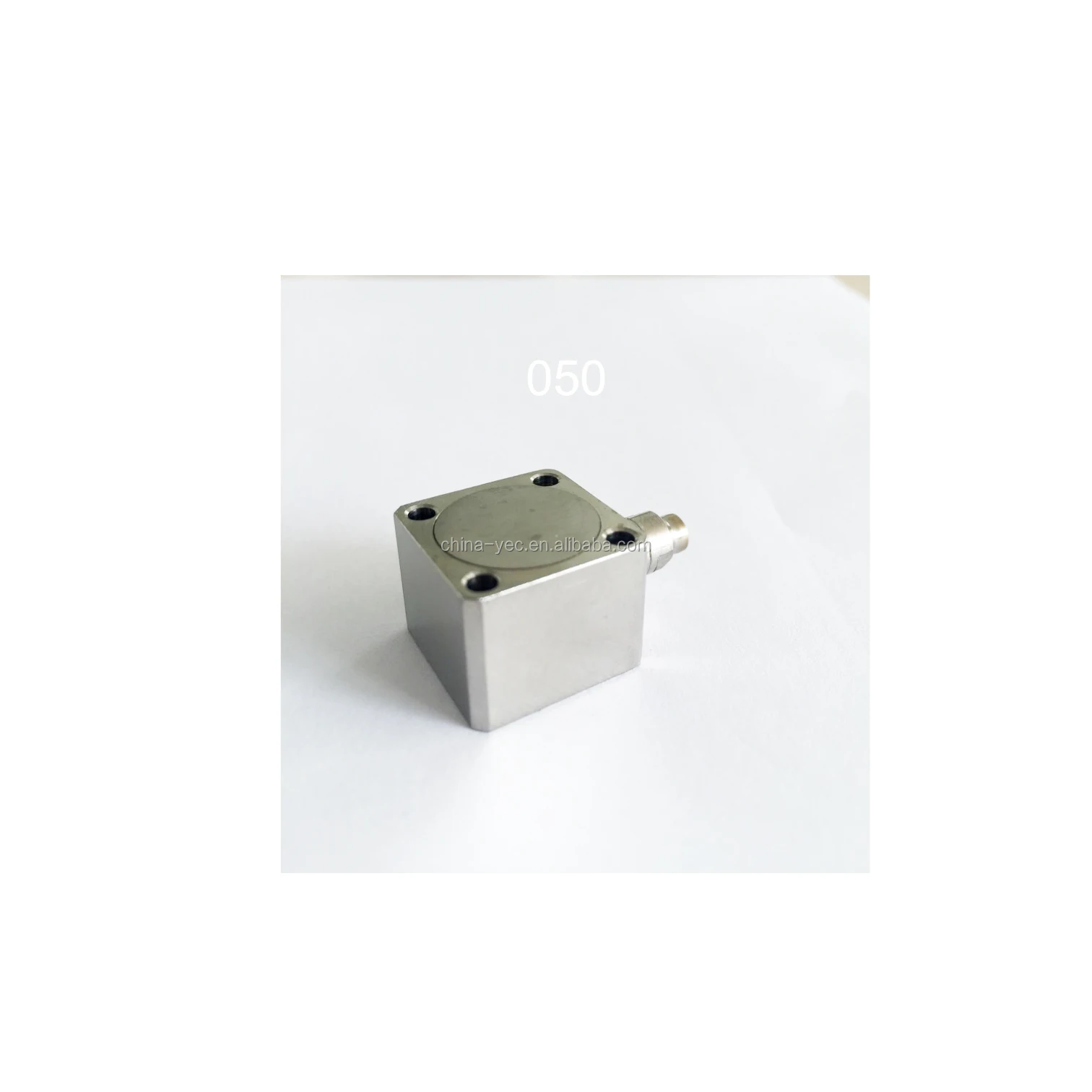

Capacitance Accelerometers Differential capacitance working principle

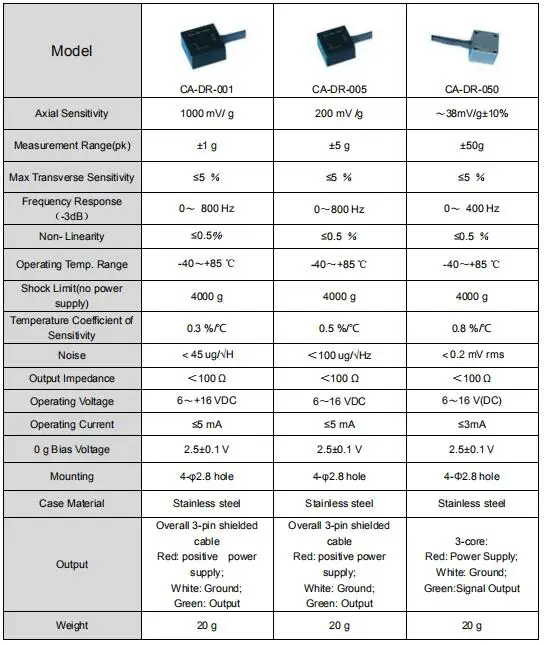

Axial Sensitivity

~38mV/g±10%

Measurement Range(peak)

±50g

Transverse Sensitivity

≤5 %

Non-linearity

≤0.5%

Frequency Response(-3dB)

0~ 400 Hz

Resonant Frequency

5.5,000Hz

Temperature  Response

Refer to the temp. curve

Operating Temp. Range

-40~+85 ℃

Temperature Sensitivity

0.8 %/℃

Shock Limit (No power supply)

500g

Operating Voltage

+6~+16 V(DC)

Operating Current

≤3mA

0g offset Voltage

2.5±0.1V

Noise(100Hz)

<0.2 mV rms

Output impedance

<100 Ω

Weight

20 g

Case material

Stainless Steel

Mounting

4-Φ2.8 hole

Output Cable

2m Length with 3-core:

Red: Power Supply;

White: Ground;

Green: Signal Output

Accessories

Sensor Certificate

Calibration parameter,

frequency response curve

M2.5×15 bolt

4
