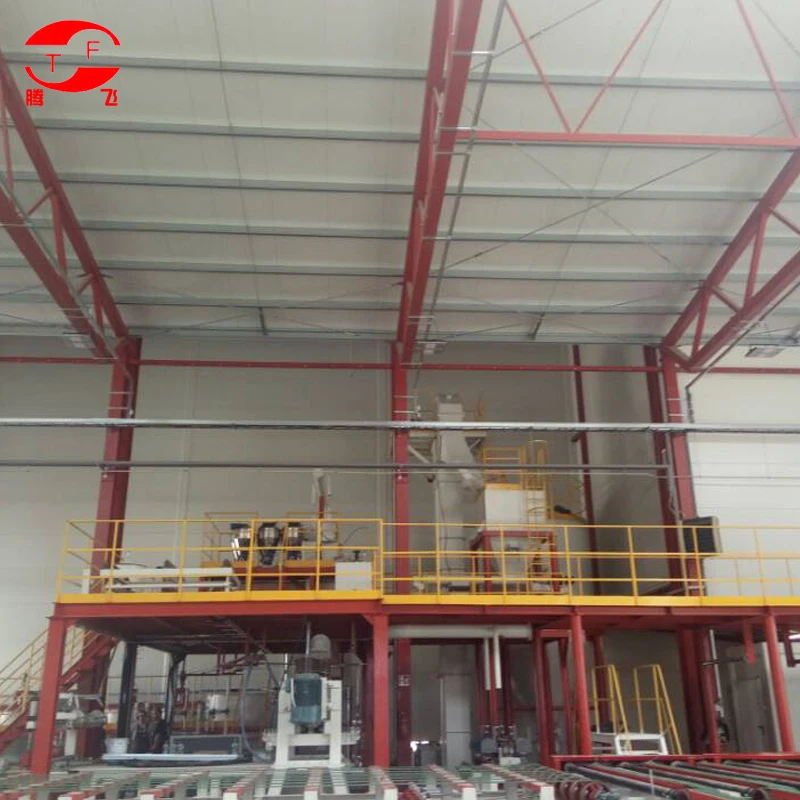

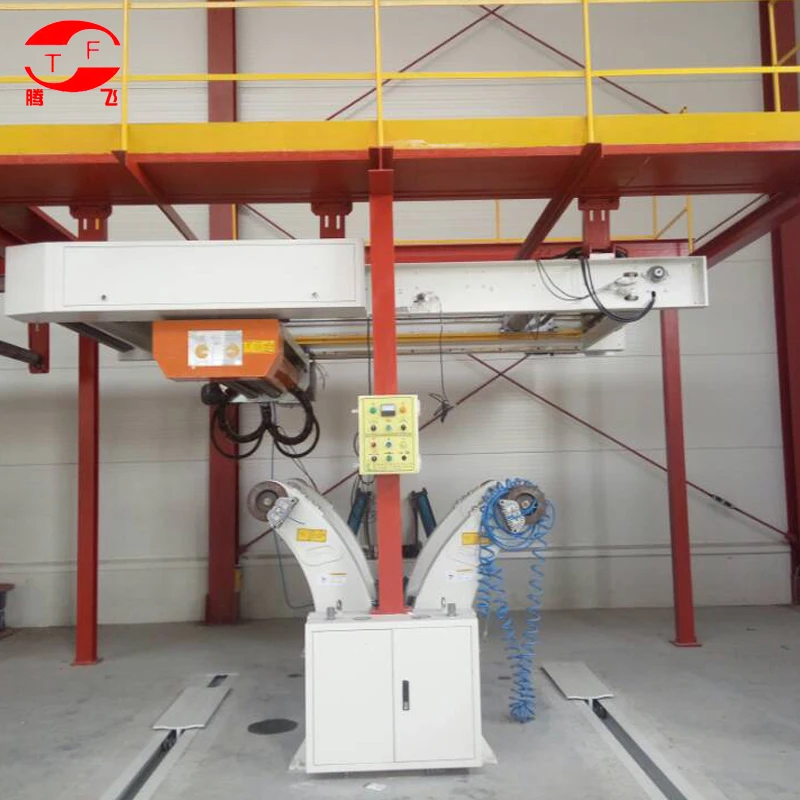

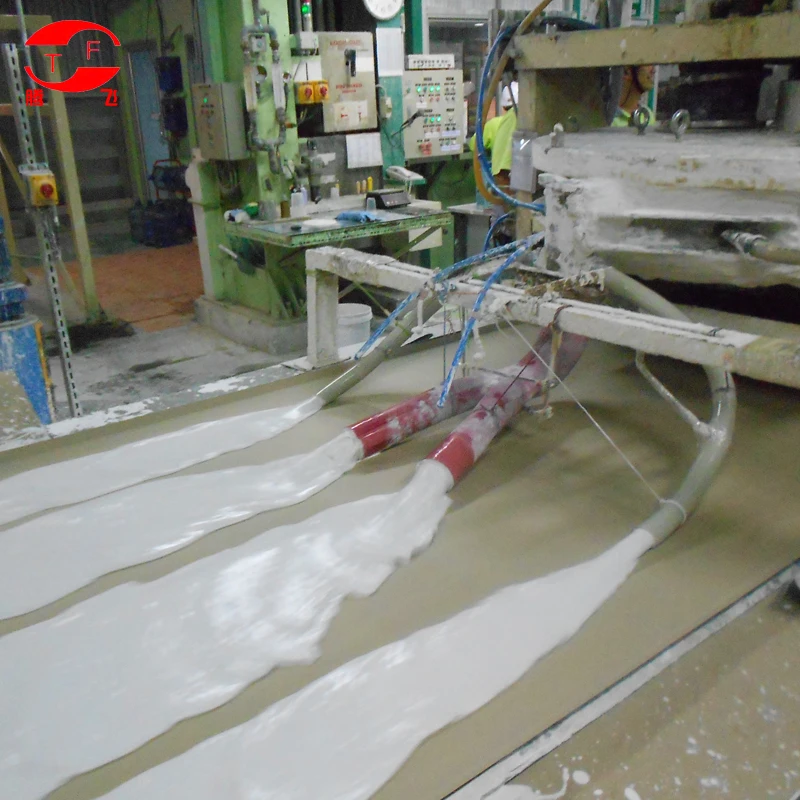

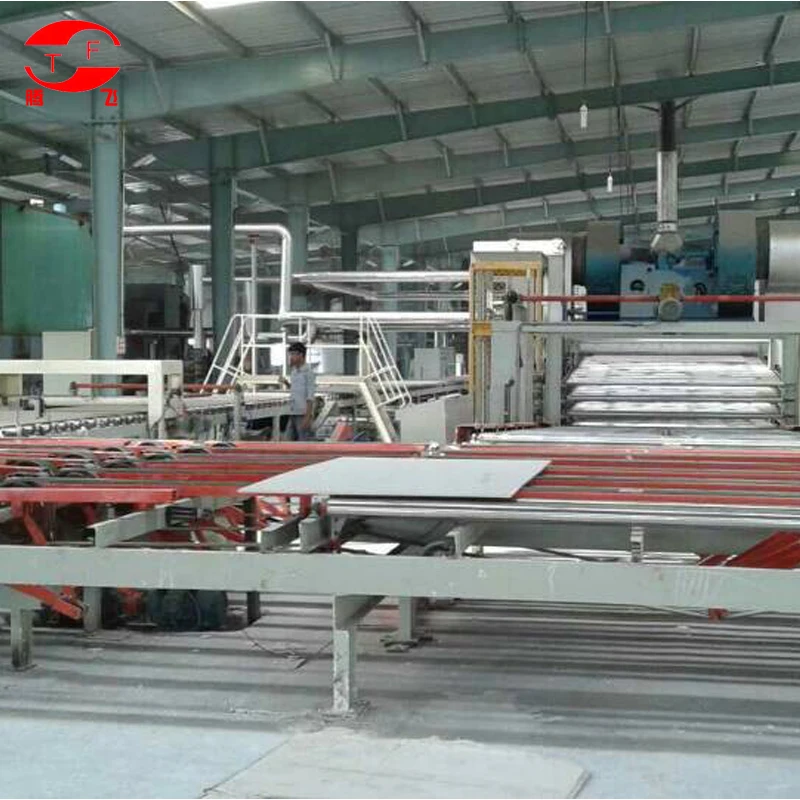

Gypsum board production line with 2million-30million
SQM per year in China
Shandong Tengfei Mechanical and Electrical Technology Co., Ltd
located at the foot of the famous Mountain Tai, our company near
the Beijing to Shanghai high-speed, Beijing to Fuzhou High-speed,
104 State Road. We are a integrated science and technology
joint-stock enterprises, and we can design,manufacture
, install,commission gypsum board and gypsum powder and
gypsum block machine ourselves. At present, our company
have the ability to design and manufacture gypsum board
production line with annual capacity from 2 Million M2 to
50 Million M2, gypsum block production line with annual
capacity from 100,000 M2 to 1.5 Million M2, gypsum
powder production line and phosphogypsum powder
production line and FGD gypsum powder production
line and fluorine gypsum powder production line
with annual capacity from 30,000 tons to 500,000
tons, and we also can produce PVC laminated
gypsum board equipment and gypsum
board light frame equipment.
We can guarantee the quality and 100% successful commission.
1.2 million m2/y~50 million m2/y
2. Automation Fully automatic

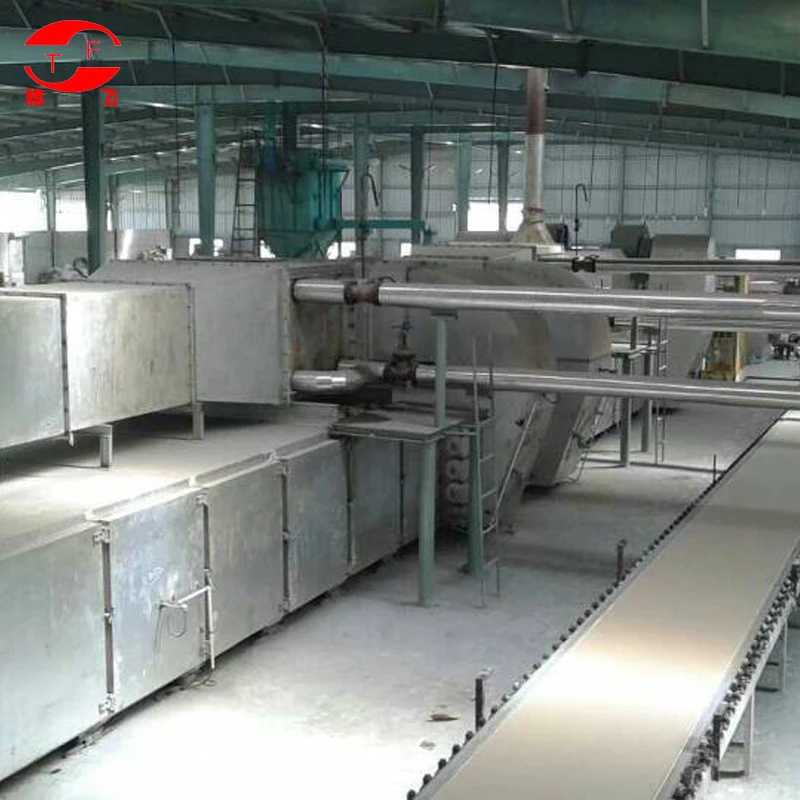

3. Drying system Using hot air for drying
4. Fuel: Coal, natural gas, heavy oil and diesel oil
5. Main materials:
Construction gypsum powder, modified starch, protective paper, foaming agent, water, white latex. Fiberglass and paper pulp (adding selectively according to different raw materials and kinds of products) Quantity of raw material required for producing per m2 gypsum board (referenced data) (thickness of gypsum board: 9.5mm)
Gypsum powder(CaSO4·1/2H2O) | 6.8kg/m2 |
Protective paper | 0.48kg/m2 |
Modified starch | 0.035kg/m2 |
Foaming agent | 0.008kg/m2 |
White latex | 0.005kg/m2 |
Fiberglass (used selectively ) | 0.025kg/m2 |
Electricity | 0.3kwh/m2 |
Water | 4.8kg/m2 |
Heavy oil | Heat consumption~3800kcal/m2 |
Natural gas | Heat consumption~3800kcal/m2 |
Performance index of all materials (referenced data)
6. Dimension of product:
Thickness: 8mm-22mm
width: 1200mm or 1220mm
length: 2400mm~3600mm
we can design and manufacture products of other dimensions as clients’ special requirement.
7. Standard of product quality:
In conformity with national standard GB9775-2008
8. Category:
a) Common paper surface gypsum board
b) Fireproof paper surface gypsum board (H)
c) Waterproof paper surface gypsum board (S)
