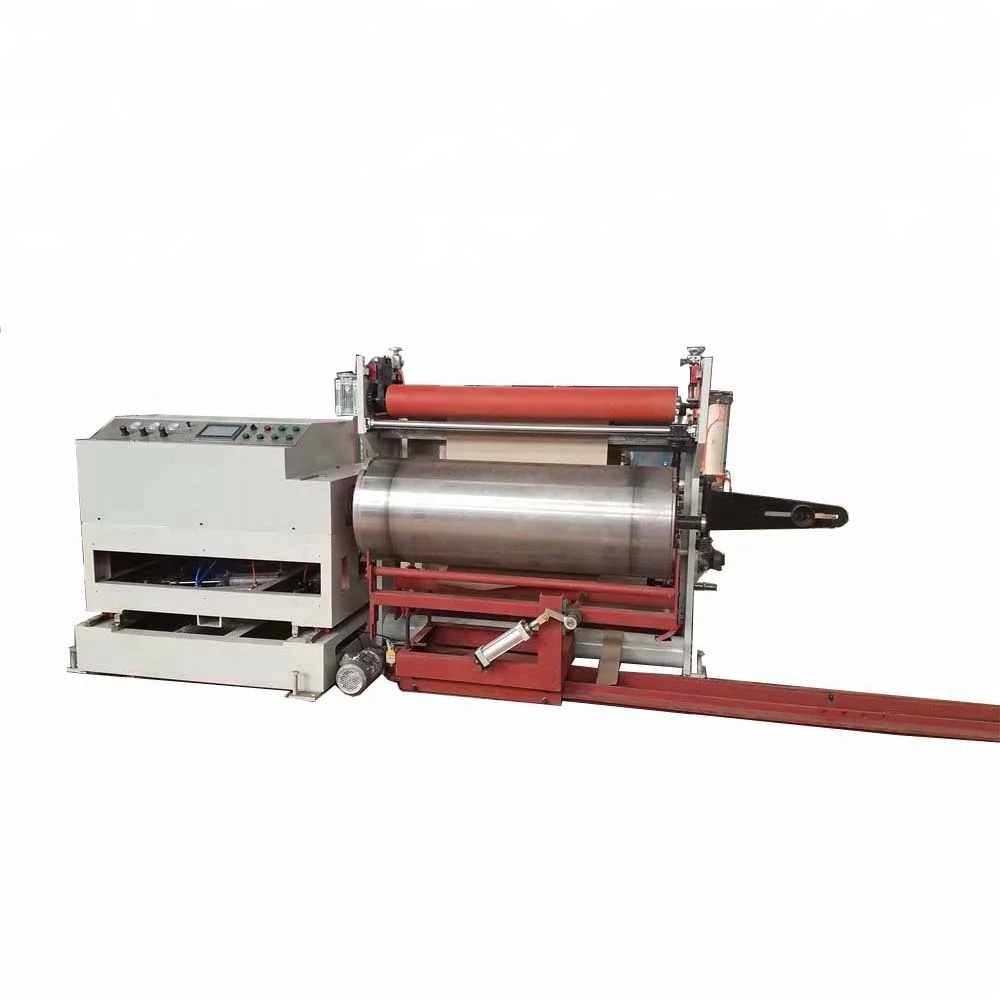

Cylinder Packaging Box Machine/fibre Drum Making Machine Cardboard Paper Produce Paper Drum for Carrying Sth Packing Industry
- Category: >>>
- Supplier: Jinan Chengdong Machinery Manufacture Co. Ltd.
Share on (60446089467):
Product Overview
Description
Product Description

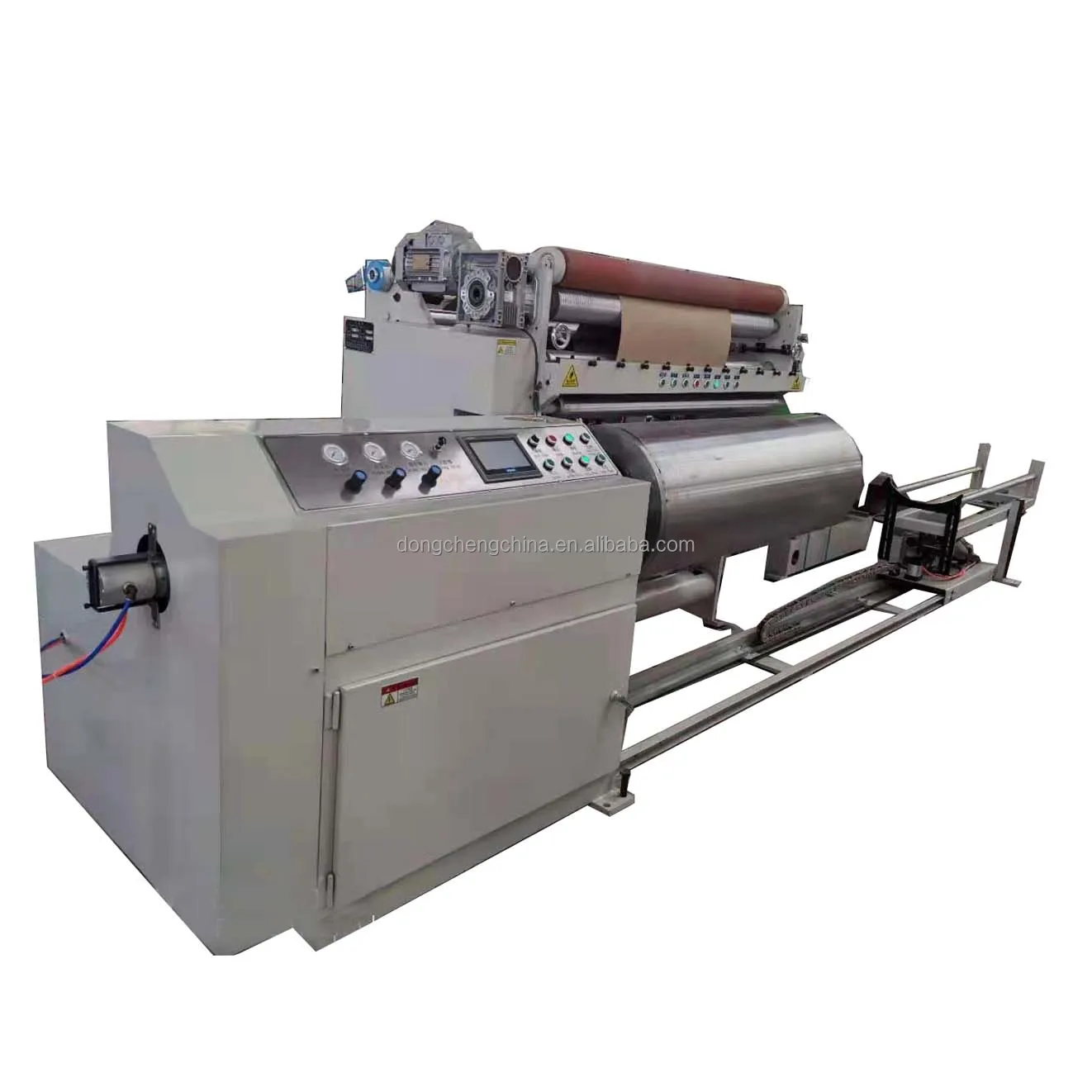

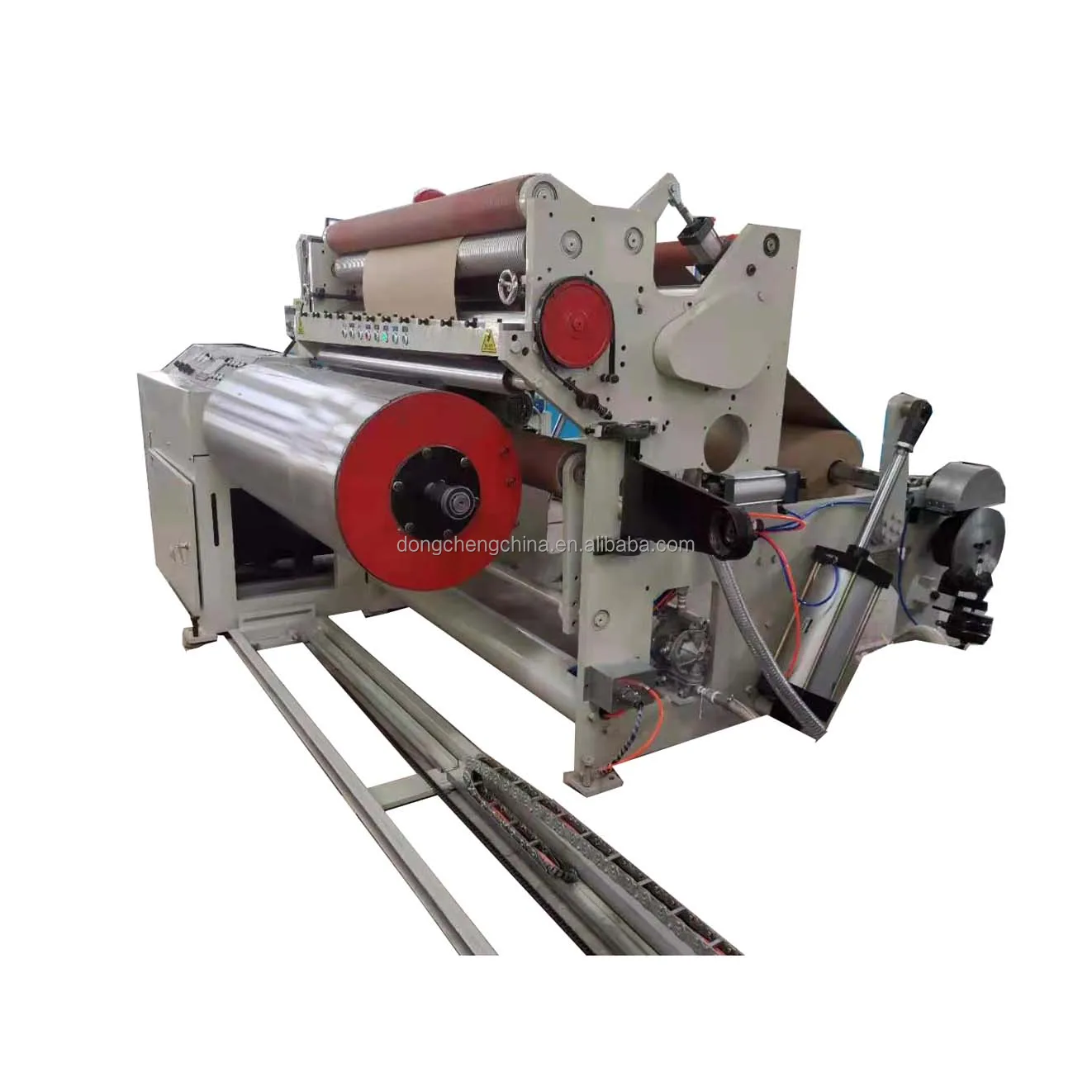

PARALLEL PAPER TUBE MACHINE MODEL ZPJ-1600
Usage and Features:
This Machine is mainly used to produce big diameter paper sleeve tubes for Aluminum foil, Copper foil, Stainless steel sheet, pre-painted steel sheet, galvanized sheet, building industry and packing industry. Adopt parallel winding type, easy operation.
The main features as follows:
1. Structure frame choose 30mm thickness steel plate
2. Automatic gluing, choose diaphragm pump
3. Mandrel choose pneumatic extension type, easy for unload paper tube
4. Equipped vacuum sucking function for mandrel
5. Equipped with pulling carriage to unload the paper tube
This Machine is mainly used to produce big diameter paper sleeve tubes for Aluminum foil, Copper foil, Stainless steel sheet, pre-painted steel sheet, galvanized sheet, building industry and packing industry. Adopt parallel winding type, easy operation.
The main features as follows:
1. Structure frame choose 30mm thickness steel plate
2. Automatic gluing, choose diaphragm pump
3. Mandrel choose pneumatic extension type, easy for unload paper tube
4. Equipped vacuum sucking function for mandrel
5. Equipped with pulling carriage to unload the paper tube
Parameter/Model | ZPJ-1300 | ZFJ-1600 | ZPJ-1600 | ZFJ-2200 | ||
Paper tube length | Max.1300mm | Max.1600mm | Max.1600mm | Max.2200mm | ||
Paper Tube diameter | 280~600mm | Max.1350mm | 280~600mm | Max.1350mm | ||
Paper tube thickness | 1~35mm | 76mm | 1~35mm | 76mm | ||
production efficiency | 200~500pcs/day | Hydraulic | 200~500pcs/day | Hydraulic | ||
Cutting Type | automatic circle blade cutting | 50~1600mm | automatic circle blade cutting | 50~2200mm | ||
Tube Unloading tpe | pulling carriage | Max.1350mm | pulling carriage | Max.1350mm | ||
Mandrel type | Pneumatic extension | Hydraulic | Pneumatic extension | Hydraulic | ||
Gluing type | Automatic | 200m/min | Automatic | 200m/min | ||
Detailed Images
Introduction of product advantages or application effect or application mode

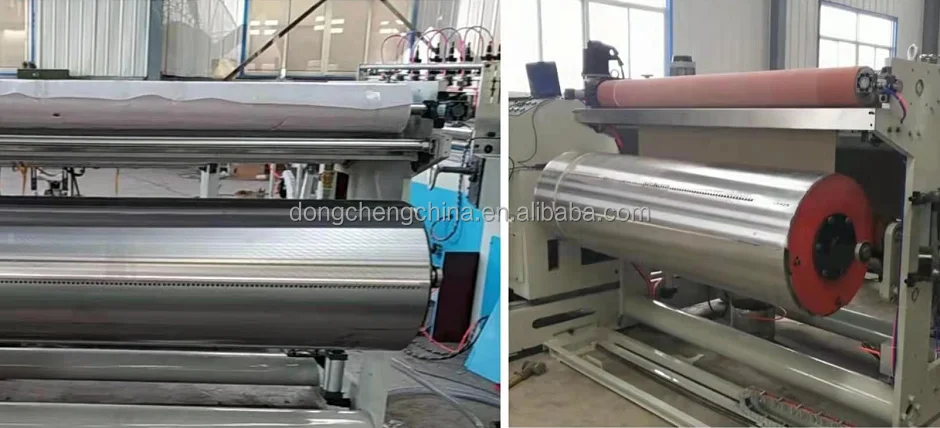

Winding Mandrel
Choose 14mm thickness steel plate rolling,quenching and milling process, ensure mandrel good rigidity and working life.
With vaccum holes on the mandrel to adsorb paper while automatic running
Pneumatic extension

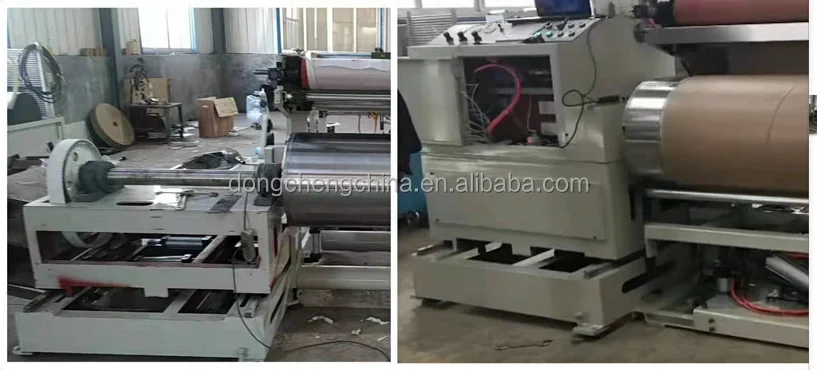

Main shaft
Main shaft base could be movement within 100mm distance, easily change position while diameter much difference
The main shaft is driven by servo motor, could positioning automatically

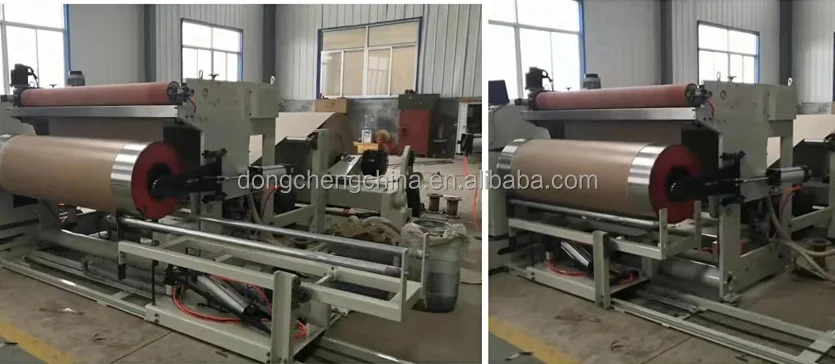

Unloading carriage device
Unload the paper tube out of mandrel and turn the tube automatically, save labor
loading capacity up to 100kg, heavy structure
Easy to adjust while the tube diameter difference
Electric Control System
PLC control, HMI input
Automatic Tension Control system, SMC electropneumatic proporation valve
Full servo motor control, high accuracy
Vaccum adsorb function
