Bluesky 3d wheel alignment/alignment machine/car wheel alignment
Bluesky 3d wheel alignment/alignment machine/car wheel alignment
Bluesky 3d wheel alignment/alignment machine/car wheel alignment
Bluesky 3d wheel alignment/alignment machine/car wheel alignment
Bluesky 3d wheel alignment/alignment machine/car wheel alignment
Bluesky 3d wheel alignment/alignment machine/car wheel alignment
Bluesky 3d wheel alignment/alignment machine/car wheel alignment

Bluesky 3d wheel alignment/alignment machine/car wheel alignment

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Bluesky 3d wheel alignment/alignment machine/car wheel alignment




* Feature

3D measurement technology ---which based on car body, more precision and stable.

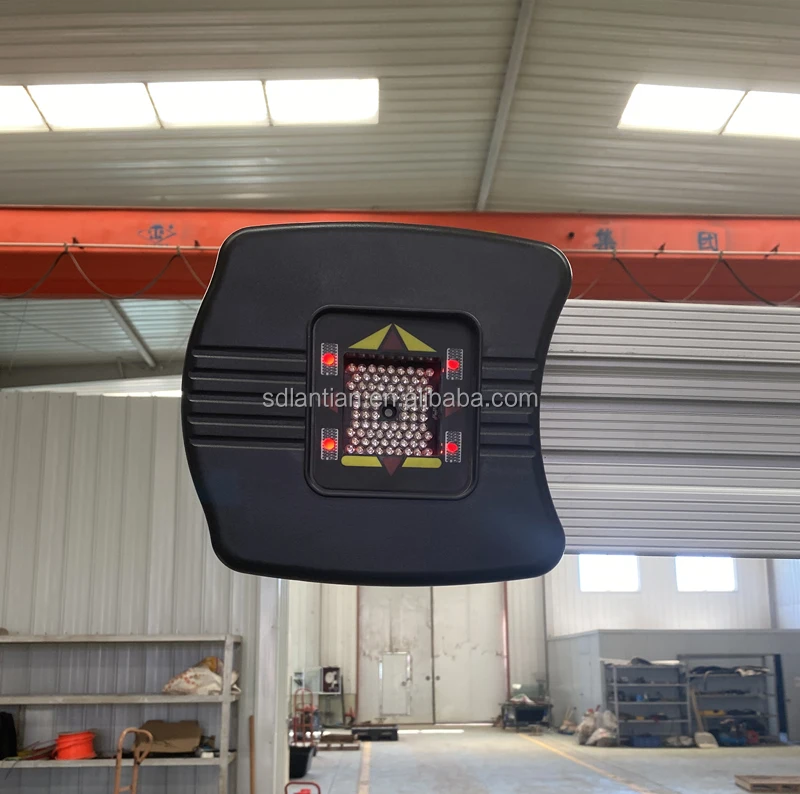

Camera measurement system ---using two camera and work together with four target disk which is a revolutionary measurement method.

Target disk ---there isn't electronic components inner and instead of traditional electronic sensor. It can more efficiently to eliminate the equipment error which caused by circuit.

Calibration ---Only need once RCP calibration after installation, process simple and repeated calibration is unnecessary.


Softwear system ---Simple operation, measurement can be finished in 2 minutes.



Measurement and readings:
1. Toe/Camber/ Caster/S.A.I (or KPI)
2. Thrust Angle/Chassis wheelbase/wheel track/Rolling Radius/Set-Back


Measure Items
Measure Accuracy Range
Measure Range
Display Precision
0.1mm/0.01°
Toe
±0.01°
±40°
Camber
±0.01°
±45°
Caster
±0.02°
±45°
S.A.I
±0.02°
±45°
Set Back
±0.01°
±40°
Thrust Angle
±0.01°
±40°
Steering Angle
±0.02°
±50°
Track Width
±2mm
1219mm-2438mm
Wheelbase
±2mm
2006mm-4572mm

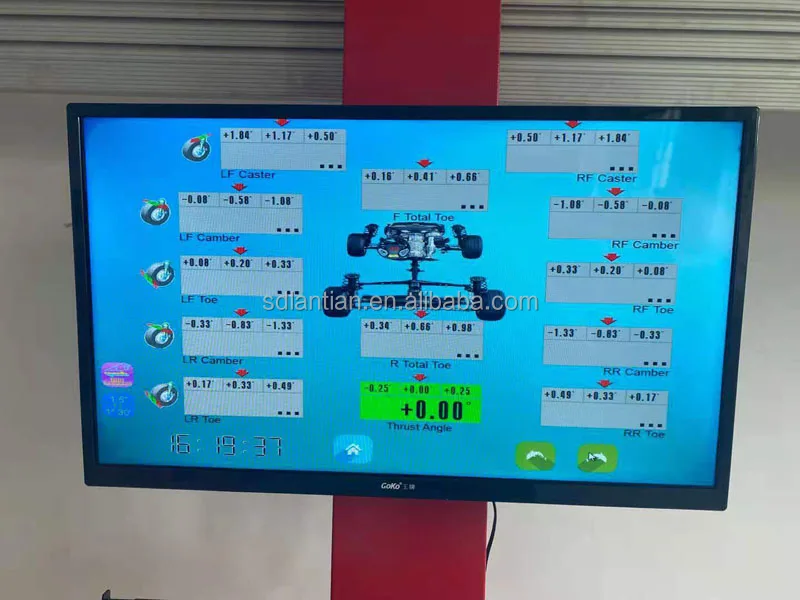

Software


Software
Assistant 3D animation for adjusting User-friendly operation interface, quick entrances to all the functions. the wheel alignment
takes less than 2 minutes after clamp being fitted on the wheel.

Multi-languages are available for choice Such as Simplified Chinese, Traditional Chinese, English, Russian, Japanese, Korean, etc.

Global vehicle’s database Original vehicle database: Owning more than 20,000 original vehicle database from different region of the world.


Standard configuration


Computer host
1 Set
Displayer
32-inch
Camera
1 Set/2 pcs
Pillar
1 Set
Cabinet
No cabinet, 1 set keyboard tray
Camera Beam
1 Set

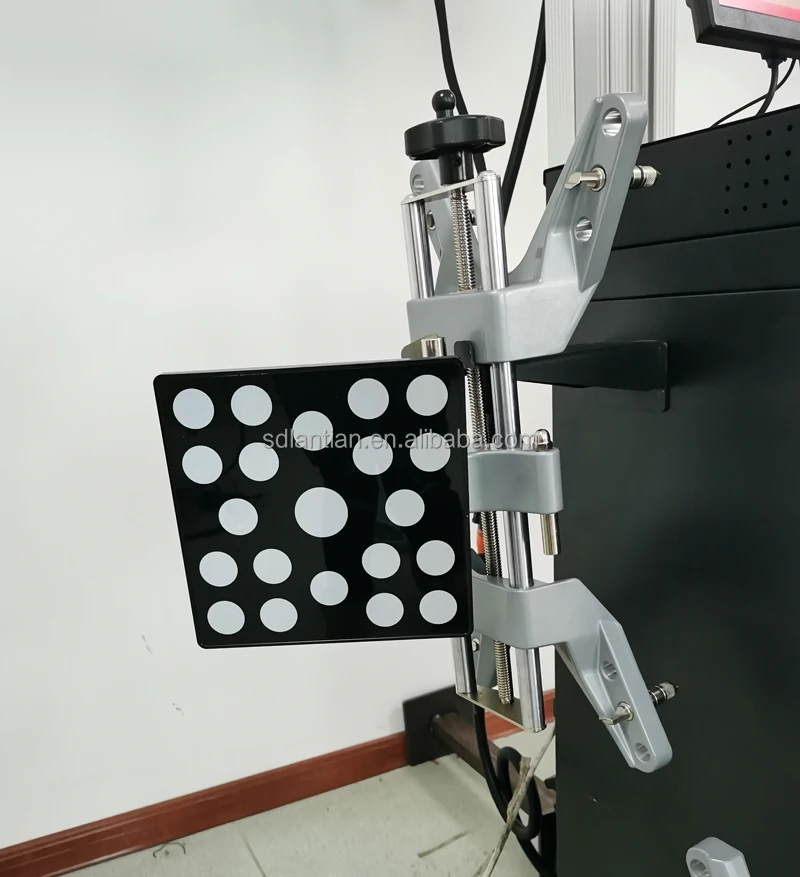

Clamp/Target
1 Set/4pcs

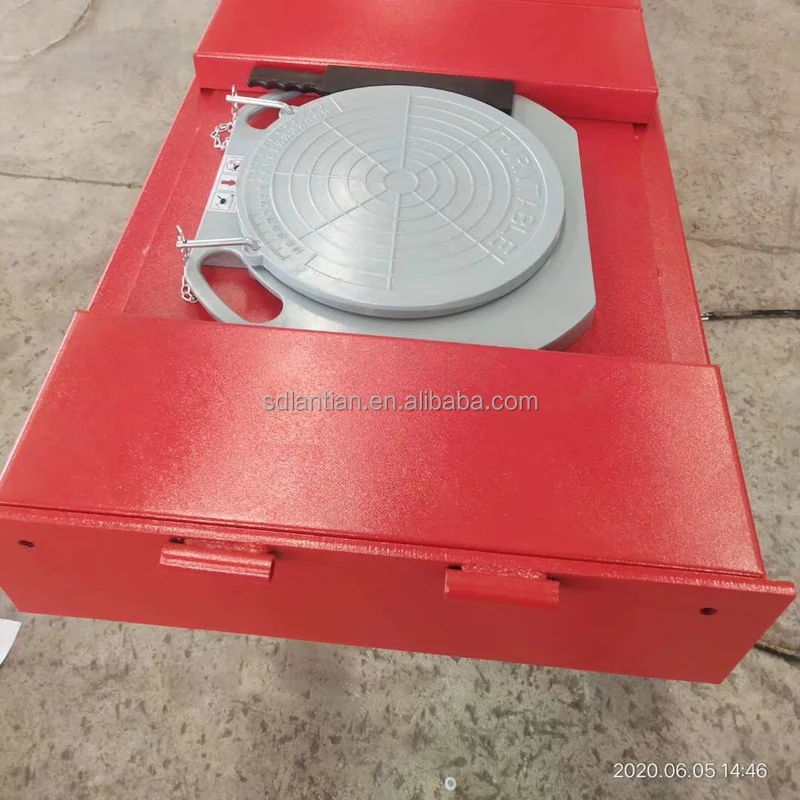

Turntable
1 Set/2pcs
Hanger
1 Set/4pcs
Mouse/Keyboard
1 Set
Eccentric screw and ground pin
1 Set
Transitional Block
1 Set/2pcs
Steering Wheel & Brake Lock
1 Set
Wedge-shaped Pad
1 Set/2pcs
Printer
Optional


Packing & Delivery


Standard export free fumigation wooden box packaging
2800 mm * 300 mm* 300 mm x12500 mm * 300 mm* 300 mm x1
1000 mm * 850 mm* 850 mmx1
About 2 CBM, 290KGS




Company Profile


Shandong Lantian Huaer Environmental Protection Equipment Co.,Ltd is professional auto maintenance equipment manufacture since 2000 with brand “BLUESKY”, in Chinese Lantian means Bluesky.

Our factory covers an area of more than 2,500 squares meters and with our up-today manufacturing facilities, high tech industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions.

For many years our company have been awarded as”Enterprise with high reputation” ”Enterprise with high credit in quality” and “China national grade AAA enterprise” ....etc. Besides, we have passed ISO 9001, authenticated by 2000 international quality control system.




Our Service


1. OEM ODM service.
2. Customized service: The color and size of the product can be customized.
3. One Year Quality warrant service, during the period spare part supplied free if you pay for shipping.
4.Professional team supply service for life long time.



FAQ


1.Are you trading company or manufacturer?
We are manufacturer from Shandong province , maily deal with tyre changer, wheel balancer and car lift.

2.How about your delivery time?
Usually it is 7 days against payment. It depends on our production schedule.

3.How long is the warranty?
Our warranty is 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.

4.What is your payment terms?
We can accpet T/T ,Alibaba trade assurance,Other ways,pls contact with us.

5, How much is the shipping freight?
We ship the goods to your nearest sea port by sea. Please kindly inform us your nearest sea port, then we can check the freight for you.

6.Can you do OEM?
Of course we can, we can produce as your request, such as color, brand name.
