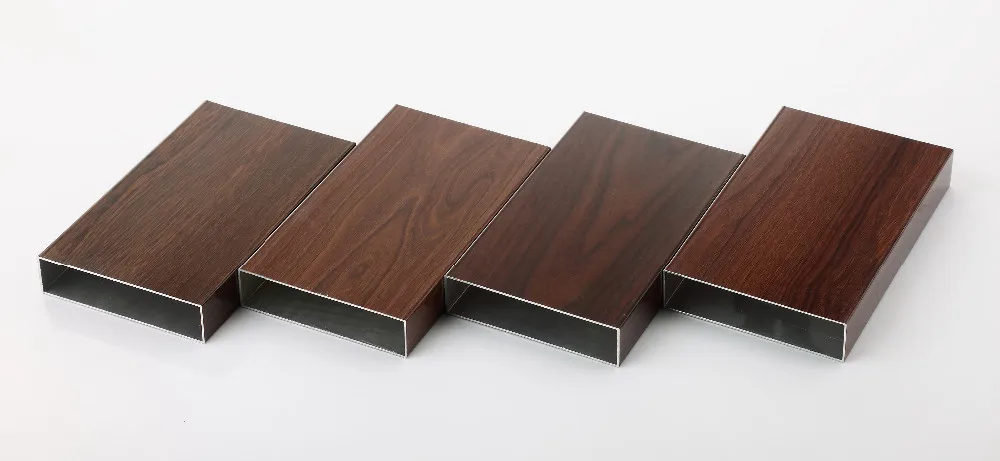

Sublimation heat transfer print wood finish powder coating
Product Description
Composition
It is made of excellent polyester resin, curing agent, all kinds of high quality pigments, filters and additives through processing
Main features
Excellent durability, decoration and process-molding performance;
Excellent resistance to ultraviolet light and high humidity environment;
Excellent physical and mechanical performance;
Excellent resistance to heat and chemicals.
Application

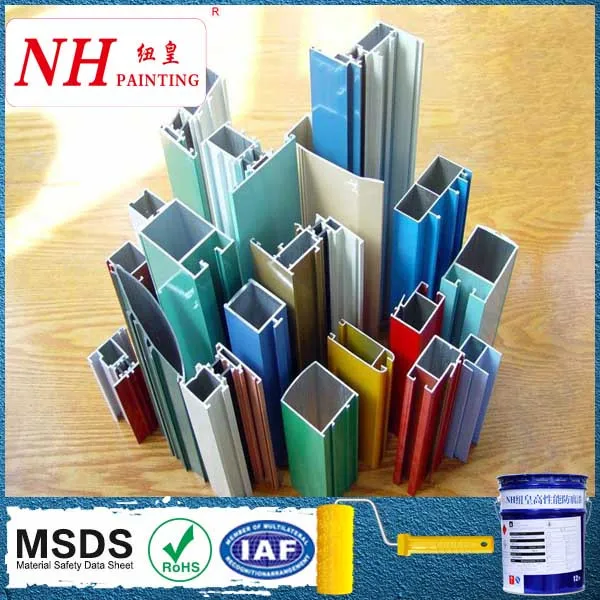

It can be applied to building aluminum profiles such as aluminum frames, aluminum doors and windows, corridors, partition plates and curtain wall.
Product series
It can be made into series of products according to customers’ requirements, such as common powder with various glosses and colors, art powder and power coating with metal effect.
Technical indexes
Inspected item
GB/T5327.4-2004
Color and color difference
Visual comparison with standard colorimetric plate, or E≤1.5
Adhesive force
Cross-cut method: Grade 0
Artificially accelerated durable performance
Argon arc radiation (GB 1865) 250 h, without coating pulverization phenomenon or obvious cracks, gloss retention rate: higher than 8.5%, slight chalkiness and discoloration
Impact resistance kg.cm
1.0 mm aluminum plate (GB 1732) without cracks or abscission, little cracks are permitted on concave
Acid resistance (HCI 3%)240 h
The film has no change.
Alkali resistance (NaOH 5%) 168 h
Slight change is allowed but it shall be recovered within 2h
Salt spray resistance 1,000 h
≤ Grade 1
Damp-heat resistance 1,000 h
≤ Grade 1
Surface prepartion
Chromizing
Method of Application
It is applicable to high voltage electrostatic spraying
Spraying voltage: 50-80 kV; air pressure for spraying: 0.1-0.2 Mpa; distance between the gun and workpiece: 200-300 mm
Curing condition: 190-200℃/10-15 min.
Additional coating: spraying and curing should be made after polishing the
omitted part with sand paper and spraying the whole surface.
Testing
You May Like These:

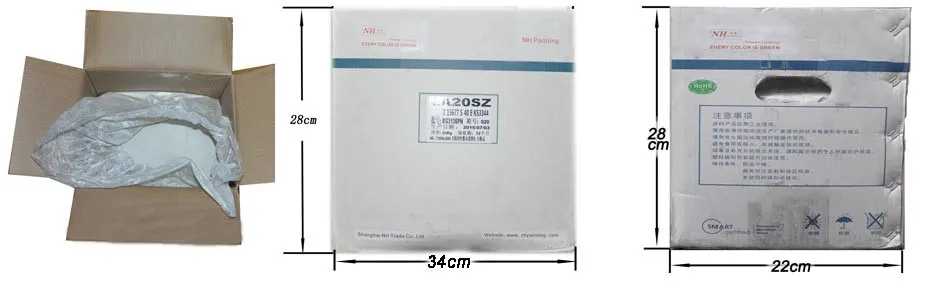

Packing & Shipping
Company Information
Shanghai NH Trade Co., Ltd. is a manufacturer of oil paint with well-equipped testing equip-ment and strong technical force. Our company was established in 2004 and registered the independent paint brand of "NH New Emperor" in 2008.
Till now,We have strongly enhanced our market in chemical,textile,argriculture,building,biological,automotive field and so on.Our company has the industry`s most advanced and sophisticated production facilities.Strict supervision on the quality of our products will make sure you`re 100% satisfied with us.
Our Services
In NH, you could enjoy these services: If you have any problem in technique or paints, we would help you winthin 24 hrs; We could offer a video of construction if you need. We could offer technical guidance. If your project have trouble in the construction technique, we could arrange a technical person
to your country to demonstrate for you. And we even could arrange a construction team to help you if your project is big enough.
Factory
FAQ
1.Why Choose us? 100% factory products The delivery is assurable, the price is reasonable for we have our own factory All our products is high performance and good quality NH has more than 30 years experience in paints / coating , so we could offer professional scheme 2. What's your MOQ (min order quantity) ? Our MOQ is 1000Kg, and we accept mixed order. 3. Sample is free? We offer free sample. You could choose sample board or sample paint 4. Which certificates do you have? Usually, we have ISO 9001, ISO 12944, SGS , ROHS, CNAS, IAF, MSDS... We could help you to test the products according to your country's request.
