40MP Multi-Sensor CCTV Panoramic 360 degree free software H.264
Product Description
* 360°panoramic surveillance, 40MP@30fps
* One camera replaces multiple normal cameras, save cost on installation&cabling
*Out-of-box installation, no on-site calibration needed
*Seamless stitching technology, no visible gaps, gain situational awareness
* Sync exposure control to have a fine tuned image

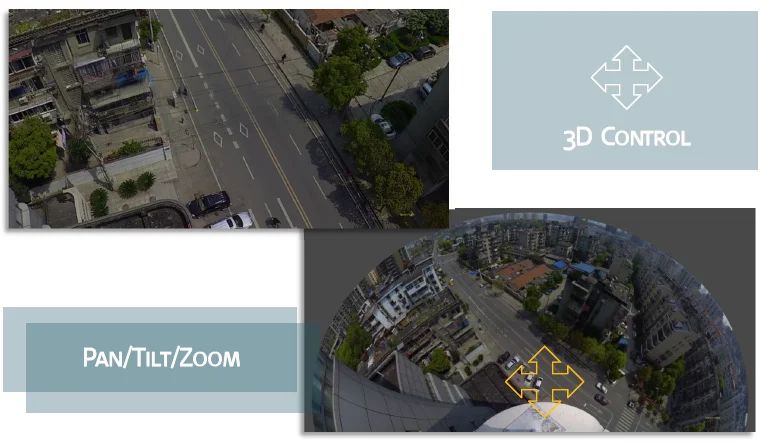

* Support immersive ePTZ to monitor object details
* Client end stitching and dewarping to have true immersive playback experience
* ICR switch automatically,realize real day/night surveillance

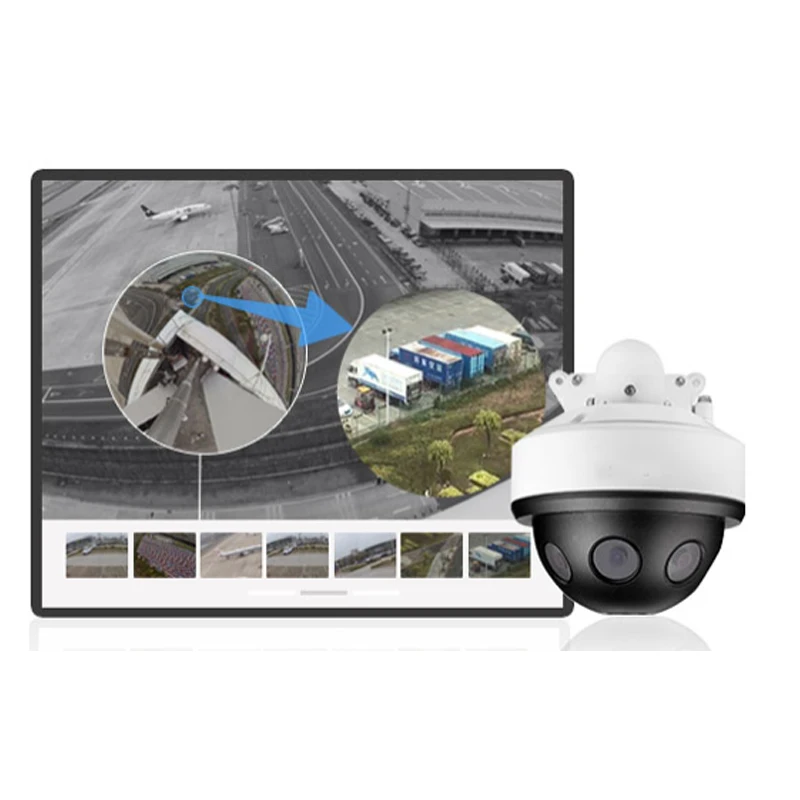

40MP Multi-sensor Panoramic Dome IP Camera
can provide 360º field of view,, is ideal for the surveillance situation
which requires to display wide area in single window, create an unique and effective
panoramic immersive surveillance experience. Instead of deploying multiple surveillance
cameras, it only takes one set panoramic camera to have the entire area covered, which
helps users to reduce unnecessary cost on cabling, installation, power consumption.
This series of camera can be used in large-scale square, traffic cross, industry park, shopping
mall, stadium, exhibition&convention center, airport, seaport, etc...
| Camera | |
| DSP | Hisilicon Series High Performance DSP |
| Sensor Type | 1/1.8" 5.0 MP Pixel progressive scan CMOS |
| Number of Sensor | 8 sensors |
| Electronic Shutter | Manual/Auto;1/5s to 1/50,000s |
| Min Illumination | Color:0.001Lux @ F1.4 AGC On B/W:0.0001Lux@ F1.4 AGC On; |
| Lens | 3.6mm lens x 8 |
| Angle of View(lens) | horizontal 360°, vertical360° |
| Angle of Adjustment horizontal | 0°~360° |
| D/N | Day / Night Mode, IR cut filter |
| WDR | support |
| Encoding Standard | |
| Video Compression | H.264 |
| Coding standard | H.264 Baseline/MainProfile/HighProfile Optional |
| Video compression rate | 200kbps~12Mbps(each sensor) |
| Image | |
| Max. Image Size | 40MP / 8 x 2592x1944 |
| ePTZ | Electronic Pan / Tilt / Zoom |
| Frame Rate | Main stream: 50Hz: 25fps( 8 x 2592x1944) |
| Sub stream:60Hz: 30fps(8 x 640x480) | |
| S/N | ≥50dB |
| Noise Reduction Mode | 2D / 3D |
| Image Setup | Auto white balance, Auto Gain, Auto Shutter |
| Brightness, saturation,sharpness, contrast | |
| Network Function | |
| Protocol | IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,FTP,DDNS,PPPoE,QoS,UPnP,SMTP,SNMP,Banjour |
| Security | User authority, IP address filter, MAC address filter, 802.1x |
| Interface Protocol | Onvif V2.6.1(each stream) / CGI / SDK |
| General Function | One-key recovery |
| Function Interface | |
| Network Port | 1 * RJ45 10M/100M/1000M Self-adaption Ethernet port |
| General Specification | |
| Operating Conditions | ‘-40℃ ~ 60℃, humidity less than 95% (No condensation) |
| Power Supply | DC24V, 1A |
| Power Consumption | 24W |
| Water-proof Level | IP66 |
| Impact-resistant Level | IK10 |
| Dimensions(mm) | Φ202 x 208mm |
| Weight (kg) | 2.6 (net weight) |
