Product Overview

Description

The proven and reliable SBM feeding & conveying equipments are cost-effective solution for transporting materials during crushing and grinding process.

Our Most Powerful Devices Achieve the Investor’s High-Yielding Plant.





Heavy duty belt conveyor supplied by SBM Machinery is widely used in aggregate, quarrying, mining industry.

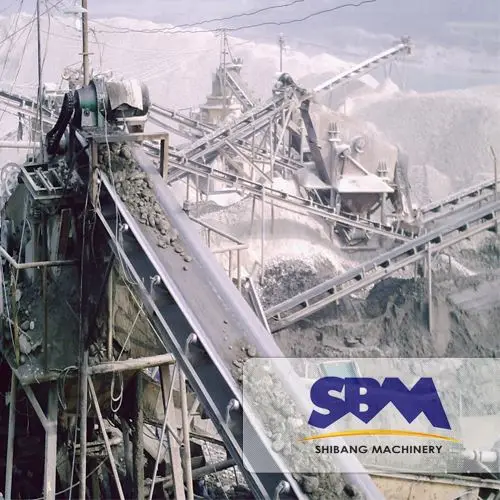

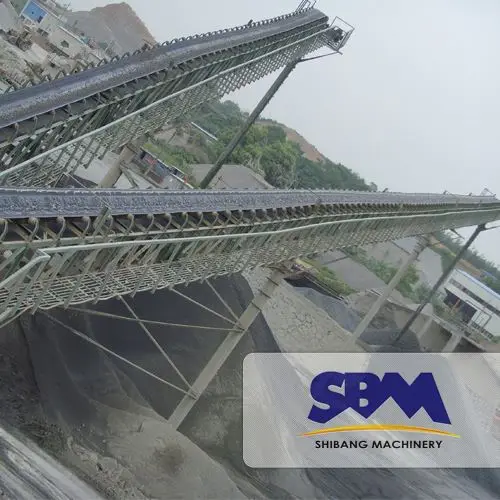

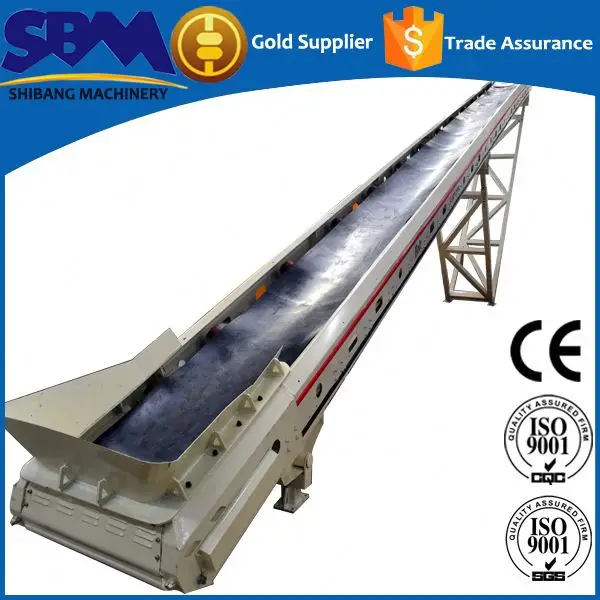

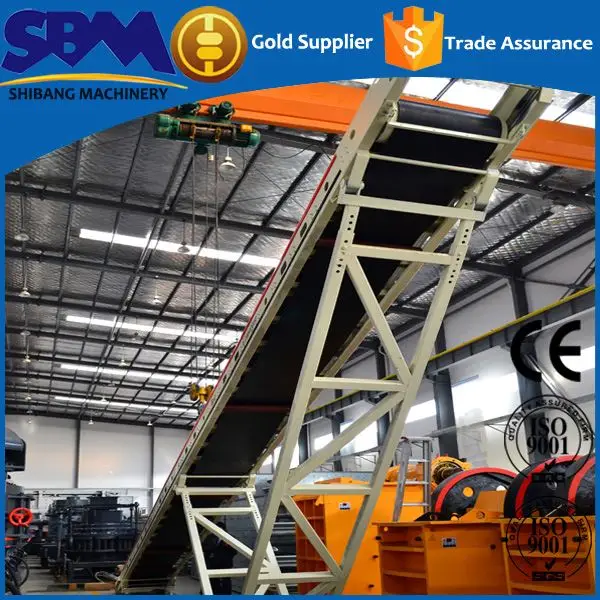

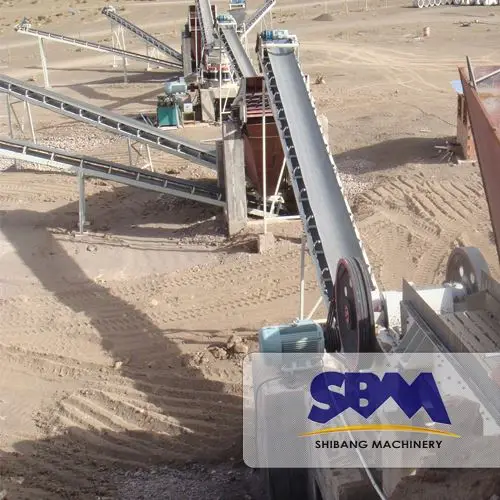

  China excellent conveyor belt for stone crusher  :

SBM  conveyor belt for stone crusher are general purpose that provide high performance and long service life. Designed to convey heavy duty aggregate, coal, crushed minerals, and other industrial materials at a very low cost per ton.



The conveyors consist of standard parts, which are advanced and simple in structure, easy to maintain. It can be installed horizontally or aslope to meet the needs of different transfer lines.



SBM delivers the world’s most comprehensive range of Heavy-duty conveyor belts. Based on more than 30 years of experience in development, manufacture and applications know-how, SBM belts and belt systems are designed to meet specific end-user requirements for high performance and cost-efficiency.















China excellent conveyor belt for stone crusher features :



1.High carrying capacity and the length is customized
2.Anti-skidding design ensure that it works very well even in severe environment
3.Easy to operate and easy to maintain for it has simple structure
4.Different models for choice

China excellent conveyor belt for stone crusher application:

SBM  conveyor belt for stone crusher is widely used for transferring lump materials or manufactured products in mining, construction, metallurgical industries and other industries, for example, when coal, mineral ores, rock stones are crushed and some other products are packaged, our belt conveyors can be used to transport them.





China excellent conveyor belt for stone crusher technical data:

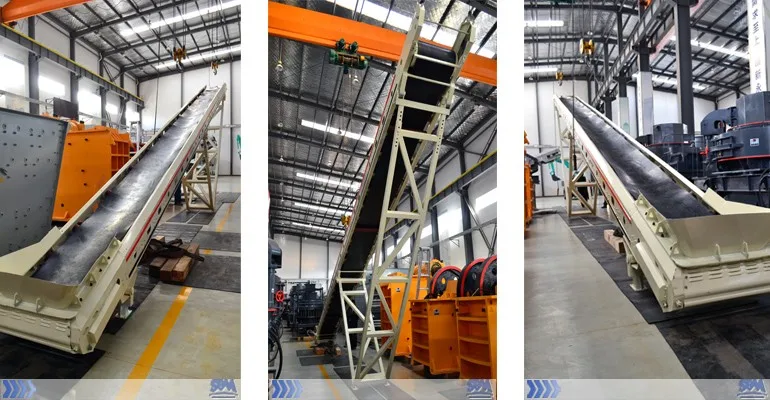

  Belt Conveyor

Model	Width(mm)	Inclination(°)	Speed(m/s)	Capacity(t/h)	Power(L≤30m) (kw)
B500	500	0-17	1.0-2.0	100-200	4-7.5
B650	650	0-17	1.0-2.0	190-380	4-11
B800	800	0-17	1.0-2.0	300-600	5.5-18.5
B1000	1000	0-17	1.0-2.0	490-900	7.5-22
B1200	1200	0-17	1.0-2.0	730-1400	11-30



Wharf Belt Conveyor



Belt Width (mm)	Belt Length (m) /Power (Kw)			Belt Speed (m/S)	Capacity (t/h)
400	≤12/1.5	12~20/2.2	20~25/3	0.8~2.0	40~80
500	≤12/3	12~30/4	20~30/5.5	0.8~2.0	78~191
650	≤12/4	12~20/5.5	20~30/7.5	0.8~2.0	131~323
800	≤10/4	10~15/5.5	15~25/7.5	1.0~2.0	278~546
1000	≤10/5.5	10~20/7.5	20~25/11	1.0~2.0	435~853
1200	≤10/7.5	10~20/11	20~25/15	1.0~2.0	655~1284





Belt Conveyor in Cement project in Azerbaijan



Garadagh Cement O.J.S.C., Azerbaijan (“Garadagh Cement”) intends to install and operate a dry process rotary kiln. In the kiln, limestone is burned to "clinker" which is the main component of cement.



The new kiln will be fuelled with hard coal or petroleum coke if available or natural gas. A coal mill and a housed coal storage are part of the Project.

For raw-material treatment at Shakhgaya West quarry, the installation of a new crusher with conveyors and interim storage silos is required.



Costomer: Tatanga Dam project
Country: Pakistan





• "We have decided to increase the purchasing of SBM Machinery as it chases what it says is highly efficient and environmental friendly." - Client From Zimbabwe


• "Cooperating with SBM brings us more opportunities to maximize our production. Especially its belt conveyor and coal mills just match our plant." - Mr. Bruce Munro, Chief Executive Mining - Client From Australia


• "Dealing with SBM Machinery especially belt conveyor trading is the best choice since i started importing & exporting of mining equipment." - Clients From South Africa


• "The company is worth a win-win business of mining equipment after i was touched by their belt conveyor service." - Clients From India
