immersion liquid molten steel metal sampler

Share on:

Price in USD:Details


Product Overview



Product Description

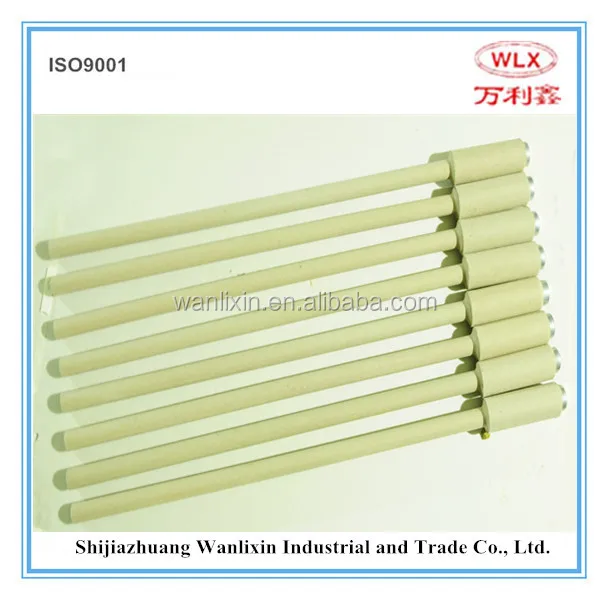

immersion liquid molten steel metal sampler



1. Application scope:

The samplers of our company have a wide range of applications, for sampling from hot metal liquid which need deoxidation or not. It is suitable for the quick analysis of carbon, manganese, sulfur, phosphorus and other chemical ingredients, and hydrogen, oxygen and other gases.

2. Working principle:

When a sampler was inserted into the hot metal liquidunder the static pressure, the hot metal liquid breaks the slag protective layerthrough the sampler inlet, into the sampling chamber automatically. Then the alloying element content in the steel can be analyzed by spectral analysis.

3. Features

Taking samples only costs a short time, and the operation is easy. Our products can help you to improve the quality of steel, as well as reduce waste ratio.

4. Classification:

(1) Direct insertion type.

(2) Decanting type.

5. Technical parameters of sampler


Paper tube : Length can be 800/900/1000/1200/1500mm or customized

Slag Cap : Steel/Aluminum

Size of sample:Round. Single thickness

            For steel      a)34*12mm (Outer diameter*Thickness)

                         b) 30*15mm(Outer diameter*Thickness)

            For iron      34*12mm (Outer diameter*Thickness)

Killing Agent : Zirconium/Aluminum/No Killing

2)  USE

Sampling time : From 3 to 5 seconds

Max dipping : 6 seconds

Humidity of carton : 12% max at shipment


If tubes are humid, there is the risk of light projections during the immersion.

It is suggested the use of personal body protections.


Conditions : Stock the samplers in a dry, covered place.

Pieces per box : 30

Pieces per pallet : 960/720/840

 A117_F sampler8

F sampler2F sampler 10F sampler 9

immersion liquid molten steel metal sampler

Packaging & Shipping



Our Services


We will offer sincere and professional service for our customers. Please feel free to contact us at any time concerning our company and products. We look forward to your consultation.



Company Information


Founded in May 2002, Shijiazhuang Wanlixin Industrial and Trade Co., Ltd. headquarters in Shijiazhuang, the capital of Hebei province. The company occupies a total area of over 46666 square meters. We have 517 employees, including 32 senior engineering and technical personnel. Our company is a high-tech enterprise specialized in design and development, production and sales, system integration and related technical services of fast thermocouple, molten steel sampler, microcomputer digital thermodetector, oxygen measurement probe and other mechanical spare parts. 1 (2).jpg




 1. Why choose us?

1). With a history of over ten years, we have our own factory, and are specialized in developing, manufacturing and exporting devices and consumables for metallurgical and steel industry.

2). Our products passed ISO9001:2000 certification. And we have our own patents. Therefore, we ensure you that our products are of high quality with the most favorable price.

2. How can you contact me?

Contact person: Linda Cui

Company name: Shijiazhuang Wanlixin Industrial and Trade Co., Ltd.

Address: 7th Floor, C Building, Rundu Shenghe Square, Shijiazhuang City, HeBei Province, China

Zip code: 050000

Mobile: 86-18031260331

Fax: 86-0311-85252205

Mail: linda at wanlixin dot com
