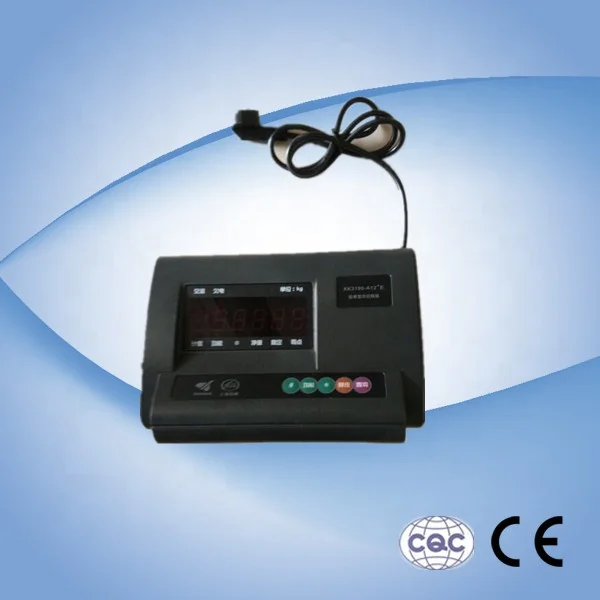

Weighing Indicator for Weighing Sensor A12

Product Overview

Description



Product Discription:



  Model: A12 weight indicators
Introduction:
- Fast speed, high precision Σ-ΔA/D conversion
- Anti-vibration software
- Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.


Features:

- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Software to strength anti-vibration ability
- Zero-tracking, Zero range setup (automanual)
- Setup digital filter intensity, range and stable time
- Counting function with unit data save protection in case of power off
- Alarm for low battery and auto power off when low battery
- Optional function
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output

Parameters:
Model A12/A12S A12E/A12ES
Input signal range -10mV~15mV
Input sensitivity ≥1μV/e Load cell
Excitation Dc 5V:/≤150mA Max.
load cell connection 4 at 350 ohm
Display 6 bits LCD, 6 status indications 6 bits LED, 6 status indication Optional interface RS232C serial communication
Transmission distance RS232C≤30 meters



Company Information:



       Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
     QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
    All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
    In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15,000 square meters, which is expected to be fully put into production in 2012.
    Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
