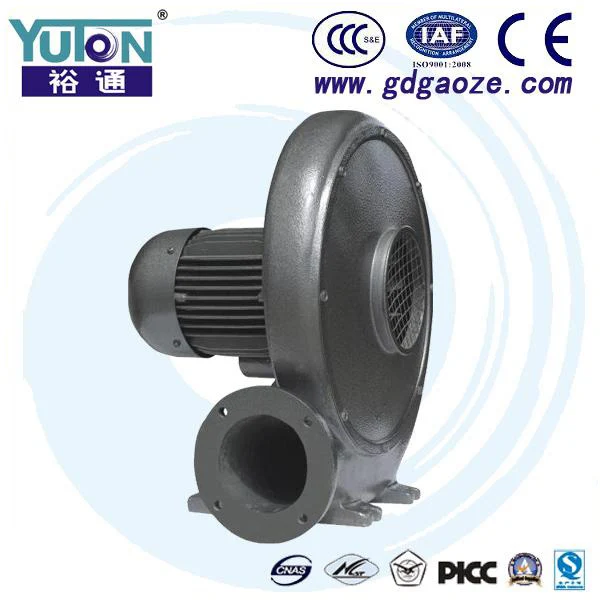

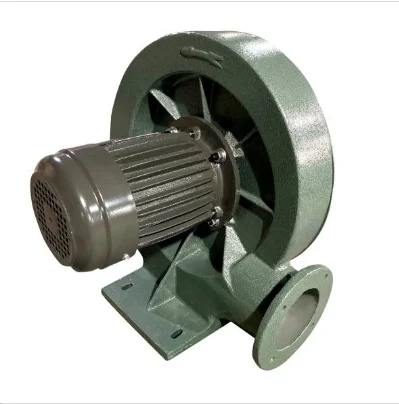

AC Medium Pressure Aluminum Fan Housing Centrifugal Exhaust Fan
1.Typical Feature and Application
This series medium pressure blower can be made of Aluminum or metal housing. This is a light and new design fan which has big air delivery and low noise. It is suitable for supplying fresh air in the following working condition: smelting, fuel stove, kitchen equipment, gas-filled with pressuring. The transited medium is air and other non-spontaneous combustion air, and the air with no harm to people. The medium can not contain any adhesive material, temperature no higher than 80 centigrade ,dust or particulate no larger than 150 cube meter per mg.
2. Performance Range
Fan Type
Medium Pressure Centrifugal Fan
Certificate
CE,CCC
Electricity Current Type
AC(Alternating Current)
Voltage
220V/380V
Frequency
50HZ
Power
0.37KW-3KW
Speed
2800 RPM
Air Volume
4200m³/h up to 2600 m³/h
Static Pressure
1100 Pa up to 3260 Pa
Motor
Standard Motor
3.Applications
smelting
fuel stove
kitchen equipment
4.Composition
Fan Housing
Aluminum, or metal
Impeller
Aluminum, or metal,Adjusted to static and dynamic balace,low noise,big air volume,high pressure,stable function
Motor
Standard Motor, cast Iron with pure copper
5.Fan Operation
Before set up the fan,check gap sizes of all parts of the fan to make sure the rotating parts will not hit the fixed parts.
When the fan is rotating,check the temperature of the bearing after the impellers reach normal speed. If there is no special request for the temperature of the bearing,it can not higher than ambient temperature 40 °c
If the fan has very severe shock,hitting ,and bearing temperature rise rapidly,please stop the fan right away.
6.Fan Certificate and Quality Control
By our efforts,our company Gaoze was selected as the member of China Gneral Machinery Industry Association Ventilation Fan Branch. Our products enjoy good reputation among our customers . Our Products were awarded as "Brand-name and High Quality Products" by "China Quality Evaluation Center" &"Guangdong Branch of Social Servey Institure China"; Furthermore,a number of products are applied patents,which are up to the advanced standard. We are "Guangdong Private Scientific and Technological Enterprise" and past the "National Industrial Products License Certificate". Energy saving axial duct fan and multi-blade centrifugal fan developed by our company obtained the standard certification,most of our products past the certificate of "CCC" and "CE". We are fully implementing ISO 9001:2008 Quality System.
7.Fan Maintain
Periodically clean the inner dust, dirt and other impurities
Periodlically check the fan to avoid rusting
Change the lubricating oil after opening the fan .The lubricating oil shall be changed according to the actual situation.
8.Technical Specification
Model No.
Voltage
(V)
Power (KW)
Revolution (rpm)
Air Volume (m³/h)
Pressure (pa)
YYF6312
220/380
0.18
2800
420
1100
YYF6322
220/380
0.25
2800
480
1200
YYF7112
220/380
0.37
2800
720
1880
YYF7122
220/380
0.55
2800
1140
1980
YYF8012
220/380
0.75
2800
1320
2000
YYF8022
220/380
0.9
2800
1380
2140
YYF8032
380
1.1
2800
1500
2400
YYF9022
380
1.5
2800
1800
2780
YYF9032
380
2.2
2800
2000
2960
YYF10022
380
3
2800
2600
3260
9.Packing Detail
Bubble Packing: a cost-effective packing method, it is suggested if order is one full container
Carton Packing: standard packing ,it is suggested if order is one full container
Wooden pallet: more safe packing, it is suggested if order is not enough one full container
