workshop overhead crane Electric Double Girder Overhead Bridge Crane 30 ton, 35 ton, 50 ton
This crane is composed of main beam, end carriage, electric hoist, hoist trolley, electric power transmission device and operation room(as your demand).
Usuage: This crane is usually used indoors, such as workshop, plant, stockyard, etc. to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
Capacity: 3~20ton
Span: 10.5~31.5m
Lifting height: 6~18m
Working class: A3
Power source: 380v 50hz 3phase(standard), can be customized.

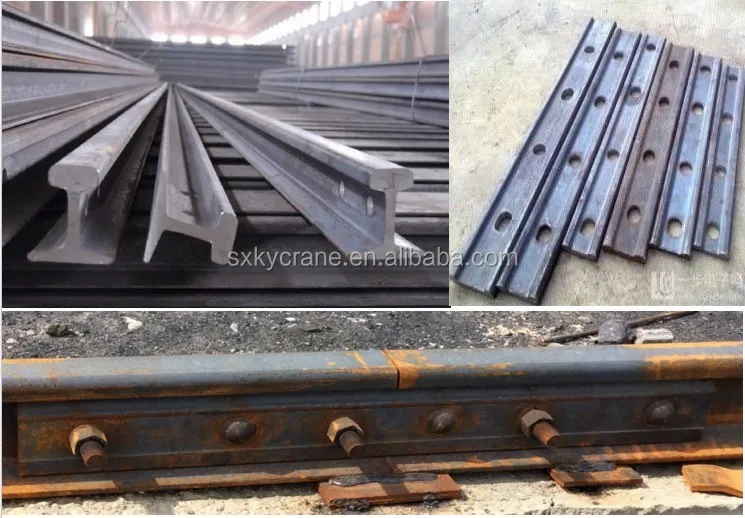

Crane rail recommended: 24/38

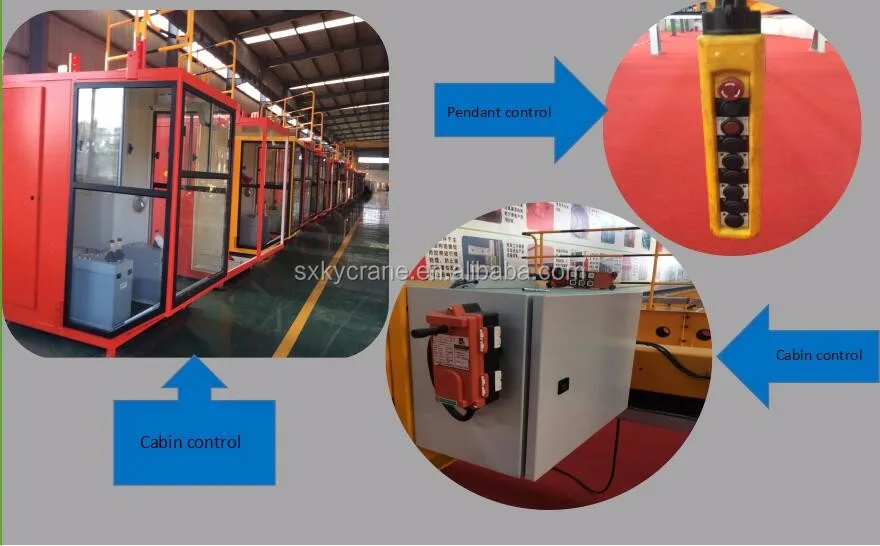

Control method: Pendent line, wireless remote control, operation room
We have rich experience for exporting the cranes to all over the word for 5 years .
Our senior engineer will design out the suiltable and workable plan . you will satisfy with our high quality and after sales service if you can give us chance to cooperate .
Product Description

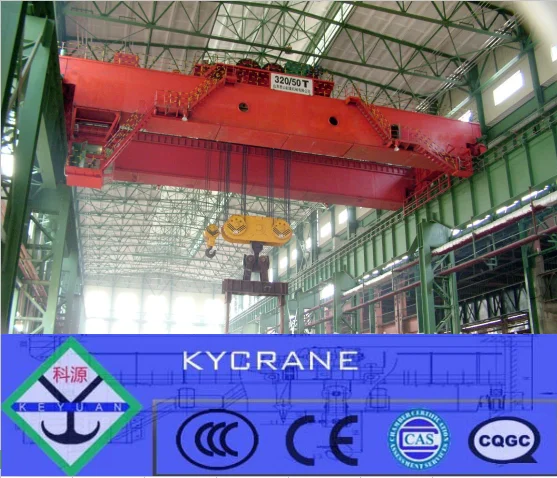

The overhead crane 32/10 ton consists of two girders mounted on two or four end carriages depending upon the duty of the overhead crane.
The end carriages are fitted with wheels that travel on the rail by LT motors. The electric wire rope hoist or cart is mounted on the trolley that travel on the upper sides of bridges on a square bar or rail. The power supply is single phase or 3 phases depending on the duty and capacity of the crane used.

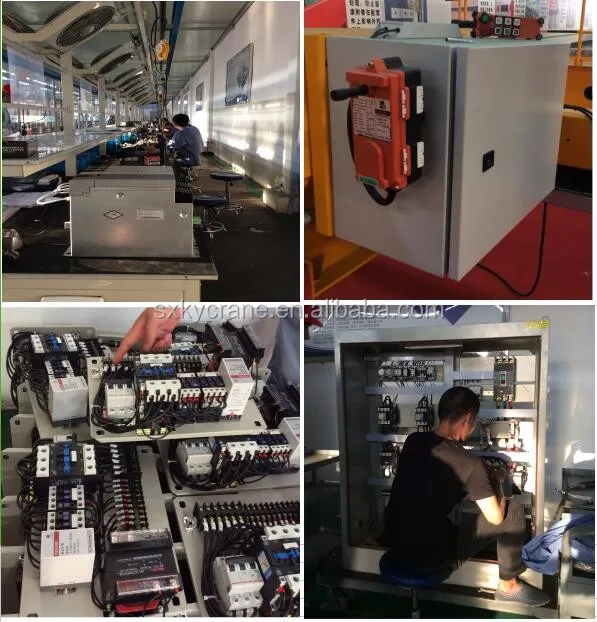

The electrical system consists of PVC Bus Bar or Power rail Enclosed Conductor Bar and Festoon System with Flat Cable attached to the bridge. The control of double girder crane is by pendant control or wireless control system.
Model number
QD- Double girder overhead crane
Capacity(main hook)
5~550ton
Capacity(Aux hook)
as your requirement
Span
7.5m-35m
Lifting height
6m, 9m, 12m, 18m, 24m, 30m

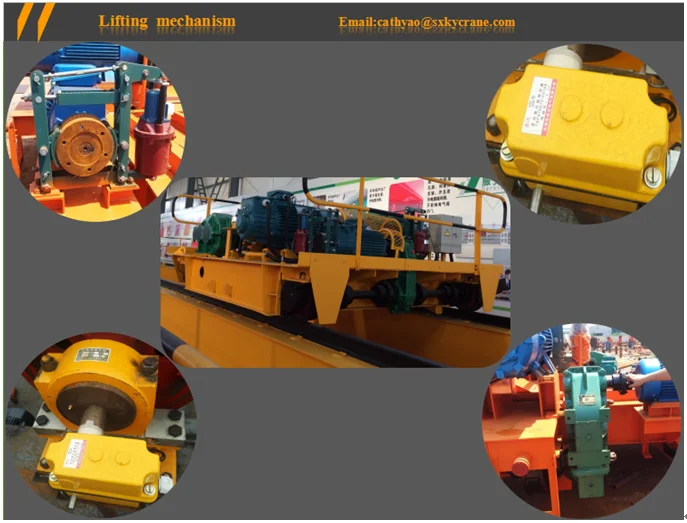

Lifting machinism
Wire rope electric trolley
Industrial voltage
380V,50Hz,3Phase or as your demands
Control methods
Pendant push button, remote controller or cabin control
Working temperature
-25°C~+42°C
Working class
A5, A6, A7
driven machnism
main hook , auxiliary hook. crane reaveling , trolley traveling
