Label Rotary Slitting Die Cutting Machine

Product Overview

Description

Label Die Cutting Machine

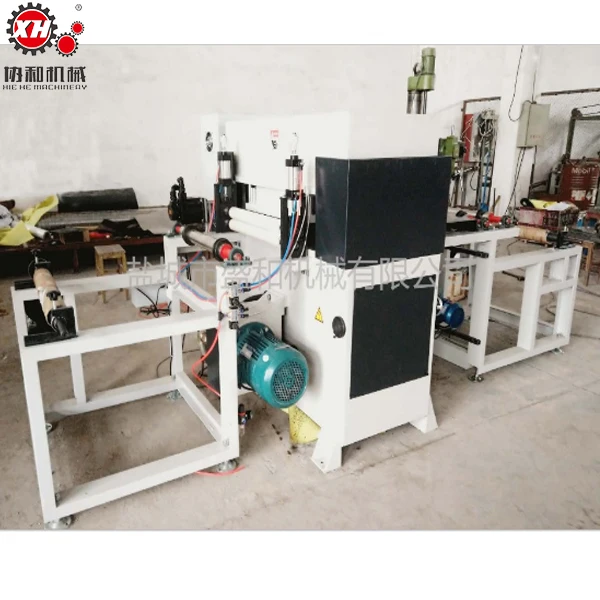

Real picture :











Usage:

1.Roll die cutter machine adopts accurate flatten die-cutting system, material towing controlled by computer, web-guiding by three photoelectric eyes. Die cutting, waste rewinding and finished -material rewinding are finished in one process.It is suitable for die cutting of adhesive paper, dacron label and laser hologram mark. This is the ideal association equipment for the flexo printing machine, silk screen printing machine , gravure printing machine and hologram mark printing machine and it's the most efficient machine for printing house .





Technical Datas :

1.	Maximum cutting force	400KN
2.	Cutting speed	0.1m/s
3.	Stroke range	0-140mm
4.	Distance from press board to working table	30-145mm
5.	Motor power	3KW
6.	Square of the working table	580*500mm
7.	Dimension of the machine	1860×2960×1500mm
8.	Weight of the machine	About 2000KG
9.	Voltage	380V/50HZ
10.	Oil volume	150L

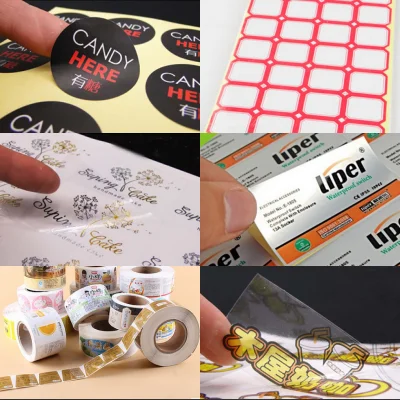

Application:







World-wide Customers:



 Shipping:



Certifications:



Aftersales Service:

Guarantee all the machines buy from our company is one year (easily broken parts do not contained) .We will offer free easily broken parts when shipping machines. Within guarantee, if machine parts was damaged, we will send to you free by express asap. If customer required engineer go to solve problem that is also possible.
