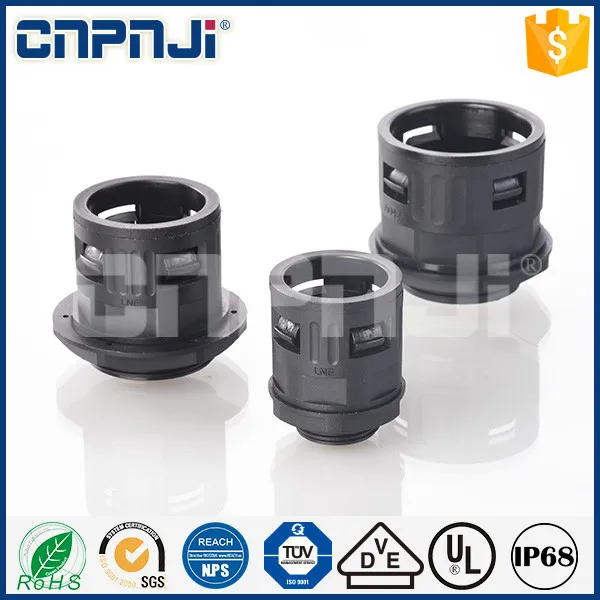

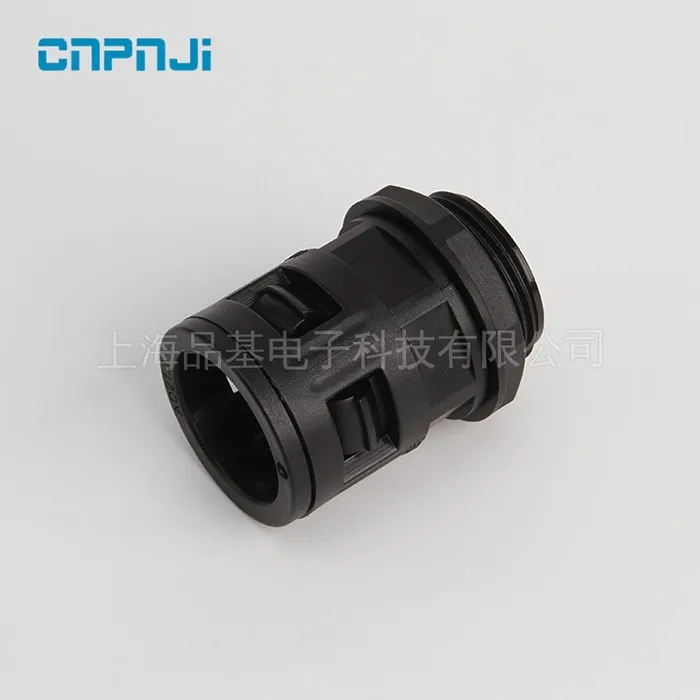

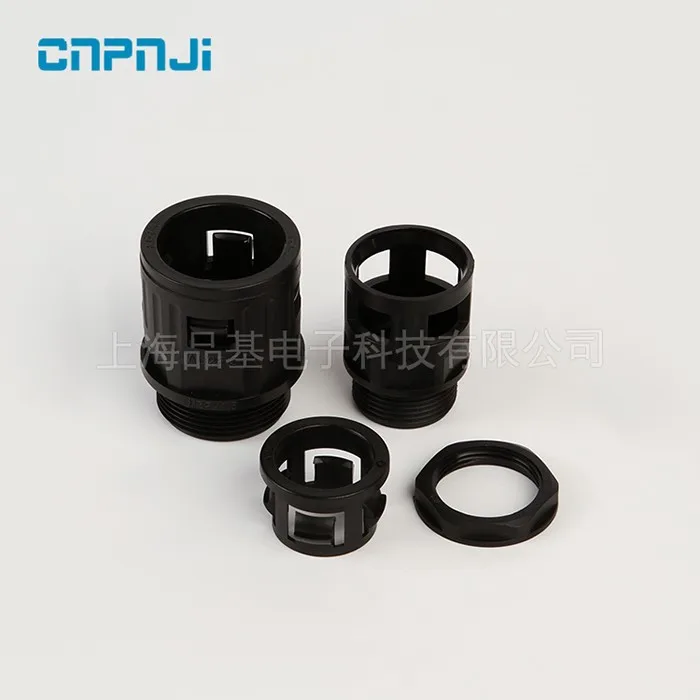

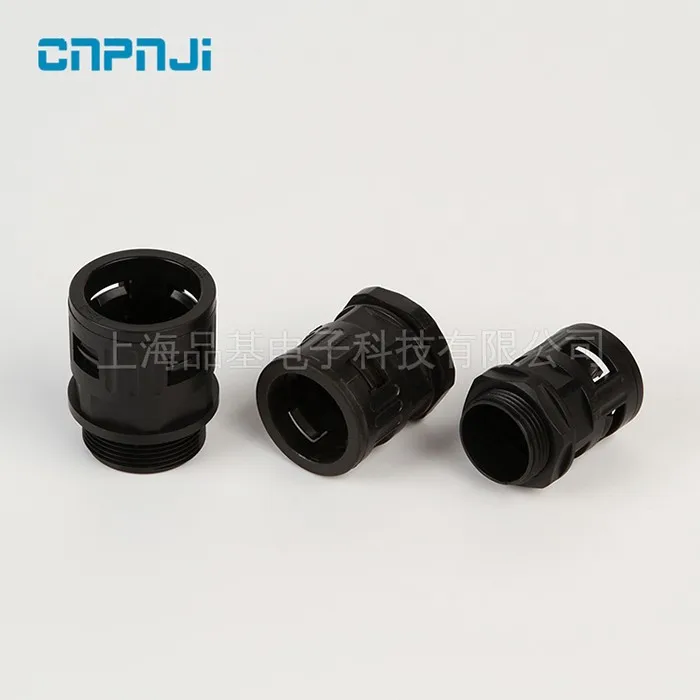

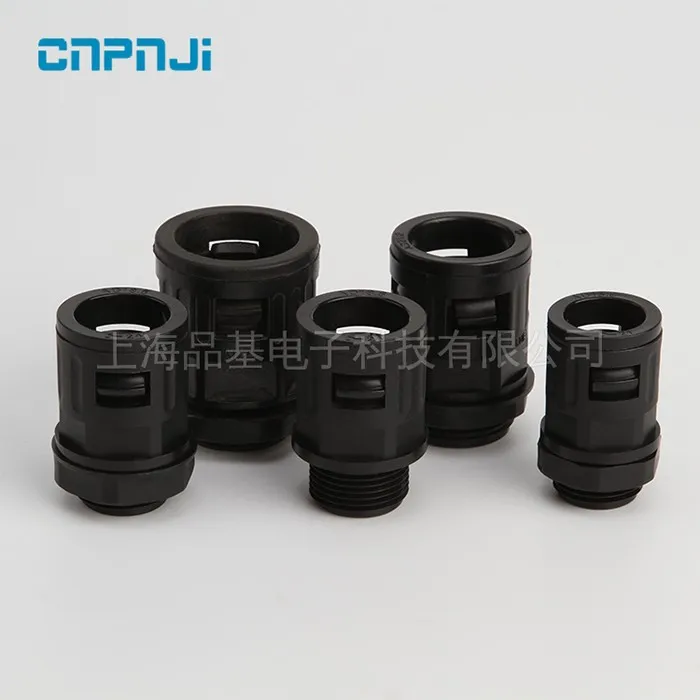

Direct connector AD54.5 flexible conduit apator
- Category: >>>
- Supplier: Shanghai Pinji Electronic Technology Co. Ltd.
Share on (60446993470):
Product Overview
Description
Free sample plastic wiring connectors electrical for AD54.5
2. Specification
| Standard Thread | PG, Metric, NPT, G(PF) |
| Meterials | UL approved nylon PA66(Flammability UL 94V-2) for A,C,E,F parts; EPDM rubber for B,D parts |
| Protection Level | IP68 |
| Working Temperature | EPDM Rubber: -40 to +100 °C Silicon Rubber: -50 to +200 °C |
| Feature | Different cable range for different cable diameter Different thread length for different junction box |
| Color | Black, Gray, White, Blue, Red (Special colorscustomizable) |
| EPDM Rubber | More waterproof; more durable; more weather resistant |
| Certificates | UL,CE,ROHS,SGS,IP68,Halogen-free,UV Resistant |
3. Type
| Accommodated | Item | Standard | Outer Diameter | Thread Length |
| Pipes | No | Thread | C1(mm) | C1(mm) |
| AD10.0 | STF-M12-10.0 | M12 | 12 | 9 |
| AD13.0 | STF-M16-13.0 | M16 | 16 | 15 |
| AD15.8 | STF-M16-15.8 | M16 | 16 | 15 |
| STF-M20-15.8 | M20 | 20 | 15 | |
| AD18.5 | STF-M16-18.5 | M16 | 16 | 15 |
| STF-M20-18.5 | M20 | 20 | 15 | |
| AD21.2 | STF-M20-21.2 | M20 | 20 | 15 |
| STF-M25-21.2 | M25 | 25 | 15 | |
| AD25.0 | STF-M25-25.0 | M25 | 25 | 15 |
| AD28.5 | STF-M25-28.5 | M25 | 25 | 15 |
| AD34.5 | STF-M32-34.5 | M32 | 32 | 15 |
| AD42.5 | STF-M40-42.5 | M40 | 40 | 15 |
| STF-M50-42.5 | M50 | 50 | 15 | |
| AD54.5 | STF-M50-54.5 | M50 | 50 | 22 |
| STF-M63-54.5 | M63 | 63 | 25 | |
| AD10.0 | STF-PG7-10.0 | PG7 | 12.5 | 9 |
| STF-PG9-10.0 | PG9 | 15.2 | 9 | |
| AD13.0 | STF-PG11-13.0 | PG11 | 18.6 | 10 |
| AD15.8 | STF-PG13.5-15.8 | PG13.5 | 20.4 | 10 |
| STF-PG16-15.8 | PG16 | 22.5 | 10.8 | |
| AD18.5 | STF-PG13.5-18.5 | PG13.5 | 20.4 | 10 |
| STF-PG16-18.5 | PG16 | 22.5 | 10.8 | |
| AD21.2 | STF-PG16-21.2 | PG16 | 22.5 | 13 |
| STF-PG21-21.2 | PG21 | 28.3 | 13 | |
| AD25.0 | STF-PG21-25 | PG21 | 28.3 | 13 |
| AD28.5 | STF-PG21-28.5 | PG21 | 28.3 | 13 |
| AD34.5 | STF-PG29-34.5 | PG29 | 37 | 13 |
| AD42.5 | STF-PG36-42.5 | PG36 | 47 | 13 |
| STF-PG42-42.5 | PG42 | 54 | 15 | |
| AD54.5 | STF-PG48-54.5 | PG48 | 59.3 | 16 |
| AD10.0 | STF-PF1/4-10.0 | PF1/4'' | 13.1 | 9 |
| AD13.0 | STF-PF3/8-13.0 | PF3/8'' | 16.6 | 15 |
| AD15.8 | STF-1/2-15.8 | PF1/2'' | 20.9 | 15 |
| AD18.5 | STF-1/2-18.5 | PF1/2'' | 20.9 | 15 |
| AD21.2 | STF-PF1/2-21.2 | PF1/2'' | 20.9 | 15 |
| STF-PF3/4-21.2 | PF3/4'' | 26.4 | 15 | |
| AD28.5 | STF-PF3/4-28.5 | PF3/4'' | 26.4 | 15 |
| AD34.5 | STF-PF1-34.5 | PF1'' | 33.2 | 15 |
| AD42.5 | STF-PF1 1/4-42.5 | PF1 1/4'' | 41.9 | 15 |
| AD54.5 | STF-PF1 1/2-54.5 | PF1 1/2'' | 48 | 15 |
| AD54.5 | STF-PF2-54.5 | PF2'' | 60 | 15 |
Related Products
 |  | |  |
cable glan
Company Information
Shanghai Pinji Electric Co.,Ltd is Specialized in manufacturing the cable glands, flexible pipe,plastic wiring ducts,nylon cable ties and so on.We have advanced production equipment,abundant technical force.Now we have passed the certificate of ISO9001:2000 and most of our products like cable glands have got IP68-10,CE,PAHs,UL and RoHs certificates.
The produces has been widely used into power train,automobile cable, mechanical and machines,engineering and installation etc.
Recently,it forms acomplete network for sales in domestic,and also established a good relationship and cooperation with the customers from Japan,the US, AustraliaSouth America,Europe and other countries.
In Pinji,pursuing the quality is the everlasting theme;the spririt of enterprise and keeping the pace with the time are the spirit of him;and continuous innovation is the philosophy.We with sincerity hope to make a better future with all the friends from all over the world!
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
