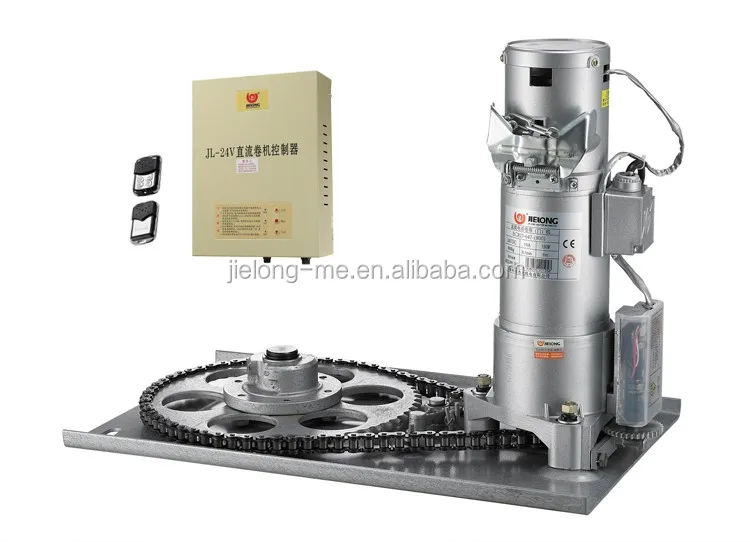

Jielong 800kg DC roller shutter motor china supplier Rolling up Shutter Door Operator Motor

Product Overview

Description

DC,Automatic door operators Type roller shutter door motor 800kg









 JIELONG Shutter Motors Ltd estableshed in 1988, Focus on Industrial shutter door opener, Fireproof door motor, Rolling shutter door motor and their accessories. Following accumulated technical experience, management system for more than 27 years, JIELONG has become the leading manufacturer of rolling shutter door in China.





PRODUCTS FEATURES:

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

• Full function with JL-ECR series motors but more useful.


• Powerful, lower noise, a longer useful life.


• With 12v 4.5ah battery, when energy lost automatically display and charge.


• When power off, it can automatically switch to battery powered for motor,


• The battery ensures can be working 10 times.


• Control system made by microchip.


• Can be connected with infrared and other related devices.



JL-ECRD motor specifications and technical parameters
Model	Rated output torque (N.m)	Rated output speed (r/min)	Motor power (W)	Rated Voltage/ frequency (V/Hz)	Motor		Standard roll up parameter
					Input Voltage (V)	Related Current (A)	Drum tube outer diameter (mm)	Max lifting power (kg.f)	Max lifting height (m)
									Profile thickness (mm)
									15	20
ECRD-225	225	3.5	180	220/50	24	12	114	400	6	7
ECRD-343	412	3.8	300	220/50	24	15	140	600	6	7
ECRD-412	647	3.0	330	220/50	24	19	165	800	6	7



 If you need any special design, we can make it for you as your request.



ECR MOTOR ACCESSORIES:

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

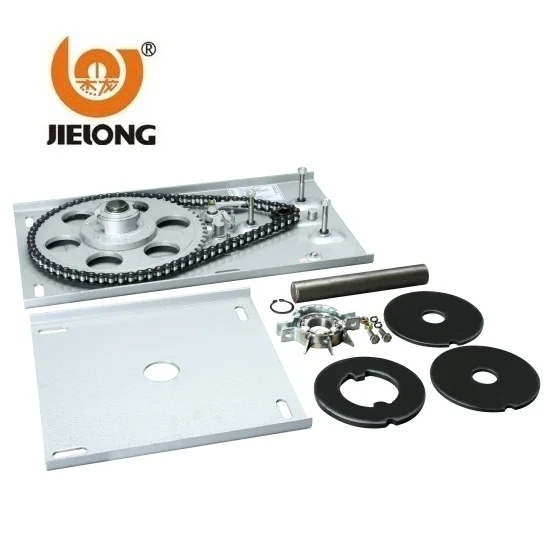

	bracket board, side board, 1 big sprocket wheel, 1 small sprocket wheel, 3 discs, 1 chian, 1 bearing, 1 shaft
	Within 2 * 12V 4.5ah storage battery User can change the battery while them power off
