Economical Endoscope Camera for ENT, Hysteroscopy, Arthroscope
- Category: Medical-Ray Protective Products >>>
- Supplier: Jiangsu Ouman Electronic Equipment Co. Ltd.
Share on (60447132497):
Product Overview
Description
QUALITY IS OUR CORE CULTURE!

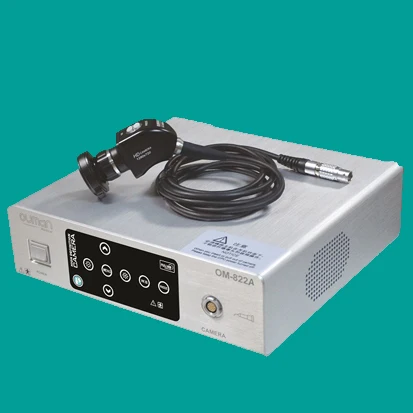

Economical Endoscope Camera for ENT, Hysteroscopy, Arthroscope
Product Description
OM-822A | |
Image sensor | SONY SUPER HD CCD |
Pixel | PAL 795(H)×596(V) |
Scanning system | PAL:752Lines,50Field/sec |
Synchronizing mode | Internal Synchronization |
Horizontal Resolution | 580 TV Line |
Video Output | 1.0Vp-p,75Ω |
Signal to noise ratio (S/N) | > 52db |
Gamma Correction | 0.45 |
White balance | Automatic |
Scope of WB | 2200~15000°K |
Electronic shutter | 1/50~1/100000s continuous |
Min illumination | 0.5 Lux×F2.0 |
Material | metal case |
G.W. | 5kg |
Size | 36*36*22 cm |
Optical Coupler: default F20
If necessary you can choose one from F18/20/22/24/28/32/35, or ZOOM 32~35.
OM-822A Endoscope Camera set includes:
-Endoscope camera controller

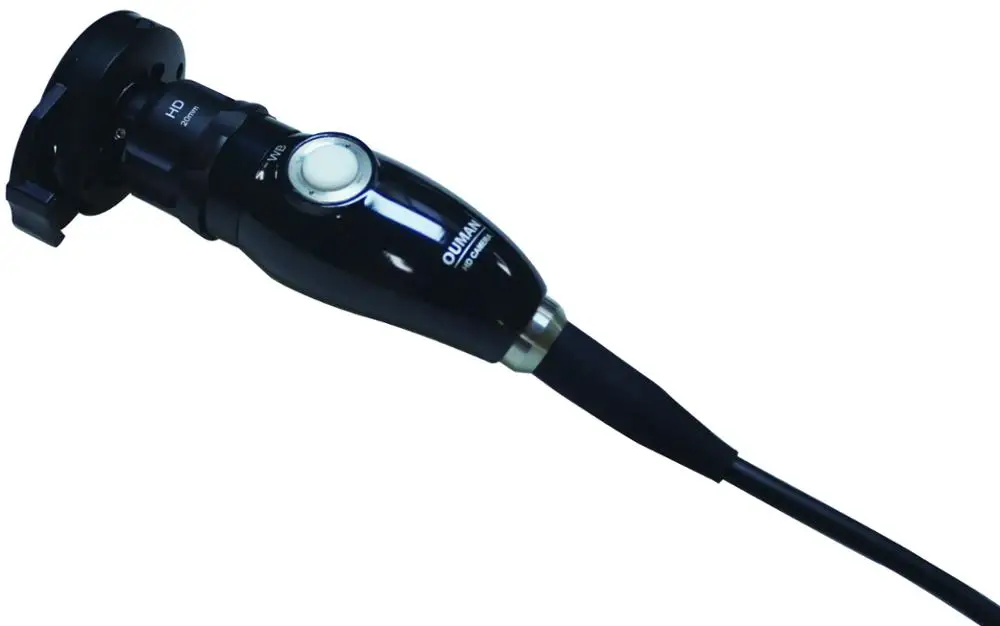

-waterproof camera head
-Optical coupler
Application scope:
Be used in hospital for clinical endoscopic surgery, to amplify video or gain images during inside-body surgery.
otoscope, nasoscope, laryngoscope, arthroscope, hysteroscope, laparoscope, vapour-resectoscope, etc.
Functional Characteristics:
- The camera is equipped with 1/3 inch SONY CCD image chip and DSP (Digital Signal Processor), and the horizontal resolution up to 700 TV line, supplying clear image and true colour restoration.
- OSRAM light source is used in this device, having the latest high-energy, low-power, high luminous flux, quickly brightened, uniform illumination, and wide angle. It’s useful life up to thirty thousand hours, energy-conserving and environment-protective. With 1~10 continuously adjustable illumination levels, you can observe current brightness level through the LCD screen.
- Compared with conventional xenon lamp, this integrative machine haves ultra-long useful life and ultra-low power consumption. It became more safe without ultraviolet rays. Real-time monitoring of its light source operating temperature is adopted in order to ensure it’s useful life, simultaneously you can read data and control the product running state through the LCD screen.
Packaging & Shipping
Packaging: Standard carton package
Shipping: Ship or flight transportation
Our Services
Before sales: Patient explanation about products and relevant questions;
In sales: Follow up delivery situation, help customer to know the latest information;
After sales: Two years warranty
Company Information
YOUR PROFESSIONAL & RELIABLE FRIEND!
Jiangsu Ouman Electronic Equipment Co., Ltd has been in medical industry for over a decade, with rich experience in manufacturing and exporting.
Our product range includes endoscope camera videos, cold light source, monitor, X-ray film viewer 1-4 sections, workstation, ENT endoscopes, medical trolley etc.
We promise fine quality and quick delivery once payment received.
FAQ
1. Payment term: TT, Western Union, PayPal
2. Delivery: within 7 working days upon your payment
3. OEM service offered
4. Warranty: 2 years
Please contact Carrie for the latest information!
