12v/24v/220v cctv surge protector(2 in 1) IP camera surge arrester price
- Category: >>>
- Supplier: Shenzhen Kailifeng Industry Co. Limited.
Share on (60447194241):
Product Overview
Description
12v/24v/220v cctv surge protector(2-in-1) IP camera surge arrester price
Product description
Two-in-one SPD is applied to the lightning surge protection for power and network cord of monitoring system front-end network camera and wireless remote control camera.
Integrated and multi functional surge protection be provided for power and network line of 220V network camera.
Power and network integration surge protection design to effectively balance the lines potential difference.
It can effectively avoid the equipment destroyed which is caused by potential difference enlargement between power and network line.
Core components are selected international brands, with advantage of multi-level protection, low residual voltage, fast response time and life working time. With advantage of integration, small size, simple wiring and easy installation.
Parameters
Model | KLF- TW- 2/220 | |
Protective range | Power Supply | Network |
Working Voltage (Un) | 220V | 5V |
Rated Current | 1.5A | 300mA |
Transmission rate(bps) | / | 100M/1000M |
Nominal Discharge Current (8/20μs) (In) | 5KA | 5KA |
Max. Discharge Current (8/20μs) (Imax.) | 10KA | 10KA |
Insertion Loss | / | ≤0. 2dB |
Voltage Protection Level( Up) | ≤1.0KV | ≤10V |
Response Time | 25ns | 1ns |
Interface Model | terminals | RJ45 |
Protected Core | / | 1~8 lines |
Working Environment | Temperature -40°C~+80°C;Relative humidity<95% | |
Shell Material | Aluminium Alloy | |
Dimension(L×W×H) | 92×88×40mm | |
Weight | 0. 20kg | |
Power/Video 12V/24V/220V cctv surge protector(2-in-1) also available.
Application: is applied to the lightning surge protection for power and network cord of monitoring system front-end network camera and wireless remote control camera.

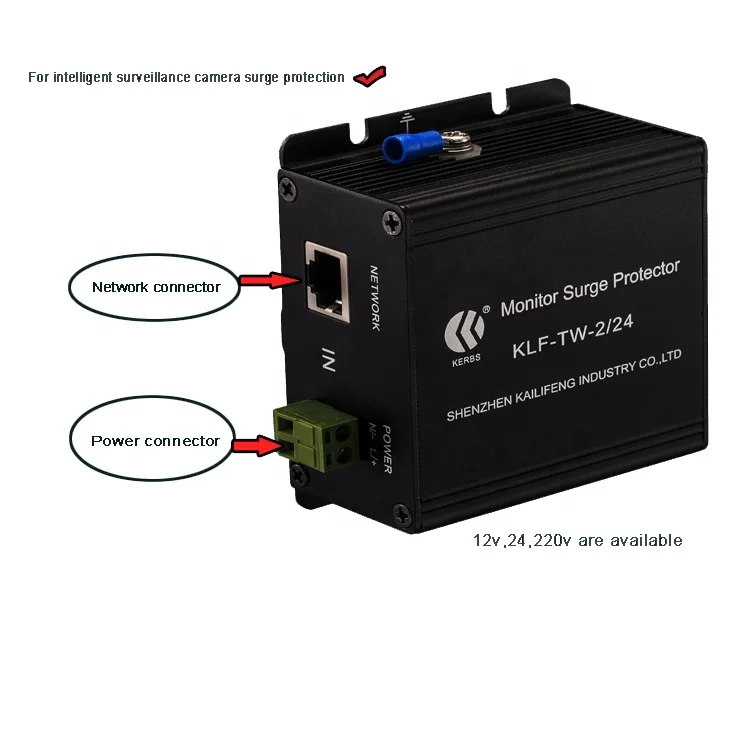

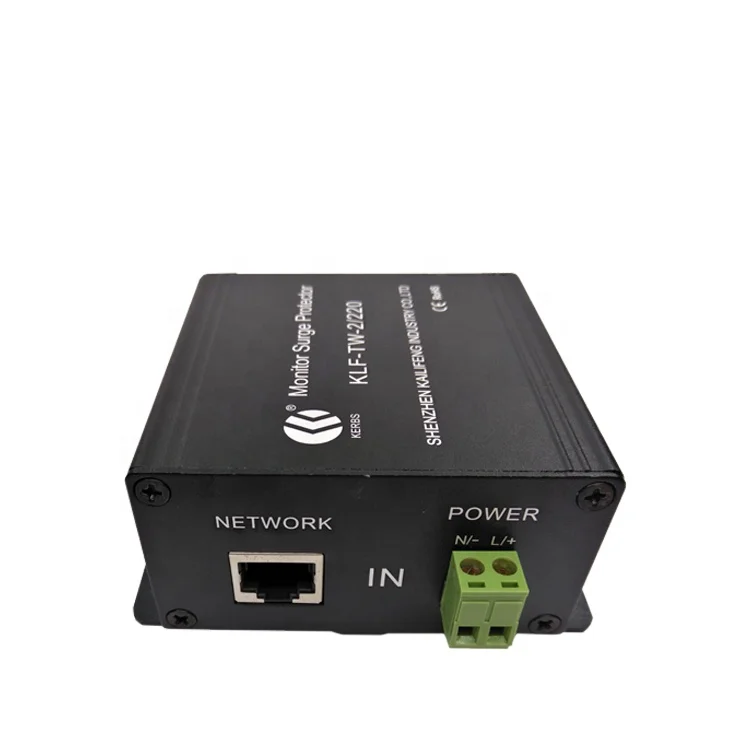

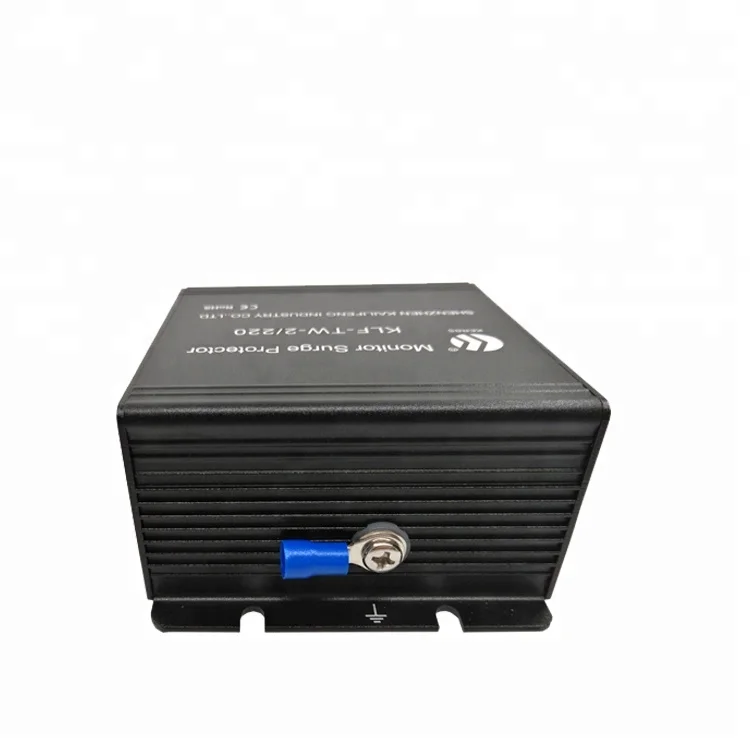

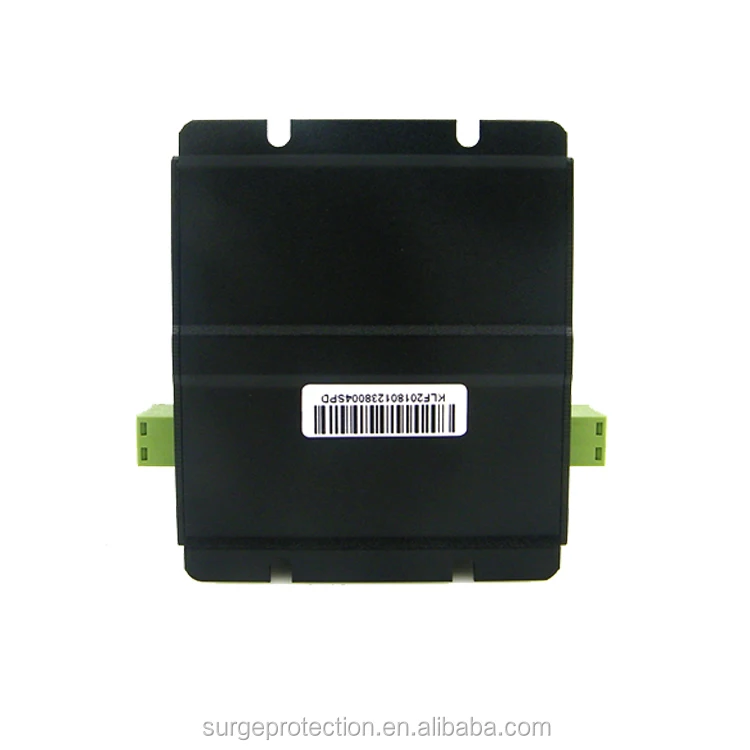

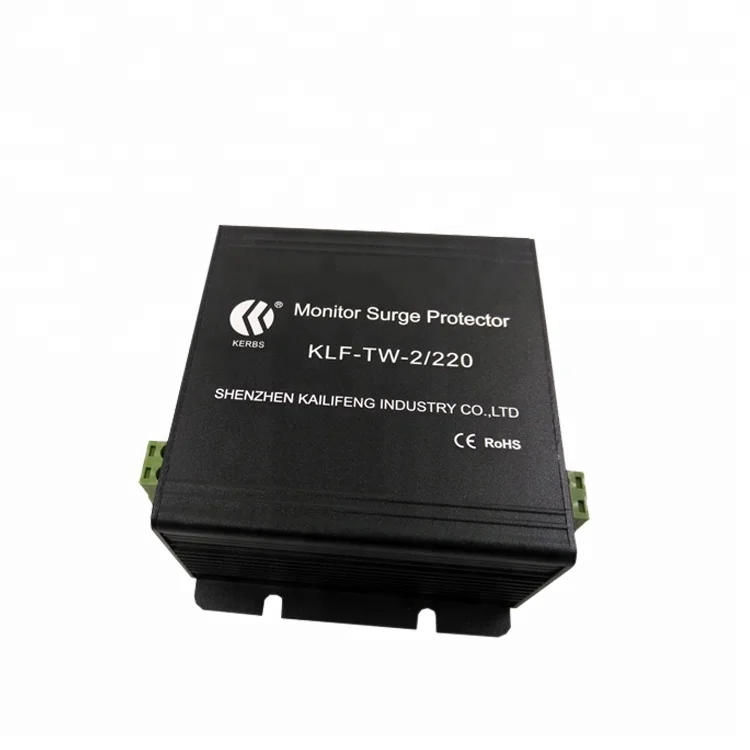

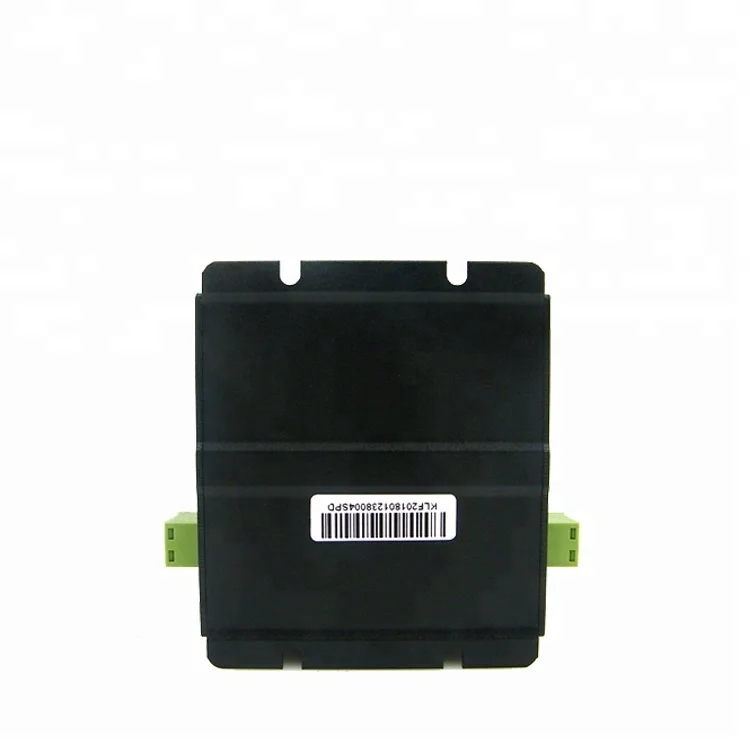

Images of products

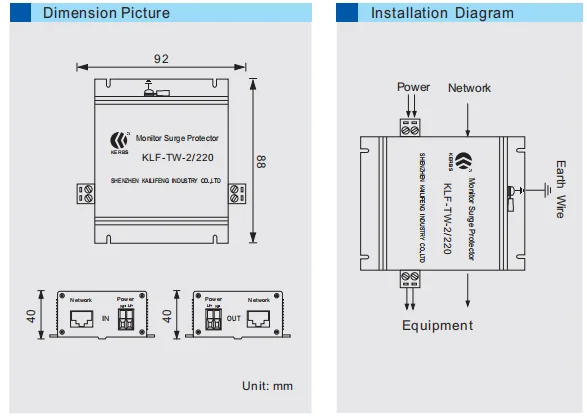

Dimention & Diagram

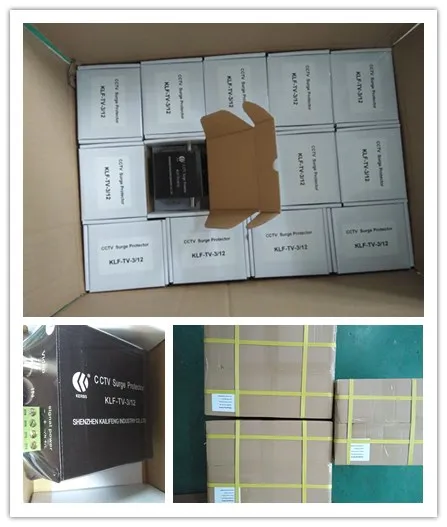

Package
Other CCTV surge arresters

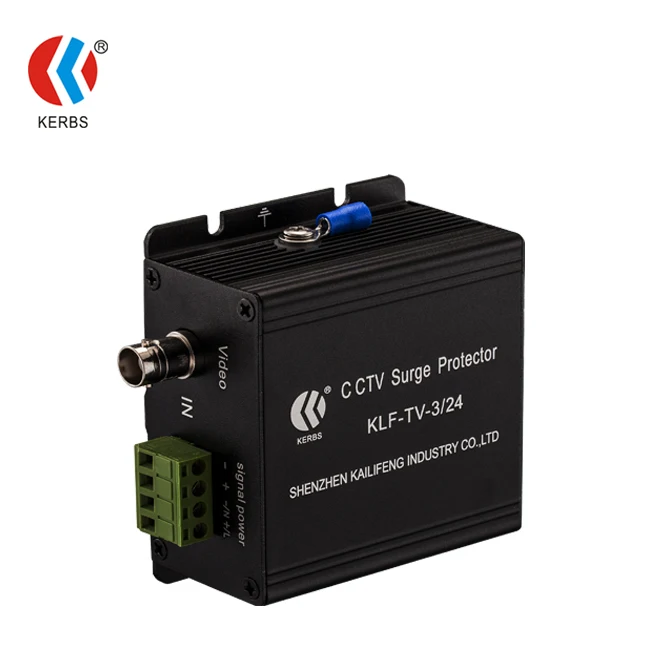

1.BNC power,control signal and video 3 in 1 surge arrester

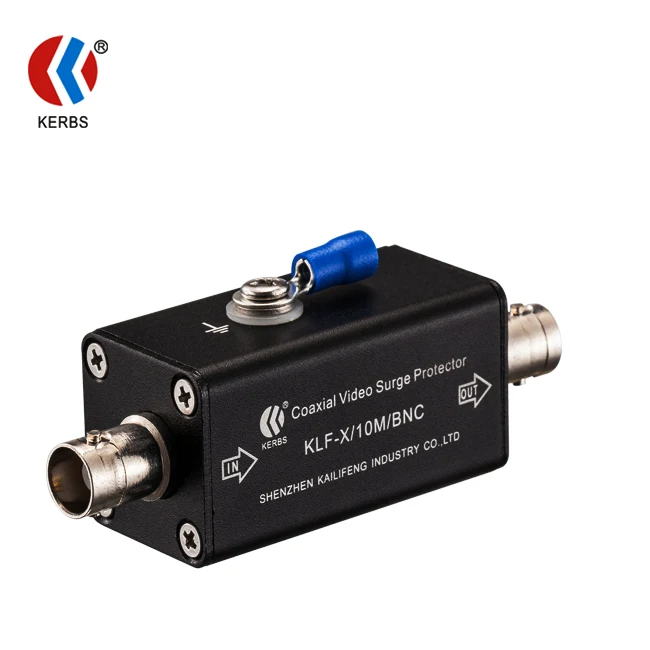

2.BNC one pole video surge arrester

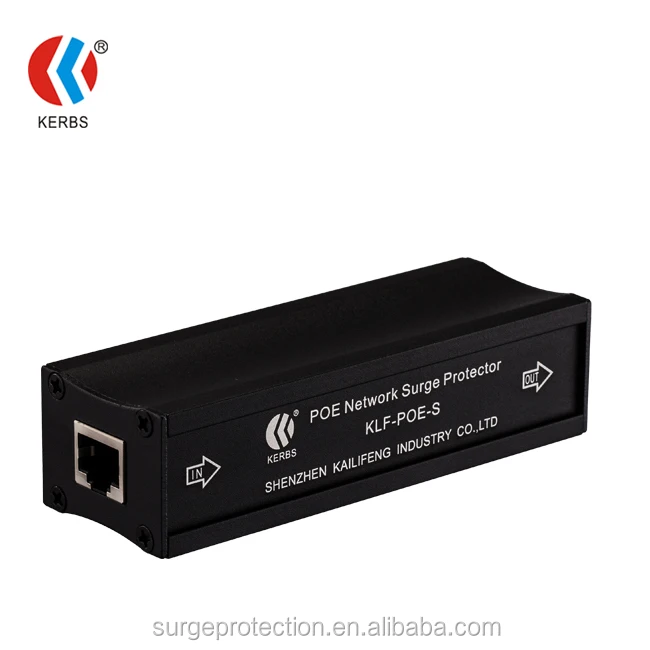

3.POE IP camera surge arrester
About us
FAQ
1.What kind of damage caused by lightning?
Lightning strikes the ground over 25 million times each year. It exceeds one hundred million volts and brings catastrophic damage to whatever it hits. Thousands of houses burn down, and millions of machines break down every year due to lightning strikes, which cased loss more than billions of dollars, even life lost.
If we get use of surge protector, we could keep lightning away, life and dollars save.
2.Does surge protection CCTV attract lightning?
Lightning protection does not attract or repel lightning. Like water in a pipe, it provides it a safe path to ground and away from your home, family and expensive electronics.
3. Can I get a sample before the order because I really don't know your surge protection CCTV quality?
Of course!
We also think sample order is the best way to build the trust.
4. I am not familiar with surge protection CCTV, so I need your technical service and best quote which could help me to finish my project.
NO PROBLEM!
Our R&D team is experienced, we have helped many customers to finish their projects.
So just tell us your requirements, then everything we will solve perfectly for you.
5. How about delivery time of surge protection CCTV?
For sample order 1-2days, and for batch order of standard SPD we promise delivery in 7- 15days.
6. How's the warranty time of surge protection CCTV?
We provide 5years warranty for our CCTV camera surge protector.
What’s more, in the first year, any failed products caused by quality problem will be replaced by us freely, also cost on us.
And in the warrany time, we provide maintenance-free service.
Thank you for your time!
Now we are looking for distributors all over the world.
Pls feel free to find us for more details.
