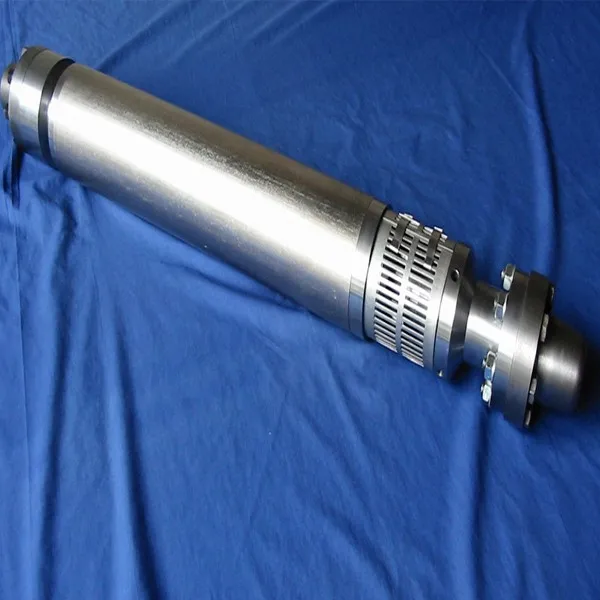

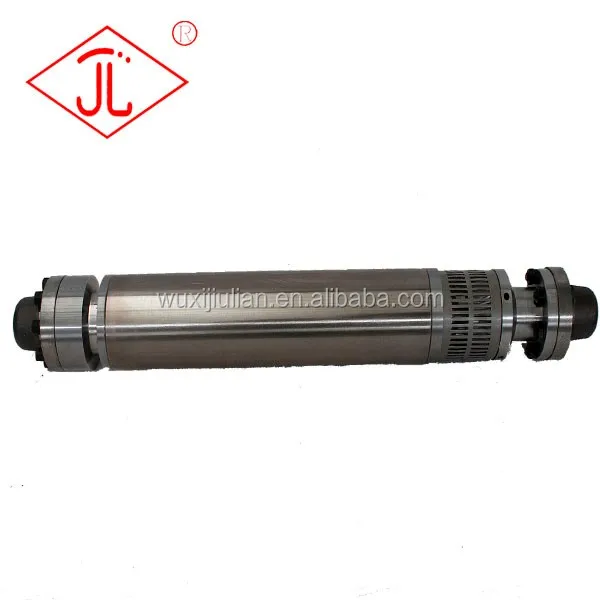

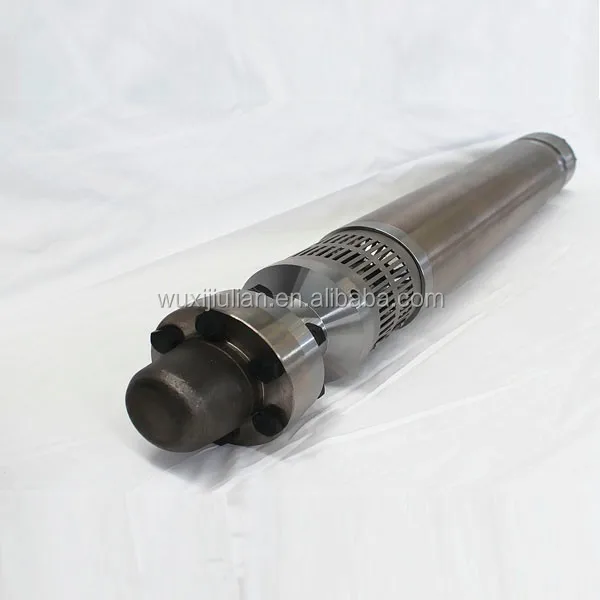

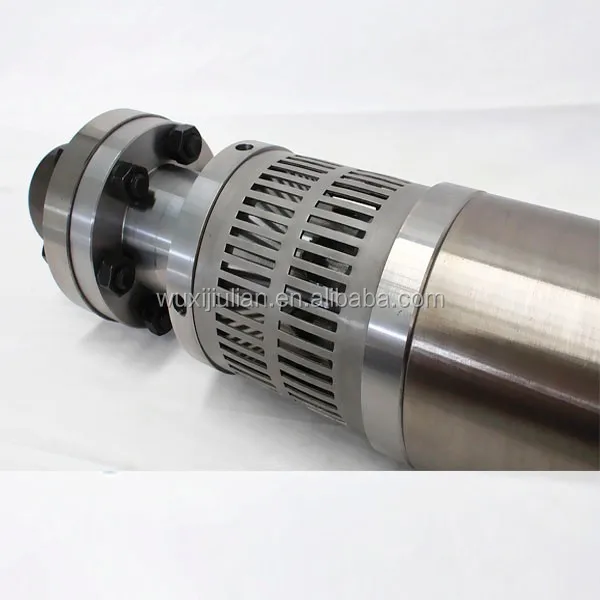

387 Series 98 Shengli ESP system Oil Gas Separator

 Feature:

 1) We redesign the flow divider,which have total 12 pathes with hydraulic form.According to the GOR you can select 2,3,4,6 or 8 pathes be vented the free gas into the casing and opposite others 10.9,8,6 or 4 pathes be moved the fluid to the first pump stage.But it should be advised your choice when place the order.

You may find the Chinese Patent Certification No.201020277023.4.

2)The housing has been coated the Nickel-Phosphorus.

3)The compression tube is made from pottery.

4)All the bushings & sleeves are made from tungsten carbide.

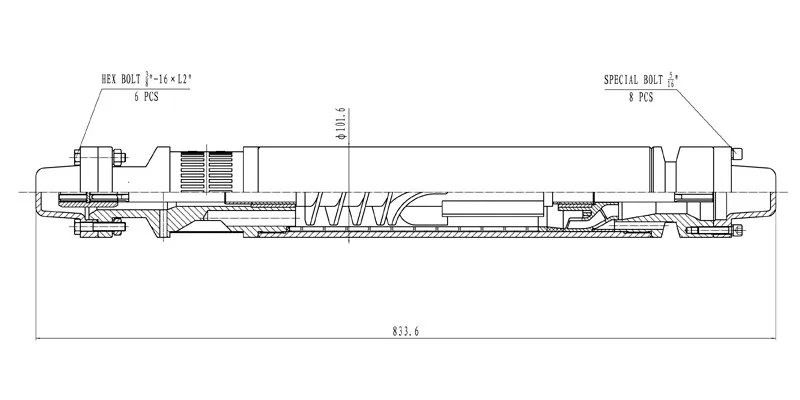

Dimension Drawing

                                                                                       98series

                                                                                  400series

Payment Terms

T/T, L/C, Western Union, Paypal and Escrow are the payment methods we accept at present.

Shipping

Materials in stock can be produced (procedure 15-30days) right away after pre-payment confirmation. COSCO, Mearsk and MSC ship to worldwide for safe shipping, so don't worry about package damage or loss. It takes about 25-45days to worldwide, Please note us your contact details, including your phone number, for easy contacting from shipping company officer.

Important Information

Impeller and diffuser are spare parts of gas and oil separators. Our products can meet different requirements and equipments. Our Impeller and Diffuser are made of Ni-resist which is applicable to highly corrosive environment.
