Best Quality EPS Foam Composite Fiber Cement Sandwich Roof Panel

DESCRIPTION

Light weight energy-saving EPS Sandwich wall Panel

COMPOSITION

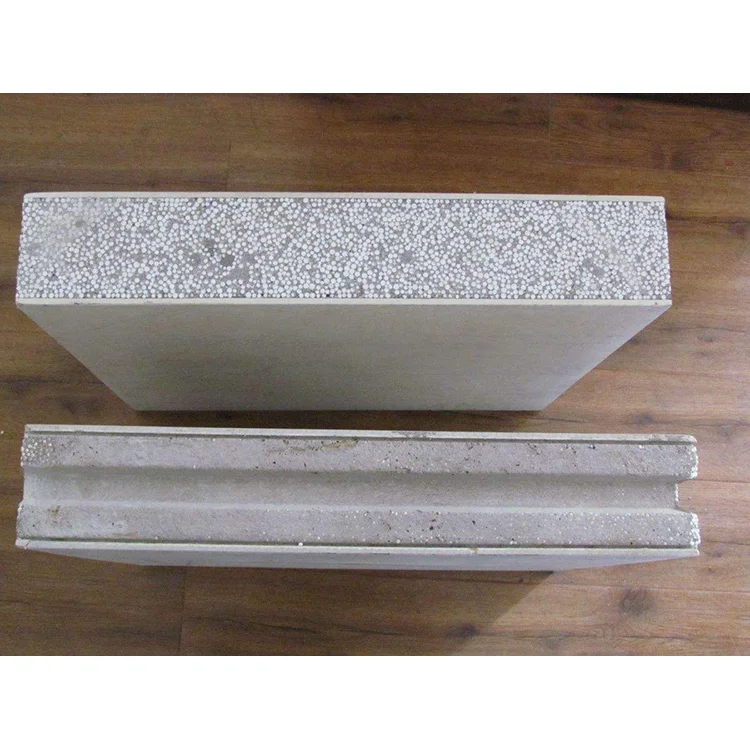

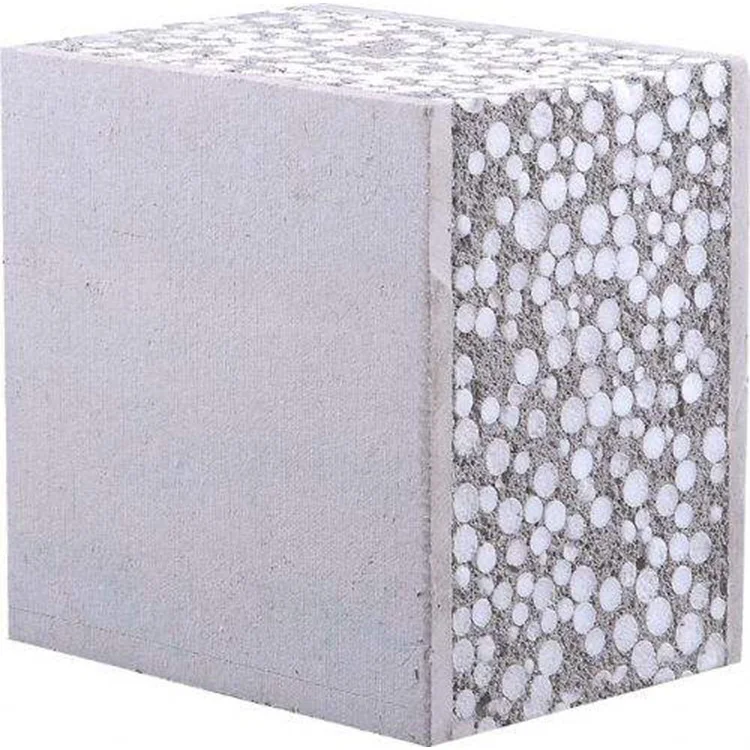

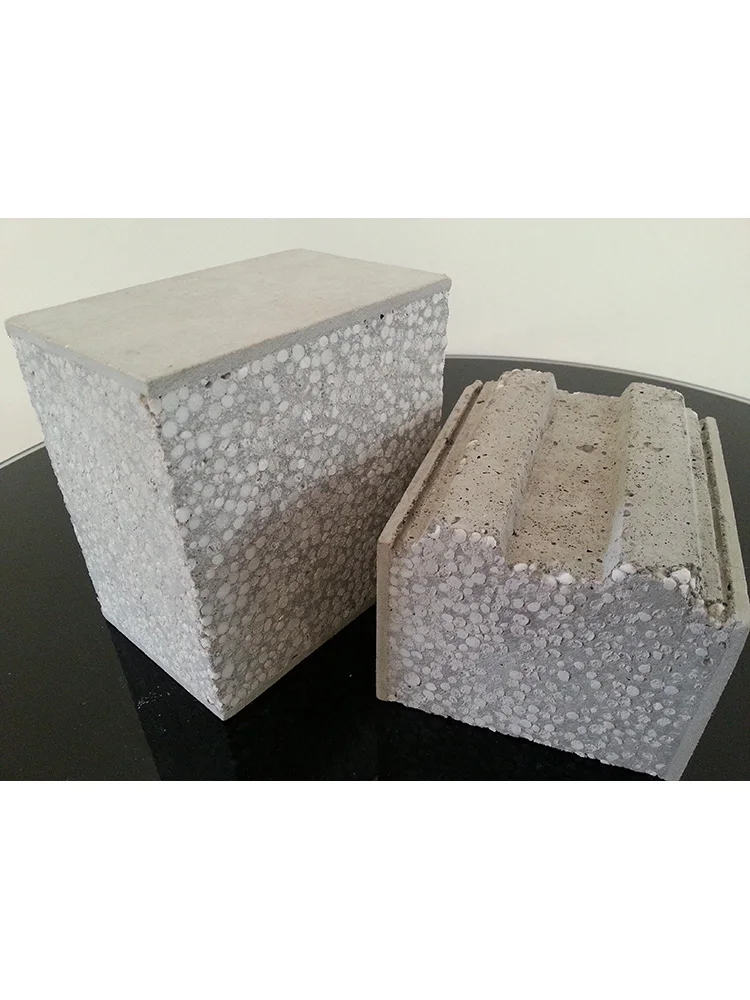

Cement board (face panel) + Cement and EPS (core) + cement board (face panel)

APPLICATION

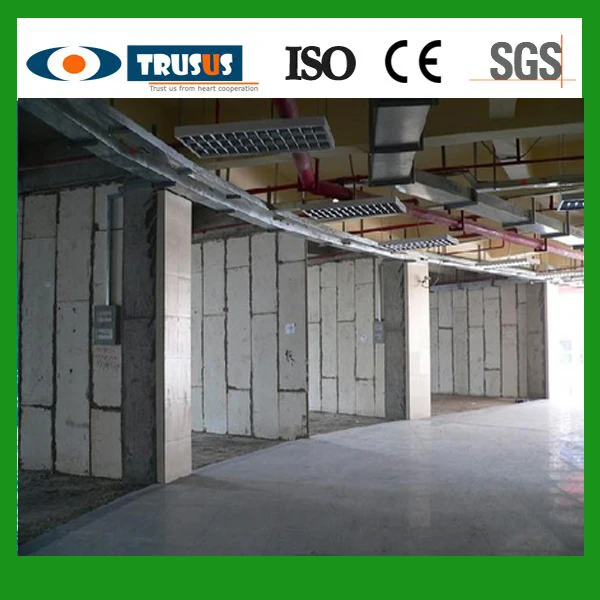

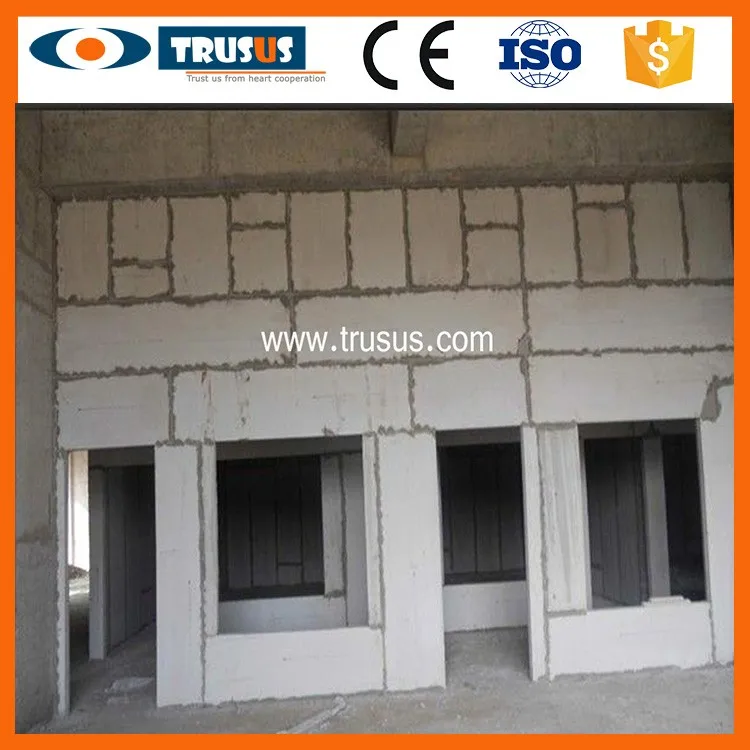

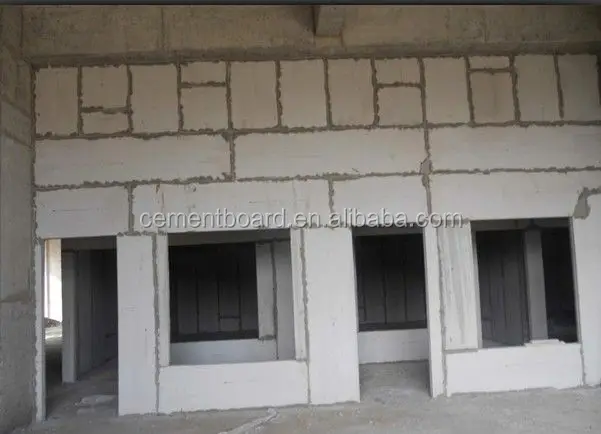

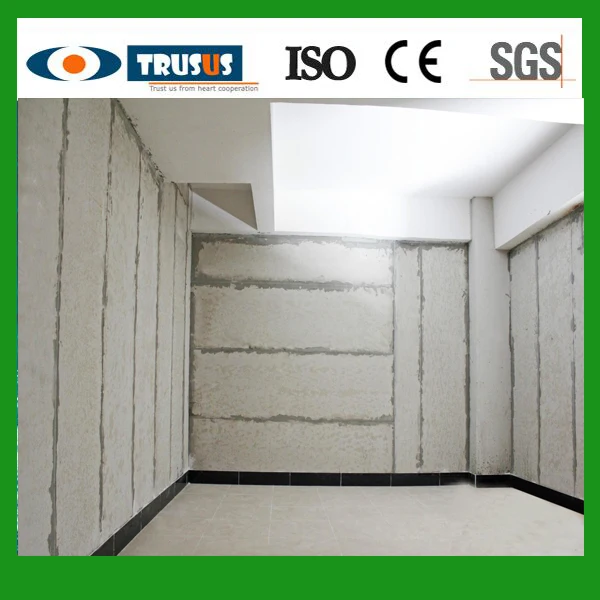

Interior and exterior partition on steel or concrete structure building, for new construction,

additions or renovations.

It can widely be applied to wall materials of various high and low buildings such as: bank, office

building, hospital,

school, hotel, shopping mall, amusement hall, old house reconstruction, residence and workshop.

ADVANTAGES

1. Environmental Protection

2. Fireproofing

3. Increasing usable floor area

4. Anti-seismic Good Integrity

5. Damp Proof,Waterproof

6. Sound insulation

7. Contraction simple, Efficient, Fast

8. Heat insulation, Heat preservation

9. Opening slot, Wiring, Hanging

10. Light, Economic

SPECIFICATION

Thickness	Length	Width	Reference Weight(kg/m)	Product allow tolerance(kg/m)
50mm	2270mm 2440mm	610mm	40±5	Length±5 Width±2 Thickness±1 Flatness±1
75mm			50±5
100mm			60±5
125mm			67±5
150mm			85±5

TECHNICAL DATA

Weight - 50mm thick - 75mm thick - 100mm thick - 125mm thick - 150mm thick	Nominal ( at ambient ) - 44 kg/m² - 64 kg/m² - 77 kg/m² - 99 kg/m² - 110 kg/m²
Thermal conductivity ( BS 874; Part 2: 1986)	0.221 W/0K
Flexural Strength ( Longitudinal )	4.27 MPa
Flexural Strength ( Transverse )	4118 N
Moisture Movement	0.06%
Moisture Content	9%
Resistance to continuous heating	80°c
Surface alkalinity	PH 7-10
Non-combustibility ( Face Boards)	BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1994, Grade A
Head of combustion ( Face Boards)	BS EN ISO 1716: 2002
Fire rated partition	Euro Class A1 2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/ T9978
Water tightness to ASTM C1185	No droplets observed behind the panel, Test 24 hours at 250mm water head
Partition stiffness – heavy duty grade (BS5234: Part2: 1992, Annex A)	Pass
Resistance to structural damage by multiple impacts from a large soft body - heavy duty grade (BS5234: Part2: 1992, Annex E)	No collapse or dislocation
Surface damage by hard body impact – heavy duty grade (BS5234: Part2: 1992, Annex B)	Pass
Effects of door slamming – heavy duty grade (BS5234: Part2: 1992, Annex B)	Pass
Resistance to crowd pressure – heavy duty grade (BS5234: Part2: 1992, Annex G)	No collapse or damage
Heavy weight anchorage (high level wall cupboard) eccentric downward (BS5234: Part2: 1992, Annex K)	No damage or detachment of anchor
Anchorage Load	45kg
Acoustic Performance - 50mm thick - 75mm thick - 100mm thick - 125mm thick - 150mm thick	37db 40db 42db 44db 46db
