12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback
12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback
12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback
12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback
12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback
12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback
12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback

12v temp control water heater valves Linear HVAC servo blend door actuator motor with feedback

Share on (60447391389):


Price:$14.90 - $16.90

Quantity:


Product Overview

Description

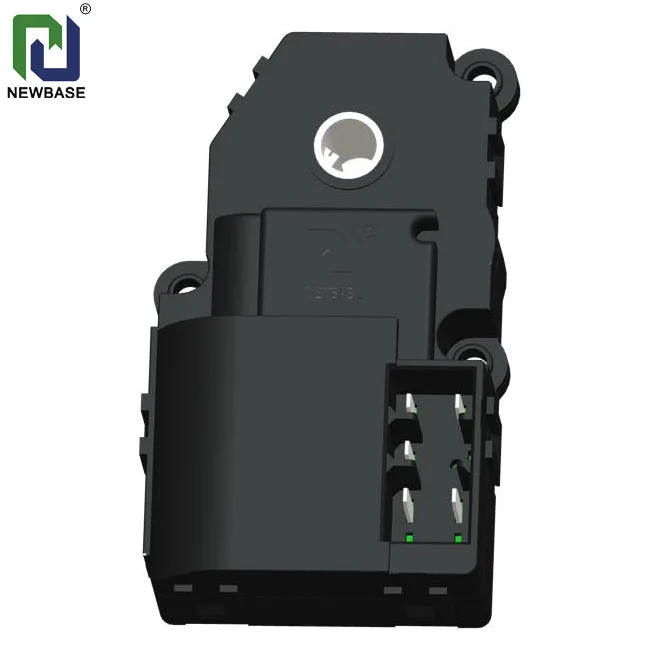

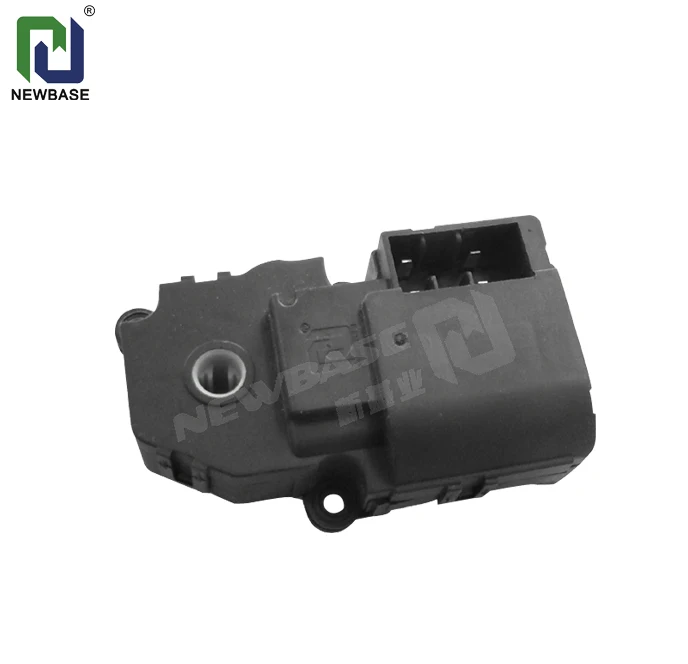

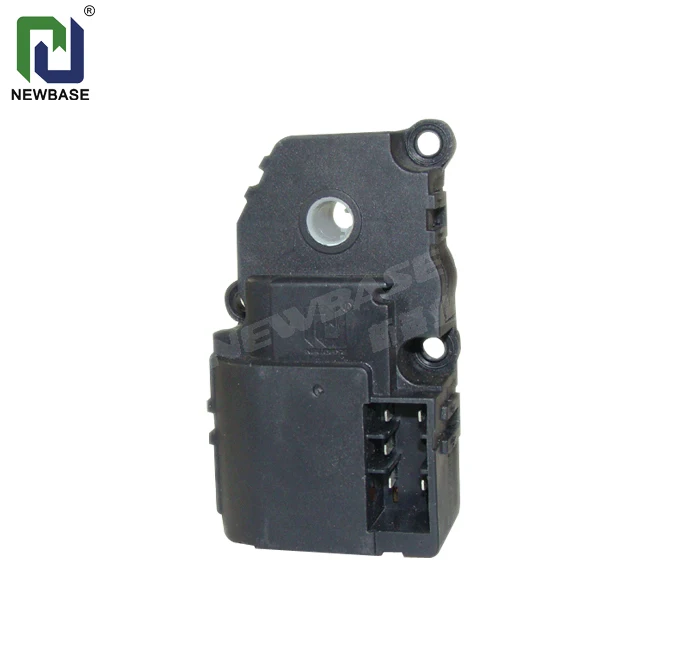

12v temp control Linear HVAC Servo Blend Door Actuator motor with feedback






Advantages







a. Rotation position,angle customer-design,


b.Customized logo


c.Stable,mature product


d.Low cost,popular









Main functions







Temp actuator is used to control the temp. and air damper of the car and special vehicle.





Continuously adjust the temp by switching polarity of actuator wiring, at the same time, the actuator will send the ventilation door position signal back to system.









Application case







WINIA MANDO,HYUNDAI,SSMC,DAIHAN,DENSO,IVEO






Technical Data

























Power supply24V(DC20V-DC32V)/DC12V(DC10V-DC16V)
Power consumption3W
CurrentMax.70mA

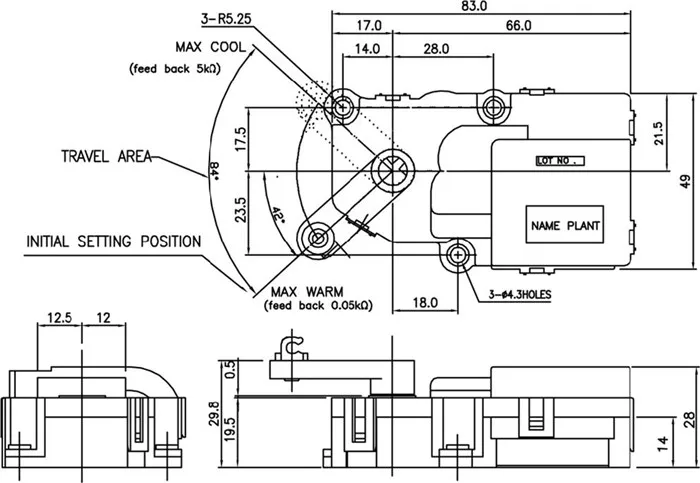

Dimensions







2.TEMP dimension.jpg

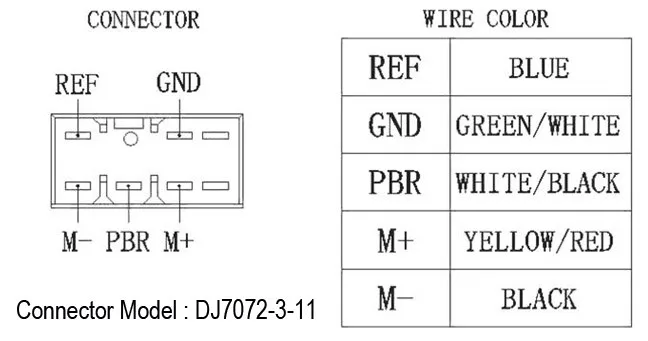

Connection







2.TEMP connection.jpg
