CLC brick manufacturing plant

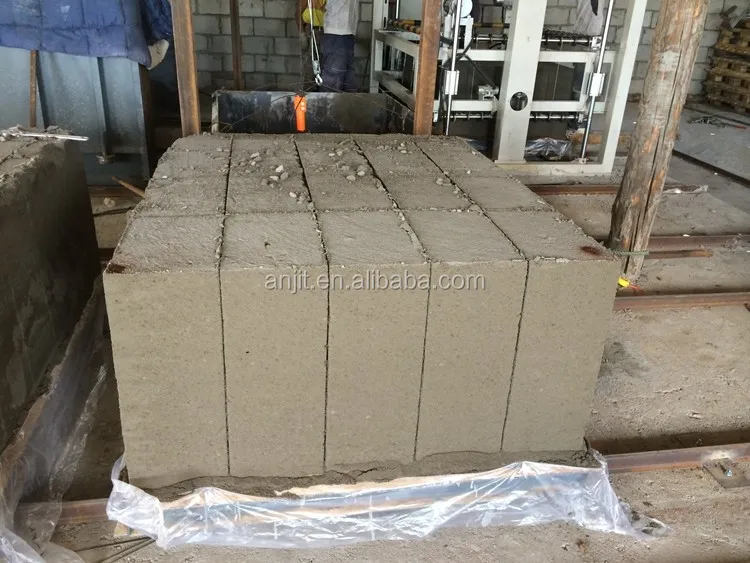

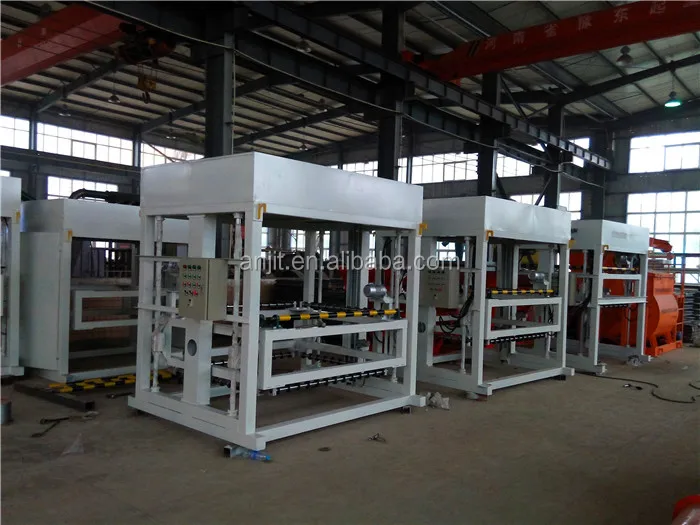

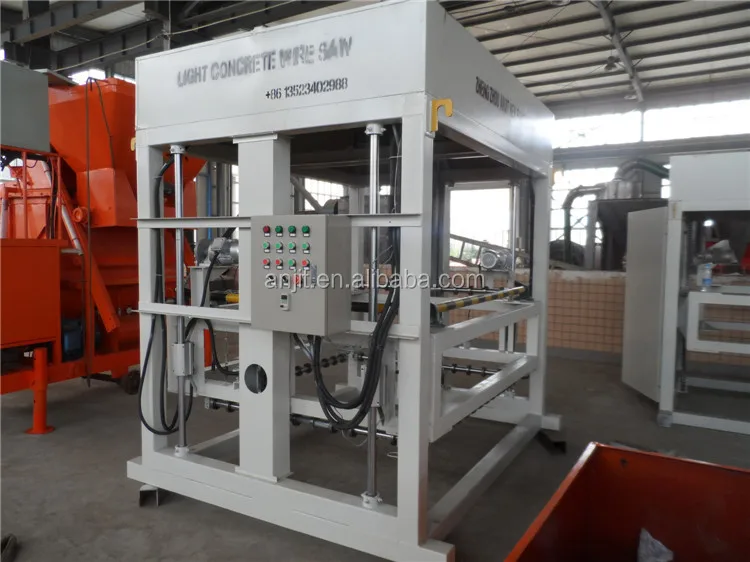

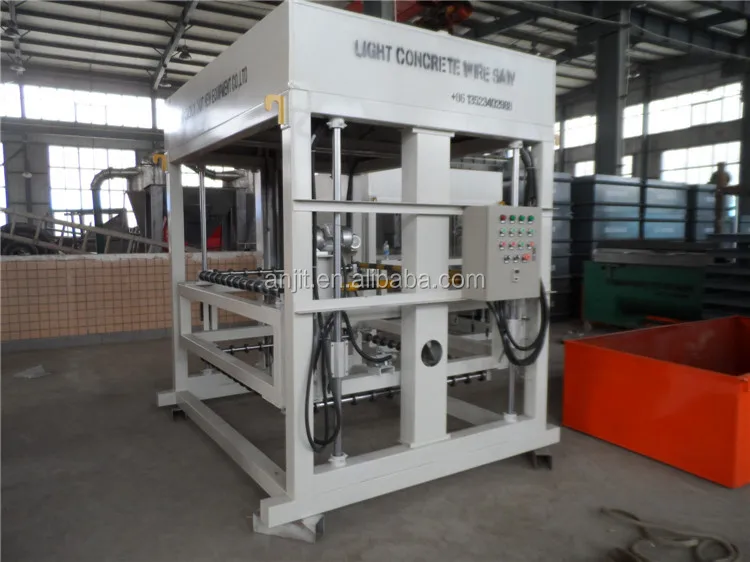

GYC-60B New Two Direction Wire Cutting Machine is used to cut the mass foam concrete block in horizontal and vertical double direction in one time, save cost and very easy to operate.

Performances:
1.\tSix shafts equipped with bearings, reduce the friction, and increase the rope wire lifetime.
2.\tBoth horizontal and vertical cutting are cutting both way, keep the blocks more stable, and get good shape blocks.
3.\tLifting speed could be adjusted under the chain drive and lifting motor, more stable.
4.\tTwo cutting motors equipped on the cutting frame, save space, and make the structure more impact.
5.\tSteel doors instead of the guard grids, more easy for daily maintenance.
6.\tAdd cover on the top of the cutting machine, make the cutter elegant appearance.
7.\tImproved the control panel too, it is smarter than before.

Specification:
Model\tGYC-60B
Overall dimension (L*W*H)\t2160*2220*2280mm
Cutting platform size (L*W*H)\t1300*1300*600mm
Net cutting size (L*W*H)\t1200*1200*600mm

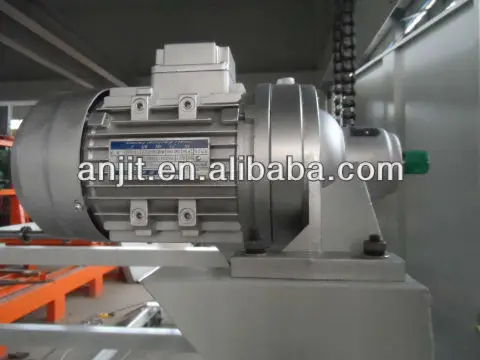

Lifting motor\t1.5kw*1set, 0~1400r/min, frequency
Cutting motor\t550w*2sets, 960r/min
Effective hoisting height\t800mm
Total weight\t1200kg
Cutting cycle\t3-6mins

1) Simple structure, easy in installation and maintation.

2) One cutter enough to cut the mass block in vertical and horizontal at a time.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
