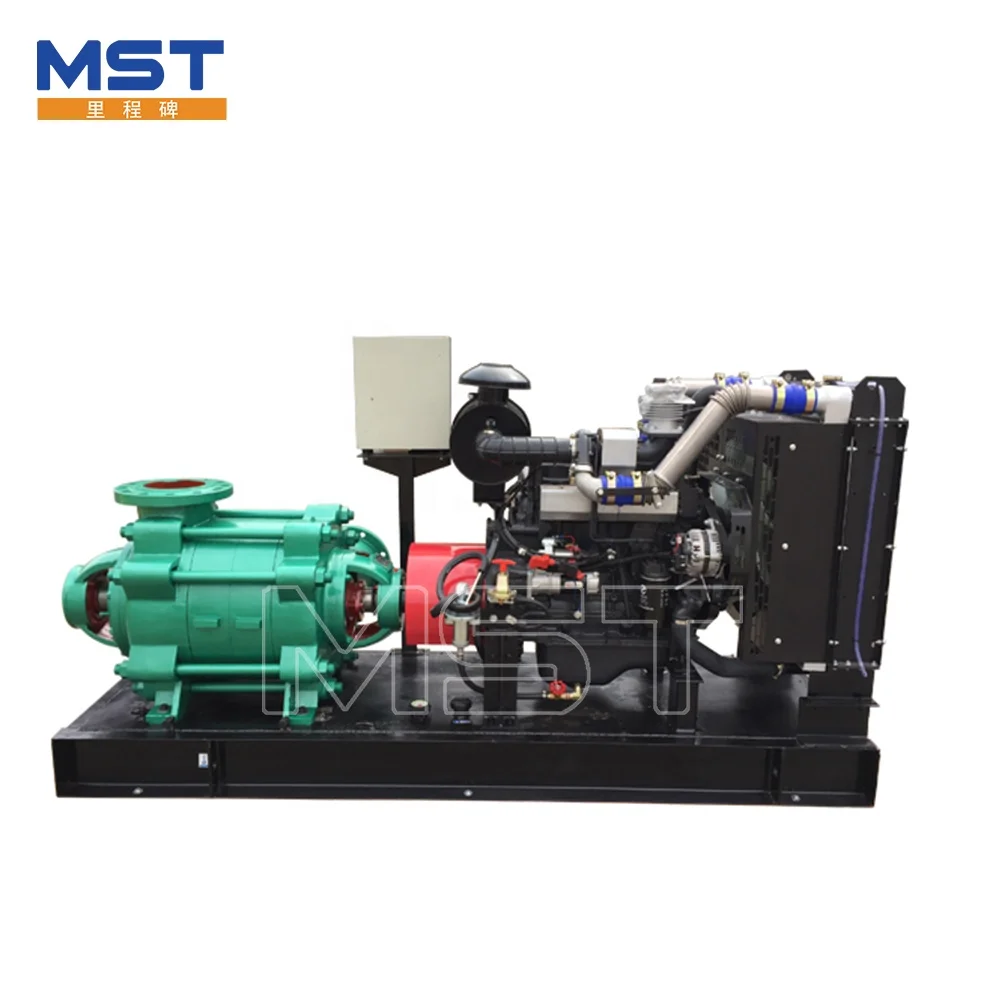

20hp high pressure diesel engine lift multistage centrifugal water pump for farm irrigation
- Category: >>>
- Supplier: Baoding Milestone Import And Export Co. Ltd.
Share on (60447503539):
Product Overview
Description
Price list multistage water pump 20 hp with diesel engine
Product Description
Description:
D/DA Multistage Pump is an energy-saving product series Price list multistage water pump 20 hp with diesel engine performance parameters and technical data are higher. Price list multistage water pump 20 hp with diesel engine is suitable for the circulation and pressurization of cold and warm clear water in high-pressure operation system, water supply under parallel operation of several pumps in civil construction, water supply for fire control, boiler, cooling water system and the delivery of various liquid.
Pump Structure:
| 1 | bearing cover | 2 | nut | 3 | bearing | 4 | water baffle |
| 5 | bearing base | 6 | shaft sleeve | 7 | gland packing | 8 | packing rings |
| 9 | suction part | 10 | middle bush | 11 | wearing rings | 12 | impellers |
| 13 | middle part | 14 | diffuser baffle | 15 | wing sleeve | 16 | tie bolts |
| 17 | discharge wing | 18 | balance bush | 19 | balance ring | 20 | balance ring |
| 21 | discharge part | 22 | stuffing box housing | 23 | shaft | 24 | shaft sleeve |
Pump Performance:

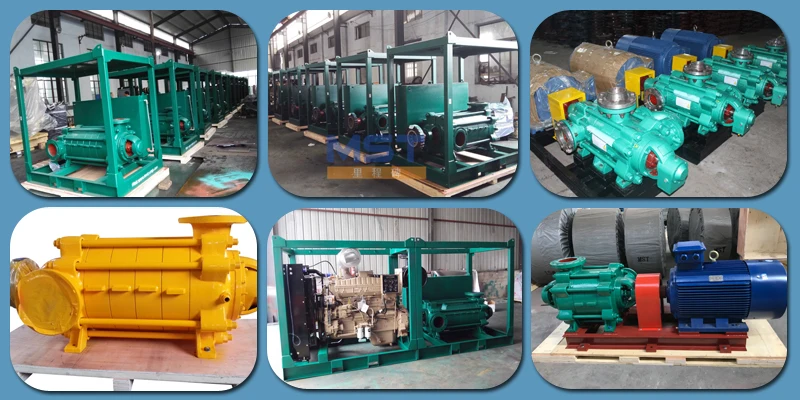

Pump Show:
Pump show
Pump Application:
- long distance water transferring
- boiling water feeding and transferring
- water system boosting
- agricultural irrigation
- mining water supply
- fire fighting
- offshore projects
Technical Data:
| Model | Capacity (m³/h) | Head (m) | Speed (rpm) | Motor Power (kw) | Impeller Dia (mm) |
| D6-25*4 | 6.3 | 100 | 2950 | 7.5 | 139 |
| D6-25*5 | 6.3 | 125 | 2950 | 7.5 | 139 |
| D6-50*4 | 6.3 | 200 | 2950 | 18.5 | 198 |
| D12-25*4 | 12.5 | 100 | 2950 | 11 | 146 |
| D6-80*3 | 6 | 240 | 2950 | 18.5 | 235 |
| D12-80*4 | 12.5 | 320 | 2950 | 45 | 235 |
| D25-30*3 | 25 | 90 | 2950 | 15 | 160 |
| D46-30*5 | 46 | 150 | 2950 | 37 | 162 |
| D85-67*4 | 85 | 268 | 2950 | 110 | 235 |
| D120-50*5 | 120 | 250 | 2950 | 132 | 213 |
| D150-30*8 | 150 | 240 | 2950 | 160 | 172 |
| D150-100*6 | 150 | 600 | 2950 | 400 | 289 |
| D200-100*6 | 200 | 600 | 2950 | 560 | 290 |
| D280-65*6 | 280 | 390 | 1480 | 500 | 430 |
| D300-45*4 | 300 | 180 | 1480 | 200 | 360 |
| D150-30*6 | 155 | 180 | 1480 | 132 | 305 |
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
