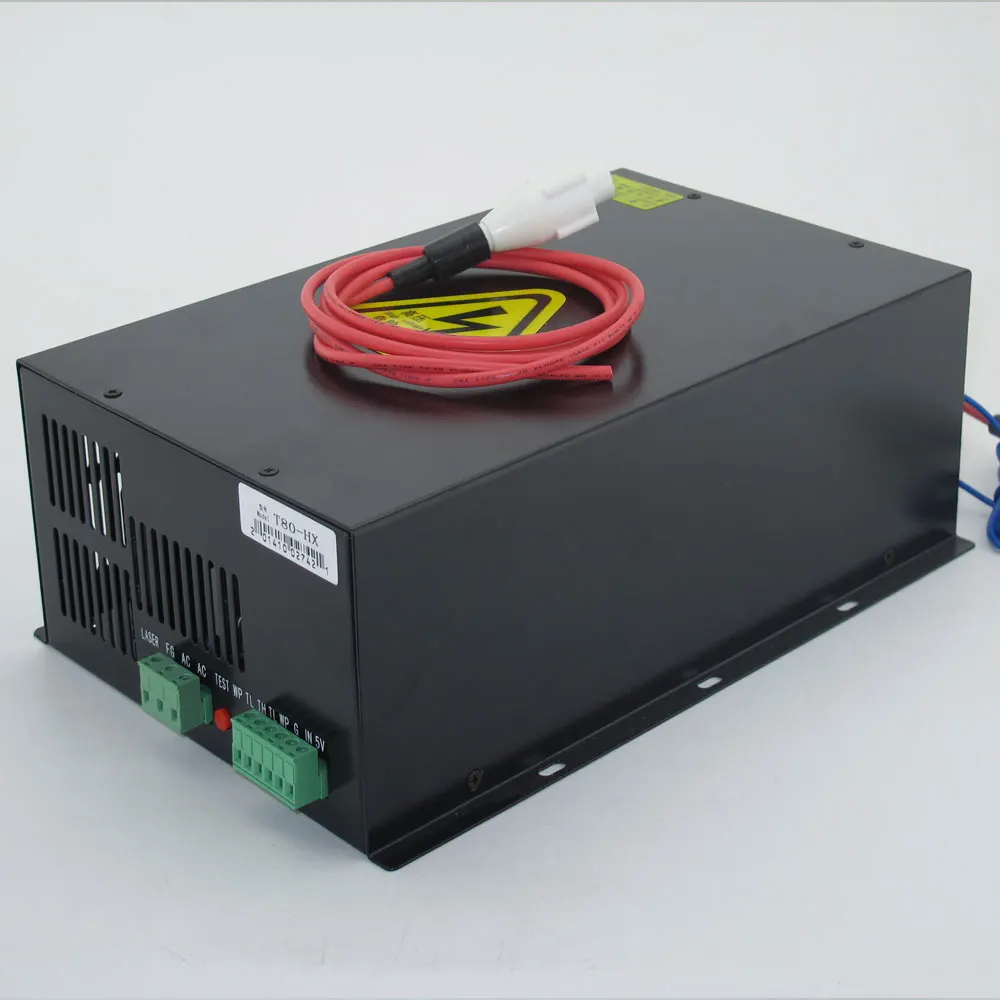

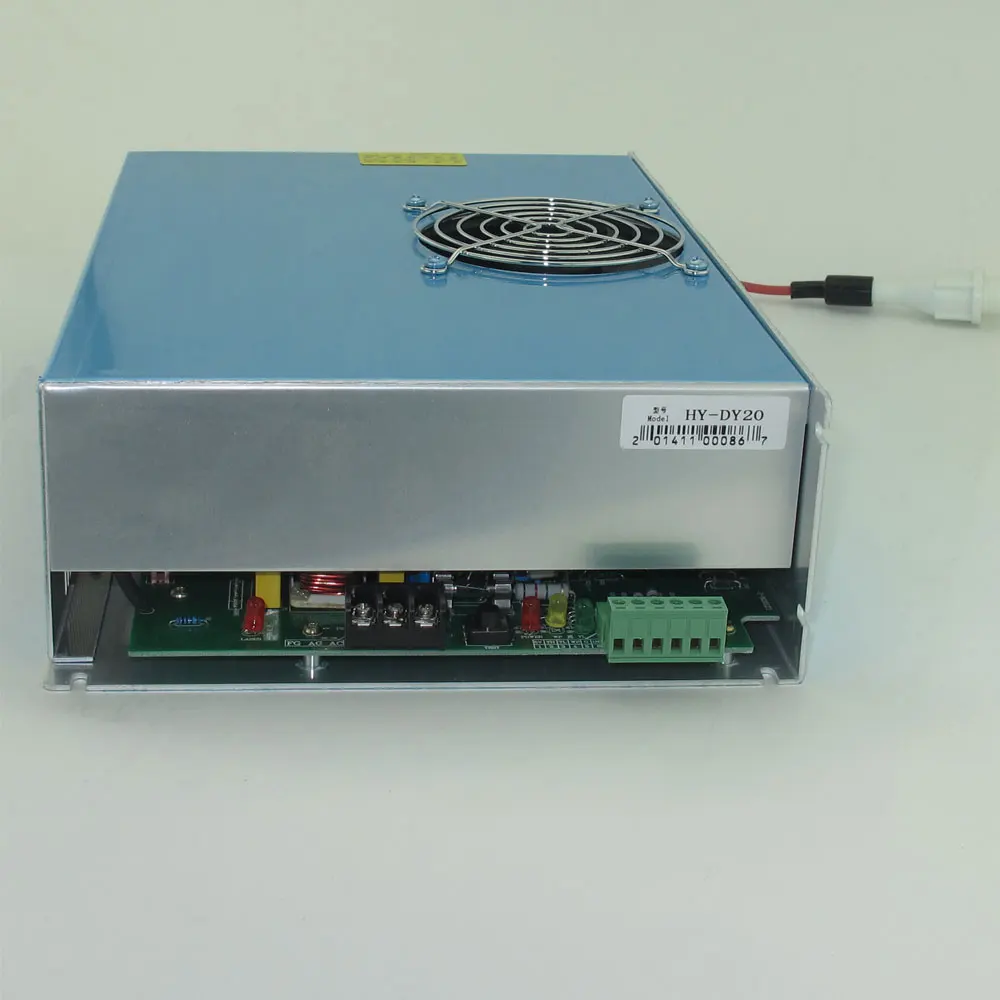

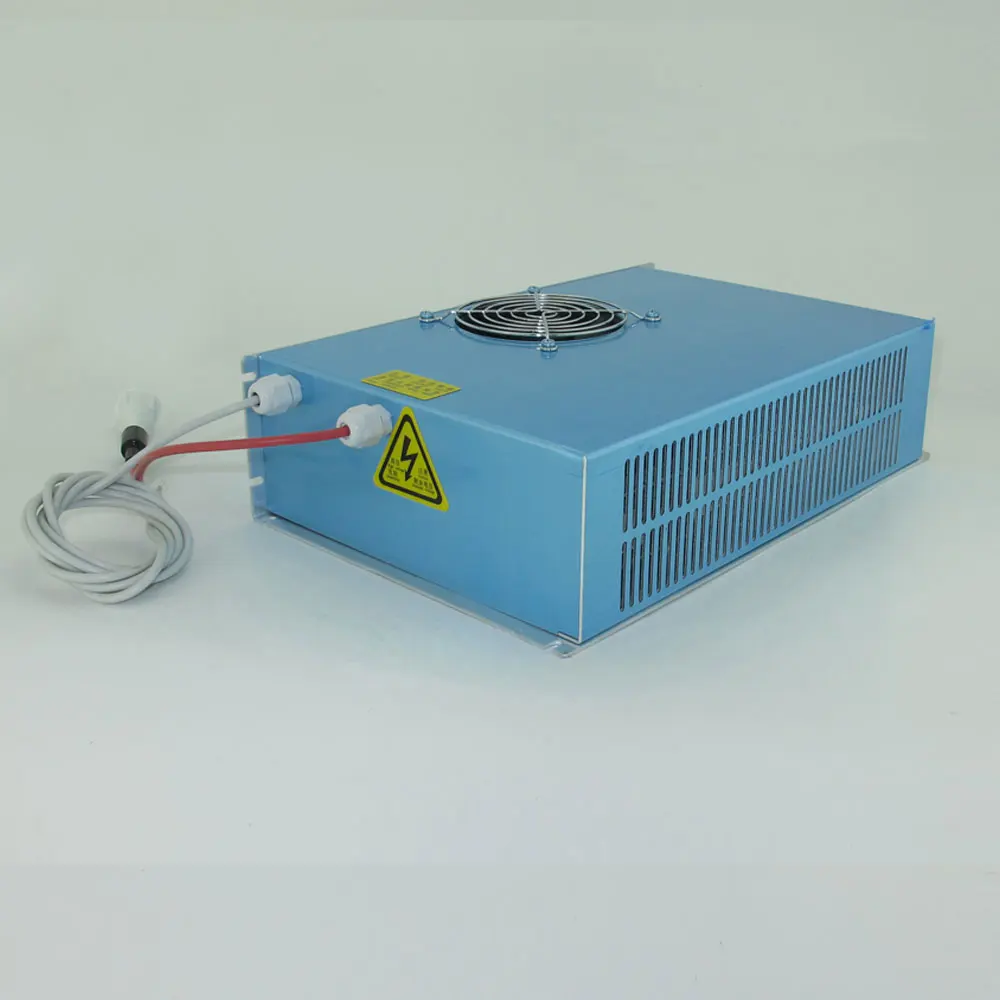

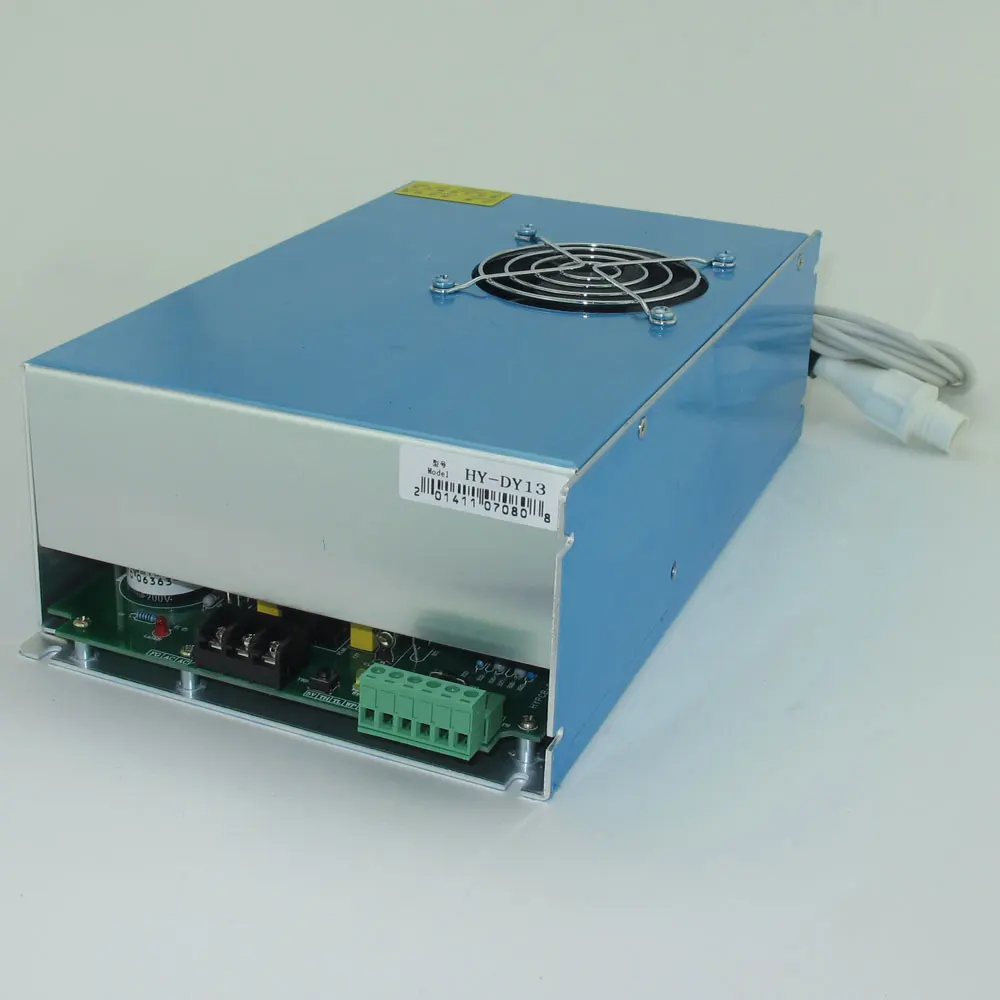

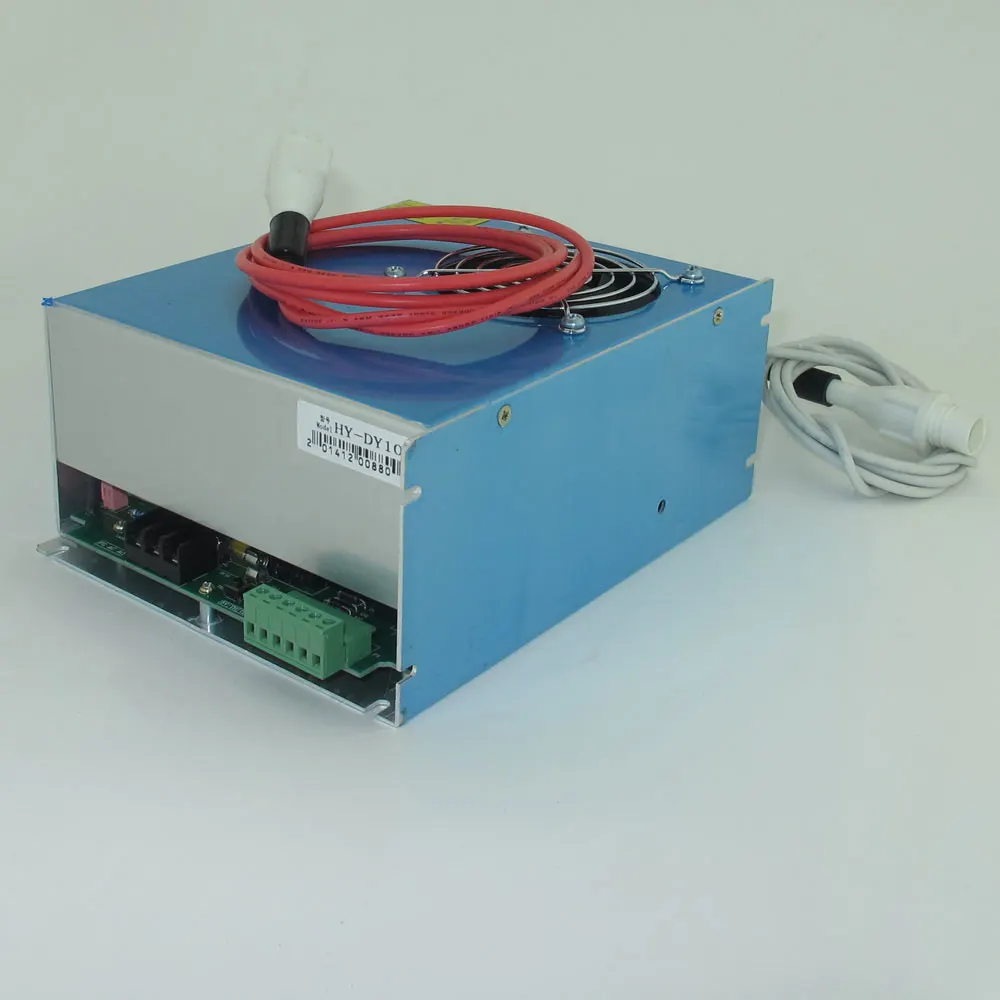

CO2 laser power supply 130w for laser engraving cutting machine
- Category: Laser Engraving Machines >>>
- Supplier: Wuhan Kindlelaser Optoelectronic Co. Ltd.
Share on (60447541880):
Product Overview
Description
CO2 laser power supply 130w for laser engraving cutting machine

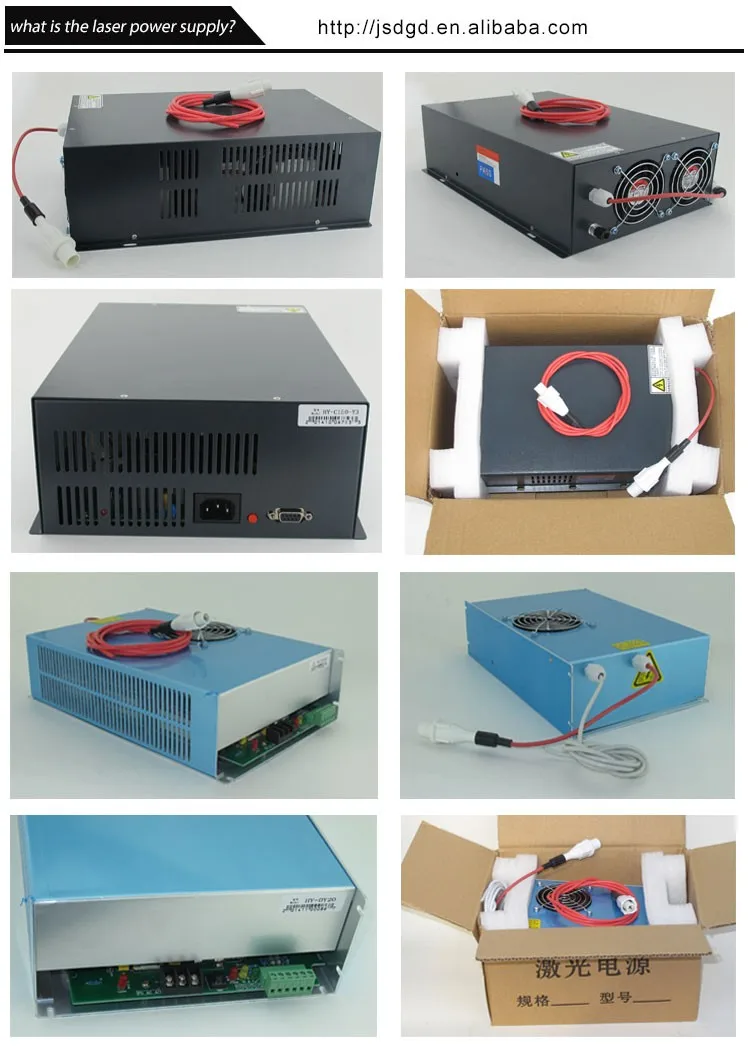

what's the PSU?
This laser power supply is dedicated for CO2 laser device, with high efficiency, high frequency and short response time. The compact and handy power supply has excellent compatibility with laser device and can be directly connected. It can take feedback interface which can be used in closed-loop control and testing the working current of laser. With this power supply, laser device will be easily started up and well operated with higher conversion efficiency and longer expectation of life.
| Input | input voltage | AC110V or AC 220V |
| AC frequency | 47—440HZ | |
| Max input power | 550w | |
| Output | Max input current | 8A |
| Max output voltage | DC40KV | |
| Max Output Current | ≥DC 28mA | |
| Efficiency | ≥90 percent (full load) | |
| MeanTime Between Failure (MTBF) | ≥10000 hour | |
| Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current) | |
| Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | |
| Storage temperature | (-25~75℃) | |
| Relative humidity | 90%RH maximally | |
| Insulation strength | input to grond AC1500V, no flasherover within minute | |
| Environment | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | |
| Overall dimensions | L×W×H=325*240*97 (mm) | |
| Cooling method | Force-Air Cooling (FAC) | |
Notice: Please leave us message 110V or 220V is needed when place the order, thanks!

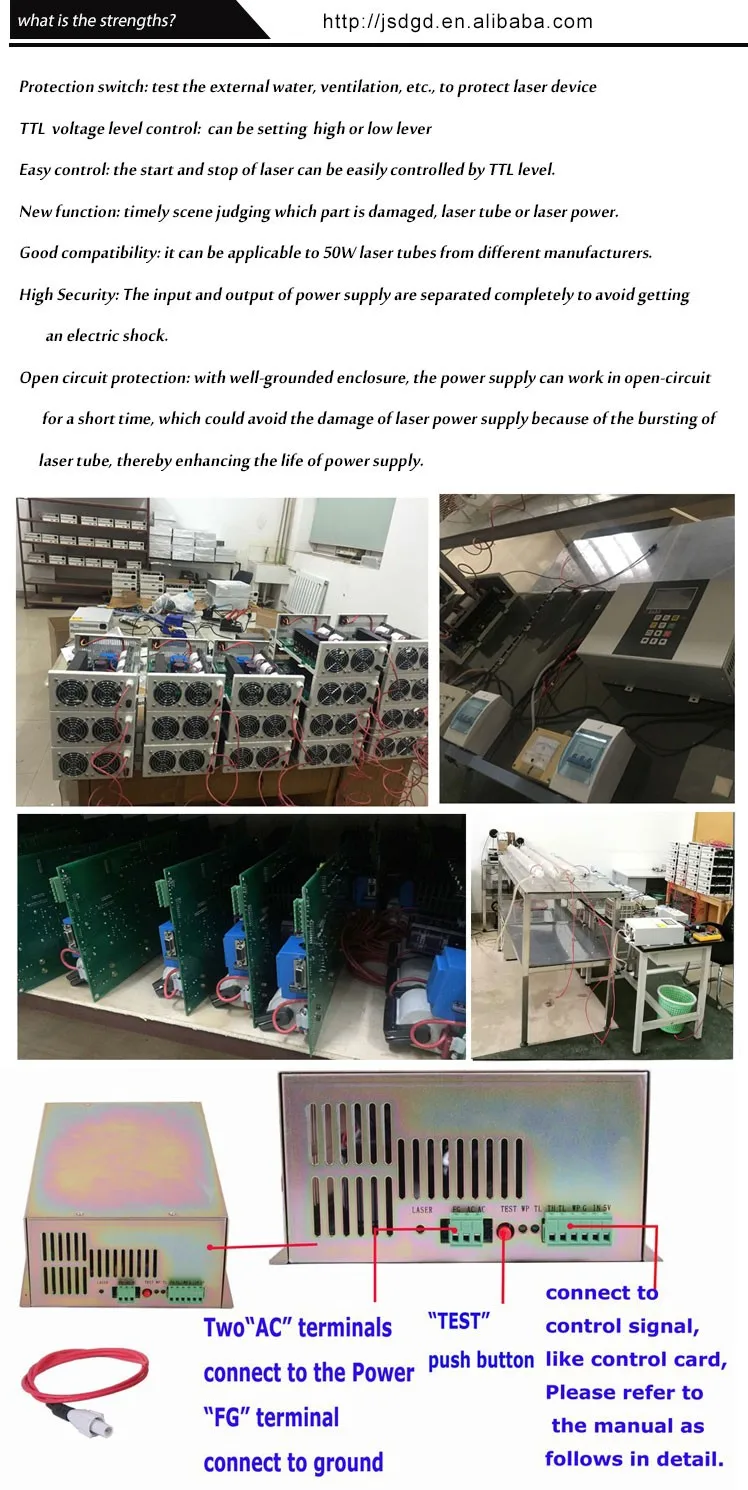

why buy from us?

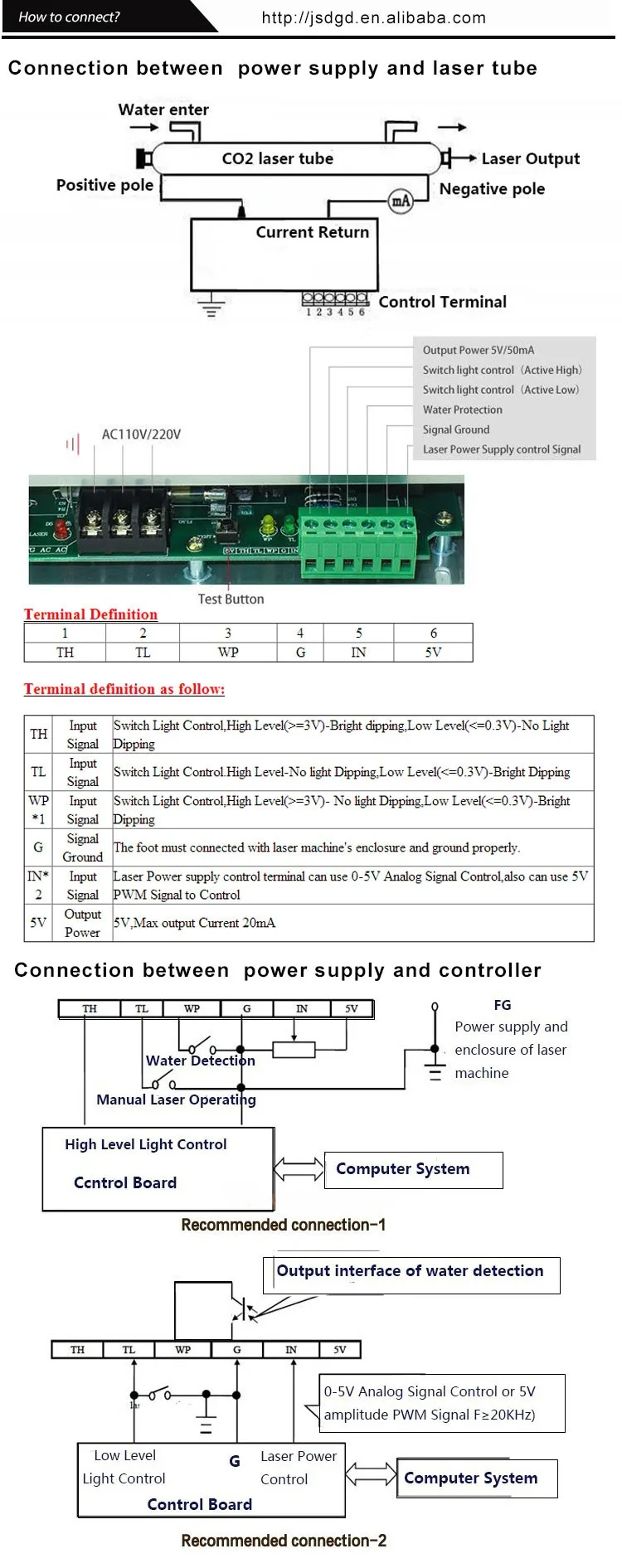

How to connect?
