PVC PPR PE Plastic Pipe Hydrostatic Pressure Testing Equipment





(10MPa, 16MPa, 25MPa, 3 stations, room temperature- 95℃,digital +computer double control)





1. Introduction


XGNB Series Hydrostatic/Burst Tester is used to determine the long-term hydrostatic strength and instant blasting of PVC, PE, PPR, ABS and other plastic pipes. It is under the standard of ISO 1167, ASTM D1598, ISO9080, CJ/T108 and ASTM F1335.





2. Main technical parameters


2.1. Pressure range:0-10MPa, 16MPa, 25MPa (100Bar, 160Bar, 250Bar)


2.2. Resolution of pressure testing: 0.001MPa


2.3. Accuracy: Better than ±1%


2.4. Testing pipe: φ20mm-φ630mm


2.5. Test station: 3 stations (standard supply) or even more


2.6. Constant temp. range: room temperature~95℃


2.7. Temp. Accuracy: ±0.1℃


2.8. Temp. evenness: ±1 ℃


2.9. Time range: 1s-8760h


2.10. Time accuracy: ≤±0.1%


2.11. Power supply: 3 phase, 380v±10%, 50Hz





3. Work principle (test three pipes at the same time)


work principle of hydrostatic pressure testing machine.jpg

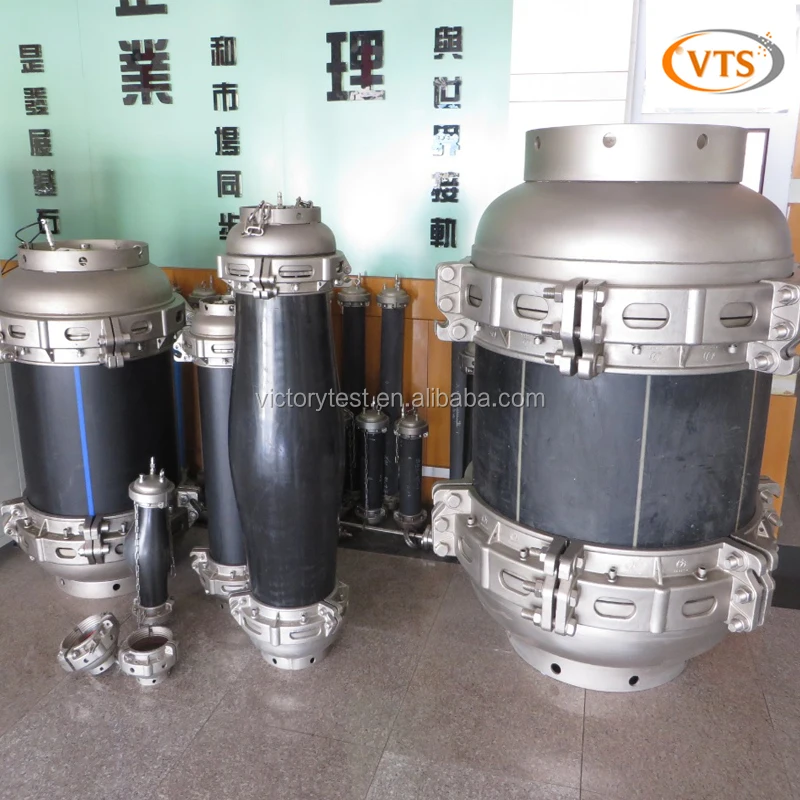

4. End caps


end caps.jpg

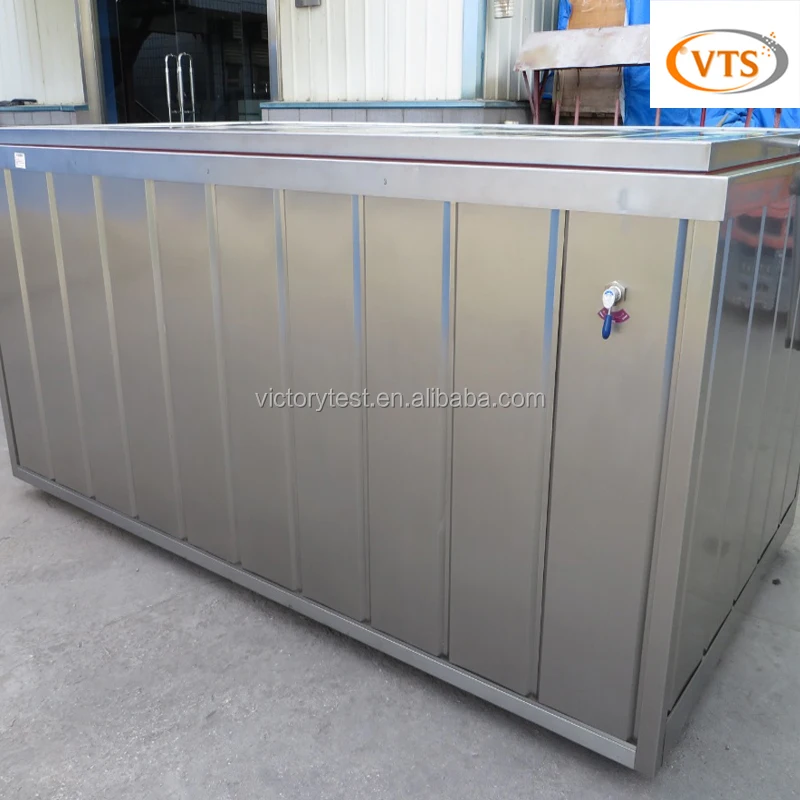

5. Water tank


water tank- burst tester.jpg


6. Test software


Software- hydrostatic pressure tester.jpg
