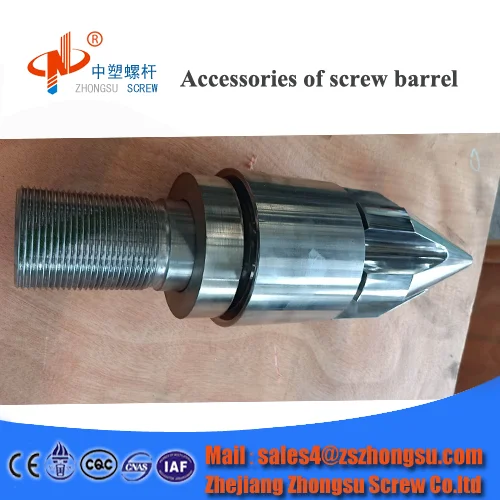

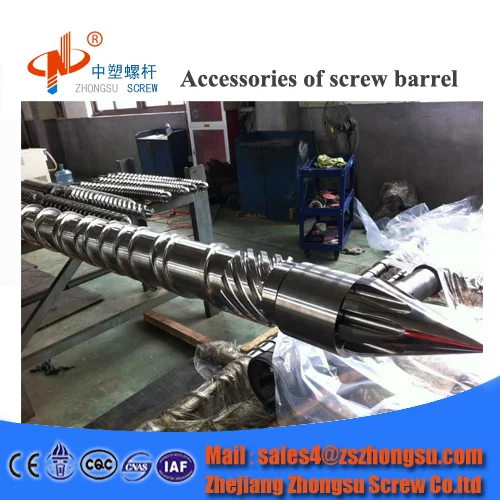

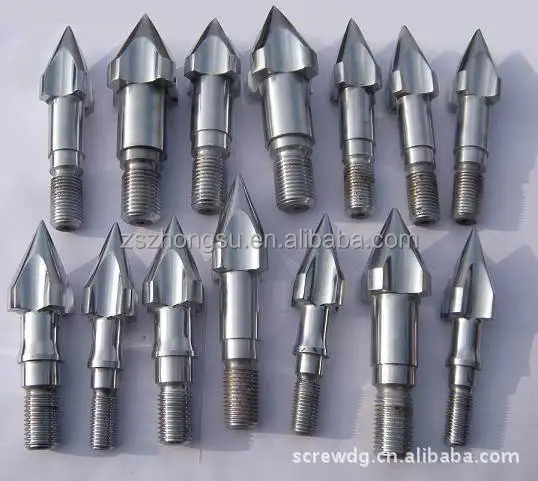

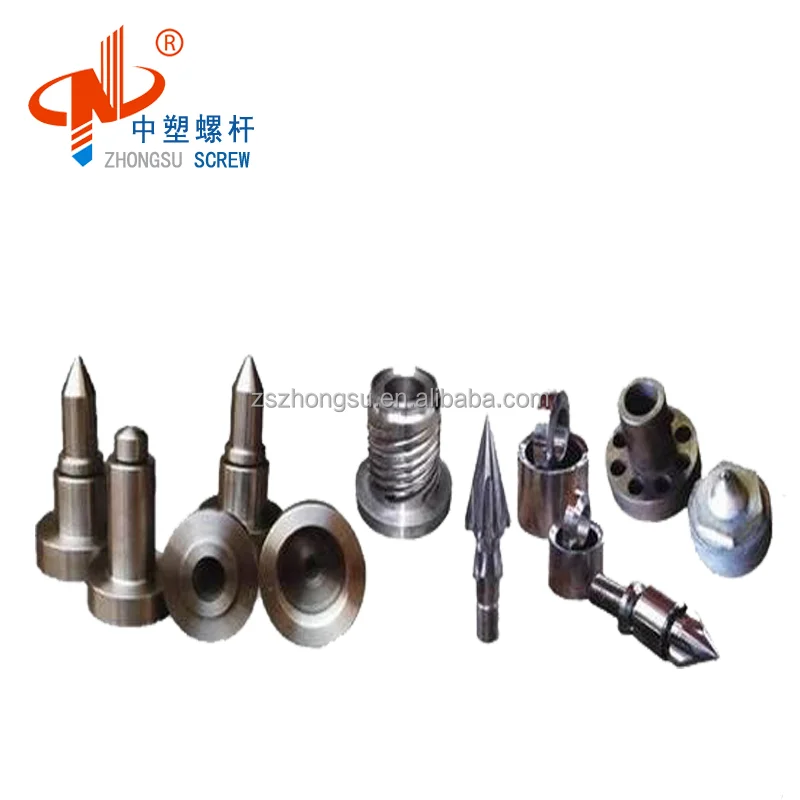

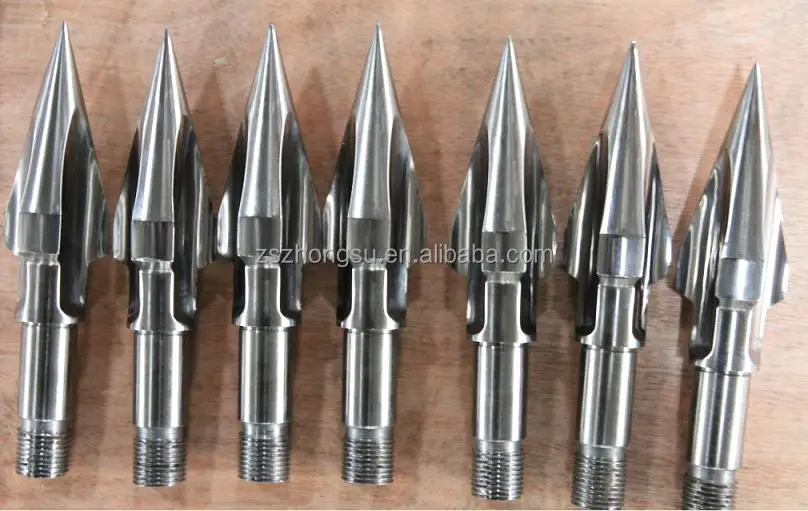

screw nozzle and nuts for JSW / Nissei injection molding machine
- Category: >>>
- Supplier: Zhejiang Zhongsu Screw Co. Ltd.
Share on (60447632486):
Product Overview
Description
Product Description
1.Brand: ZHSU 2.Nitride depth:0.5~0.8mm
3.Bimetallic depth:0.8mm~3mm 4.For what machine: Extrusion machine
Model NO:45/90; 51/105; 55/110; 65/132; 80/156; 92/188

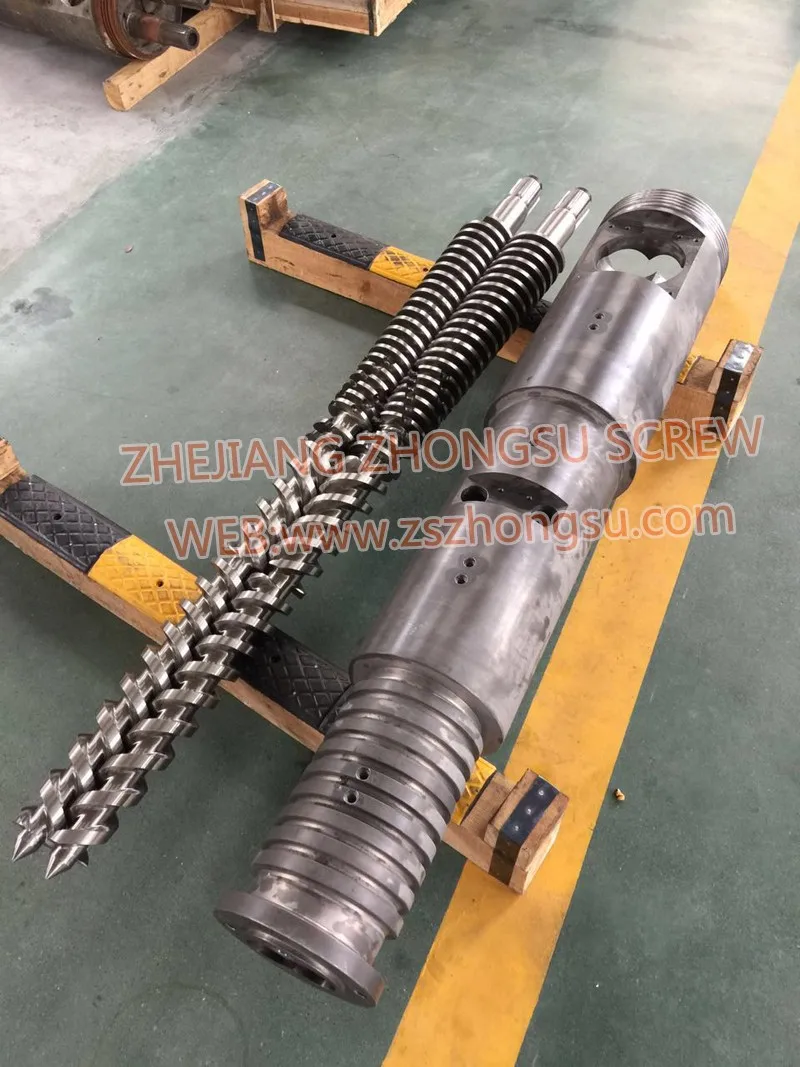

Product Name | Conical Twin Screw And Barrel |
Material | 38CrMoAIA; 42CrMo; SKD11 |
Application: | Plastic machine conponents |
Ntride Depth: | 0.5-0.8mm |
Nitrided Hardness | HV900°~1000° |
Nitrided Brittleness | above 2 stage |
Surface Roughness | Ra0.4 |
Screw straightness | 0.015mm |
Hardess of surface chromium-plating after Nitriding | HV≥950HV |
Chromium plating Depth | 0.05~0.10mm |
Bimetallic Depth | 0.8~3.0mm |
Bimetallic Hardness: | Bimetallic hardness: HRC50-65 |
Bimetallic Power | iron,nickel,tungsten,molybdenum |
Certificate: | ISO9001:2008 |
Featrue: | Wear and corrosion resistance |
Warranty | 12 months |
Types of screw barrel | Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc. |
Used | Granules, film, bag, barrel, pipe, profile, plates,sheet, etc. |
Products Show
Technological Process:
Blanking→Rough Machining→Quenching & Tempering →Semi Finishing Machining→Finish Machining→Nitriding or Bimetallic
Treatment→Detecting→Finished Product →Debugging After Treatment
REFERENCE ONLY FOR SINGLE SCREW AND BARREL , PLEASE CONTACT ME FOR DETAILS.
Our Advantage
Bimetallic Screw:
The advantage of bimetallic screw: strong abration resistance, good for the 30% glass fiber and reworked materials.
Skin Characteristics.
1. Super hard alloy of high density, low porosity and high hardness.
2. Uniformity heating of power and low strength pressure.
3. With high corrosion resistance, high wear resistance and high temperature resistance properties.
4. Increasing of adhensive force with coating thickness
Bimetallic Barrel:
The bimetallic barrel for single screw is a kind of barrel moulding 2-5mm-thick alloy coat on the barrel inner wall which has excellent corroion resistance, abrasion resistance and high working temperatre. And its useful service life is greatly improved contrast to the common nitided barrel. Bimetallic has more obvious advantages when processing special plastic to enhance the abrasion life, such as engineering plastics, fluorine plastics, PPO, and tec.
Our Team & Service
Our Company
Bimetallic Treatment.
The Processing of bimetallic screw and barrel
Semi Finishing
Semi finishing of the Barrel
Packing & Delivery
Packing Details : Customized wooden cases (standard export packaging).
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock and 25-30 days after the confirmation of the order.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment ≥1000USD, 30% T/T in advance ,70 %balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: How about quality ensured?
A: All of our production process strictly followed ISO9001, our products are long durable with 12 months.
