12W 15W 18W Rechargeable lithium battery Emergency Microwave motion sensor ceiling light

Share on (60447653671):


Price:$10.00 - $15.00

Quantity:


Product Overview

Description


12W 15W 18W Rechargeable lithium battery Emergency Microwave motion sensor ceiling light

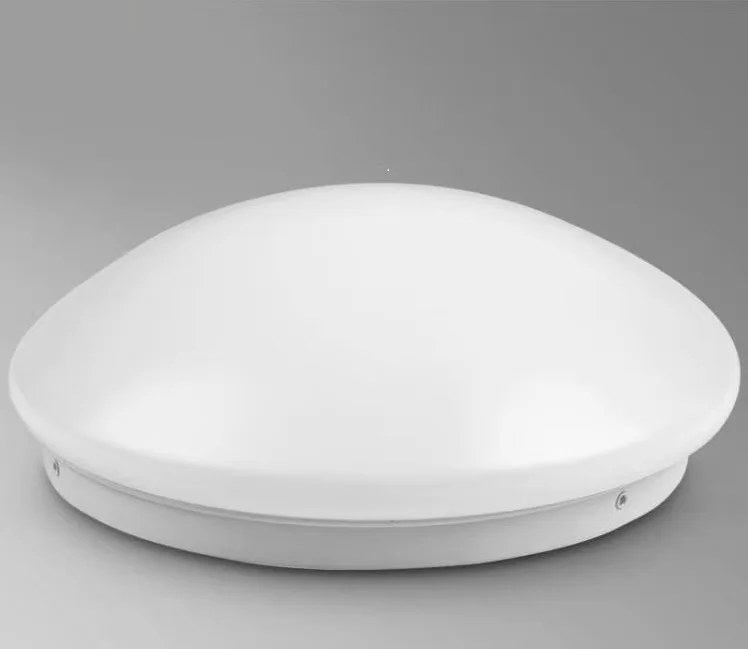

sensor led ceiling light.jpg





Sensor&Em Ceiling

Specifications of emergency 15/18W led radar sensor ceiling light :

TypeMotion sensor led ceiling light with build-in battery
ModelAM-XD-300RDYJ15AM-XD-300RDYJ18
Full Power15W18W
LED Qty30pcs*SMD573036pcs*SMD5730
Rated Lumen800-900lumen800-900lumen
CRI>70>70
CCT2700K/6000K2700K/6000K
Power Factor>0.9>0.9
Beam Angle120 degree120 degree
Product Sizes (mm)Φ300*H90Φ300*H90
Color box Sizes(mm)370*370*110370*370*110
StructureSteel base & Acrylic coverSteel base & Acrylic cover
Sensor data
Sensor distance6-8m radius6-8m radius
Delay time15+/-5s15+/-5s
Sensor PrincipleHF Microwave 5.8GHzHF Microwave 5.8GHz
Transmission power<0.2mW<0.2mW
Detection range:  Max(diameter*H)8m*6m8m*6m
Detection angle30° ~150°30° ~150°
Sensor Mode

On/Off

Full/Dim (100%~20%)

On/Off

Full/Dim (100%~20%)

Emergency Data
Emergency Power3W3W
Lithium Battery18650, 12V, 1200mAh18650, 12V, 1200mAh
Backup time90-110 mins90-110 mins
Operation Temperature(Ta)-10~40°c-10~40°c
IP RatingIP20IP20
Function

1. Connect to main power, (AC100-265V), The light work as a sensor light. (Full/dim mode)

  •  If no motion, the standby power: 3-5W (20%)
  •  If motion activated, the light turns to 100%.

2. When power failure/Outage, The light work on emergency Backup mode, Backup power: 3W, Backup time: 90-110mins



Customer Questions & Answers



  • Sensor type A:   ON/OFF Mode (100%-0%)

                          when detect movement lighting, Light turn on at 100% brightness,

                           no movement, stand by status light off (0%)

  • Sensor type B: Sensor Full/Dim Mode (100%~20%)

                           when detect movement lighting, Light turn on at 100% Brightness,

                           no movement, stand by status lighting turn to 20% (2-3 watt)

  • Delay time: 20 seconds

                  ( mean, the last movement past, light still keep on lighting 20 seconds)

  • Brightness(Daylight) Sensor <10 lux (Optional)

                  with brightness sensor, that mean motion sensor only work at night,

                 even if there is movement in daytime,the light doesn't light on.

  • Quality control:

                we have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.

  • Warranty  : 2 years

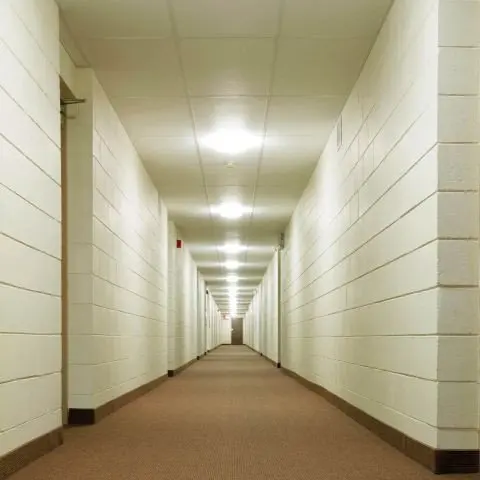

  • Application: corridor  stair way  warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.



Multi-function smart led ceiling lamp

sensor and emergency

you can choose single sensor function and single emergency function.

welcome to view our website for correct items you need.

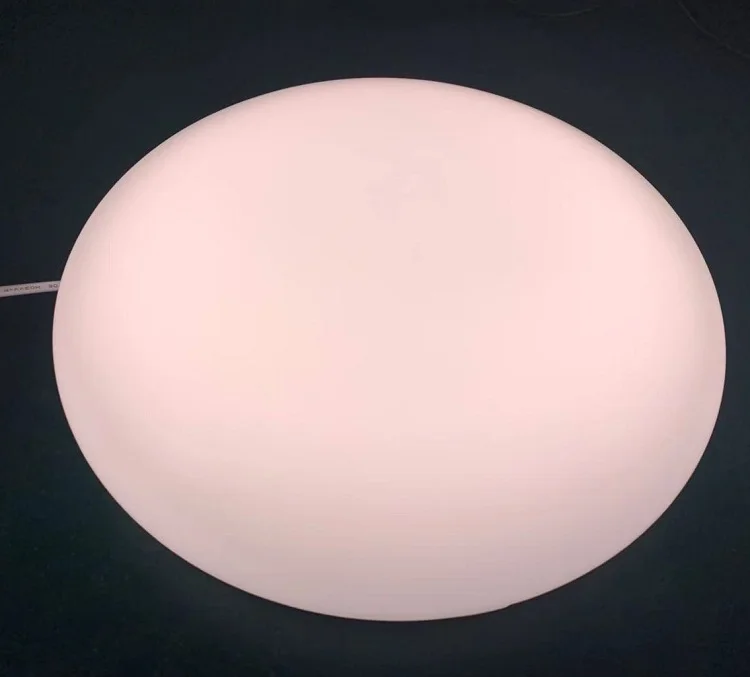

ceiling lamp with battery.jpg

Ceiling light battery

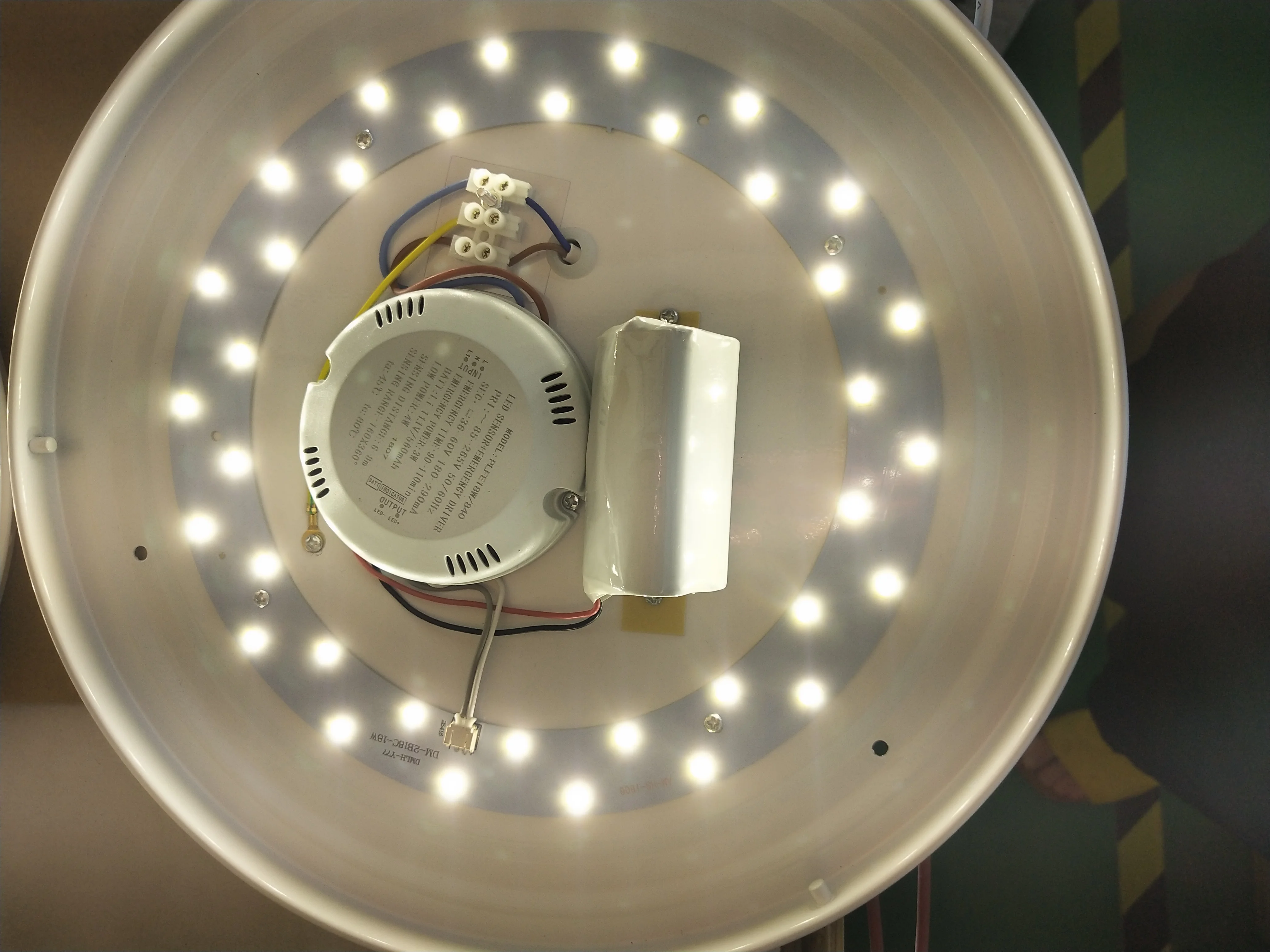

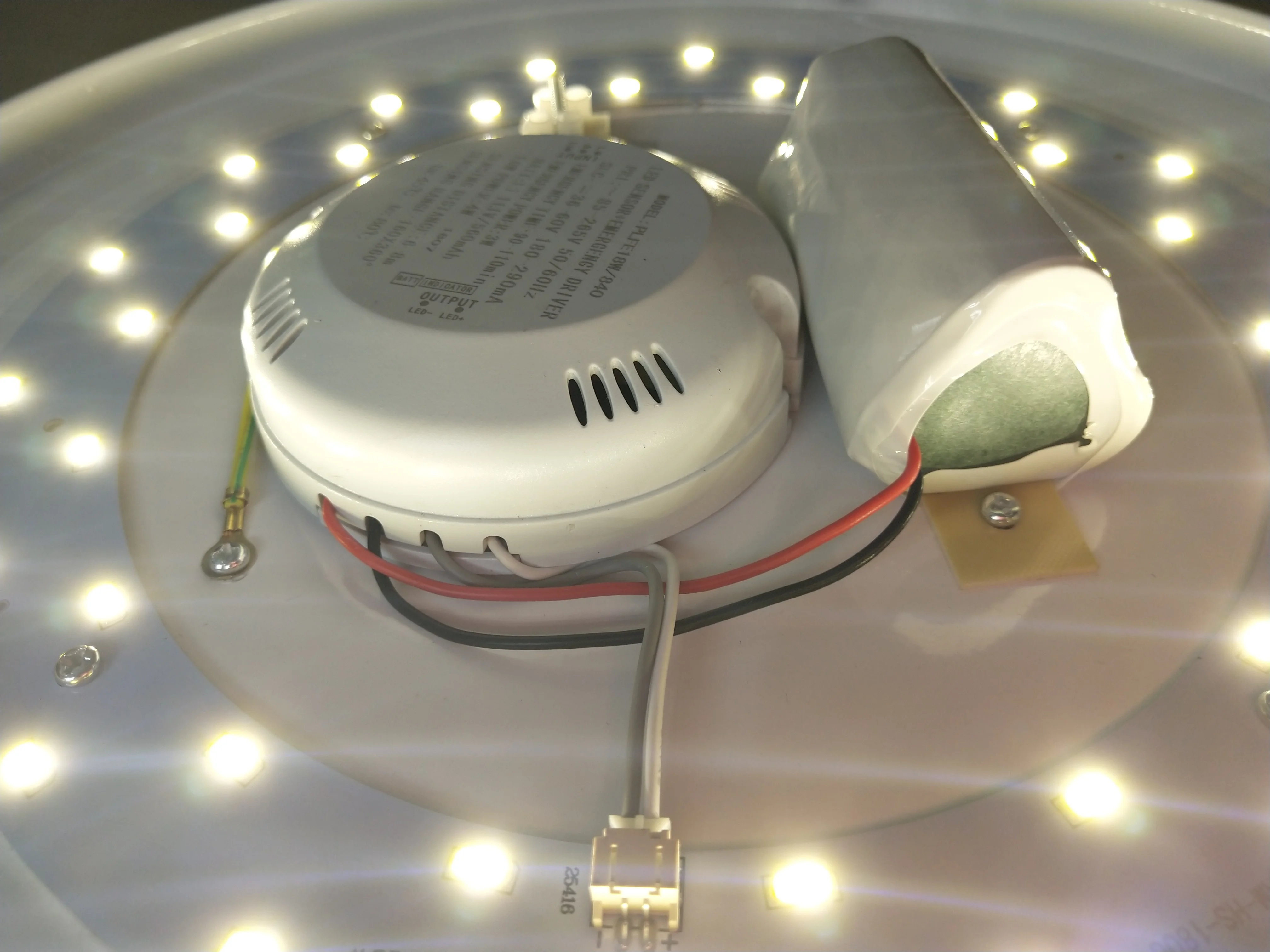

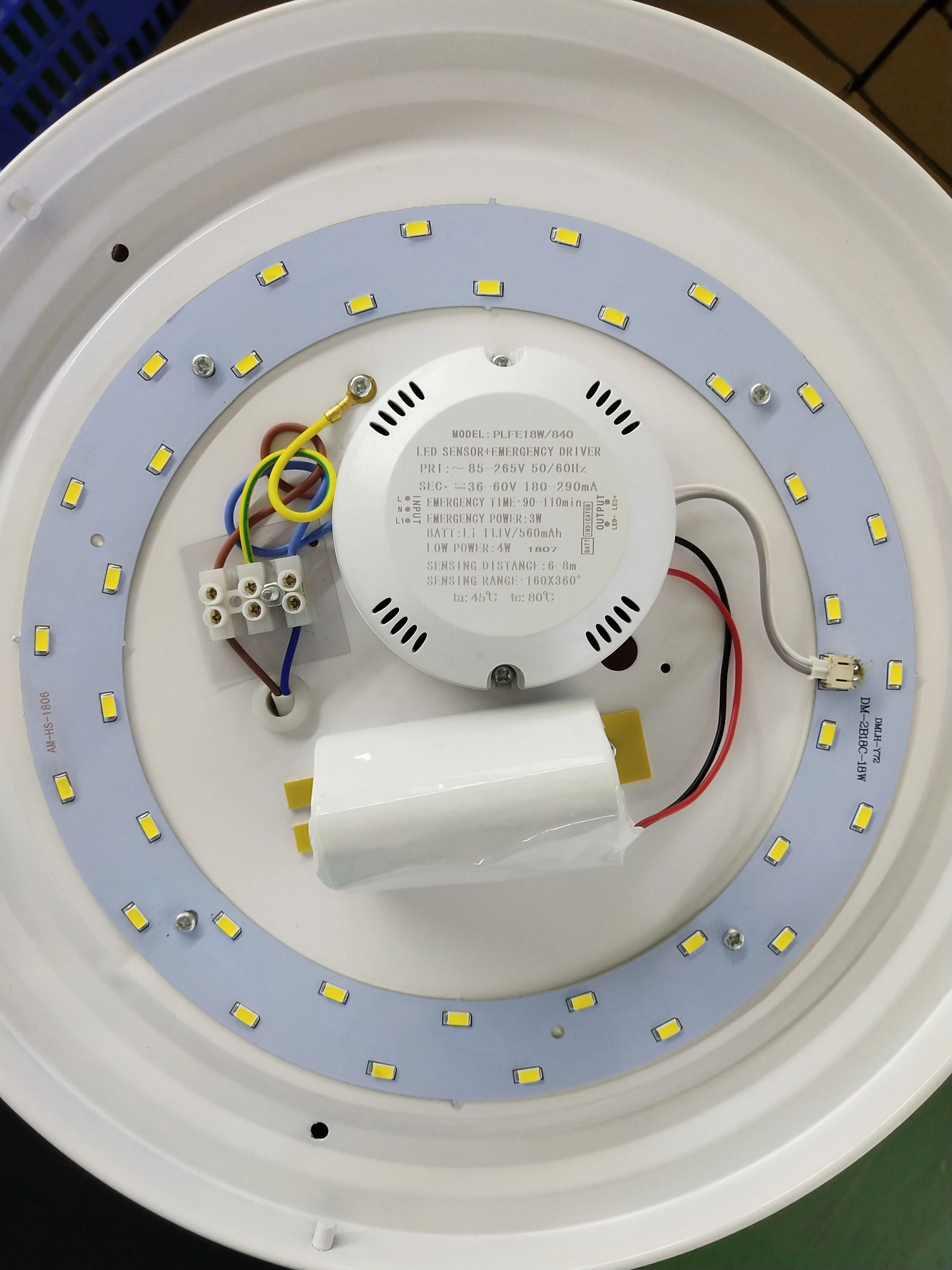

  • sensor driver + battery inside the lamp
  •  microwave motion sensor is better than PIR sensor
  • sensor driver built inside the lamp cover, not like PIR sensor outside the lamp.

motion sensor led ceiling light



ceiling light with sensor.jpgs-l1600 (2)
