Good sale auger blade cold rolling mill machine

1. Other details info

 for auger blade cold rolling mill machine

Steel strips strength

250-350 Mpa

Steel strips width error

xxmm  0.8mm

Steel strips inside and outside thickness different size

xxmm  8-5mm

Suitable for raw materials

Carbon steel,stainless and manganese steel

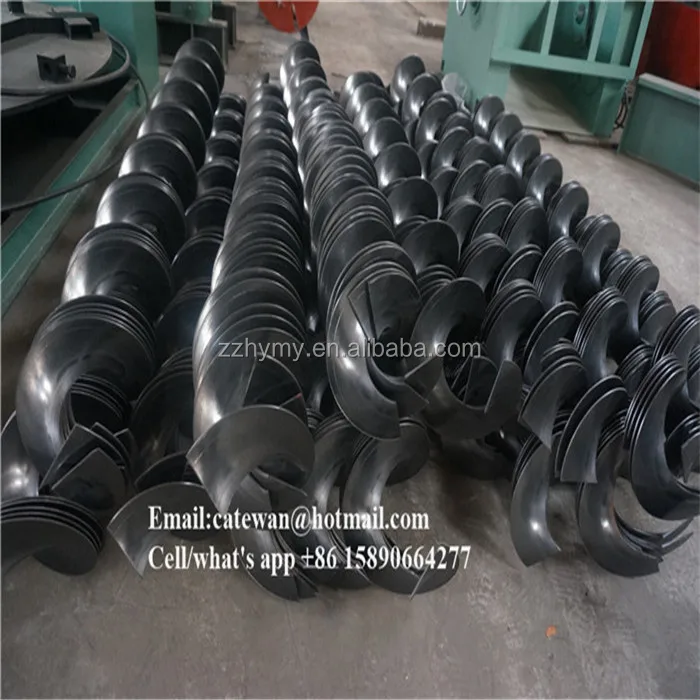

2.Helix blade making process

Uncoiling machine--guild plates

--forming machine----hydraulic cutter--final helix blade

3. Machine components and its specification

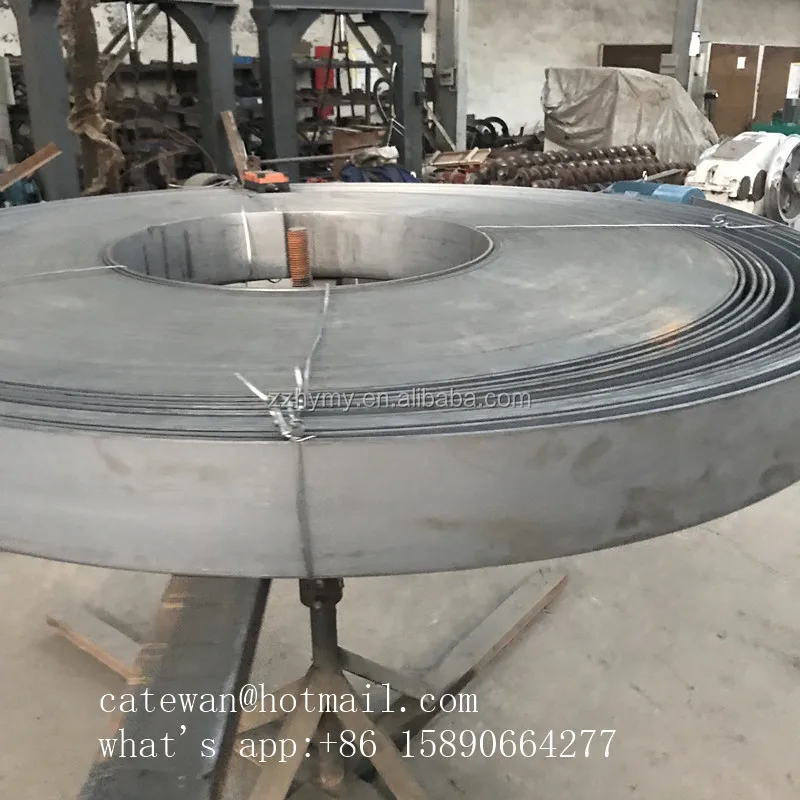

1) uncoiling machine

Normally for steel strips inner diameter:450mm

Steep strips outer diameter1200mm

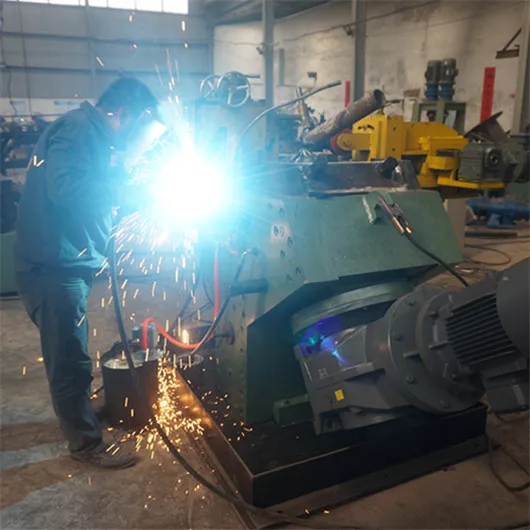

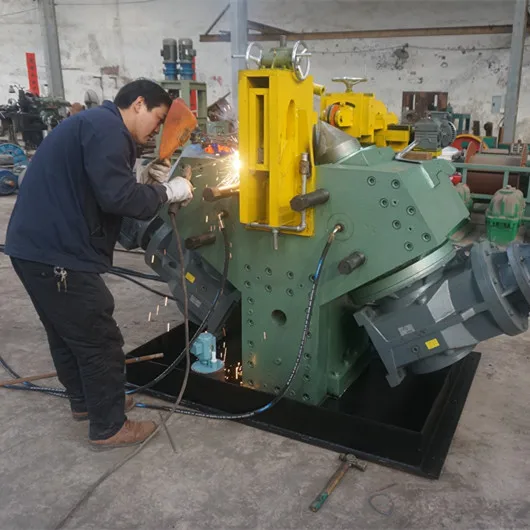

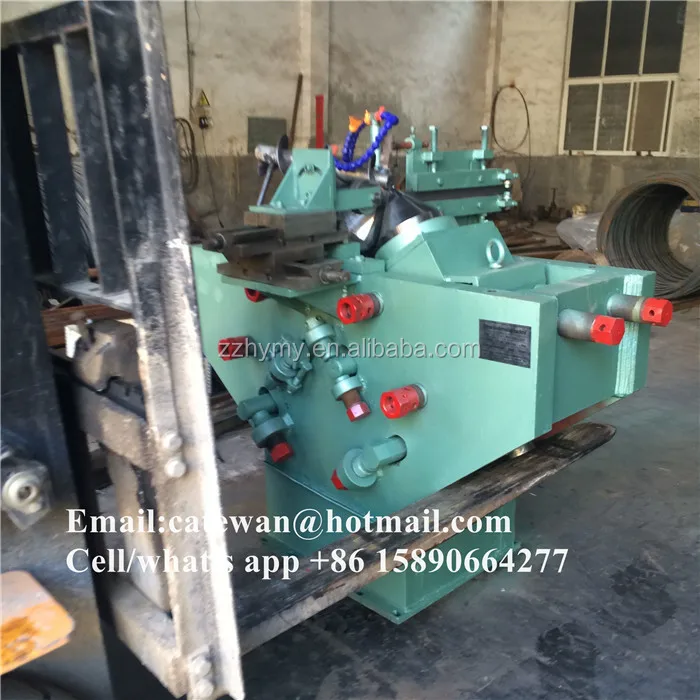

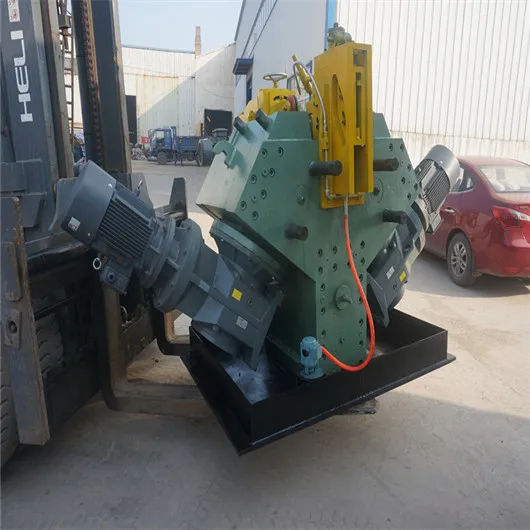

2) helix forming machine

Roller diameter:228mm, materials:9Cr2Mo

Motor: Siemens Beide motor,

PLC control parts:Siemens

3) hydraulic system

With hydraulic system, oil valves, shanxi yuci brand

4) cutter materials

It is alloy materials, with heat treatment

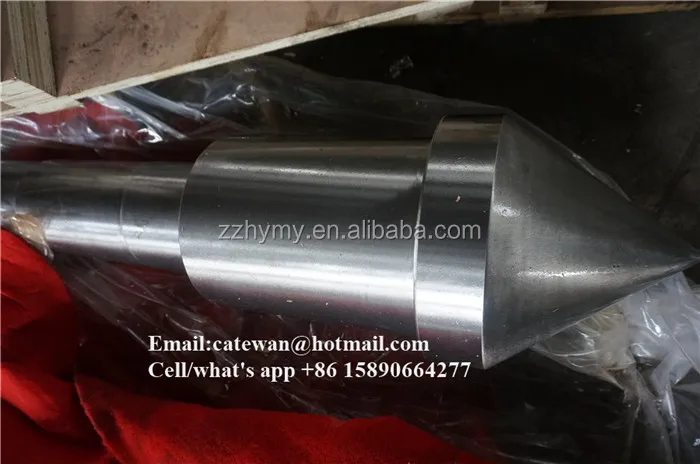

5) materials shaft

It is 6meters long, with 3steps

4. free spare parts

8m oil pipes, and one set cutter

5. shipment

It needs one 20ft for shipping all the items

6. Hs code

8455229090
