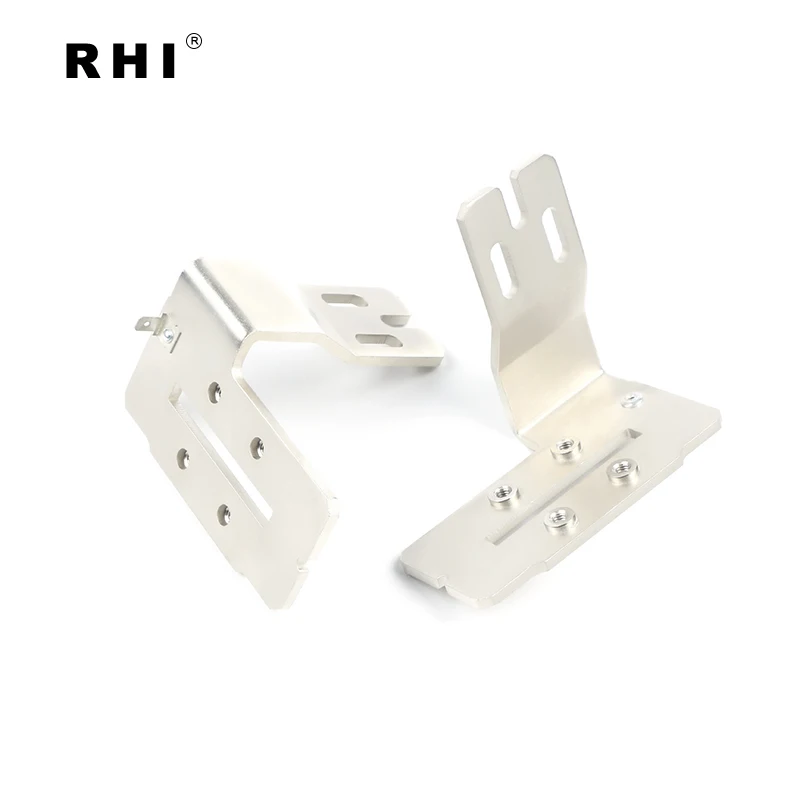

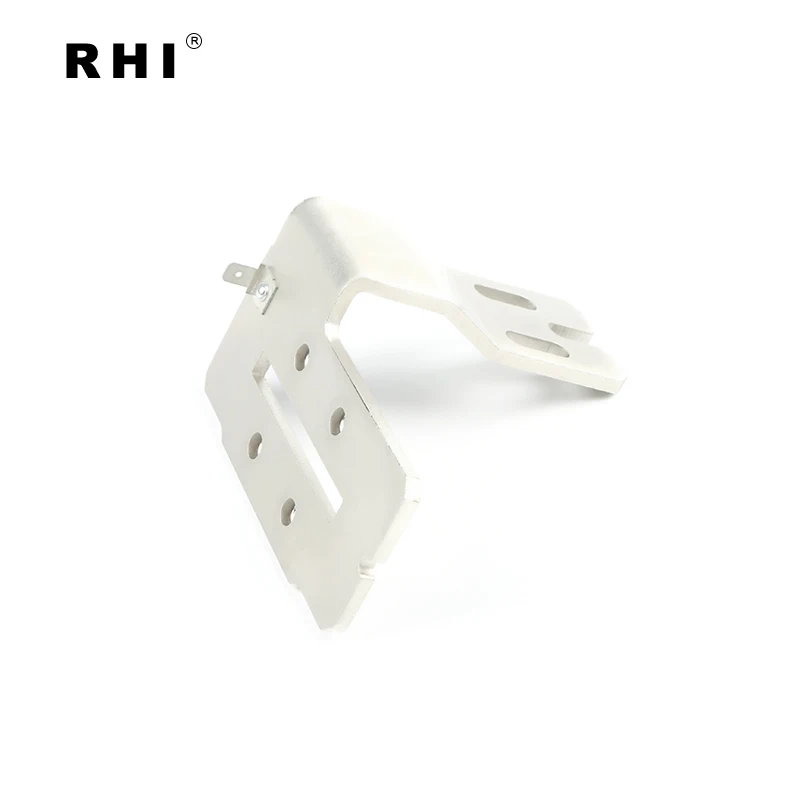

Professional supplier nickel plated copper busbar for battery pack
- Category: >>>
- Supplier: Zhejiang Rhi Electric Co. Ltd.
Share on (60447856965):
Product Overview
Description
New Energy Products RHI can produce copper busbar as your requests. Please send us your drawing for our reference. |
|  |
 |  |
And looking for other types, please contact us |
Product Information
RHI isCopper busbars are used in battery pack,electric vehicle,charge pile,new energy system,UPS center etc.
| Item name | copper bus bar | ||
| Material Standard | GB : T2 Copper with Min. 99.9% DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customized | ||
| Resistance | 0.00001Ω | ||
| Conductivity | 57 | ||
| Copper Tensile Strength | ≥500N | ||
| Copper Thickness | 1/2/3/5/10mm,depend on bus bar structure, | ||
| Insulation Material | PVC Dipping Coating is good performance, Special shaped bus bar can be put on directly, it is not easy to break when it be bent with many times. | ||
| Insulation Performance | PE and PVC are good, PVC dipping is better than PE heat shrink tubes | ||
| Flame Retardant/Fire Resistance | UL94-V-0 or upon you request | ||
| Leakage Testing | PVC Dipping Sleeves: In condition of 3500VDC with 30s upon thickness 1.5mm, Leakage is 0.025 MA; In condition of 5000 VAC with 30s to 60s upon thickness 1.8mm to 2.0mm, Leakage is 0.065 MA; Or upon your working voltage, we advise to choose better solution. | ||
| Surface Plating | Nickel, tin or silver plated etc Plating Thickness:Normally 3um to 12um or upon customers' request | ||
| Salt Spray Testing | In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest | ||
| Bending Testing | Bend 10000 times in 15 radian angle without breakage or fracture. | ||
| Temperature Rise Testing | Depend on flexible busbar cross-sectional area, We can offer all temperature rising test report before delivery if you request | ||
| Operating Temperature | -45 to +150 ºC | ||
| Quote Time | Quotation sheet will be sent in 1-3 working days when receive your enqiury | ||
| Sample/Trial Order Delivery Time | In 5 -15 working days according to different bus bar structure and manufacture process | ||
For more information, please contact us |
| Our Advantages 1.Perfect management systems: Implement ISO9001 & IATF16949 and provide PPAP document. 2.Professional sales team:more than 6 year export experience and 24-hour service line to meet customer’s need. 3.Premium quality:test from raw material to packaging and many advanced testing equipments,like temperature tester,electrical conductivity tester. 4.High production efficiency and low cost :10 year experience of production and complete production chain. 5.Highly intelligent production workshop: robot production line and high-precision machines.
|
Contact usfor more details about price, packing, shipping and discount.
Contact person: Alice YE |  |
