200A 12V 24V Coil Voltage DC Contactor Energy Saving High Epoxy Sealant DC Relay For Rechargeable Batteries

Share on:

Price:RUB 1,530.21 - RUB 7,651.02
Price in USD:Details


Product Overview


200A 12V 24V Coil Voltage DC Contactor Energy Saving High Epoxy Sealant DC Relay For Rechargeable Batteries()_01.jpg()_02.jpg

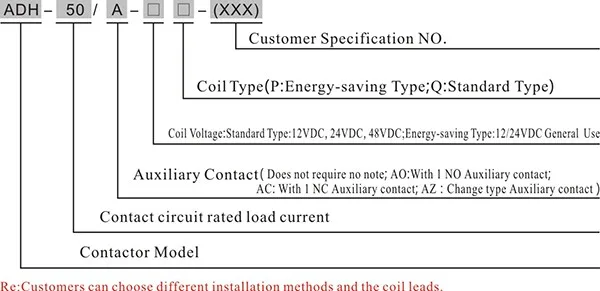

Model Implication


Electrical specification

Insulation ResistanceBetween Contacts1000MΩ(1000VDC)
Between Contacts and Coil1000MΩ(1000VDC)
Between Contacts and Shell1000MΩ(1000VDC)
Dielectric strengthBetween Contacts4000V rms
Between Contacts and Coil4000V rms

Physical specification

Impact  Stability196m/s2(20G)
  Vibration10-500Hz 98m/s2(10G)

Life expectancy

Mechanical life1,000,000 times

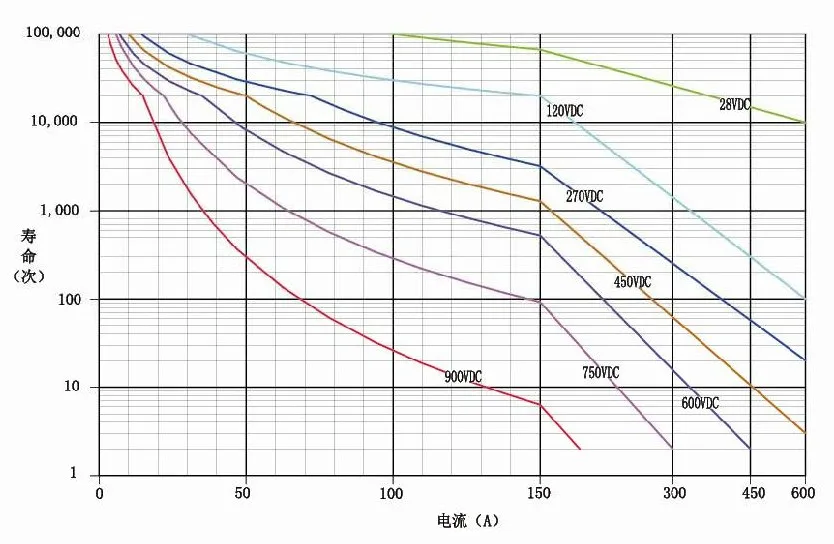

Impedance load life(Switch)

20,000times(50A 450VDC)

20,000times(-50A 450VDC)

Capacitive load life(Just closed)50,000times(100A 1ms)
60times(250A 1ms)
10times(400A 1ms)

Main contact parameters

Contact form1SH Leading-outM4 Internal thread
Contact resistance 0.2mΩ (200A)Rated load voltage12-900VDC
Maximum switching surrent2000A 320VDC(≥1times)  Maximum switching power640KW
Rated load current200A Rated Electric life20,000times
Min Load1A 12VDC Standards for electric current(10mm2Line)  200A
Short time overload  current(10mm2@40℃)  75A 15min,100A 3min,150A 30s

Coil Parameters

ParametersStandard type voltage
 Work voltage18-32
 Max voltage36
 Action voltage7-8
 Release voltage5-6
 Coil resistance4.7
 Min start current(A)1.5
 Transient surge current(A)2.5(0.1s)
 Average holding current(A)0.18(@12V)
 Steady state Power(W)2-2.3
 Actuation time(ms)≤20
 Release time(ms)≤10
 Bounce time(ms)≤5

Conditions of usage

Operate temperature -40℃~85
 Operating Humidity 5~95%RH
 IP Grade IP67
 Dimension(W×H×D,mm) 80.0×64.2×78.7
 Weight(g) 440g

Re:If you need other rated voltage, can be a special order.


1.Resistive load, including the maximum load inductance300μH;
2. According to extrapolated, it is recommended to do experiments for different situations;
3. After life time, diaelectric strength dropped lower than 100MΩ at 1000VDC;
4. The biggest and current.


Re:A1, A2 as the load; 1, 2 for the coil end; Load and coil has no polarity.
