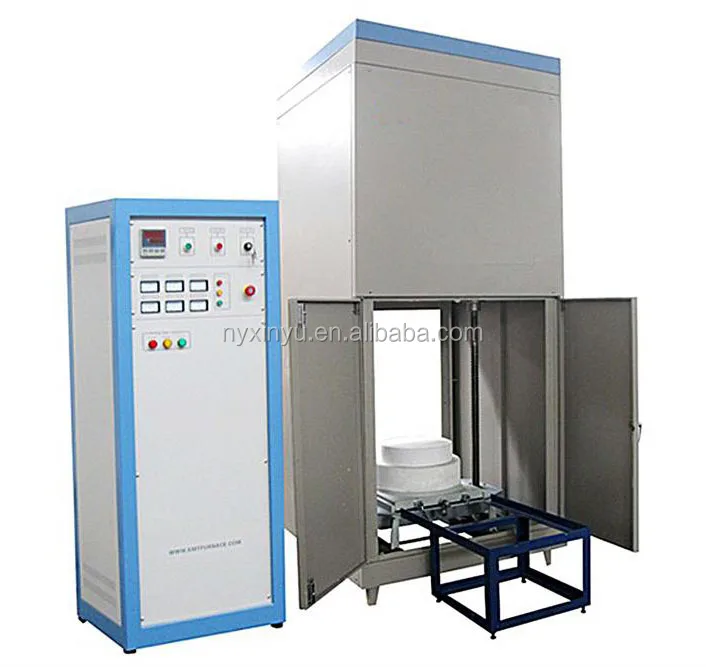

1400 degree 125L electric ceramic kiln muffle furnace for sintering ceramics pottery parts
- Category: Laboratory Heating Equipments >>>
- Supplier: Nanyang Xinyu New Material Technology Co. Ltd.
Share on (60447982972):
Product Overview
Description
1400C 125L electric ceramic kiln muffle furnace for sintering ceramics pottery parts
Many experiments and procedures taken in the lab requiring extreme heat environment from
400-1900.C. For this purpose, the high temperature muffle furnace steps in as the necessary
part of laboratory equipment. Xinyu furnace are providing the muffle furnace at a affordable cost
including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.
The sizes of the muffle furnace various from the smaller furnaces which are conveniently placed on
a workbench, to the larger units that has a coveted capacity and competent for all duty.
Electric ceraimc kiln muffle furnace Application:
Melting Muffle mainly used in chemical analysis, physical decomposition and synthesis, super hard
materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific
research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and
technology supervision agencies, and other units laboratory, laboratory are the use of such equipmen.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Product Description
Electric ceramic kiln muffle furnace specification:
Furnace construction | • High purity fibrous alumina insulation (energy saving 40% and weight lighter about 30% than old furnace). • Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 ℃. | |||
Chamber Size | 500x500x500mm (125L); | |||
Power | 25k W Max. ( power cord is included ); | |||
Voltage | AC 380V 50/60 Hz (please tell us when your place order); | |||
Max. Temperature | 1400 °C (< 1 hour) | |||
Continuous work temp. | 1300 °C | |||
Max. Heating Rate | 0-30 °C /min | |||
Temperature controller | • PID automatic control and auto-tune function. | |||
Temperature Accuracy | +/- 1 °C | |||
Heating Element | SiC heater | |||
Thermal Couple | S type | |||
Accessories (free charge) | 1 pair Thermal gloves, 1Crucible tong,one user manual | |||
Software to control furnace through computer |
| |||
Warranty | Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. | |||
Application Notes | For keep the long life of the furnace components, we recommend the heating rate not to exceed 10 °C /min. Cooling rate shall also not exceed 10 °C /min. Toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Please put furnace into Ventilated place for better safety. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. | |||
Certificate |
|

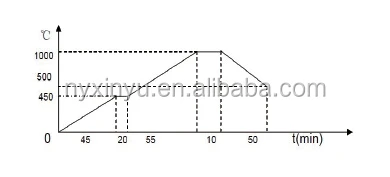

Temperature’s curve for your reference as below.( for example: 6 segments)
Similar Products
You may like following similar electric resistance muffle furnace/Oven :
| Max.1200.C sintering muffle furnace | Max.1400.C electric muffle furnace | Max.1700.C heat treatment muffle furnace | Max.1800.C heat treatment muffle furnace |
 |  |  |  |
lab furnace range
Xinyu high temperature lab electric furnace range:

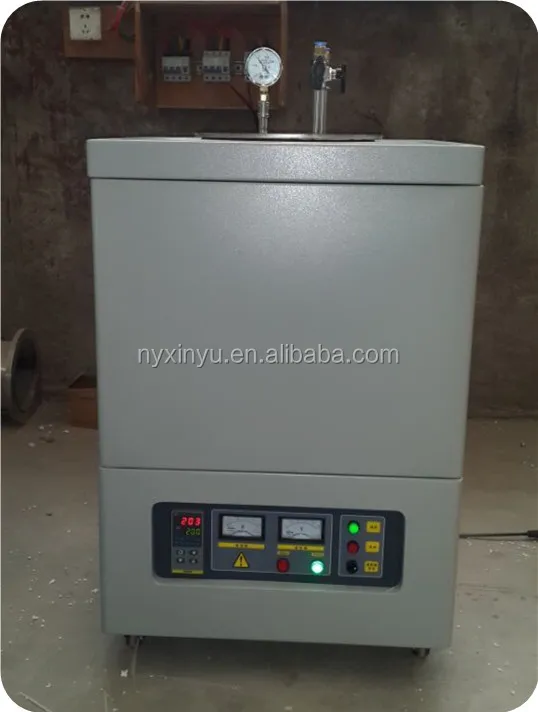

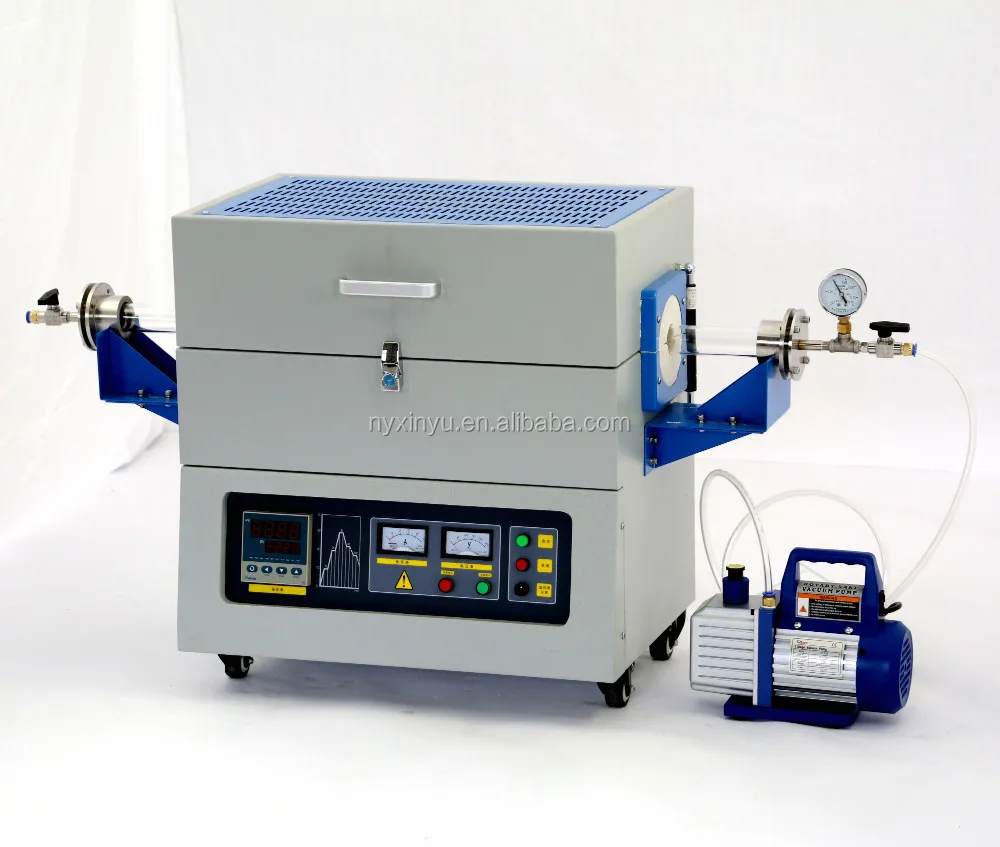

| lab sintering muffle furnace | electric atmosphere furnace | heat treatment tube furnace | melting crucible furnace |
|  |  |  |
| vacuum sintering furnace | bottom loading furnace | ||
 |  |
Packaging & Shipping
Muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,
which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.
Shipment by sea, by air or by express as per customer's requirement.
Cooperation partner
Some Cooperation partner with Nanyang Xinyu furnaces:
Company Information
Nanyang Xinyu Furnace Co., Ltd is one professional supplier of high temperature furnace, like lab muffle furnace,
atmosphere furnace, Crucible furnace, laboratory tube furnace, dental furnace, vacuum furnace,
vertical bell style furnace,CVD tube furnace, multiple heating zone (2/3/5 heating zone) tube furnace,
rotary tilting tube furnace, RTP tube furnace and car bottom furnace etc.
We have rich experience in the various thermal applications fields, especially on the high temperature lab furnace
and heating elements researthing and developping working, which earn us a sound reputation among our product
users and clients.
