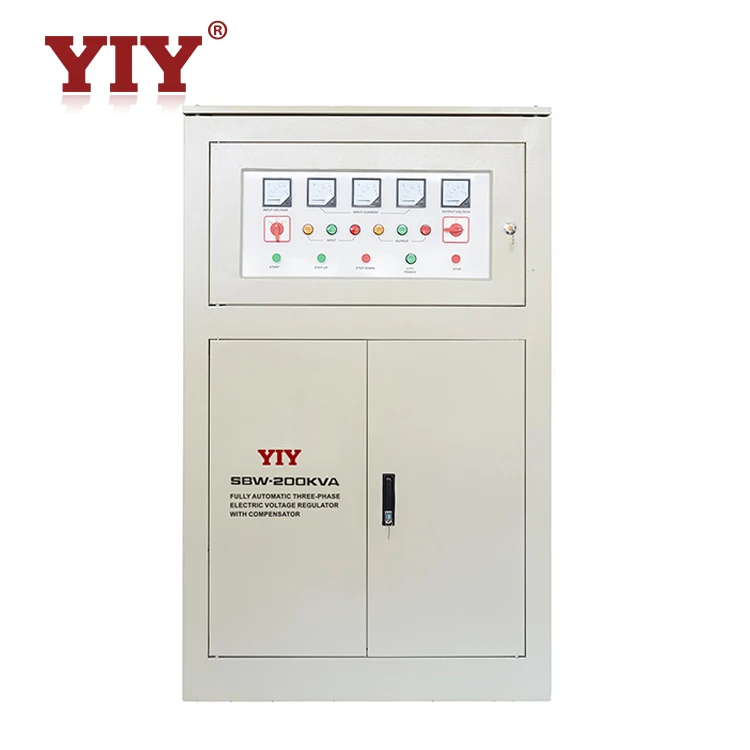

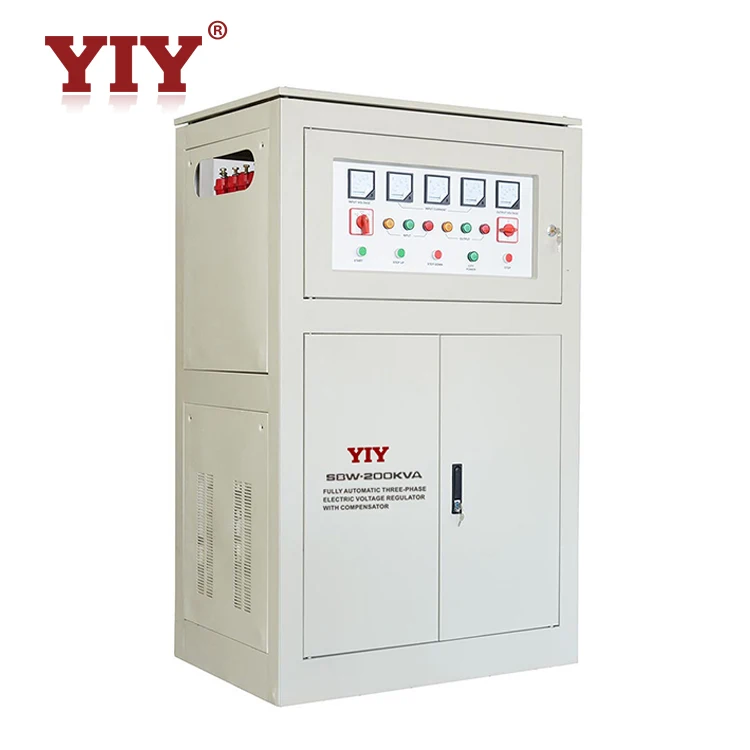

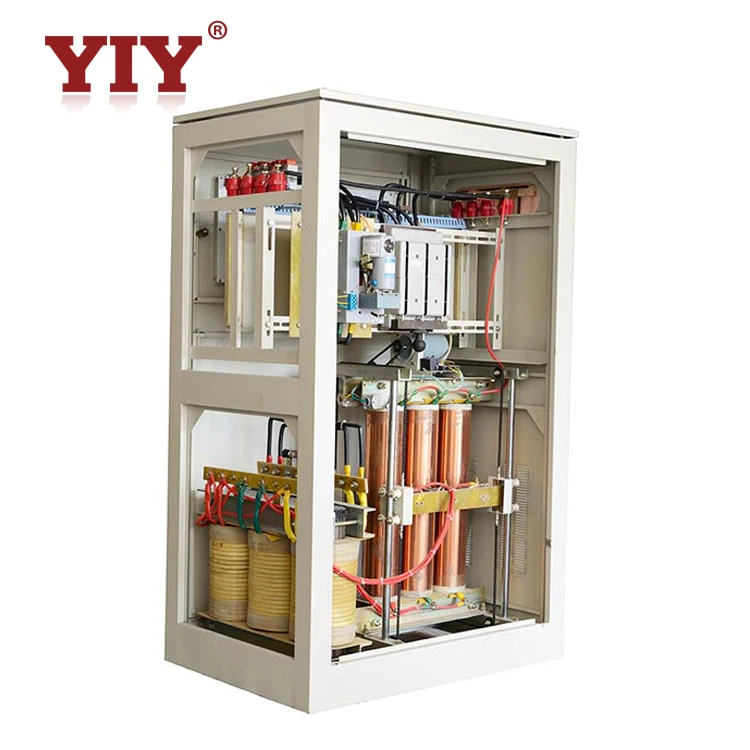

CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer
CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer
CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer
CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer
CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer
CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer
CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer

CE approved SBW series 200KVA 250KVA three phase servo motor industrial voltage stabilizer

Share on (60448131246):


Price:$5,291.00 - $5,301.00

Quantity:


Product Overview

Description





We are a creative Automatic Voltage Regulator industry leader !







Product Parameter


















































































































Specification30KVA50KVA80KVA100KVA150KVA200KVA225KVA250KVA
 InputPhaseThree phase
Voltage  AC 304V-456V
Frequency50Hz/60Hz
 OutputVoltage380V±3%
Capacity 24KW 40KW 64KW 80KW 120KW 160KW 180KW 200KW
Frequency50Hz/60Hz
 ProtectionLow voltageAC 318V±7V
Over voltageAC 426V±7V
Over heatAuto/Manual(Optional)
Overload/short circuitYES
 PackingShipping Wt.(Kg) 280 320 430 480 560 680 720 800
Packing dimensions(mm) 800*620*1380

 850*630*1520


  1050*750*1800  1100*900*1850
Pcs per carton1
 EfficiencyAC-AC>95%
 AcousticNoise level≤50dB
 EnvironmentTemperature-5°c to 45°c
Humidity20% to 90%









































































































Specification320KVA350KVA400KVA500KVA600KVA800KVA1000KVA
 InputPhaseThree phase
Voltage  AC 304V-456V
Frequency50Hz/60Hz
 OutputVoltage380V±3%
Capacity 256KW 280KW 320KW 400KW 480KW 640KW 800KW
Frequency50Hz/60Hz
 ProtectionLow voltageAC 318V±7V
Over voltageAC 426V±7V
Over heatAuto/Manual(Optional)
Overload/short circuitYES
 PackingShipping Wt.(Kg) 1040 1080 1106 1490 1580 24003150
Packing dimensions(mm)1100*920*1900

1300*1050*2000


1050*750*2000
Pcs per carton1
 EfficiencyAC-AC>95%
 AcousticNoise level≤50dB
 EnvironmentTemperature-5°c to 45°c
Humidity20% to 90%









Product Application

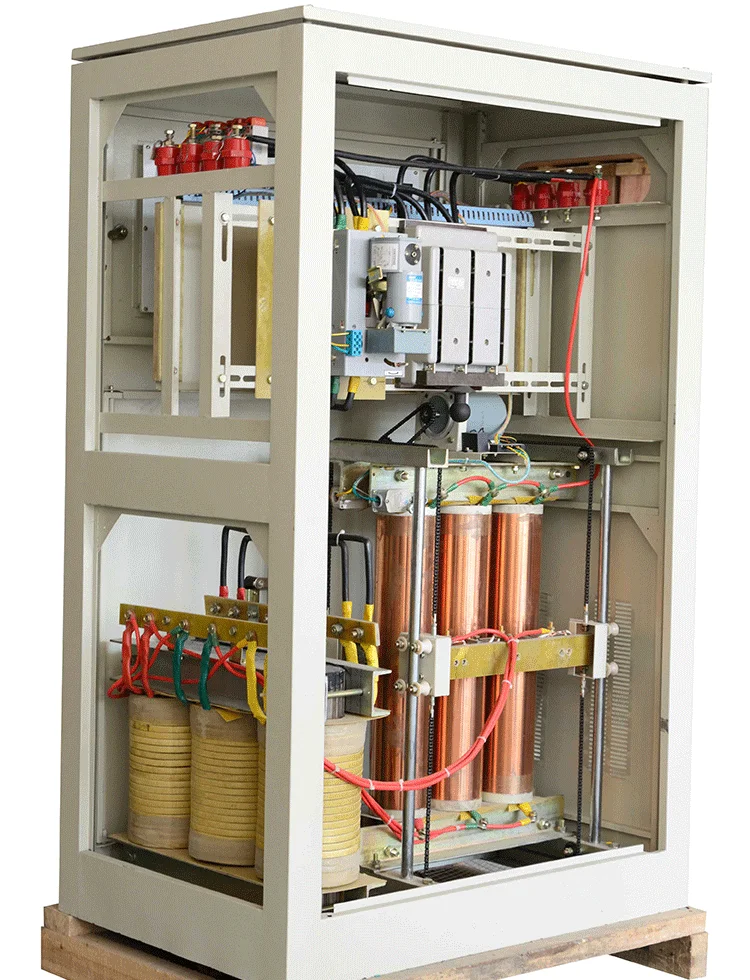

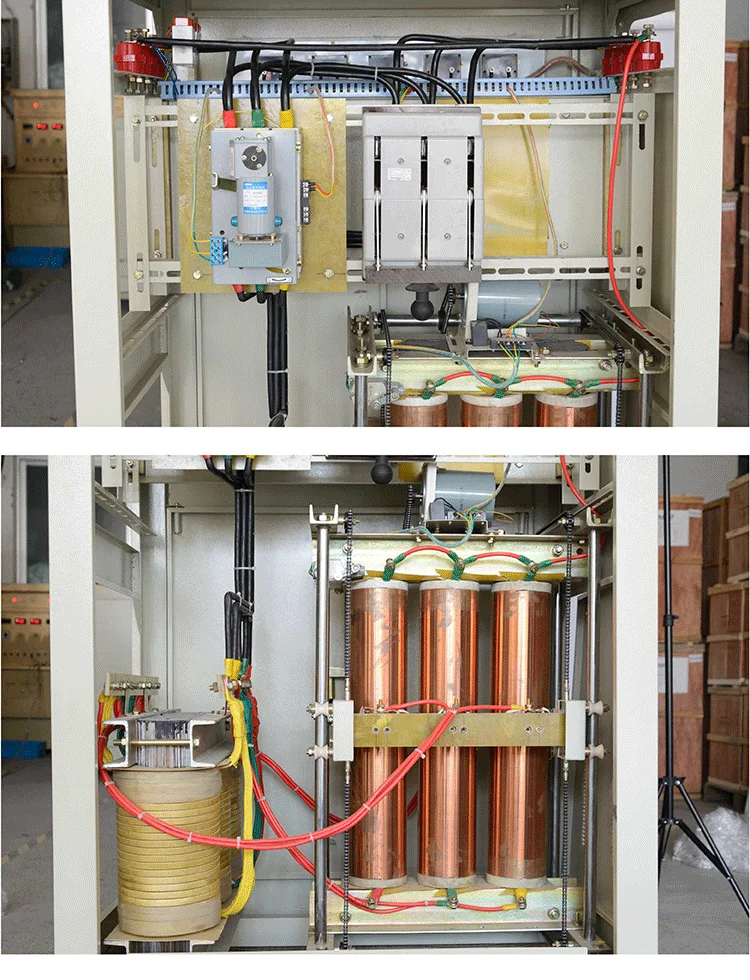

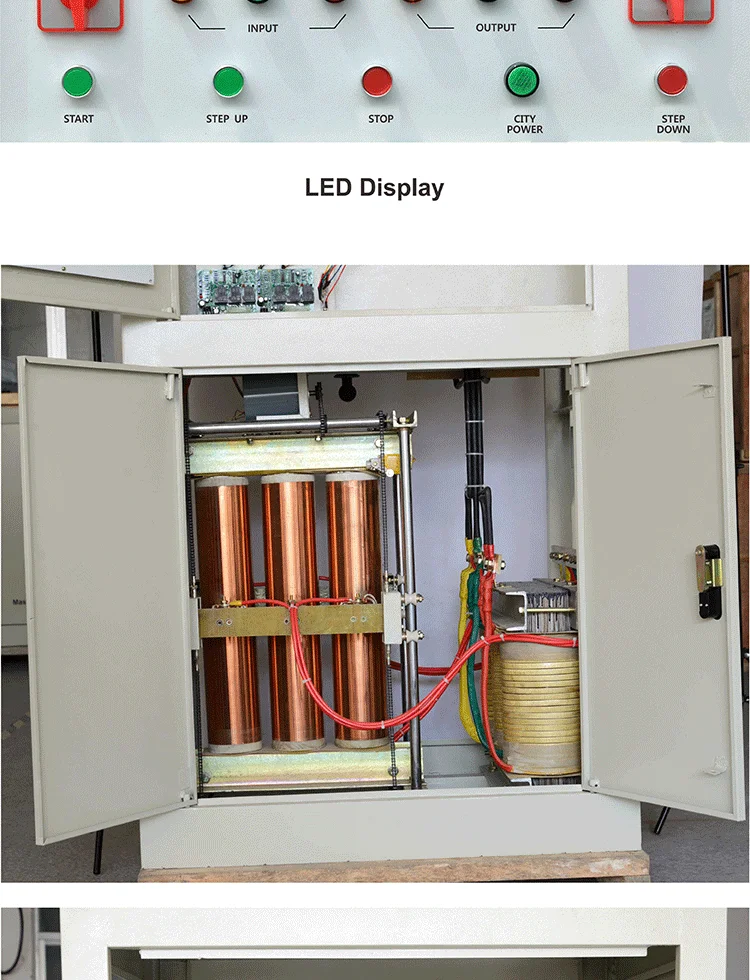

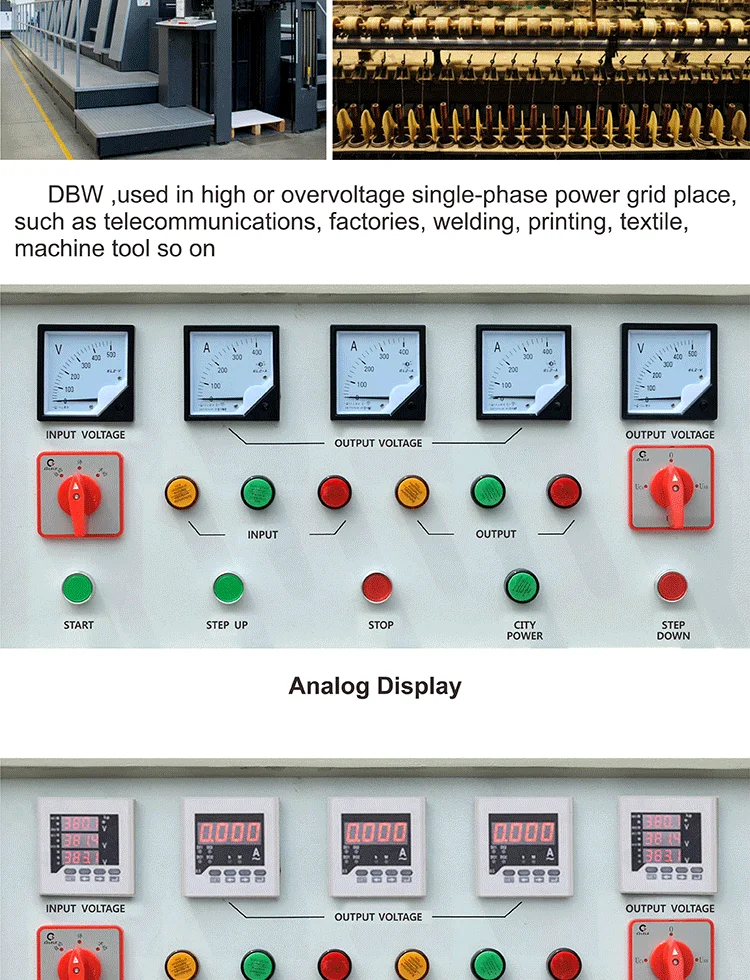

 SBW-200-250-300KVA_01.pngSBW-200-250-300KVA_02.pngSBW-200-250-300KVA_03.pngSBW-200-250-300KVA_04.pngSBW-200-250-300KVA_05.pngSBW-200-250-300KVA_06.png



Product Description

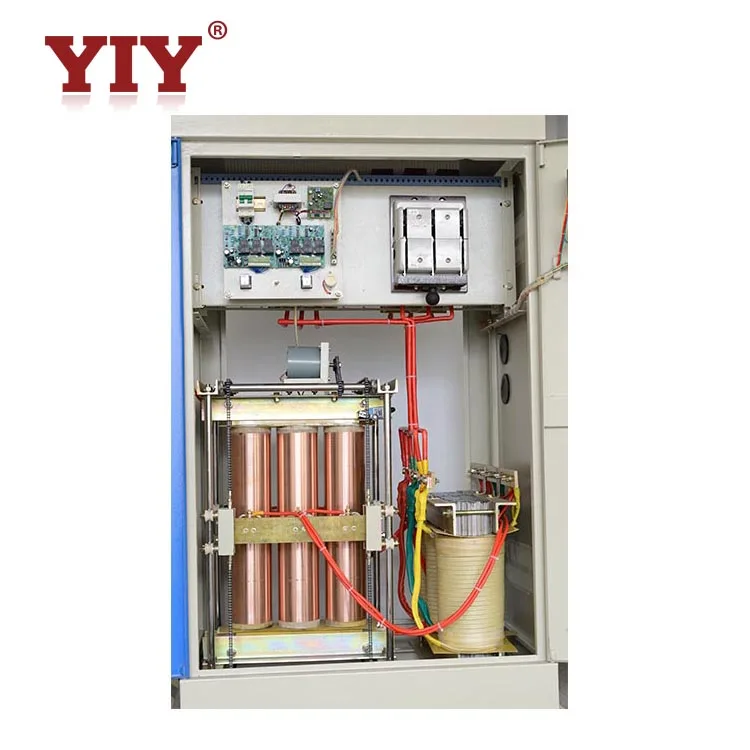

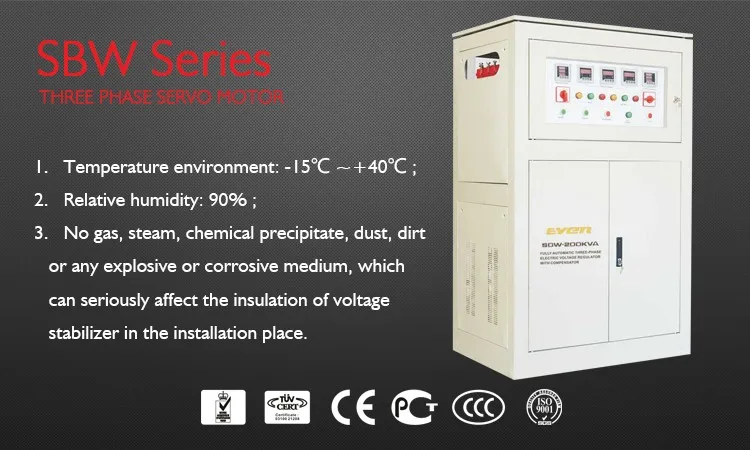

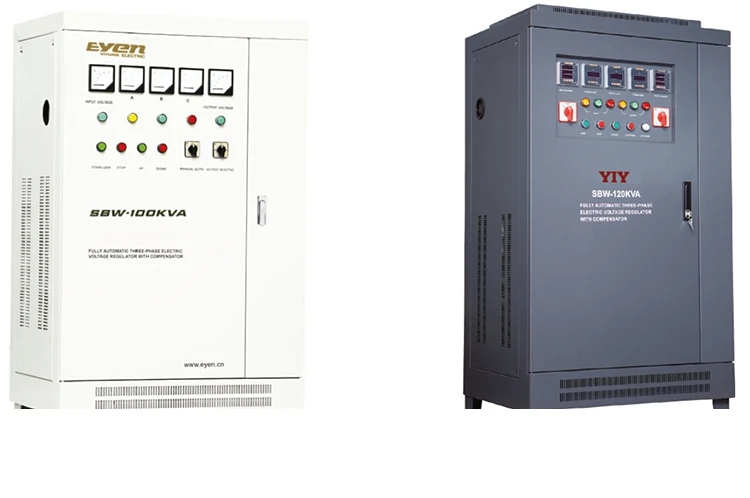

SBW series Three Phase Servo Motor


 Descriptions of SBW series Three Phase Servo Motor


SBW three phase full automatic compensated voltage stabilizer (hereinafter referred to as voltage stabilizer) is designed for stabilizing AC voltage and made with Western Europe advanced technology and on the basis of our country national conditions. It can keep output voltage in steady state automatically when the power network voltage fluctuates or the load current varies. Compared with other voltage stabilizer, it has the advantage of large capacity, high efficiency, no wave distortion, stable adjustment, suitability for kinds of loads, bearing instantaneous overload, working continually for long time.






Main technical characteristics:

                                        1. Output voltage:Three-phase: three-phase four-wire phase voltage 220V, wire voltage 380V Single-phase: 220V


     2. Accuracy of output voltage: 2-5% (adjustable)


     3. Efficiency: 95%(power class:more than 50KVA)


     4. Response speed: 1.5S (when outside voltage has 10% of change)


     5. Waveform distortion: no additive waveform distortion


     6. Protection: protection against over voltage, over current, phase failure and machine fault, as well as phase sequence protection                (single-phase and three-phase 150KVA below has no phase failure and is provided with phase sequence protection).







Company Information





Zhejiang Yiyuan Electric Co., Ltd.





|--- Headquarters: add:WenZhou produce voltage stabilizer


|


|--- Branch:add:ShenZhen produce Inverter


|


|--- Found in 2008, Sales:12 worker: 150 engineer : 10


|
|--- 10% of profit use for advancement and innovation
|
|--- Have CE, TUV, FCC, PCT and ISO9001 certificates


|
|--- Market:Russia, Southeast Asia, Africa, Mid-east regions, North America















FAQ




Q 1. what's the payment term?


A. We accept TT,30% deposit and 70% balance agaisnt copy of BL




Q 2. how's the delivery time ?


A. usually it will take about 25 days for production




Q 3. tell me the standard of package?


A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.




Q 4. what kind of material of transformer?


A. we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.




Q 5.Could you offer Form A or C/O ?


A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.




Q 6.Would you accept to use our logo ?


A.If you have good quantity,it absolute no problem to do OEM.




Q 7.We want to know month capacity.


A. It depends on which model.For example for relay type small capacity , month capacity can reach near 20000pcs   and big capacity near 3000pcs.




Q 8.Where is your market?


A. Our products are popular in russia, indonisia, Philippines,italy, america, pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.




Q 9.Does the inverter connect with solar system ?


A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..




Q10. what kind of certificate you have ?


A. Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending) .
