Product Overview
Description
Automatic Shrink Tunnel L Sealer Heat Shrink Packaging Machine
| Technical Data | BS-400LA+BMD-450C |
| Sealing type | L-sealing |
| Power supply | 380V/50-60Hz/3phase |
| Packing capacity | 15 - 35 packs/min |
| L-bar sealing size | 570x480 mm |
| Sealing height | 150 mm |
| Product size | width + height < 400mm, length + height < 480mm |
| Film type | center-folded polyolefin (POF) film |
| Max film size | 530mm (width) x 280mm(outer diameter) |
| Oven size | 1200(L) x 450(W) x 220(H) mm |
| Shrink tunnel conveyor speed | variable, max. 40 m/min |
| Shrink tunnel conveyor | rotating silicon coated rods |
| Power consumption | max. 8.5 kW |
| Working height | 780-850 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated alloyed knife with permanently heated bar |
| Main control components | Omron temperature controller, timer, relay and sensor |
| Machine main material | powder coated carbon steel |

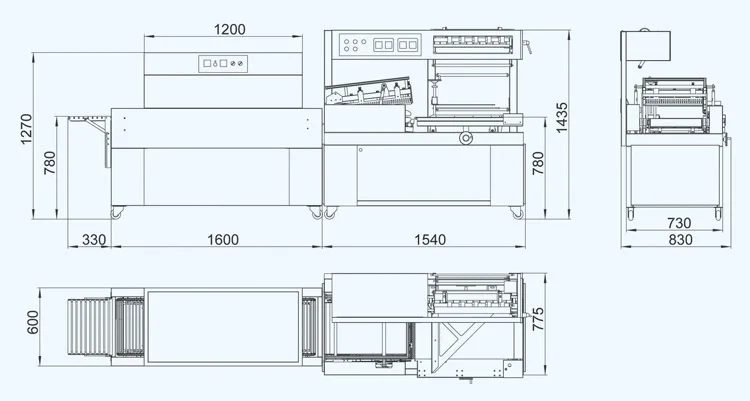

| Machine dimension | 1600 x 770 x 1450mm 1600 x 600 x 1260mm |
| Machine weight | 450kgs |
Automatic Shrink Tunnel L Sealer Heat Shrink Packaging Machine
1. BS-400LA+BMD-450C is a fully automatic shrink packaging machine including L sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
2. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.
3. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.
4. Different products with different sizes can be packed together as promotional package.
5. Adopt Omron brand parts such as temperature controller, timer, relay, switch, and sensor.
6. A pair of photoelectric switch in vertical for thin products.
7. Optional closing conveyor for small products.
8. Optional sensor for transparent products.
