(MS) 1200w 12V 230vac mppt solar power inverter 40A MPPT solar charger

Product Overview

Description

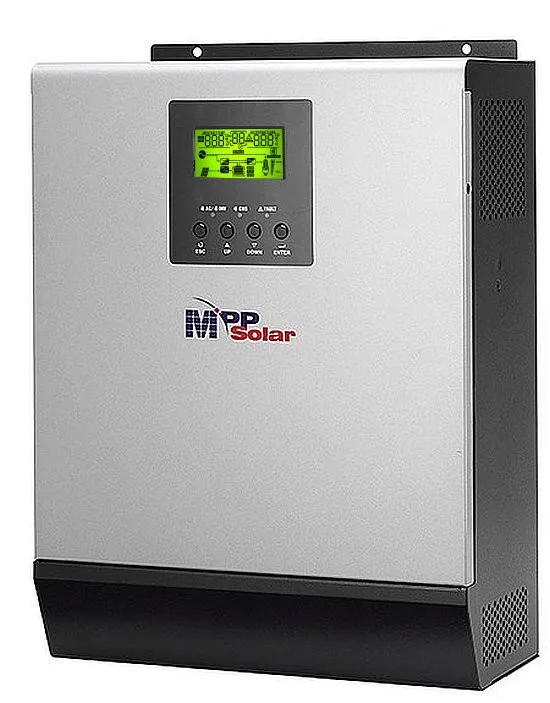

Model Name: PIP-1212MS

max 1200w 12V mppt solar power inverter 40A MPPT solar charger 12v inverter 1000w 1200w

1200w 12V 230vac mppt solar power inverter + 40A MPPT solar charger .  Main features include:

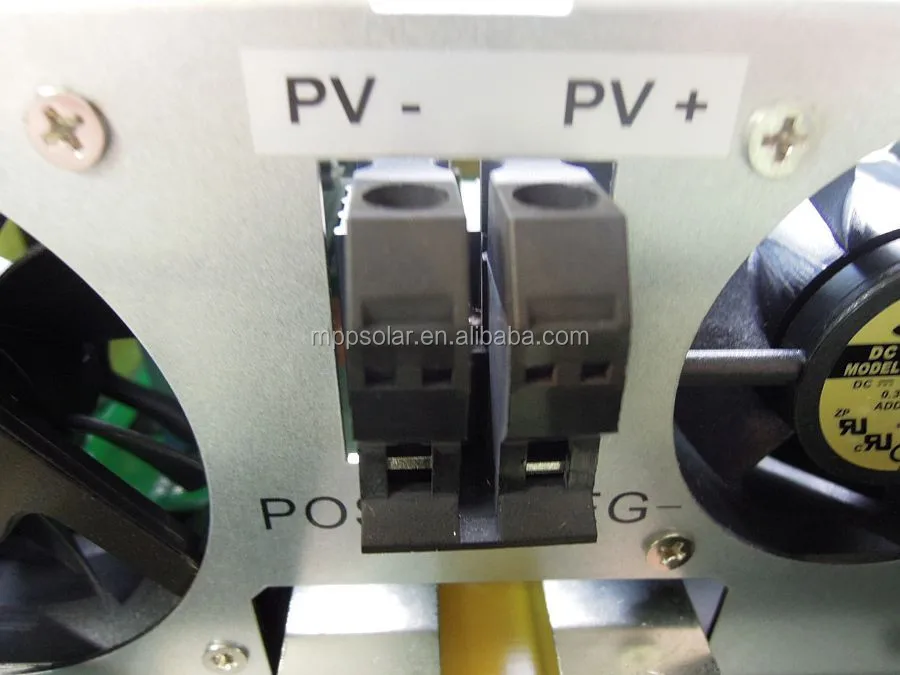

• Built-in MPPT SOLAR charger 40A!!


• Integrated 3-stage utility charger 60A!


• Adjustable AC input voltage 90~280VAC


• 1.2KW pure sine wave output with up to 2X surge max 5 seconds


• Dual priority operation selectable: AC vs. DC mode

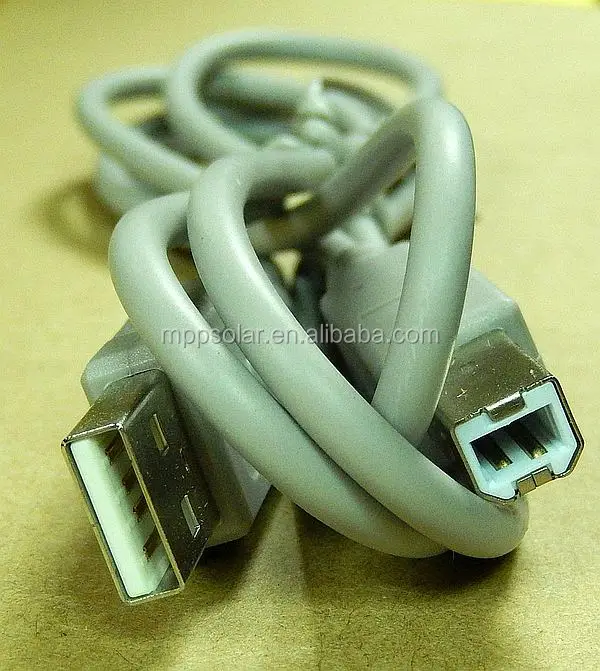

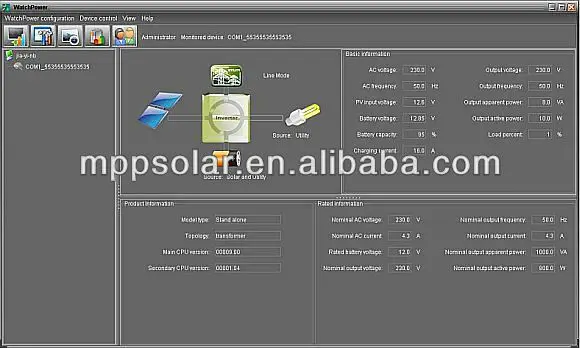

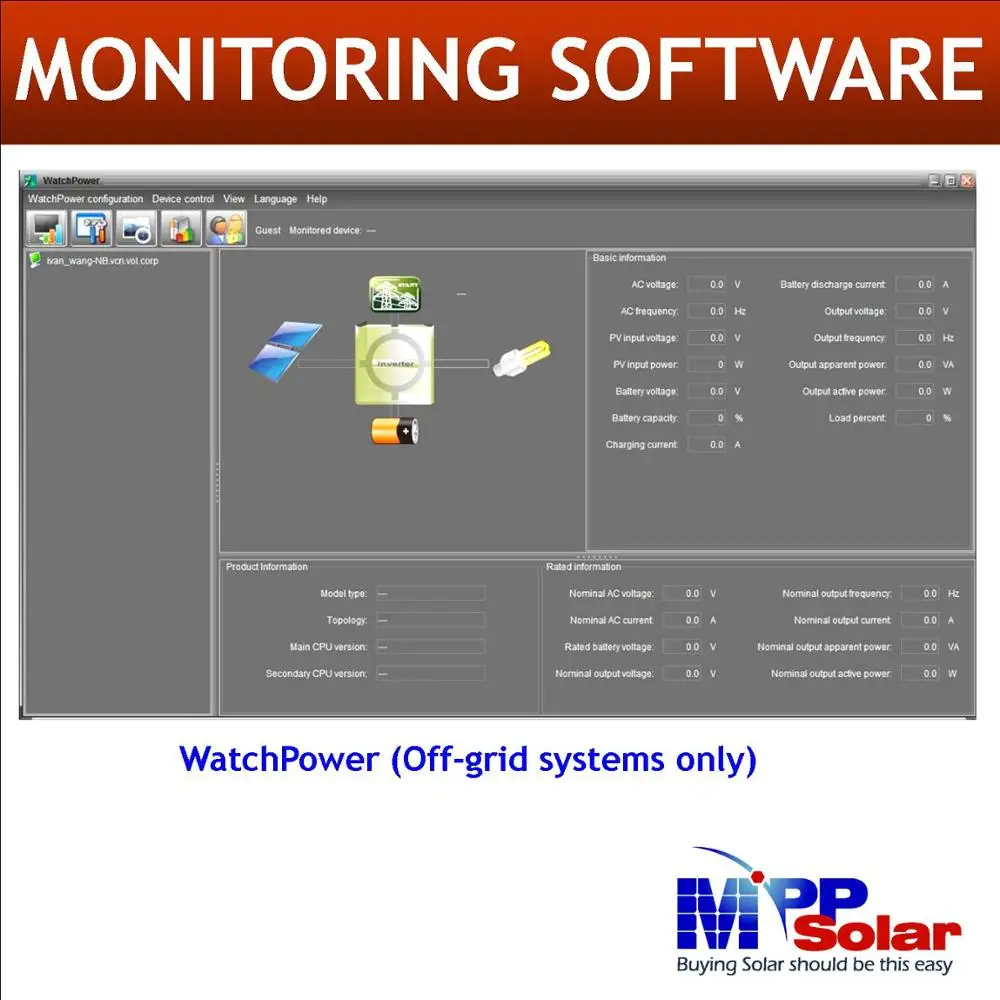

• Free monitoring software

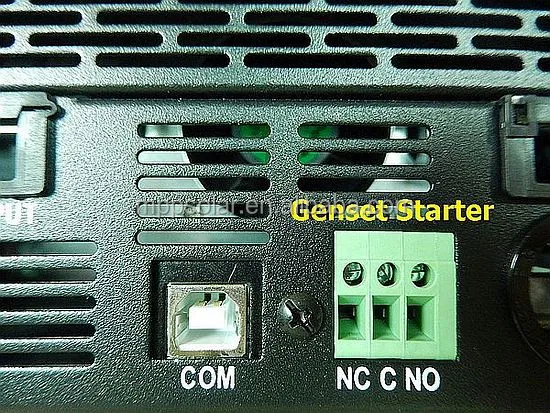

• with Genset starter dry contact



• Works with 12V battery system only

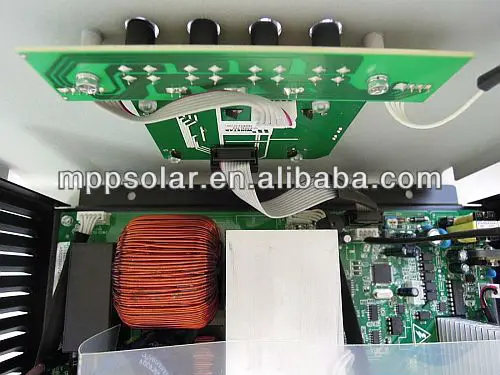

• transformerless, light weight design


• Transfer time <10ms


• Programmable LCD with menu


• 24 hour operation


• Intelligent battery charging control


• Built-in alarms and protections


• CE, EMC certified



Suitable for wide range of loads, this inverter features a transformerless design and supports continuous 24/7 operation. Also supports dual-system priority: utility priority (AC) or solar priority (DC)



**Note:  this item is for 220~240vac load only. Support 50hz or 60hz via LCD program









	1212MS	824MS	1624MS	2424MS	2424MSX	3248MS	4048MS
ELECTRICAL SPECIFICATIONS
Continuous Output	1.2KW	800W	1.6KW	2.4KW	2.4KW	3.2KW	4.0KW
Surge Rating	5 seconds max, 2X
Input Power Factor	0.8
Input Voltage Range	90~280VAC (Appliance mode), 170~280VAC (UPS mode)
Input/Output Frequency	50Hz / 60Hz
Output Voltage	230VAC±5%
Output Waveform	Pure Sine Wave
Output Regulation	< 3% RMS for battery voltage range
Peak Efficiency	93%	91%	93%
Nominal DC Voltage	12V	24V				48V
Max DC Voltage	16V	31V				60V
Transfer Time (2 Modes)	<10ms (UPS mode), <20ms (Appliance mode)**
Charging Mode	3-stage
Boost Voltage (Flooded, MF)	14.6V/14.1V	29.2V/28.2V				58.4V/56.4V
Float Voltage	13.5V	27.0V				54.0V
Max AC Charging Current	60A	10-20A	20-30A			60A
No Load Power Consumption	<20W	<25W				<50W
Power Saving Consumption	<10W	<10W				<15W
Solar Charger
Max PV Input / Output	500W	600W			1500W	4000W
Max Charging Current	40A	25A			60A	80A
Max PV Input Voc, MPPT Range	100V, 18~80V	75V, 30~66V			145V, 30~115V	145V, 60~115V
Algorithm	MPPT
ENVIRONMENTAL / MECHANICAL  SPECIFICATIONS
Certification	CE
Operating/Storage Temp.	0°C ~ 55°C / -15°C~ 60°C
Operating Humidity	5~90%RH Non-Condensing
Dimension	355*272*100mm				479*295*140mm	468*295*140mm
Net Weight	7.0Kg	7.0Kg	7.1Kg	7.5Kg	11.8Kg	11.5Kg	11.5Kg
