Teenwin reusable medium size 20m3 biogas digester steel mould
- Category: >>>
- Supplier: Shenzhen Teenwin Environment Co. Ltd.
Share on (60448575465):
Product Overview
Description
reusable medium size 20m3 biogas digester steel mould
Teenwin reusable medium size 20m3 biogas digester steel mould
OEM &ODM Order are greatly welcomed !
Product Description
Advantages of Teenwin reusable medium size 20m3 biogas digester steel mould
1. Easy and simple to be built
2. Short construction time,only 2-3days
3. Easy to reproduce with the same moulds
4. Field guidance andtechnology training
5. 100% guaranteed success rate
6. Simple maintenance
7. Durable,over 30years liftspan
8. Excellent safety feature

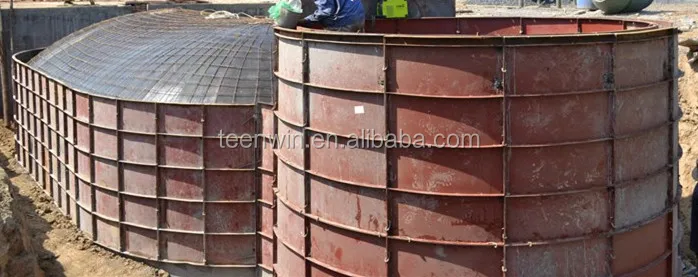

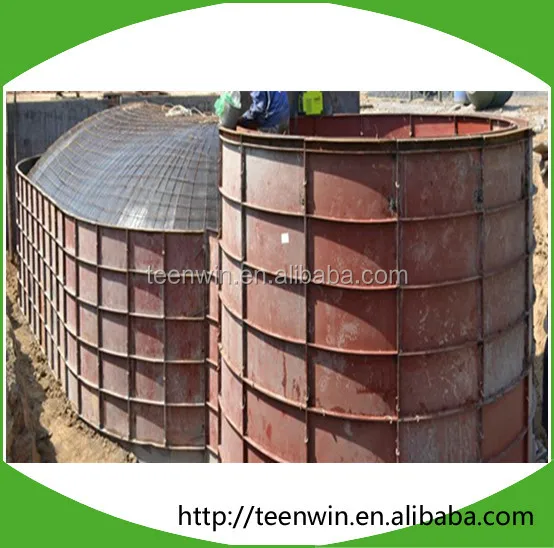

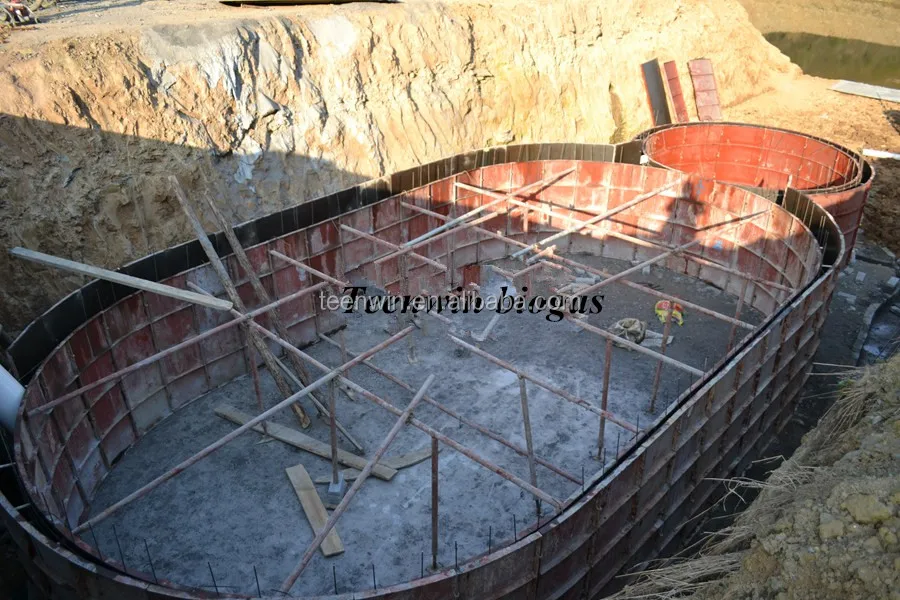

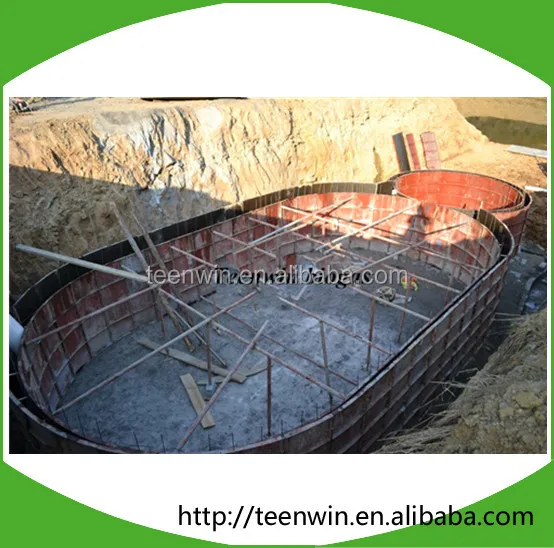

Teenwin reusable medium size 20m3 biogas digester steel mould to generate electricity is built with the steel mould.The mould is reusable to construct the concrete digester of the Chinese hydraulic biogas plant. The assembly is very convenient, and the structure of the mould is firm. Only 2-3days are enough to build the Chinese hydraulic biogas plant with the steel mould.
With 20 m3 small size Teenwin China biogas digester to generate electricity, enough biogas can be provided to 2 families of 4 persons each for cooking and lighting.The digester is made of concrete.
By making use of steel mould with outer 20 m3 to construct, which is can be reusable for many times:
The construction material needed to install the 20 m3 digester:
Material | Q’TY |
Smashed stone | 4.0 M3 |
Sand | 3.5 M3 |
Cement | 1400 Kgs |
Brick | 100 Pcs |
Plastic pipe | 4 Meter |
Concrete bar | 8 Kgs |
Raw material needed to produce 1 cubic meters biogas
Raw material | Water content (%) | Dry material gas production rate (m3/kg)
| Raw material needed to produce 1 cubic meters biogas(kg) | |
A | B | Dry material | Fresh material | |
Pig Manure | 82 | 0.25 | 4.00 | 22.23 |
Cow Manure | 83 | 0.19 | 5.26 | 30.96 |
Chicken Manure | 70 | 0.25 | 4.00 | 13.34 |
Human Manure | 80 | 0.30 | 3.33 | 16.67 |
Rice Straw | 15 | 0.26 | 3.84 | 4.53 |
Wheat Straw | 15 | 0.27 | 3.70 | 4.36 |
Corn stalks | 18 | 0.29 | 3.45 | 4.21 |
Fresh grass | 76 | 0.455 | 2.20 | 9.17 |
Water Hyacinth | 93 | 0.31 | 3.23 | 46.15 |
The following data are basis on theoretical value
Take 100 kg pig manure for example, according to the above table
Calculating:
Waste * ( 1- A ) * B -----------→ 100 * (1-82%) * 0.25 = 4.5 m3 biogas
So 100 kg pig manure can be produce about 4.5 m3 biogas
Data:
1))) 10 m3 Teenwin biogas digester can generate 5 m3 biogas if the waste is enough,
2))) 23 kg pig manure can produce 1 m3 biogas-——→ 23 * 5 = 115 kg pig manure
30 kg cow manure can produce 1 m3 biogas——→30 * 5 =150 kg cow manure
Teenwin reusable medium size 20m3 biogas digester steel mould

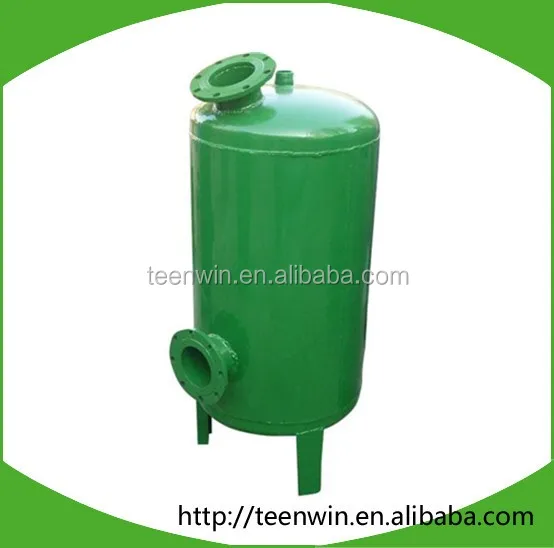

Desulfurizer for Teenwin biogas plant methane
Contact Owen
Tel:+86-15302648117
Whatsapp: +86-15302648117
Skype: owenzhujie
QQ:794144055
Wechat:owenzhu2
Facebook:Owen Chu
Packaging & Shipping
Delivery Details :
Lead time: 10-15 working days after receipt of deposit.
Shipment Method :
By Sea is the best solution.
You can choose your own shipping company.
Our Services
Service and Advantage:
♦ Sales service time:24 hours for one day, 6 days for one week to supply completely service for you any time.
♦ Warranty time:12 months.
Delivery Service :
♦ Export standard , safety and environmental packing Quick lead time for mass production.
♦ Accept EXW, FOB, CIF and other price terms.
Payment Terms:
♦ T/T, Western Union, L/C, Money Gram.
Technical Service:
♦ Professional Engineering supplies technical supporting.
♦ Support OEM, ODM project.
Quality service:
♦ 100% quality testing for every finished products before delivery;
♦ Professional function testing for every process.
♦ One years warranty service for all products.
Company Information
Shenzhen Teenwin Environment Technology Co., Ltd., established in 2014, is located in Shenzhen
City.
Our company is known for quality, credibility, and innovative services by our business philosophy to
refine and improve the quality of our products and services. Globle customer can experience a
win/win solution. We make new contributions to safeguarding global clean water and clean air.
We have a first class technical team. All our engineers have over tens years experience in the field of
biogas technology. We have participated in many biogas projects with organizations such as WFP,
UNIDO,UNDP and SNV. Our advanced R&D technology with biogas plants have grown over the past ten
years through diverse project experience.
Our philosophy is win/win. Through research,hard work and development we have developed the
spirit of patience and service. At Teenwin Biogas great customer service benefits individuals and
businesses.
FAQ
1. What are my payment options?
For samples, it is 100% in advance.
For mass production, it is 50% in advance and 50% balance.
Welcome West Union and TT. bank account.
2. How long will it take to ship my order?
As long as there is stock available, Teenwin biogas usually ships items within 3 work days for samples and within two weeks for formal order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches our bank account. If we aretemporarily out of stock, we will do our best to inform you of the estimated lead time.
3. What does your warranty cover?
Teenwin’s biogas product is backed by a 1 year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
